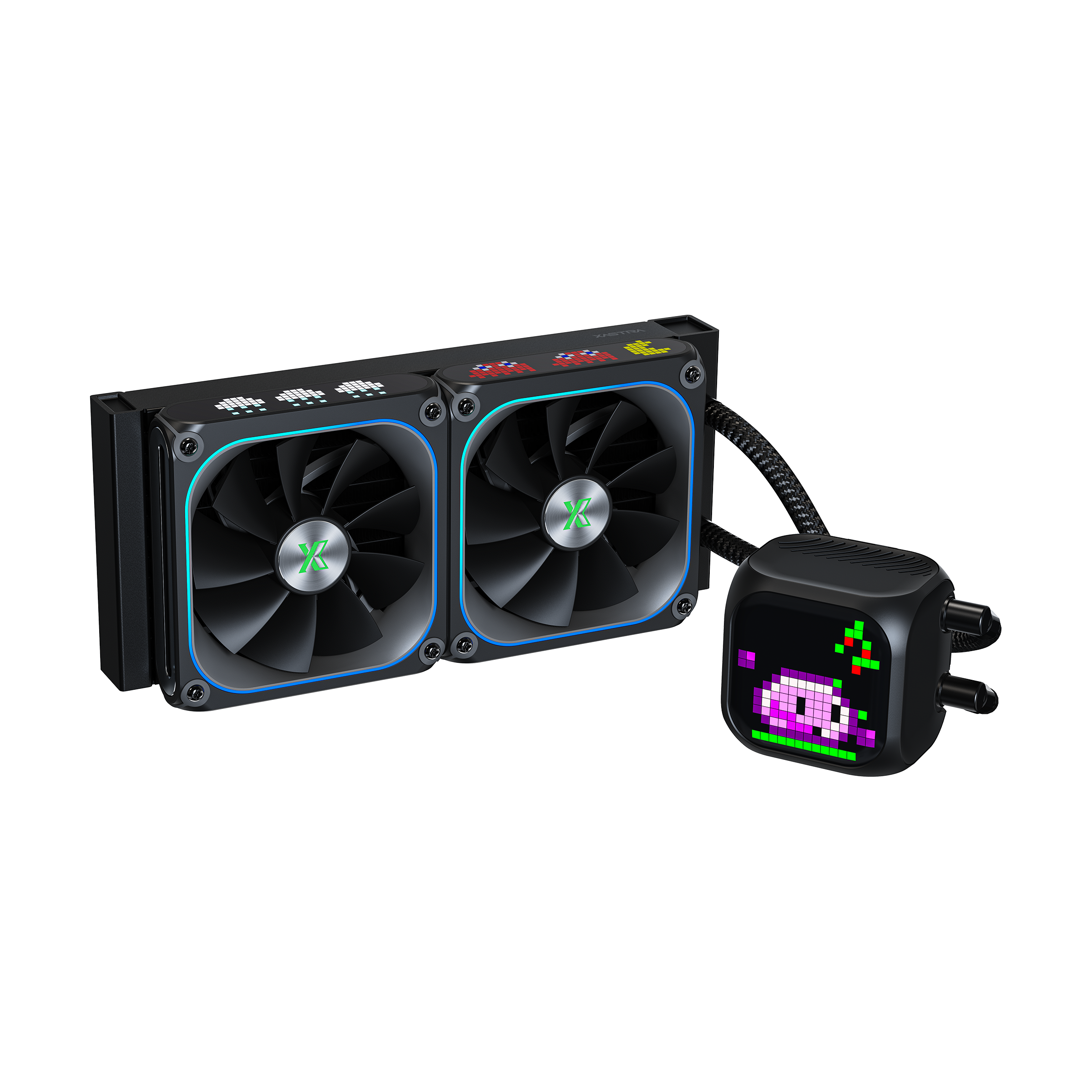

ASTRA LZ240 ARGB BK
·Innovating pixel creativity with 16×16 pixel screen on the pump and 28×8 pixel screen on the fan frame
·Customizable pixel creation with static and dynamic options available
·Come with 28mm-thick FDB fans while featuring ARGB inspiration halo on the front and precision aluminum alloy cutout frame design

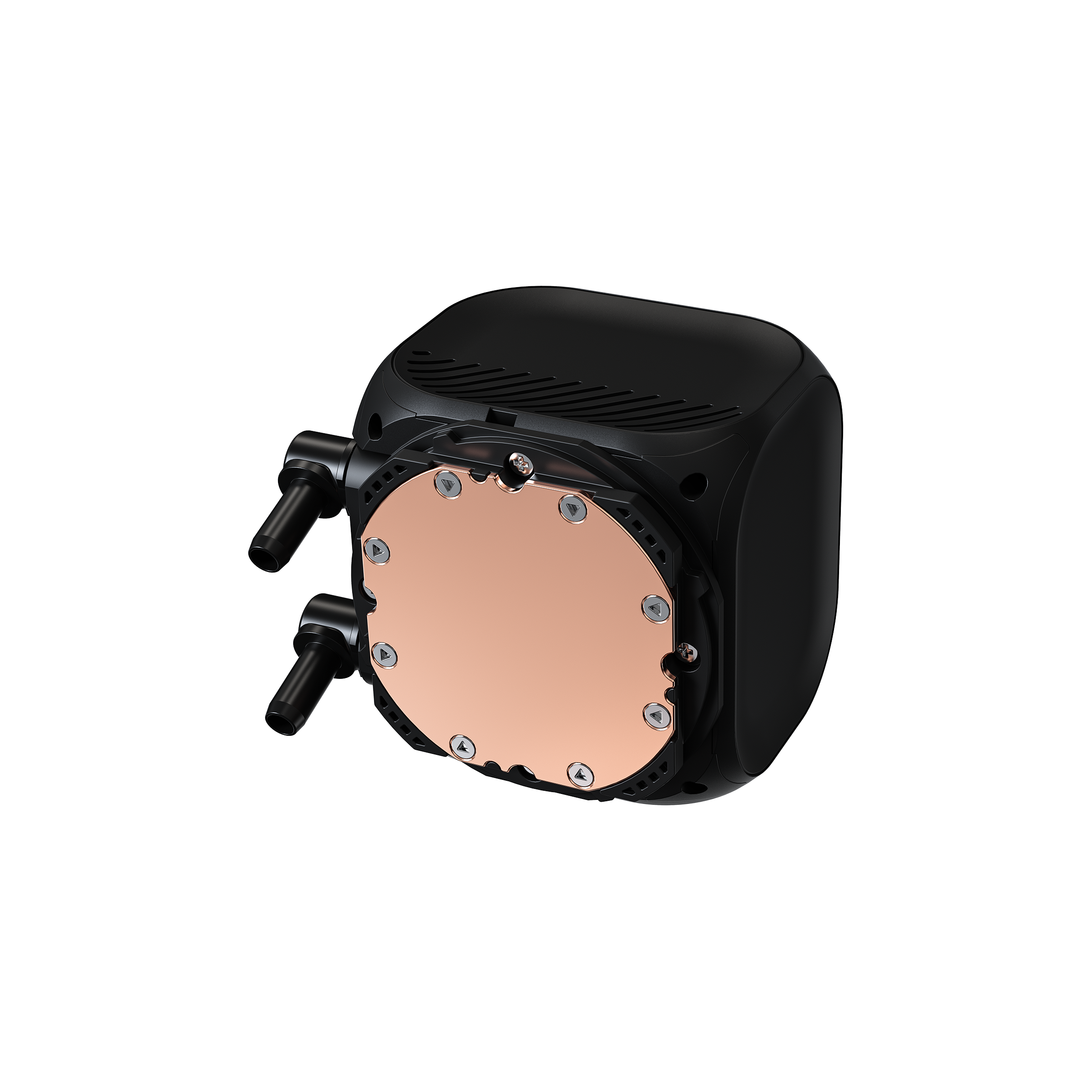

·Built in high-performance pump with ultra-durable ceramic bearing, three-phase six-pole motor, 60x60mm oxygen-free large copper base and 0.1mm microchannel for stable and consistent performance release
·Pump adopts PWM control function for keeping balance between performance and noise
Gallery
Specifications
| Model: | ASTRA LZ240 ARGB BK |
| Socket compatibility(Intel) | Intel LGA1851/1700/1200/115X |
| Socket compatibility(AMD) | AMD AM5/AM4 |
| Radiator Dimension | 277x120x27mm(LxWxH) |
| Radiator Material | Aluminum |
| Tube Material | Rubber |
| Tube Length | 330mm |
| Water block Dimension | 70x70x65mm(LxWxH) |
| Cold Plate Material | Oxygen-free Copper |
| Pump Current | 0.35A |
| Pump Speed | 600~3000±10% RPM |
| Pump Bearing | Ceramic Bearing |
| Pump Noise Level | ≤28 dB(A) |
| Pump Connector | 4-Pin+9-Pin |
| Included Fans | 2 |
| Fan Bearing Type | FDB Bearing |
| Fan Dimension | 124×120×28mm(LxWxH) |
| Fan Connector | 9-Pin |
| Fan Speed | 800-2200±10% RPM |
| Fan Airflow | 74.76 CFM |
| Fan Air Pressure | 3.72 mmH2O |
| Fan Noise | ≤33.9 dB(A) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.65 A |
| LED Type | Addressable RGB LED |
| LED Connector | 9-Pin(for Controller) |
| LED Rated Voltage | 5 VDC |
Downloads
Software download: Xastra Pixel V2.4 Setup
Product intro: Xastra Astra Series AIO Product Intro
User’s guide: Xastra Pixel User’s Guide
