Q602 ARGB

in stock

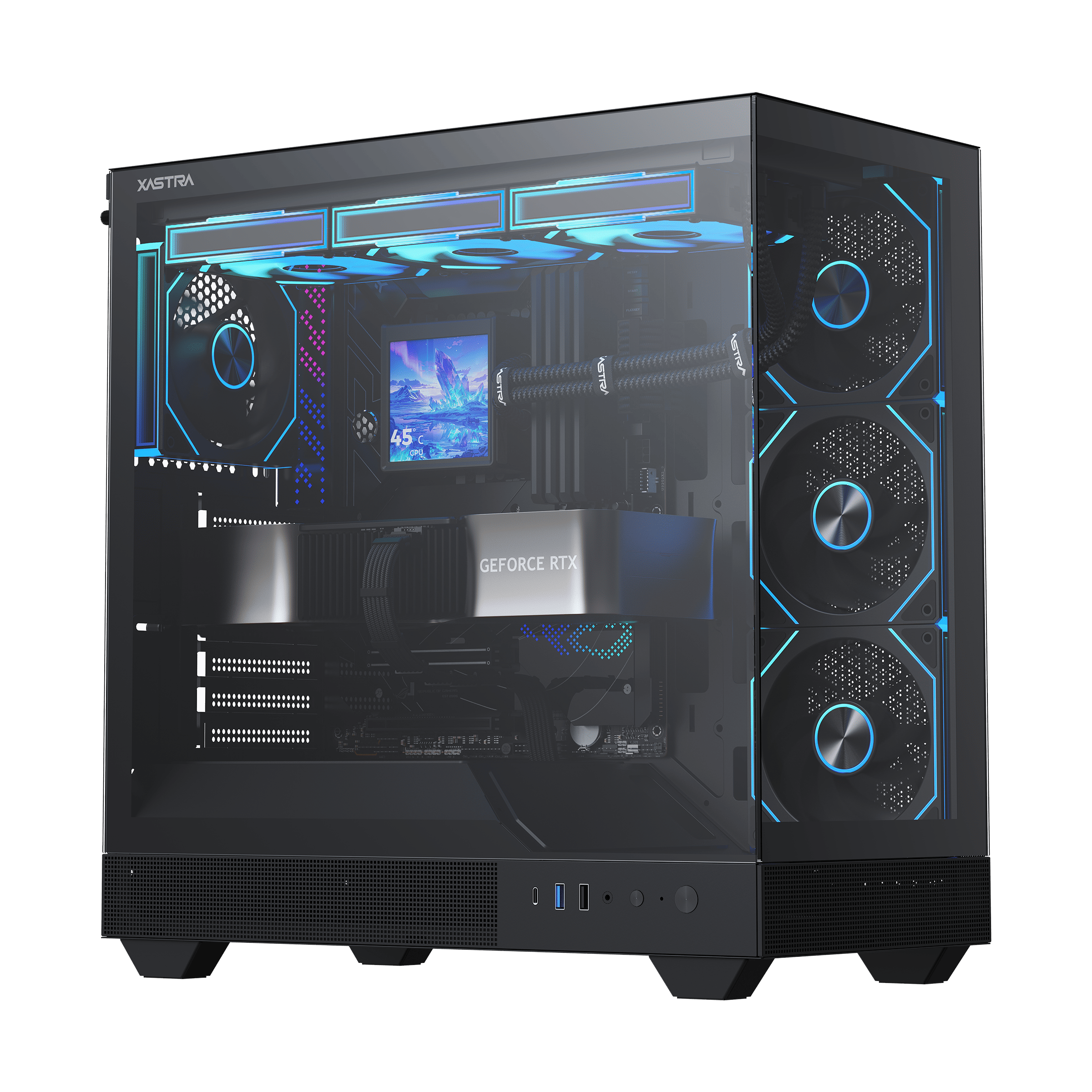

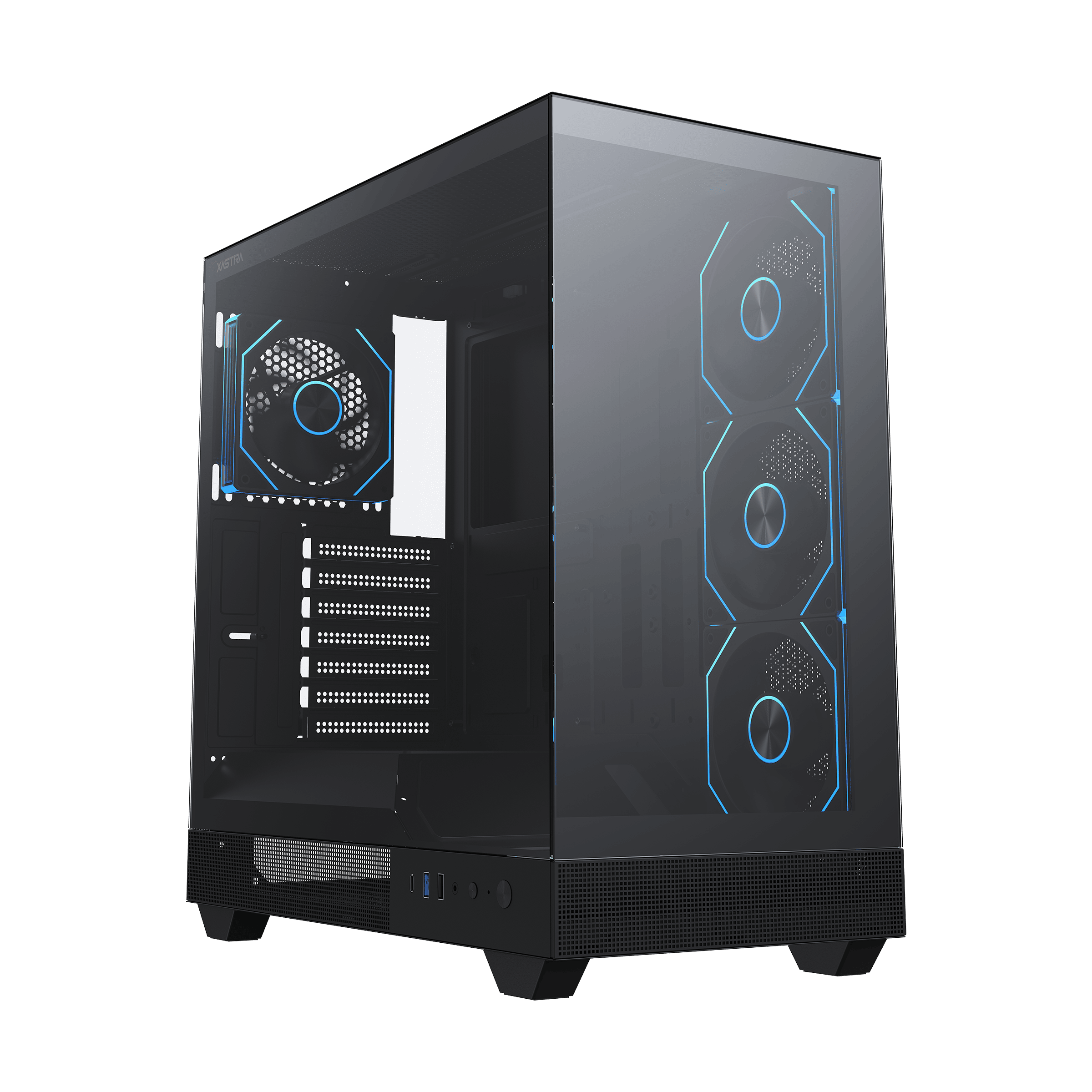

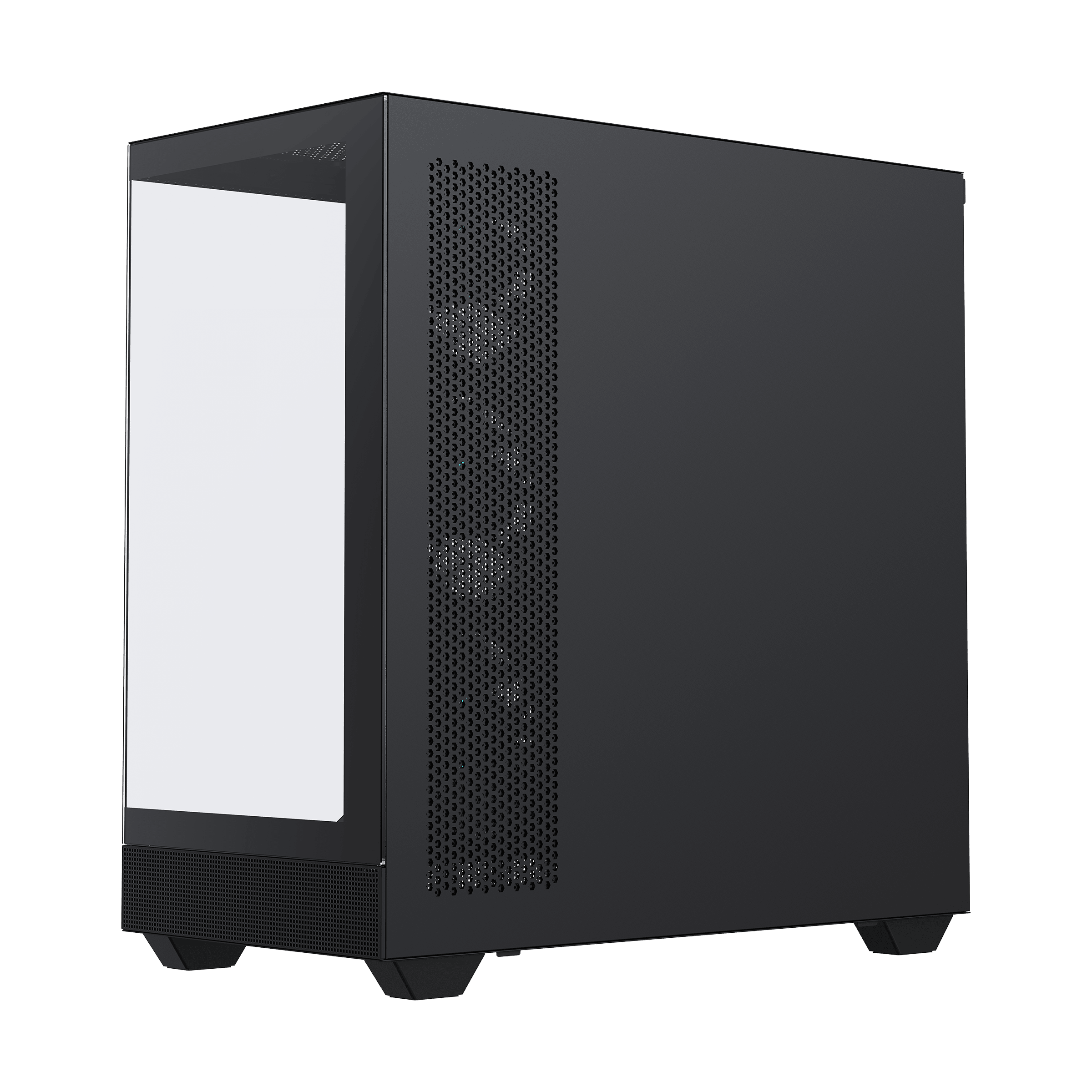

· Panoramic View: The front and side panel are crafted by high-transparency tempered glass, combined with a pillarless design.

· Optimized Airflow: Featuring ventilated PSU shroud and mesh panel of bottom and side to maximize intake.

· Abundant Cooling Support: Supporting up to 360mm radiator on top, and up to 9pcsx120mm fan capacity, plus 2pcsx140mm fans on top and 1pcsx140mm fan on rear.

·Compatible with motherboard up to EATX (≤285mm) , while fitting graphic cards up to 415mm for high-end build needs.

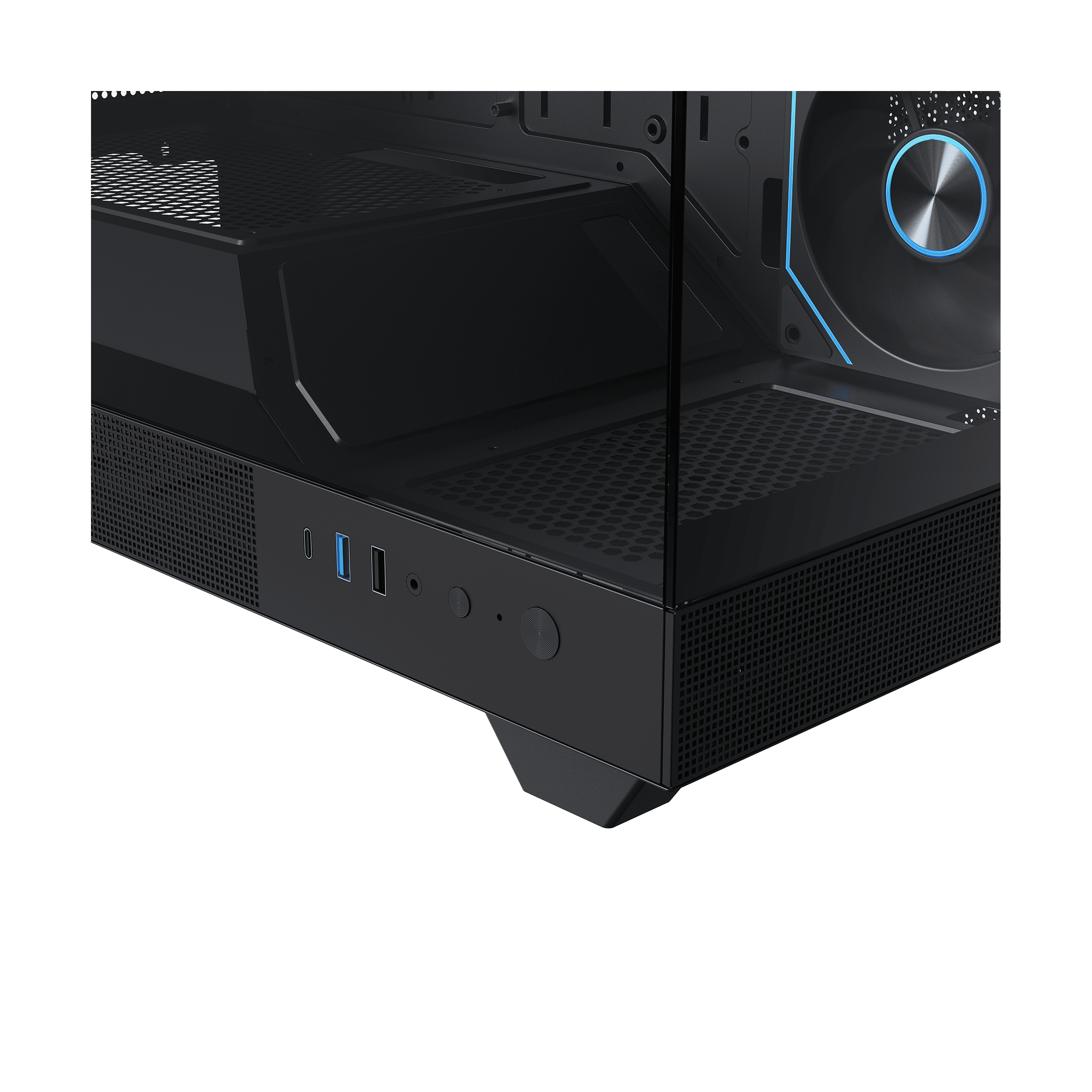

· High-Speed Type-C Port: Built with a Type-C USB 3.1 Gen2 port, supporting data transfer speeds up to 10Gbps.

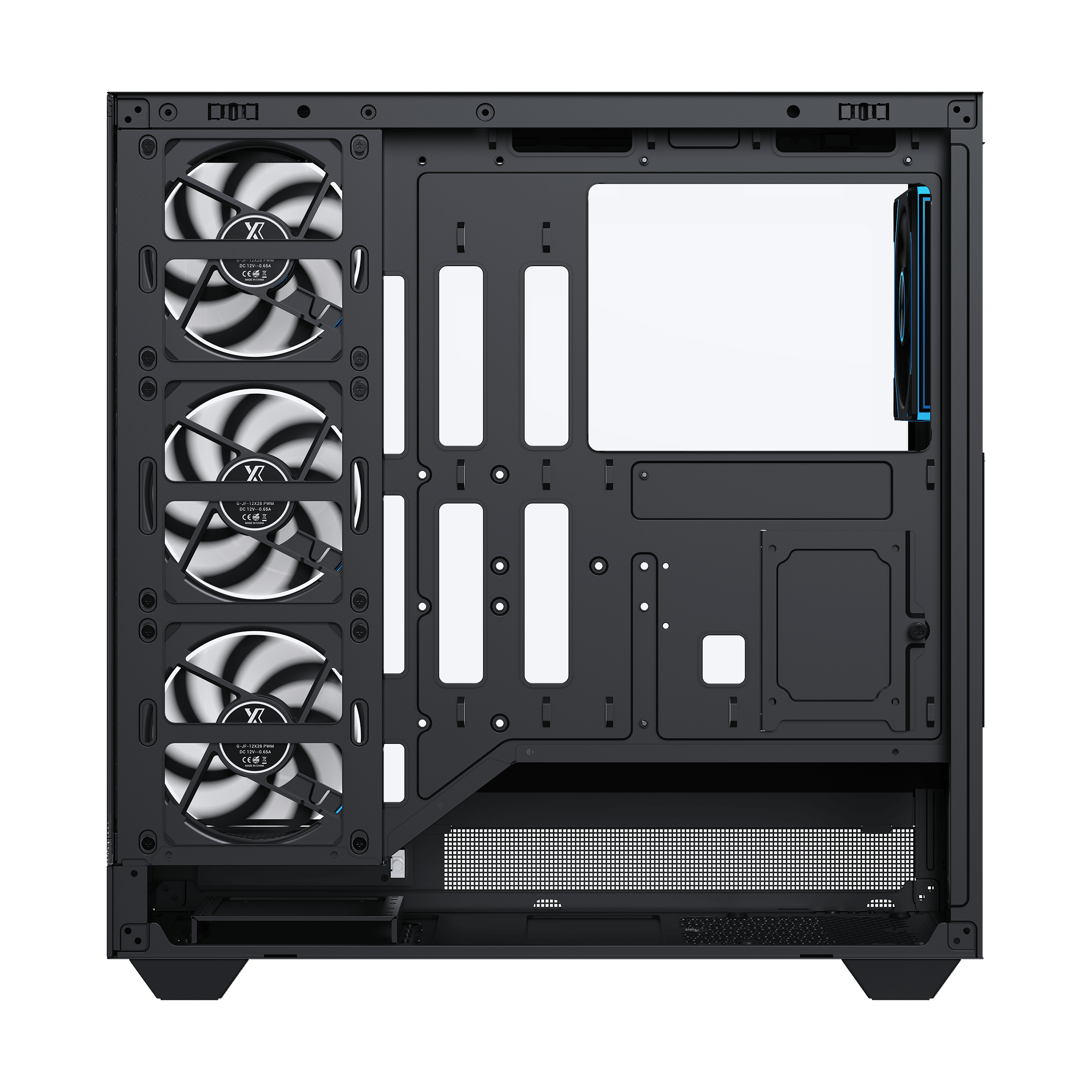

· Pre-installed Fans: Coming with seven high-performance ARGB fans across the side, top and rear.

· Included Fan HUB: Equpped with 6-port ARGB & PWM fan hub for speed control and RGB lighting effects.

Categories:

Specifications



Product Specifications

General
Model Q602 ARGB
Case type Mid-Tower
Product Dimensions 448x225x450mm (LxWxH)
Material(s) SPCC+Tempered Glass+ABS
I/O Port USB3.0x1，USB2.0x1，Type-Cx1，Power，Reset，HD Audio+Mic Jack，

Compatibility&Clearance
Motherboard support E-ATX（285mm）/ATX/M-ATX/ITX
Max.PSU Length ATX-POWER(Max.L:200mm)
Max.CPU Cooler Height ≤180mm
Max.GPU Length ≤415mm

Expansion slots & Drive Bays
PCl Expansion slot 7
Storage 3.5″HDD x 1 + 2.5″SSD x 2

Radiator support
Front /
Top 240mm/280mm/360mm
Bottom /
M/B Side /
Rear 120mm/140mm

Fan support
Front /
Rear 120mmx1/140mmx1
Top 120mmx3/140mmx2
Bottom 120mmx2
M/B Side 120mmx3
Maximum Number of Fans 9

Model

 P/N

EAN(13)

More information
Q602 4ARGB-FN-C6-UC Q602-4FN12A-C6-UC 6977137652621 Pre-installed with 4xFN120 ARGB FAN+6 Ports fan HUB  (Type-C included)
Q602 7ARGB-FA-C6-UC Q602-2FA36A-1FA12A-C6-UC 6977137652638 Pre-installed with 2xFA360 ARGB FAN+1xFA240 ARGB FAN+ 6 Ports fan HUB  (Type-C included)

Downloads

Q602 User Manual
