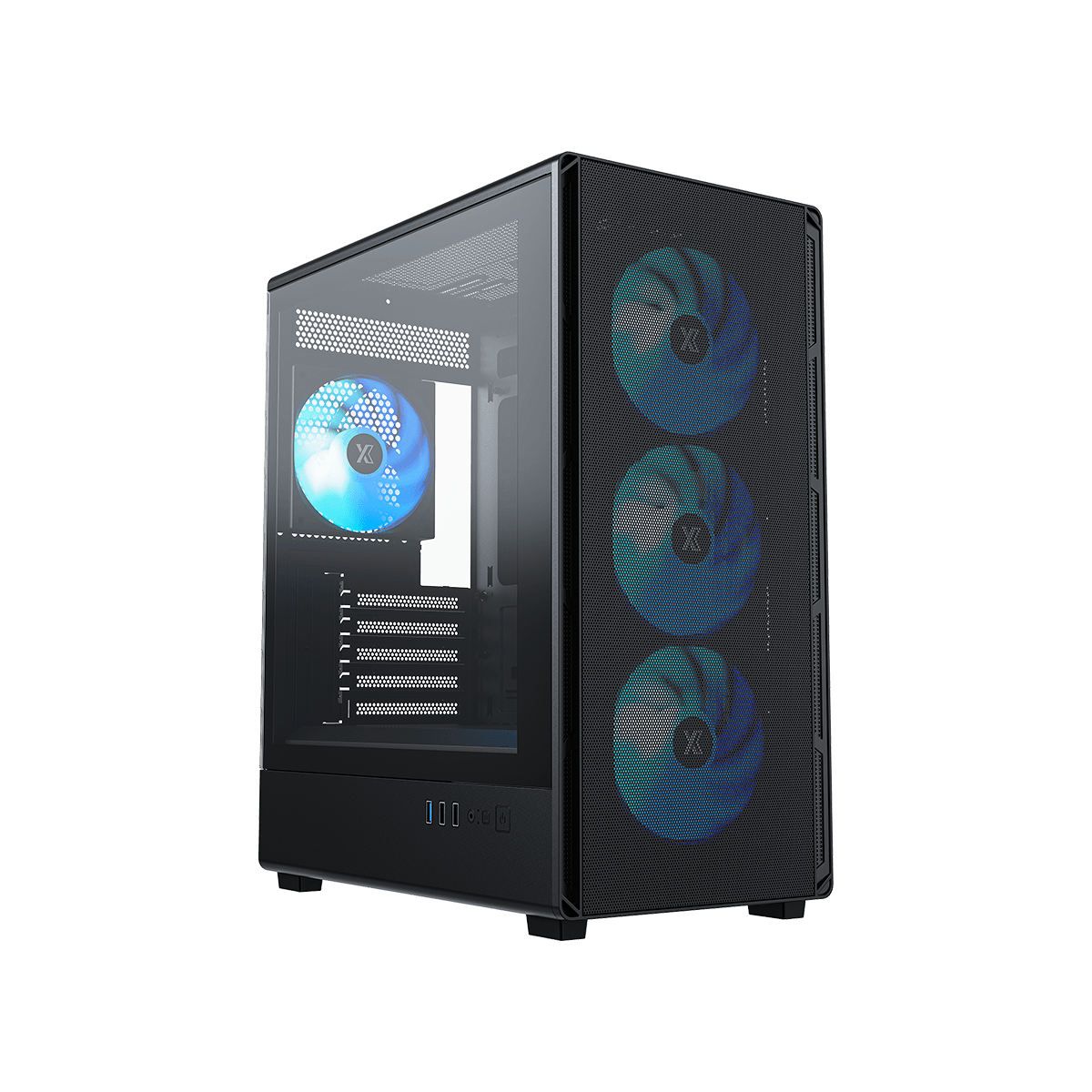

A315M ARGB

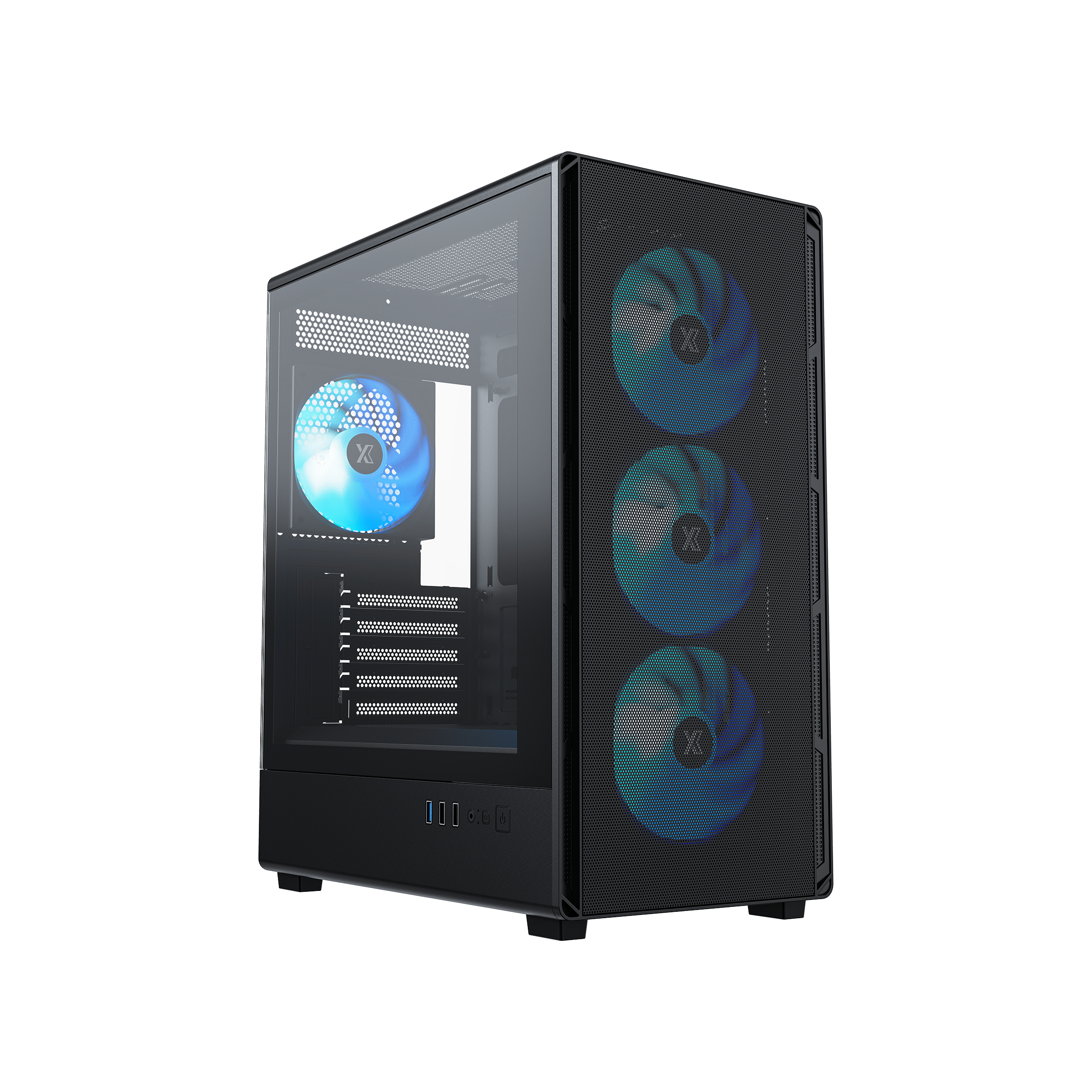

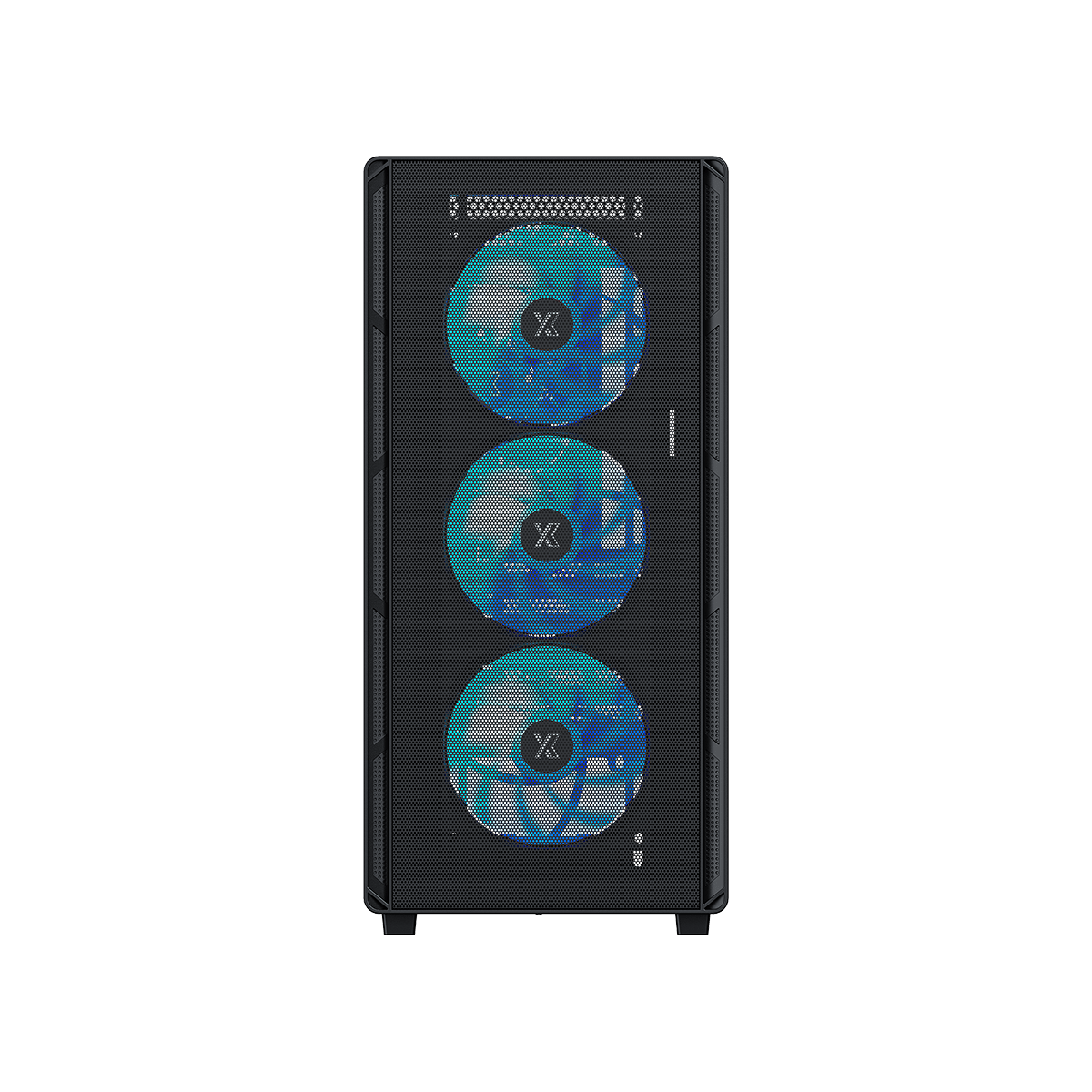

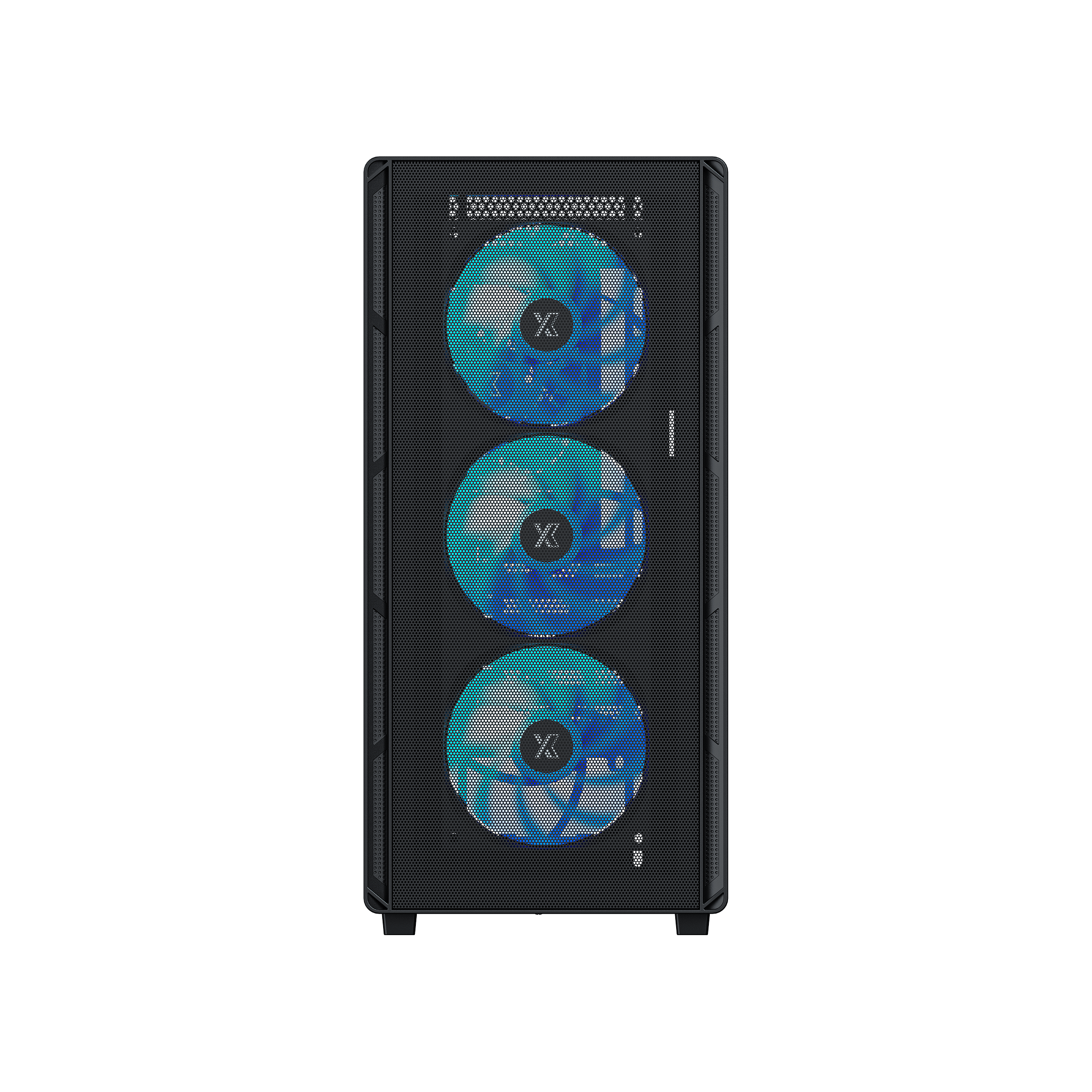

· Feature a full-surface precision mesh front panel to enhance air intake efficiency.
· Adopt ventilated PSU shroud to optimize intake from the bottom for strengthening internal air circulation.
· Optimized PSU chamber structure releases more space for airflow and avoids blocking bottom air intake
· Compatible with M-ATX, and ITX motherboards, clearance for graphic cards is up to 317mm.
· Support up to 240mm radiators in the top for powerful cooling potential
· Fit up to eight 120mm fans mounting across the top, front, side, PSU shroud and rear
·Pre-install four 120mm high-performance ARGB fans across the front, PSU shroud and rear.
Gallery
Specifications
Product Specifications |
||||
General |
||||
| Model | A315M ARGB | |||
| Case type | Mini-Tower | |||
| Product Dimensions | 379x208x446mm (LxWxH) | |||
| Material(s) | SPCC+Tempered+ABS | |||

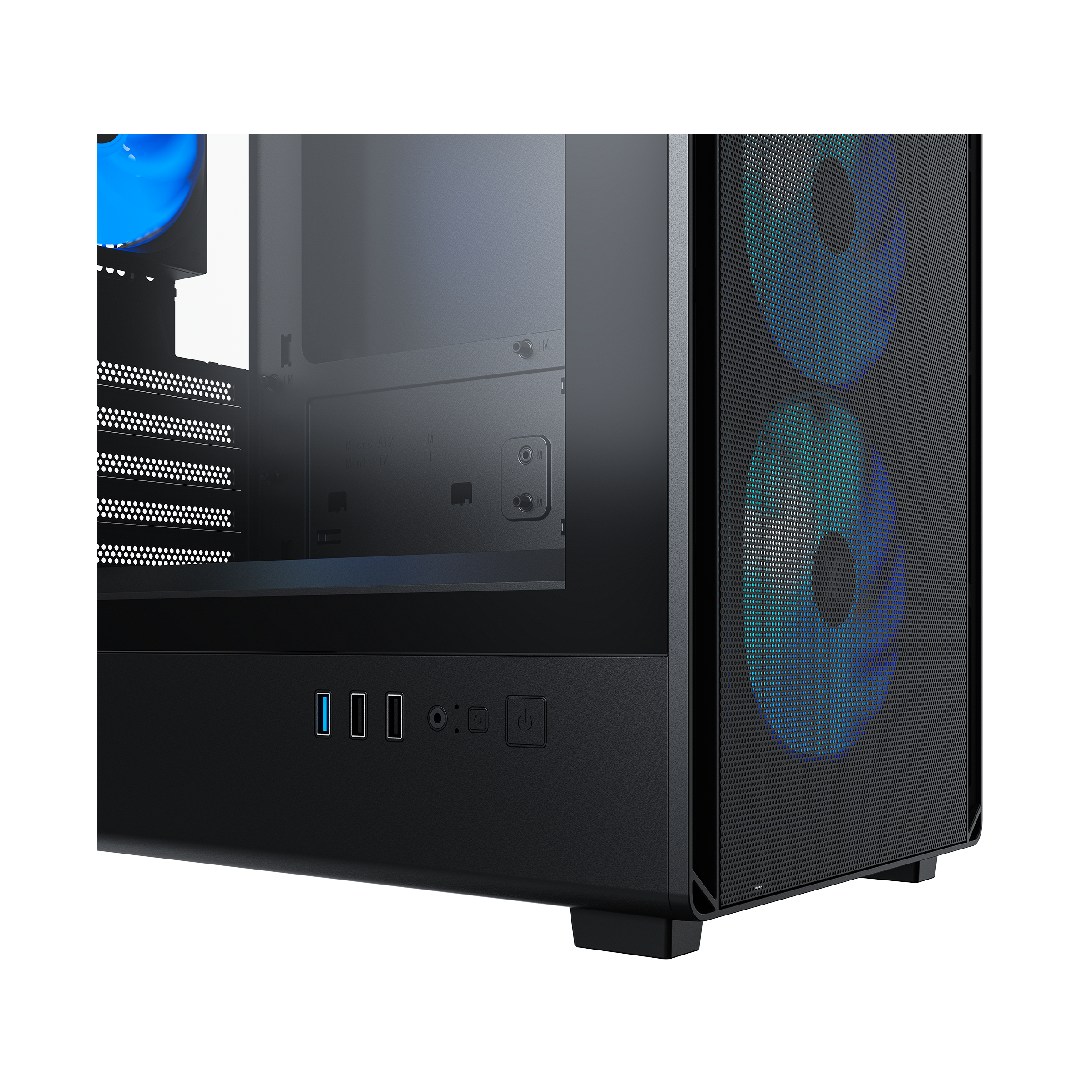

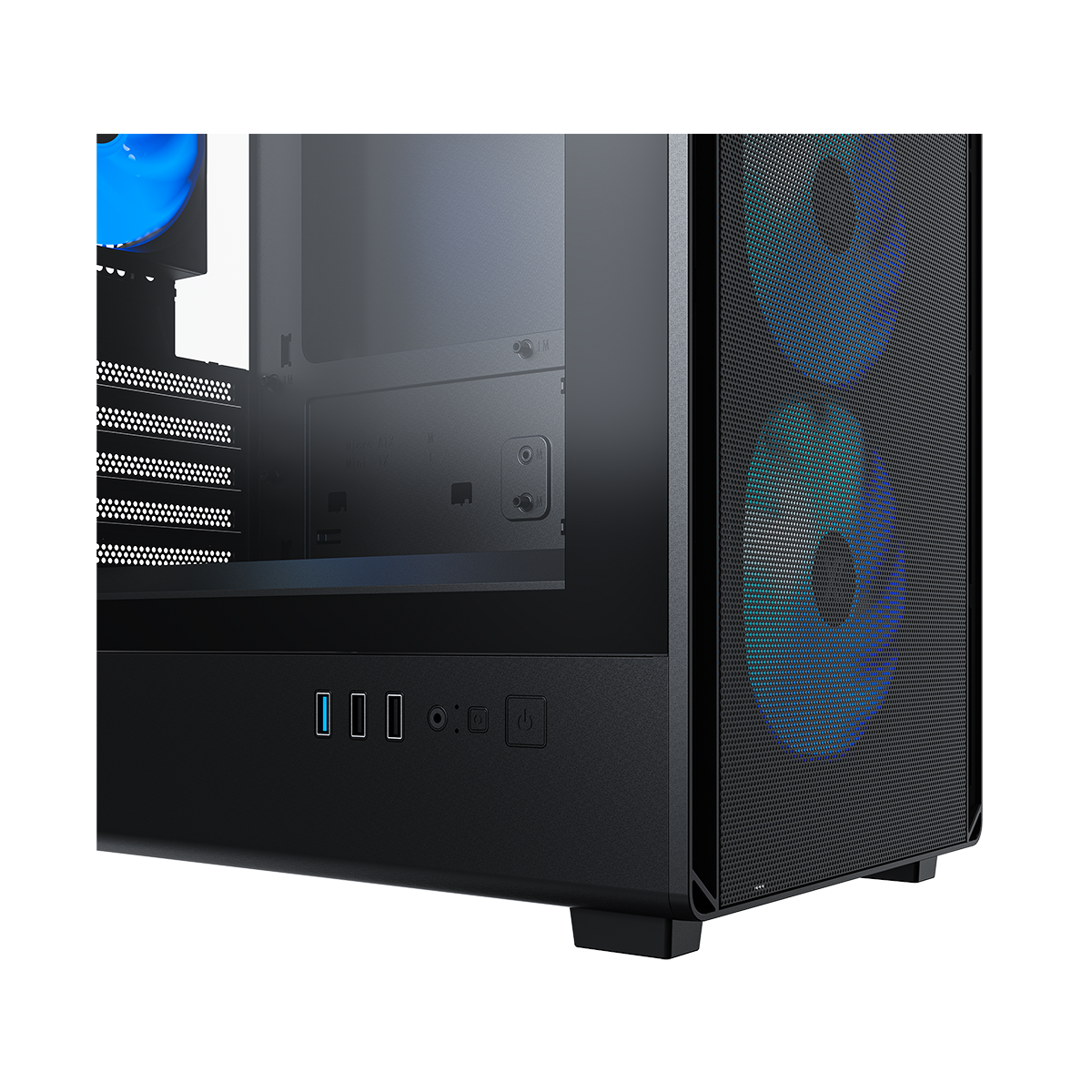

| I/O Port | USB3.2Gen 2×1 ，USB2.0x2，HD Audio+Mic Jack，Power，Reset | |||
Compatibility&Clearance |
||||

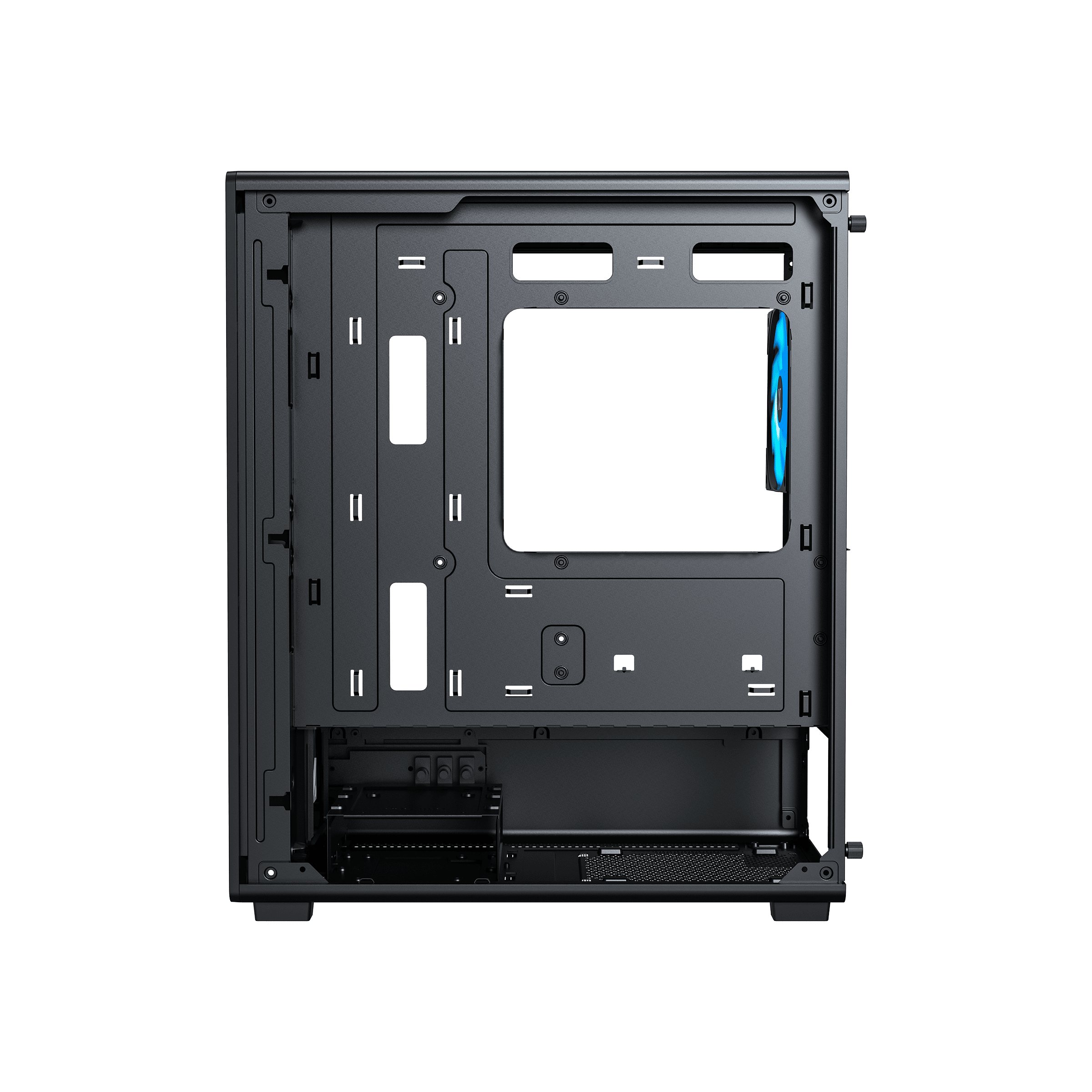

| Motherboard support | M-ATX / ITX | |||
| Max.PSU Length | ATX-POWER(Max.L:180mm) | |||
| Max.CPU Cooler Height | 163mm | |||
| Max.GPU Length | 317mm | |||
Expansion slots & Drive Bays |
||||
| PCl Expansion slot | 5 | |||
| Storage | 3.5″HDDx1+2.5″SSDx2 | |||
Radiator support |
||||
| Front | / | |||
| Top | 240mm | |||
| Bottom | / | |||
| M/B Side | / | |||
| Rear | / | |||
Fan support |
||||
| Front | 120mmx3 | |||

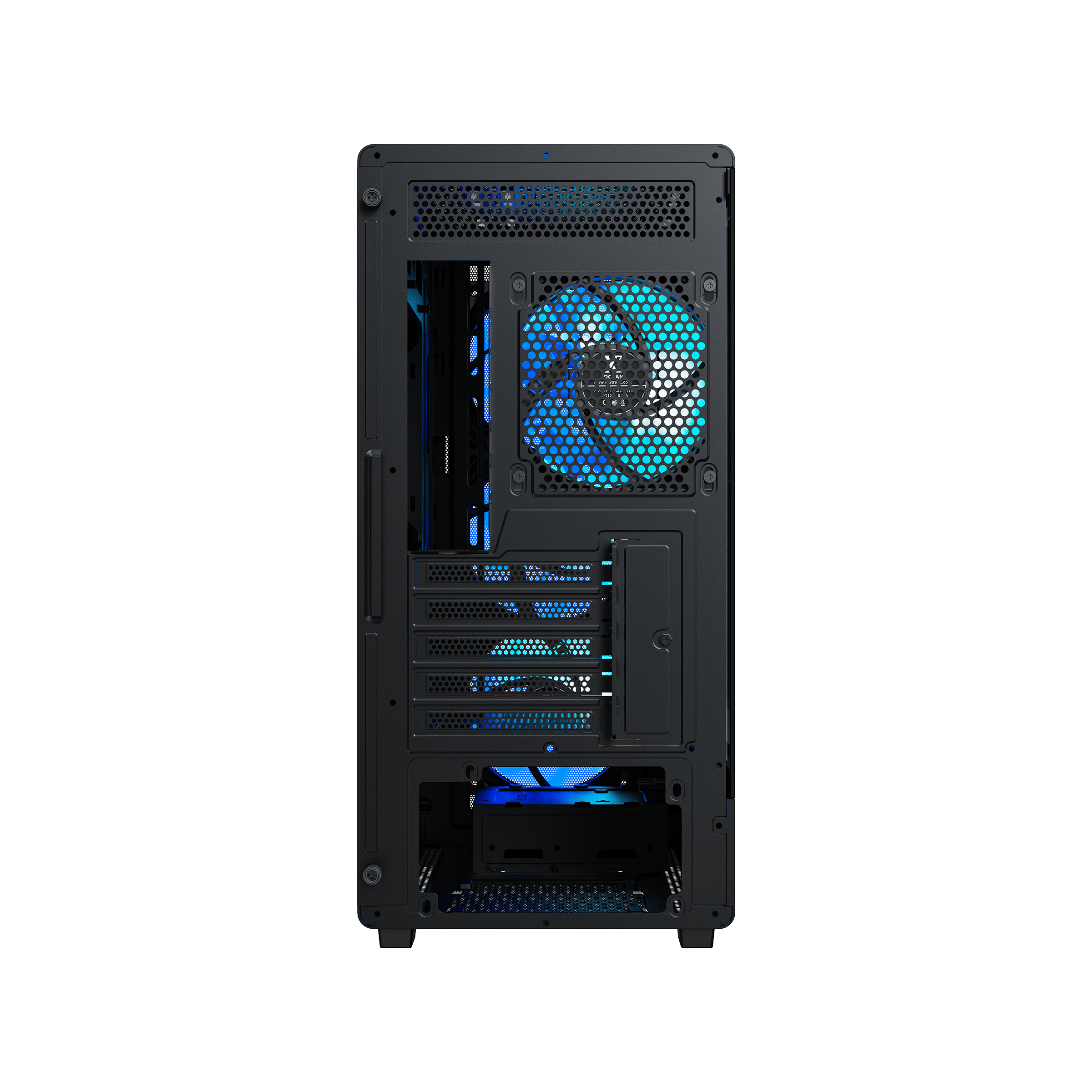

| Rear | 120mmx1 | |||
| Top | 120mmx2/140mmx2 | |||
| Bottom | 120mmx2 | |||
| M/B Side | / | |||
| Maximum Number of Fans | 8 | |||
Model |
P/N |
EAN(13) |
More information |
|||
| A315M 4ARGB | A315M-1FA36A-1FA12A | 6977137652348 | Pre-installed with 1xFA360+1FA12A ARGB FAN | |||
