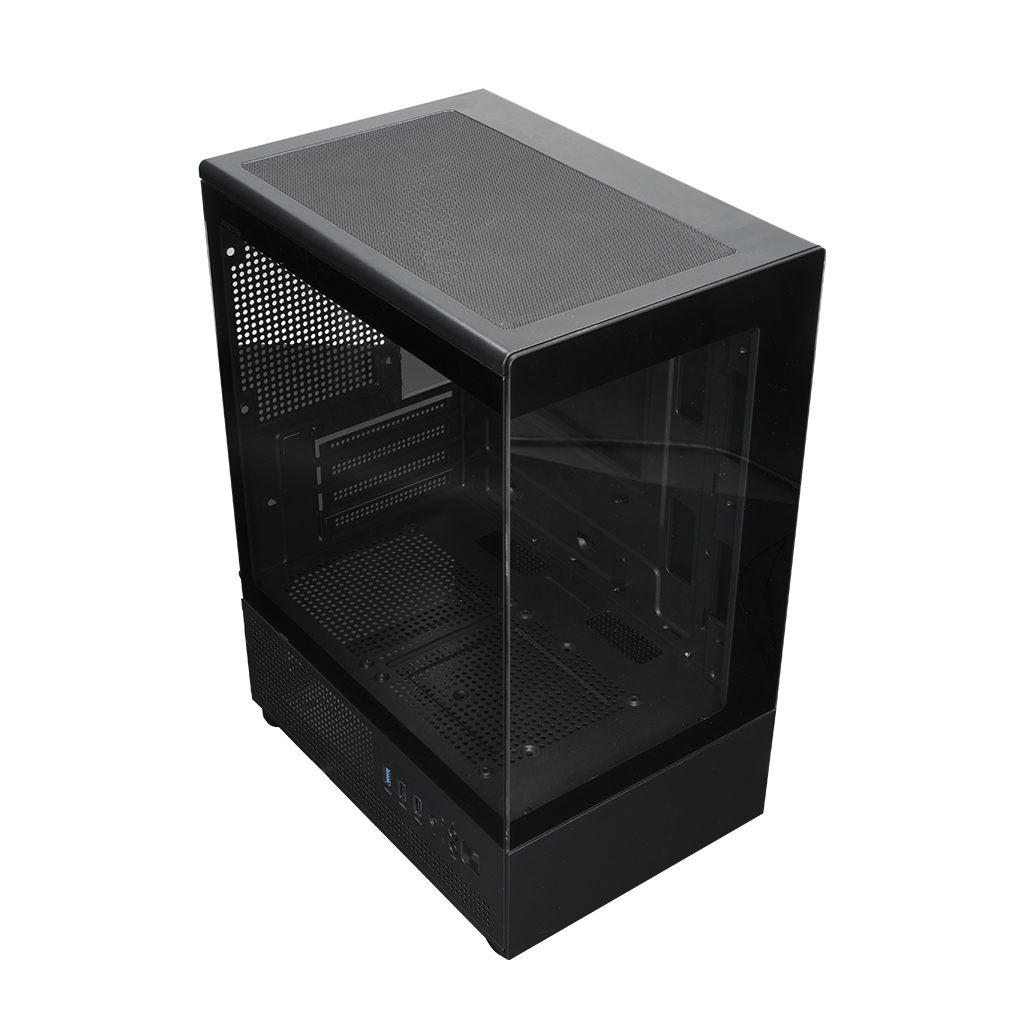

Q300M
• Mid-tower case
• Motherboard Support: M-ATX,ITX
• Support 120mm AIO liquid cooling in rear
• Max.GPU Length:≤280mm
• Max.CPU Cooler Height:≤160mm
• Max.PSU Length:ATX-POWER(Max.L:140mm)
Gallery
Specifications
Product Specifications |
||||||
General |
||||||
| Model | Q300M | |||||
| Case type | Mid-Tower | |||||
| Product Dimensions | 288x200x396mm(LxWxH) | |||||
| Material(s) | Steel+ABS+Tempered Glass | |||||
| I/O Port | USB3.0x1,USB2.0x2,HD Audio, Power, Reset | |||||
Compatibility&Clearance |
||||||
| Motherboard support | M-ATX,ITX | |||||
| Max.PSU Length | ATX-POWER(Max.L:140mm) | |||||
| Max.CPU Cooler Height | 160mm | |||||
| Max.GPU Length | 280mm | |||||
Expansion slots & Drive Bays |
||||||
| PCl Expansion slot | 4 | |||||
| Storage | 3.5″HDDx1+2.5″SSDx2，2.5″SSDx3 | |||||
Radiator support |
||||||
| Top | / | |||||
| Front | / | |||||
| Rear | 120mm | |||||
Fan support |
||||||
| Front | / | |||||
| Rear | 1x120mm | |||||
| Top | 2x120mm | |||||
| Bottom | 2x120mm | |||||
| M/B Side | / | |||||
| Maximum Number of Fans | 5 | |||||
|
|
||||||
Model |
P/N |
EAN(13) |
More information |
|||
| Q300M 3FRGB | Q300M-3FC12F | 6977137651389 | Pre-installed with 3xFC120 FRGB FAN | |||
| Q300M 5FRGB | Q300M-5FC12F | 6977137651587 | Pre-installed with 5xFC120 FRGB FAN | |||
| Q300M 5ARGB-FC-C6 | Q300M-5FC12A-C6 | 6977137651396 | Pre-installed with 5xFC120 ARGB FAN+6 Ports fan HUB | |||
| Q300M 3ARGB-FM-C6 | Q300M-3FM12A-C6 | 6977137651419 | Pre-installed with 3xFM120 ARGB FAN+6 Ports fan HUB | |||
