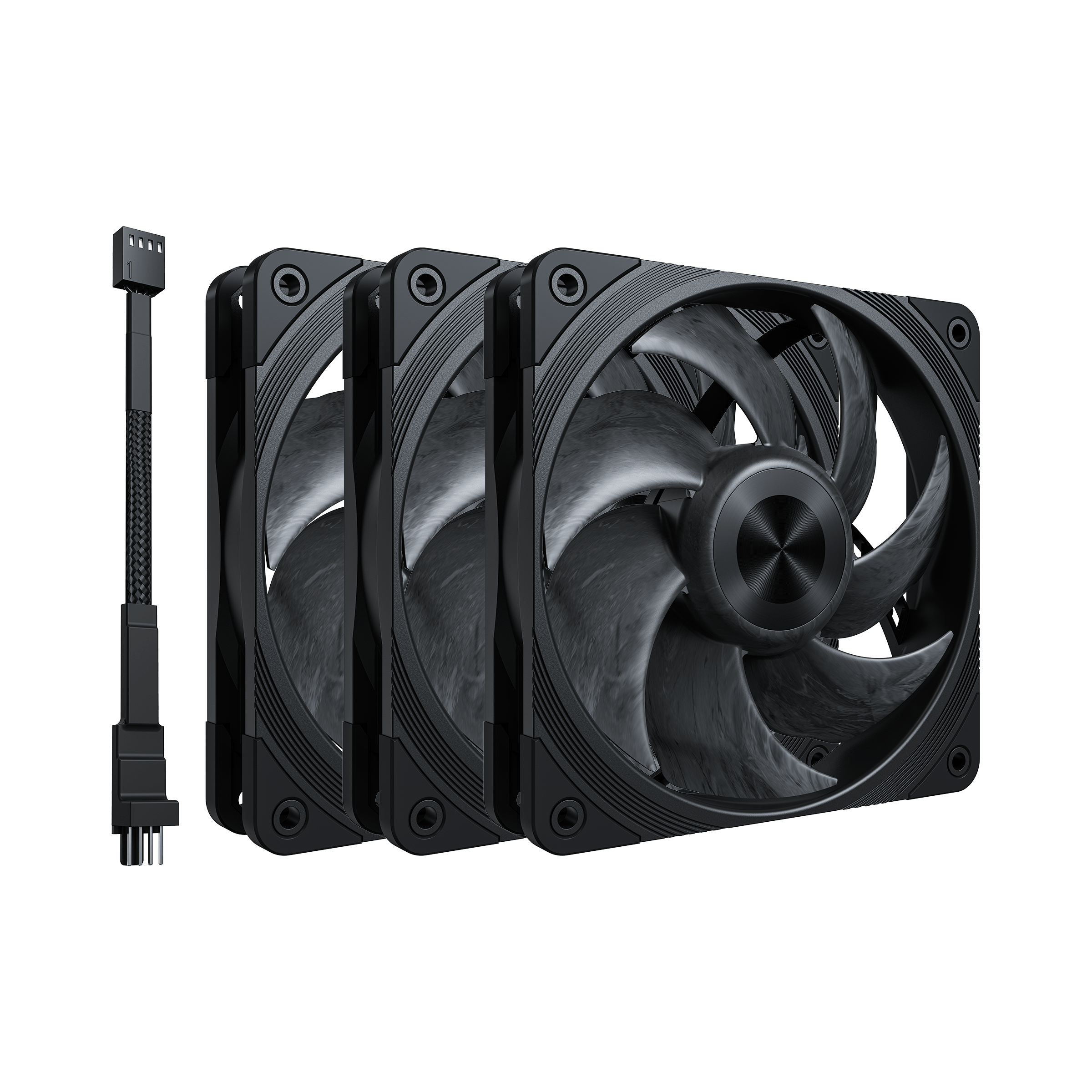

FY120B DB Triple Pack
·Features the industrial-grade dual ball bearing with 60,000 average lifespan;
·Fan blades crafted from LCP (Liquid Crystal Polymer) composite material for low-noise and stable operation;
·Comes with an innovative air-guiding blade with precise bending adjustments on the fan blade edges for optimized airflow;
·Engineered with FOC drive and Closed-Loop Algorithm to enable more precise fan speed regulation with smoother transitions, while automatically adjusting speed to compensate for airflow resistance to ensure stable performance;
·Seven sickle blades are designed for ultra-high static pressure of up to 8.62mm-H2O for more powerful cooling;
·Equipped with 4 vibration damping pads on each of the front and rear sides for reducing resonance.
Gallery



Specifications
| General | ||
| Model | FY120B DB Triple Pack | |
| Quantity | 3 | |
| Fan Dimension | 120x120x25 mm (LxWxH) | |
| Bearing Type | Dual Ball Bearings | |
| Fan Connector | 4-Pin PWM | |
| Fan Speed | 800~3000+10% RPM | |
| Fan Airfow | 89.65 CFM | |
| Fan Air Pressure | 8.62 mmH20 | |
| Fan Noise | ≤34dB(A) | |
| Fan Rated Voltage | 12VDC | |
| Fan Rated Curent | 0.4 A | |
| Fan Power Consumption | 4.8 W | |
| Accessories | Extension cable x1 | |
| Low noise adapter x 1 | ||
|
|
||
| Model | P/N | EAN(13) |
| FY120B DB Triple Pack | FY120-3BN-SXD-GL | 6977137652508 |
