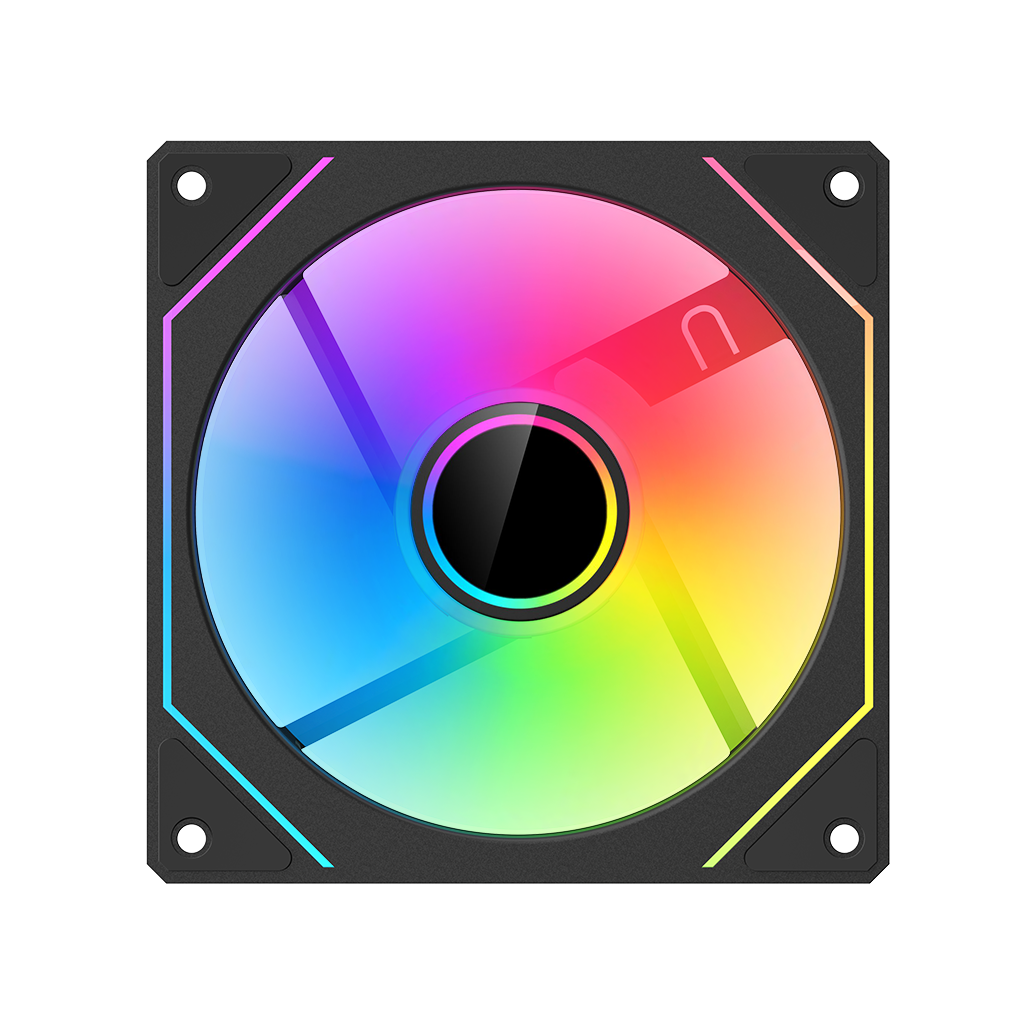

FM120B ARGB single pack
• Enlarged Infinity Mirror Effect
• 5V 3Pin(Female/Male connectors)+PWM(Female/Male connectors)
• 120MM ARGB case fan
Gallery

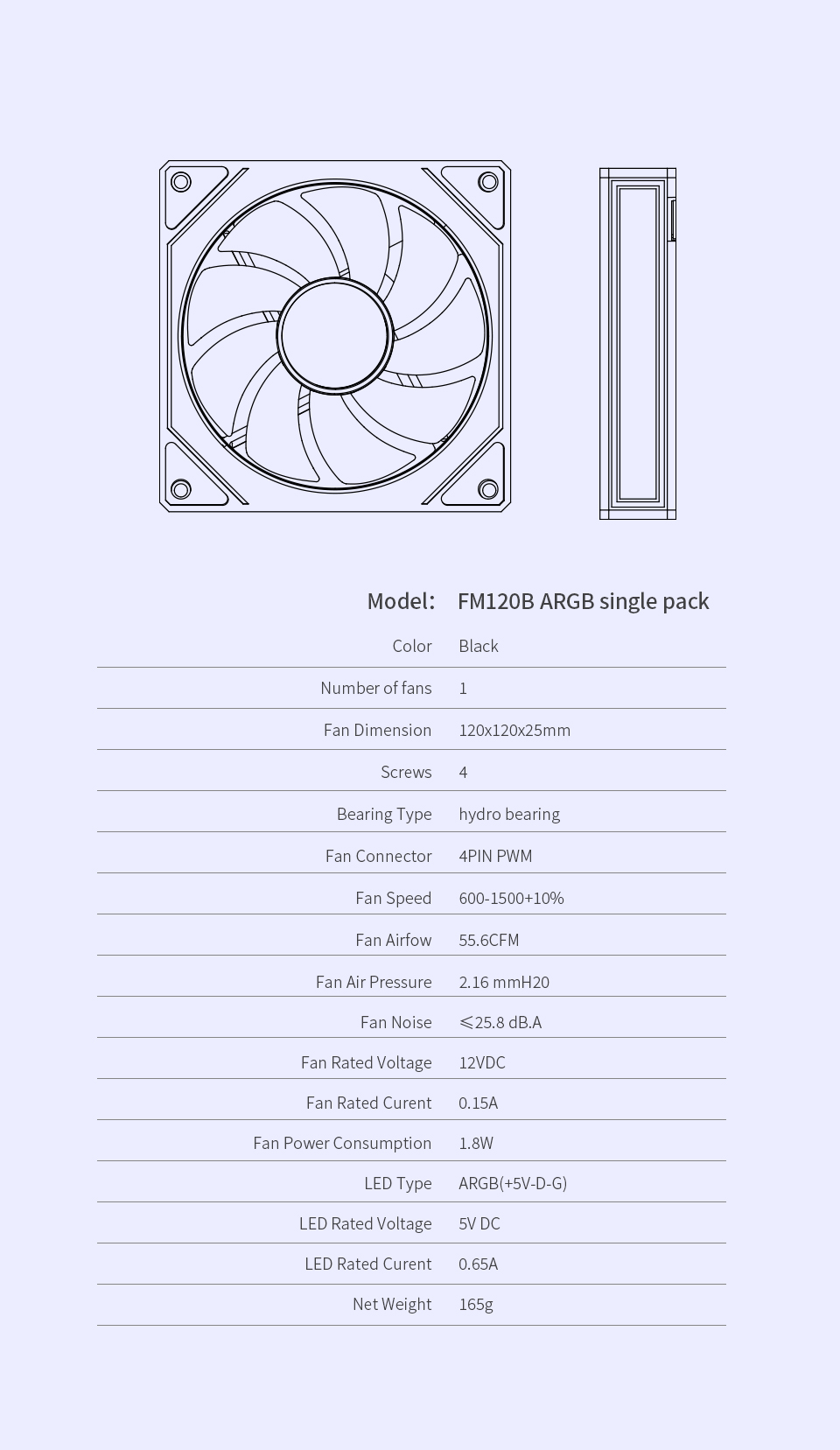

Specifications
| General | Normal fan blade | Reversed fan blade |
| Model | FM120B ARGB single pack | FM120B ARGB reverse single pack |
| Color | Black | Black |
| Dimension | 120x120x25mm | 120x120x25mm |
| Bearing Type | hydro bearing | hydro bearing |
| Connector | 4-Pin PWM | 4-Pin PWM |
| Speed | 600~1500±10%RPM | 600~1500±10%RPM |
| Airfow | 55.6CFM | 53.6CFM |
| Air Pressure | 2.16 mmH2O | 1.86 mmH2O |
| Noise | ≤25.8 dB(A) | ≤25.8 dB(A) |
| Rated Voltage | 12VDC | 12VDC |
| Rated Curent | 0.15A | 0.15A |
| Power Consumption | 1.8W | 1.8W |
| LED Type | ARGB(+5V-D-G) | ARGB(+5V-D-G) |
| LED Connector | 3-Pin | 3-Pin |
| LED Rated Voltage | 5 VDC | 5 VDC |
| LED Rated Curent | 0.65A | 0.65A |
| Net Weight | 165g | 165g |
|
|
||
| Model | P/N | EAN(13) |
| FM120B ARGB single pack | FM120-1BA-SXX-GL | 6977137650641 |
| FM120B ARGB reverse single pack | FM120-1BA-SRX-GL | 6977137650665 |
