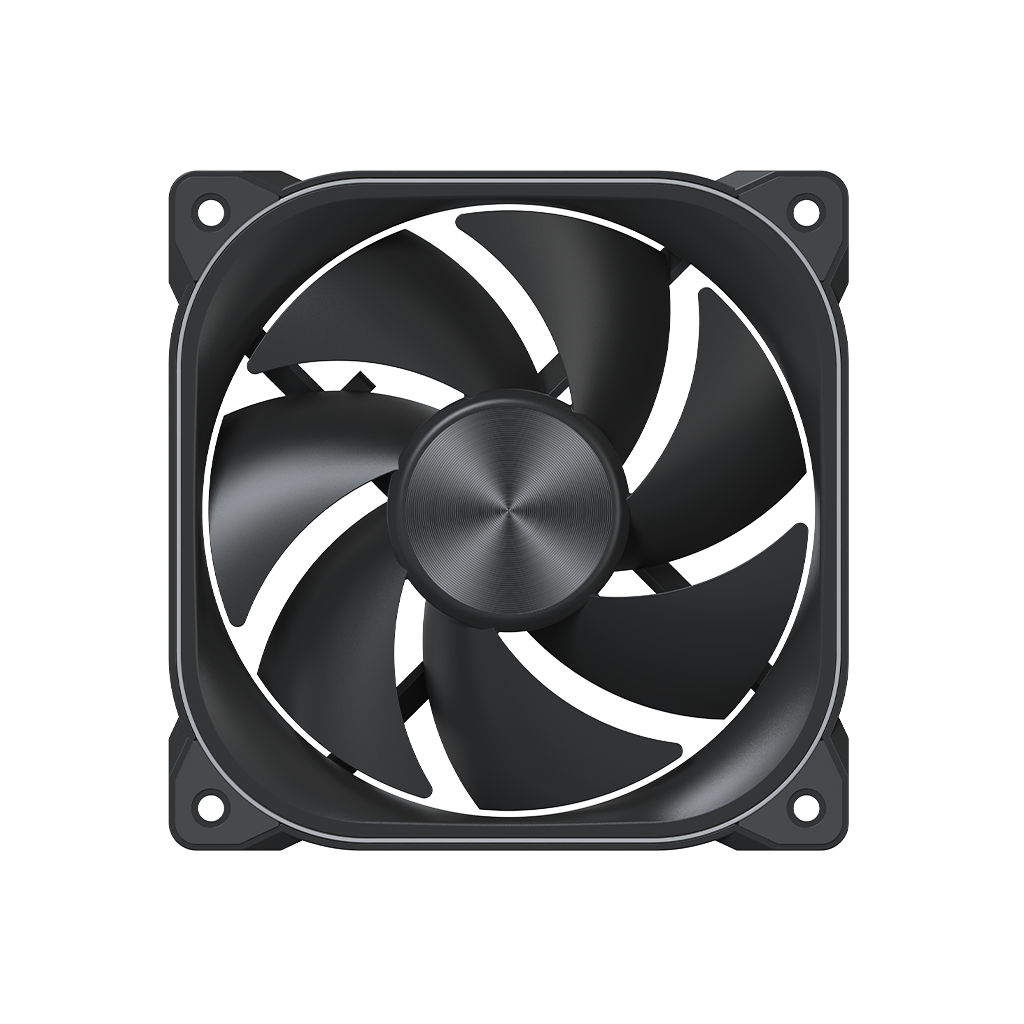

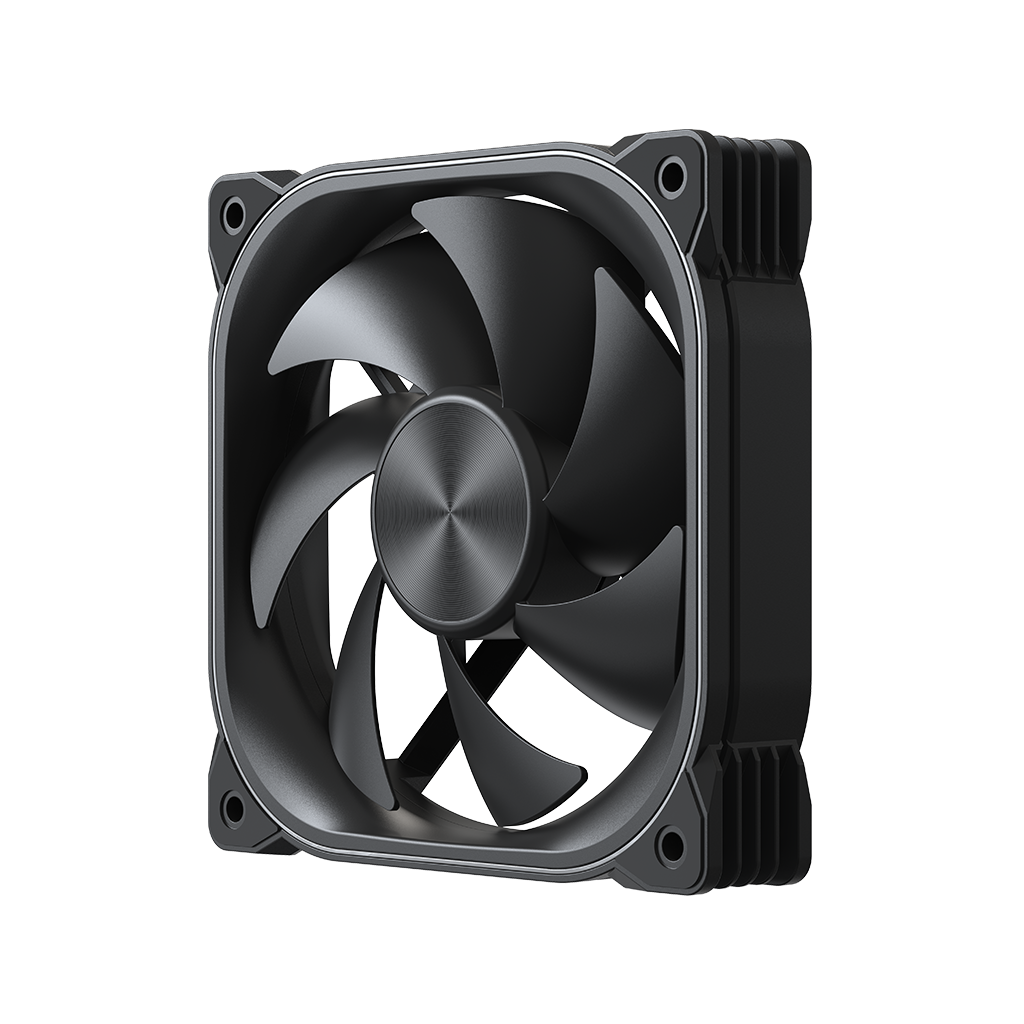

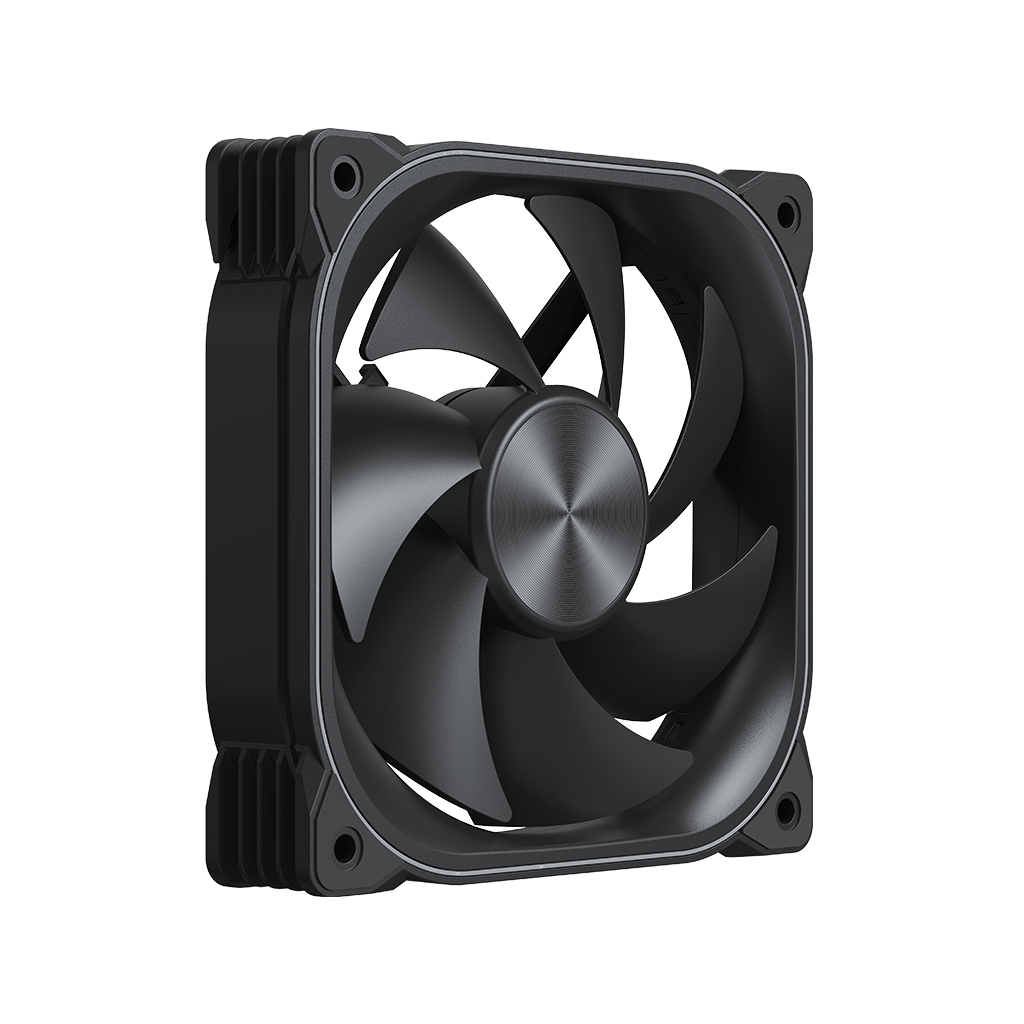

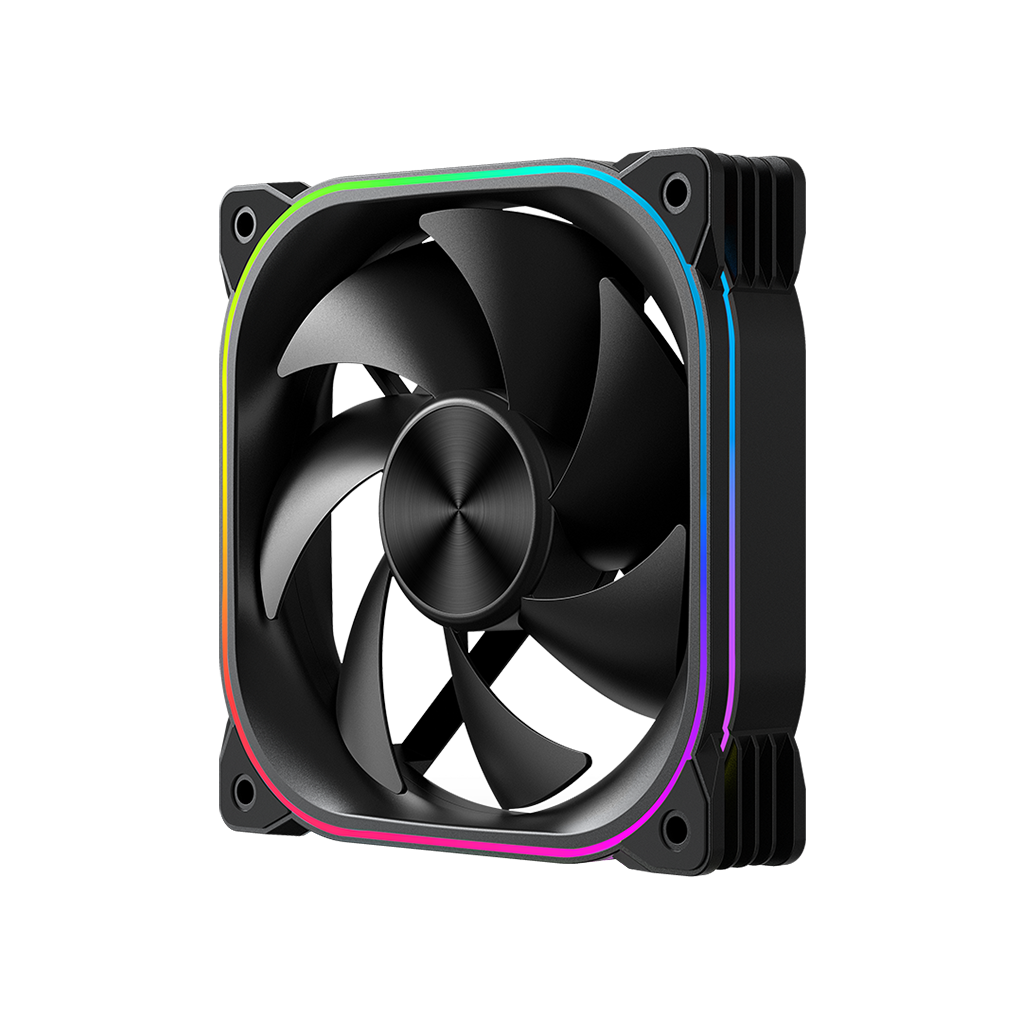

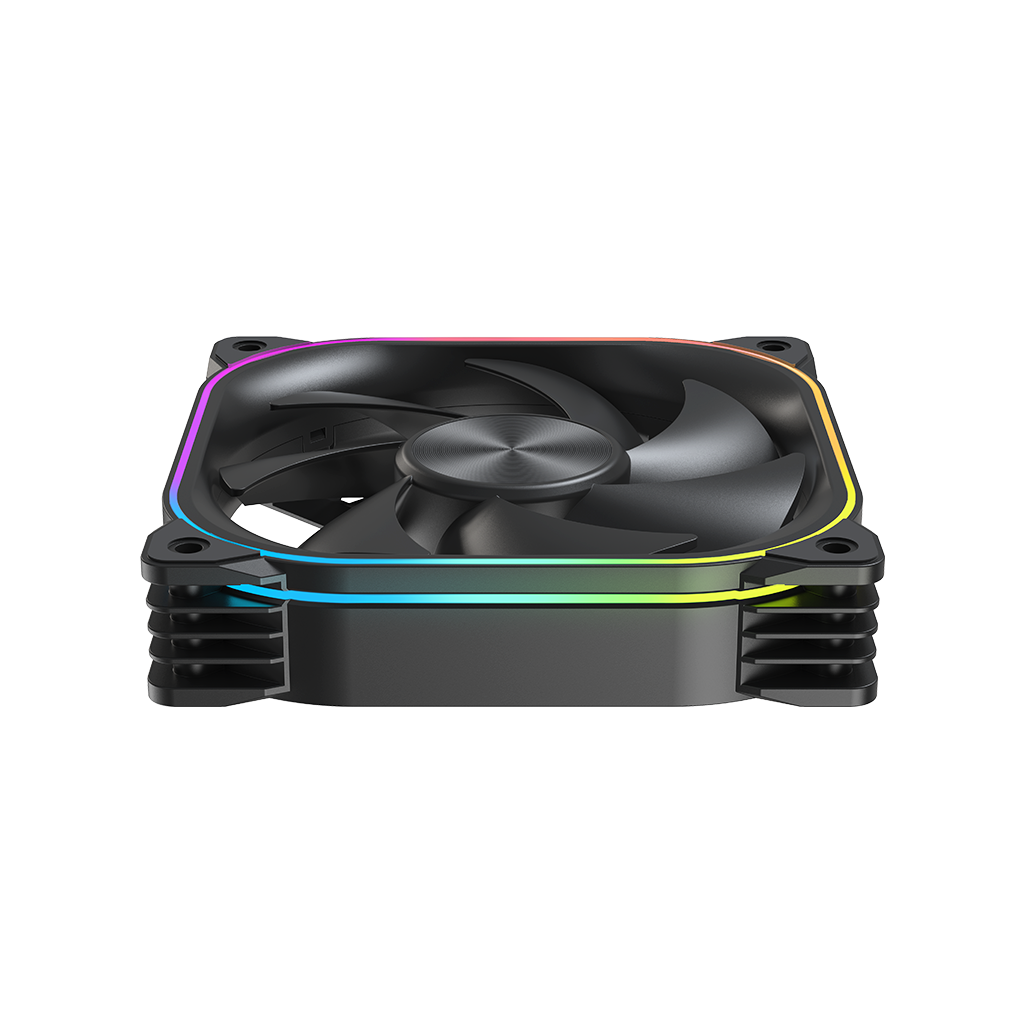

FG120B ARGB
• 120MM ARGB case fan
• 5V 3Pin(Female/Male connectors)+PWM(Female/Male connectors)

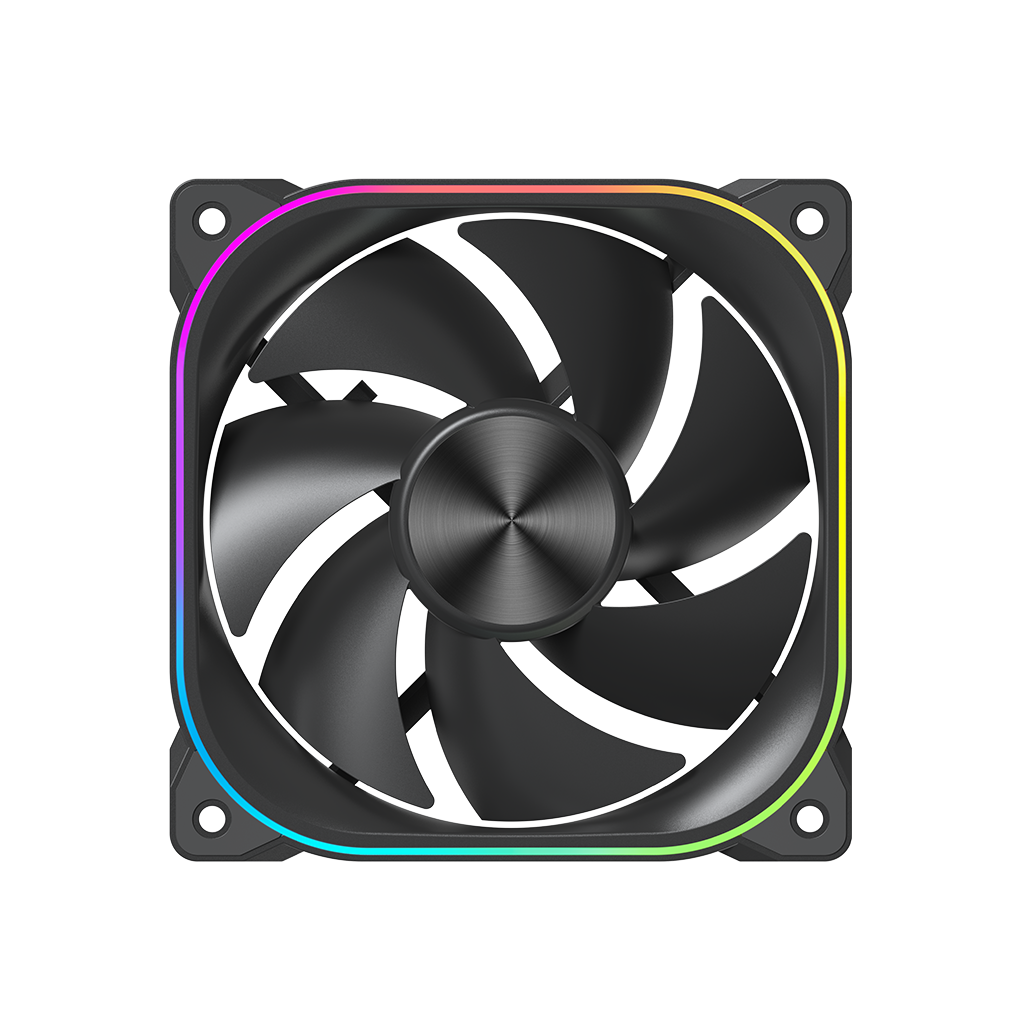

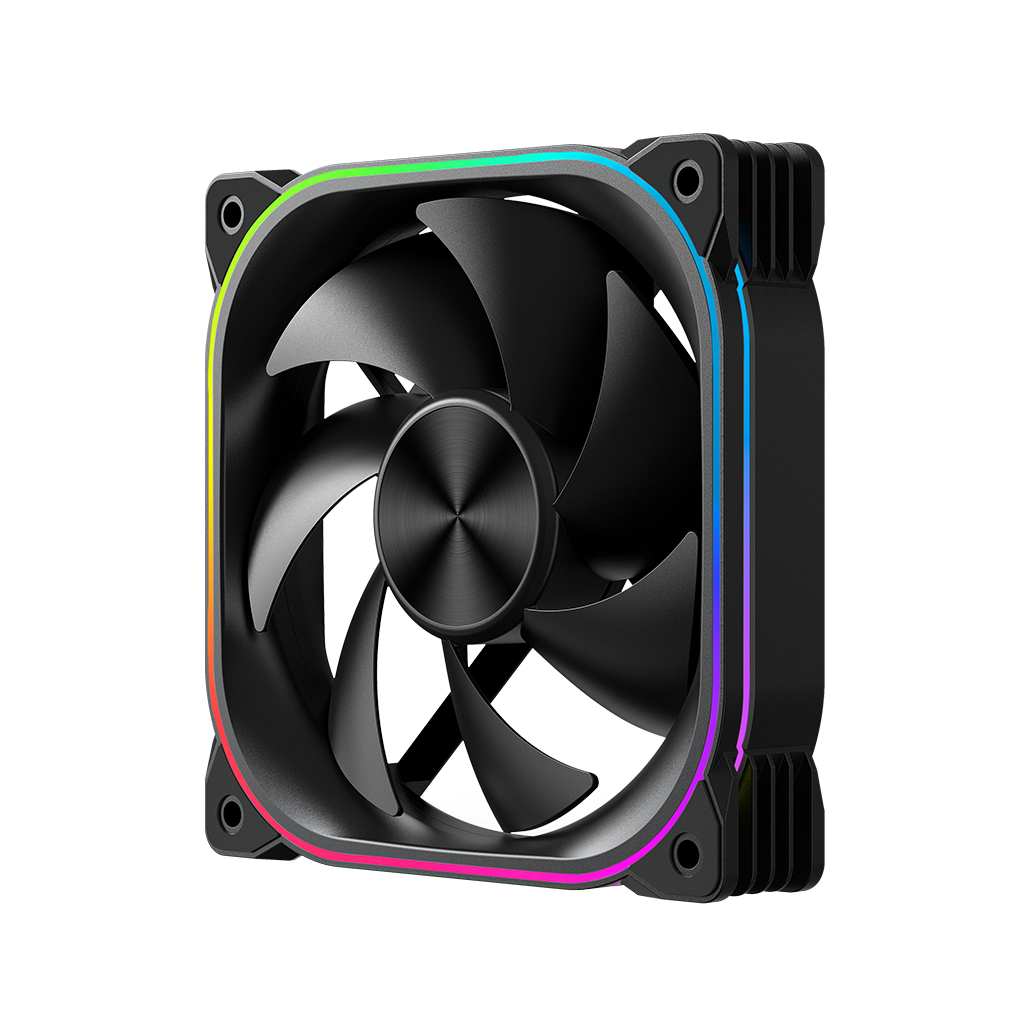

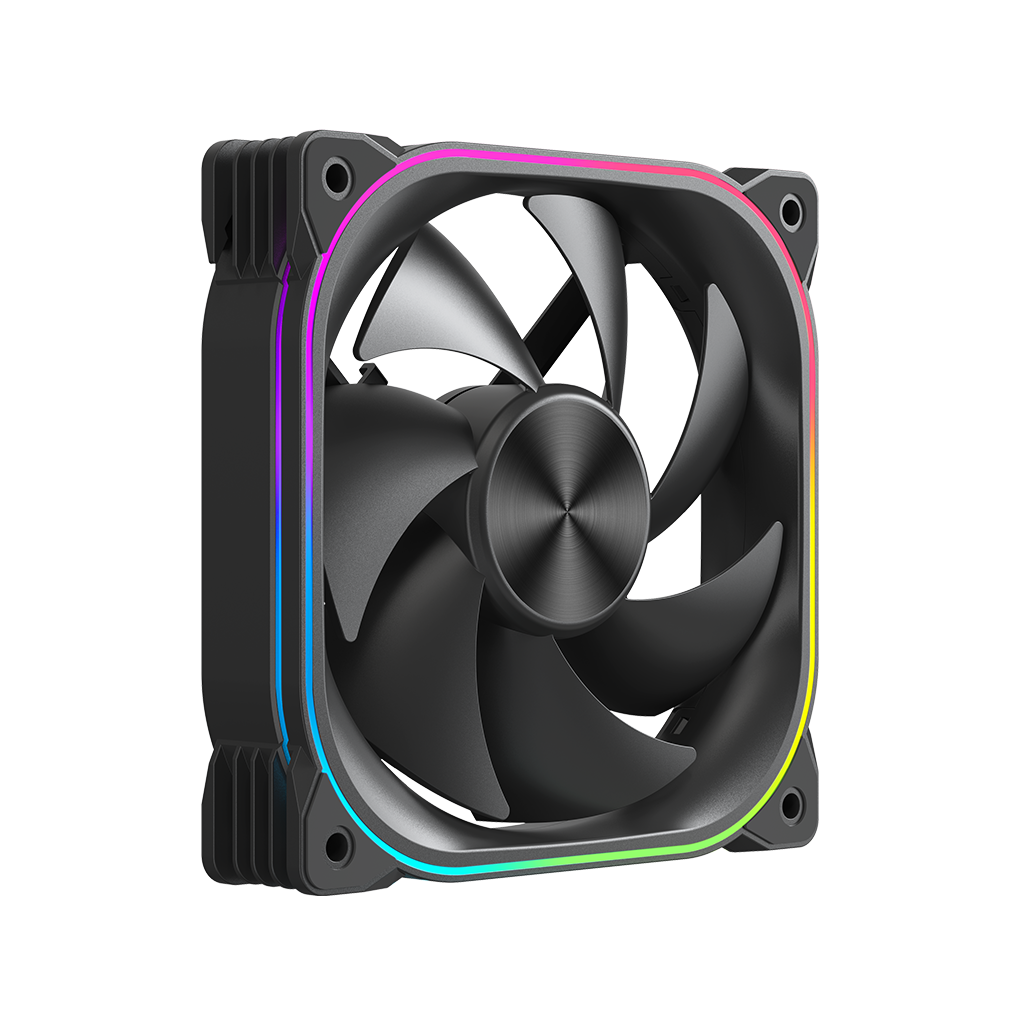

• Sleek and Elegant Dual-ring lighting design
Gallery
Specifications
| General | Normal fan blade | Reversed fan blade |
| Model | FG120B ARGB | FG120B ARGB reverse |
| Color | Black | Black |
| Dimension | 120x120x25mm | 120x120x25mm |
| Bearing Type | hydro bearing | hydro bearing |
| Connector | 4-Pin PWM | 4-Pin PWM |
| Speed | 500~1500±10%RPM | 500~1500±10%RPM |
| Airfow | 53.71CFM | 44.85CFM |
| Air Pressure | 1.96 mmH2O | 1.51 mmH2O |
| Noise | ≤24.72 dB(A) | ≤27 dB(A) |
| Rated Voltage | 12VDC | 12VDC |
| Rated Curent | 0.12A | 0.12A |
| Power Consumption | 1.44W | 1.44W |
| LED Type | ARGB(+5V-D-G) | ARGB(+5V-D-G) |
| LED Connector | 3-Pin | 3-Pin |
| LED Rated Voltage | 5 VDC | 5 VDC |
| LED Rated Curent | 0.58A | 0.58A |
| Net Weight | 168g | 168g |
|
|
||
| Model | P/N | EAN(13) |
| FG120B ARGB | FG120-1BA-SXX | 6977137651228 |
| FG120B ARGB reverse | FG120-1BA-SRX | 6977137651242 |
