QR720 ARGB

in stock

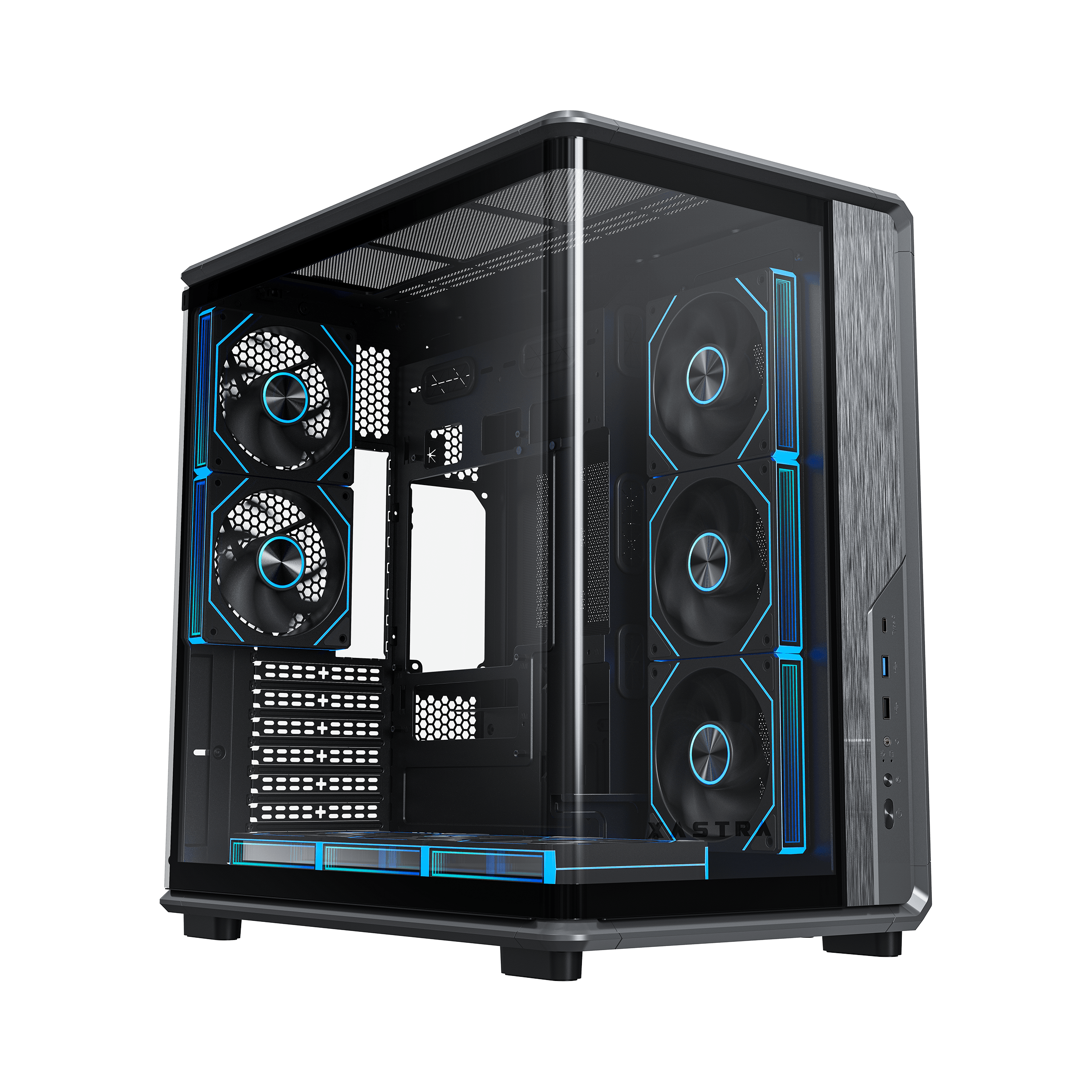

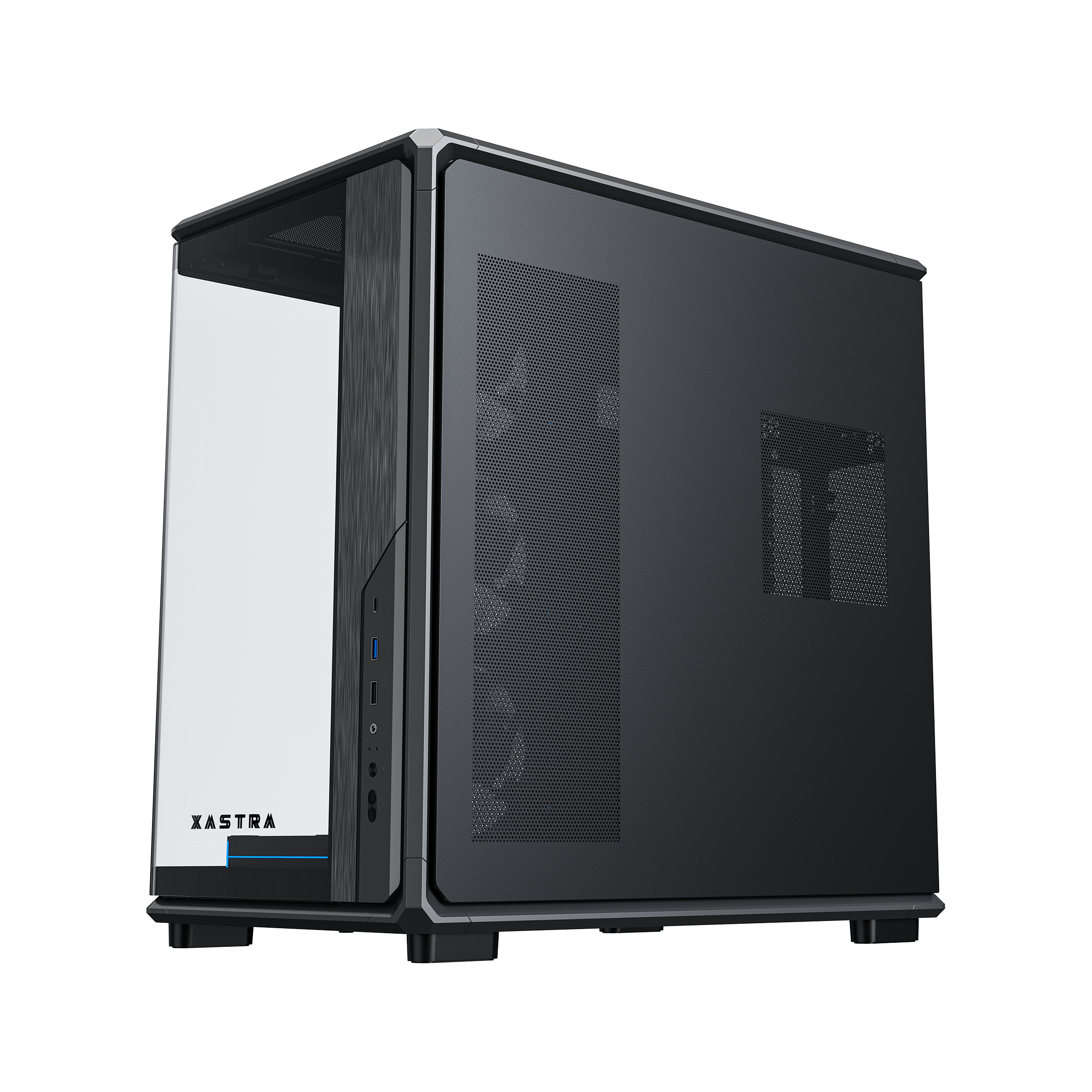

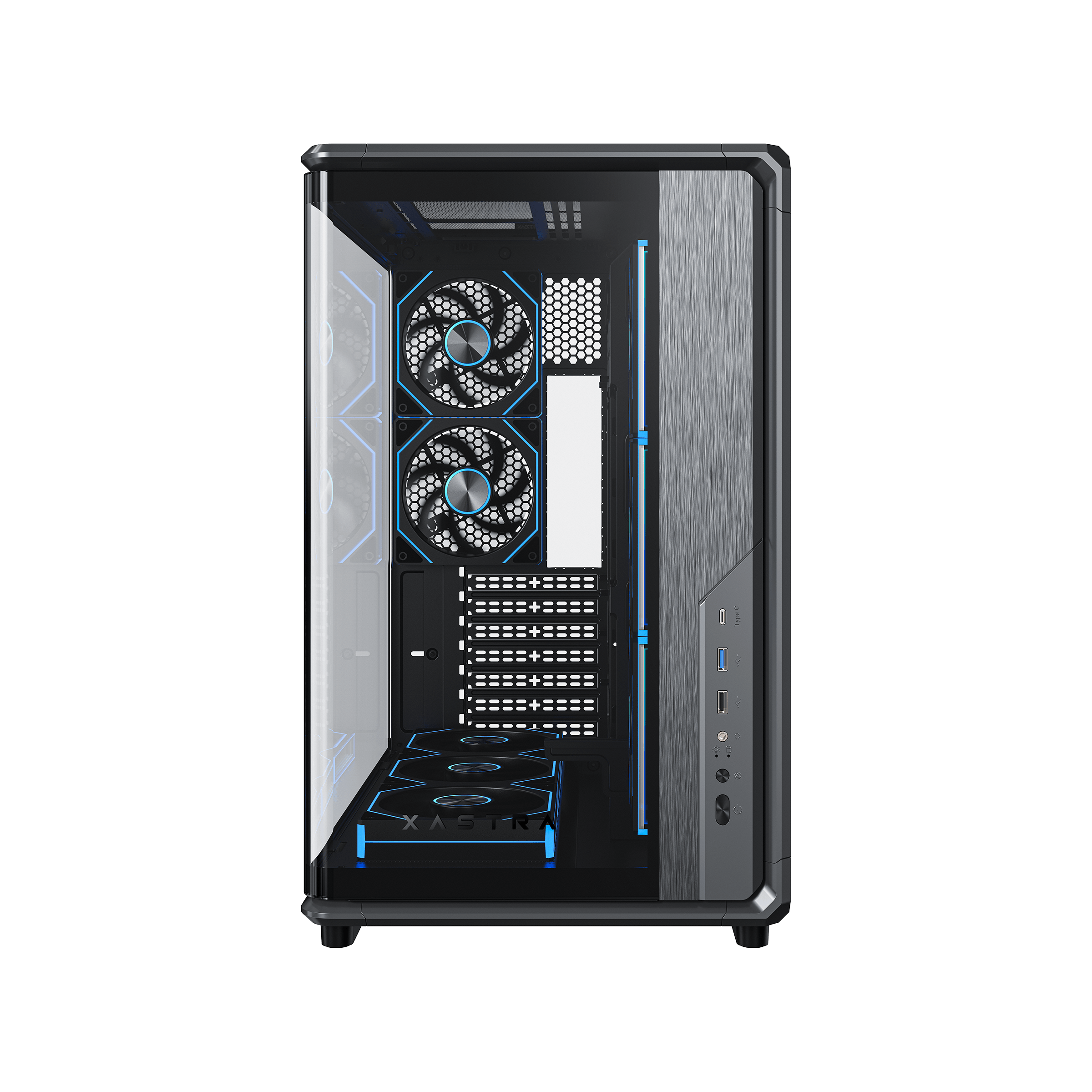

·Equipped with an integrated curved tempered glass panel, combined with an unobstructed structure for a more immersive visual experience.

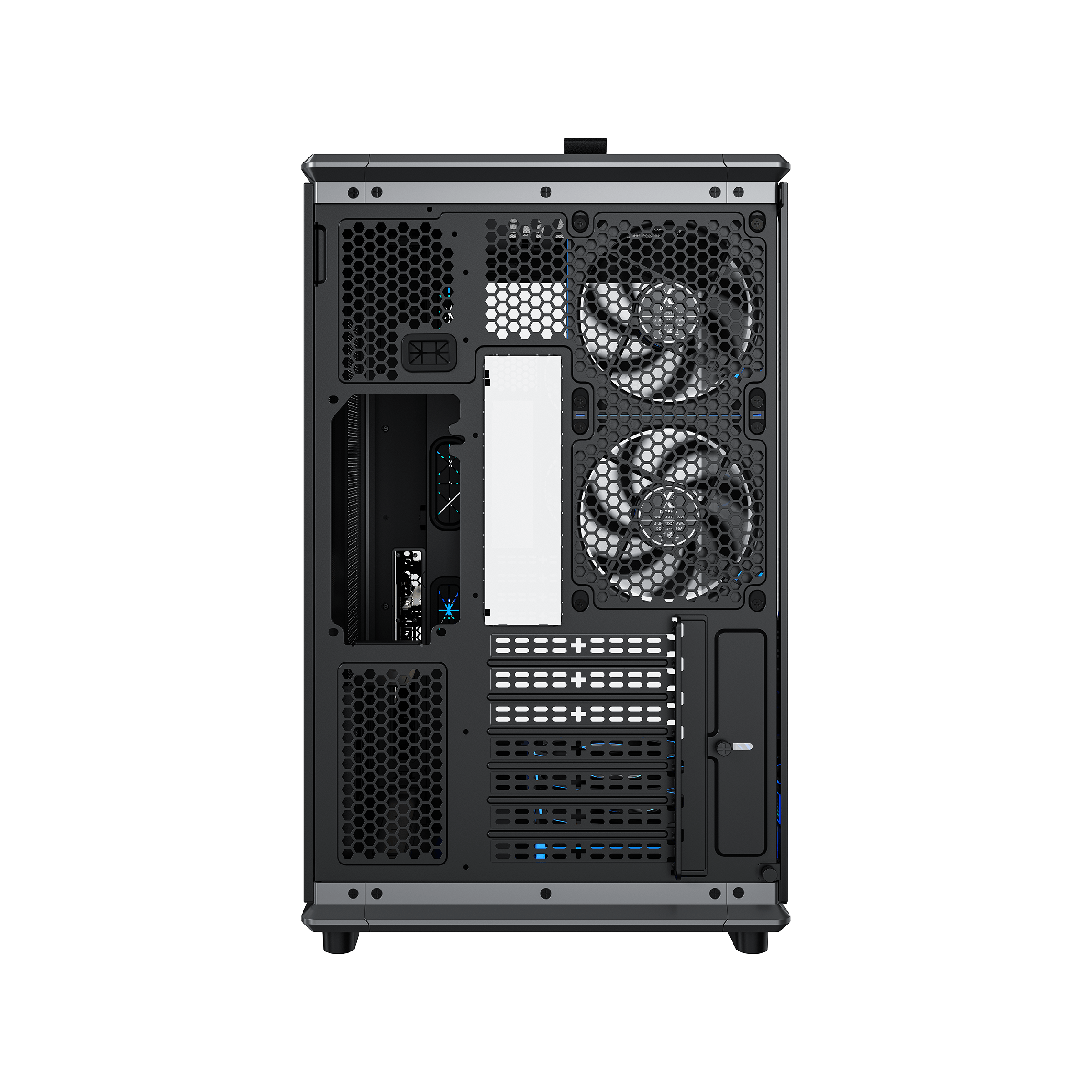

·Crafted with an innovative industry-leading architecture enables dual 120mm fan mounted at the rear.

·Features an independent secondary screen mounting position above the motherboard.

·Adopts push-pull radiator with dual-sided fans configuration in the top.

·Compatible with the latest back-connect ATX and M-ATX motherboards.

·Accommodates up to ATX motherboards, graphic cards up to 420mm.

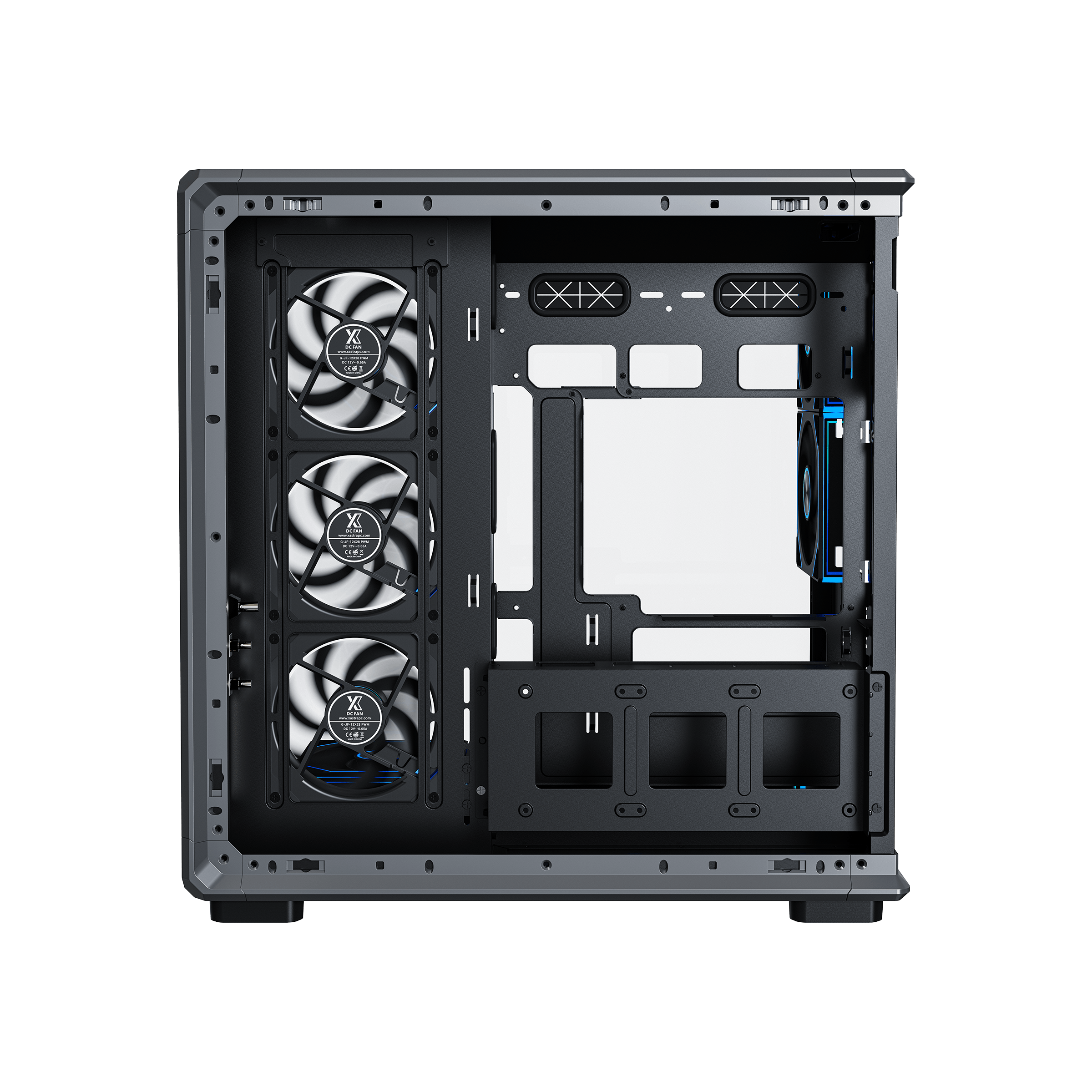

·Supports up to 360mm radiators in the top and side for powerful cooling efficiency.

·Utilizes an elevated base design to effectively enhance airflow intake from the bottom.

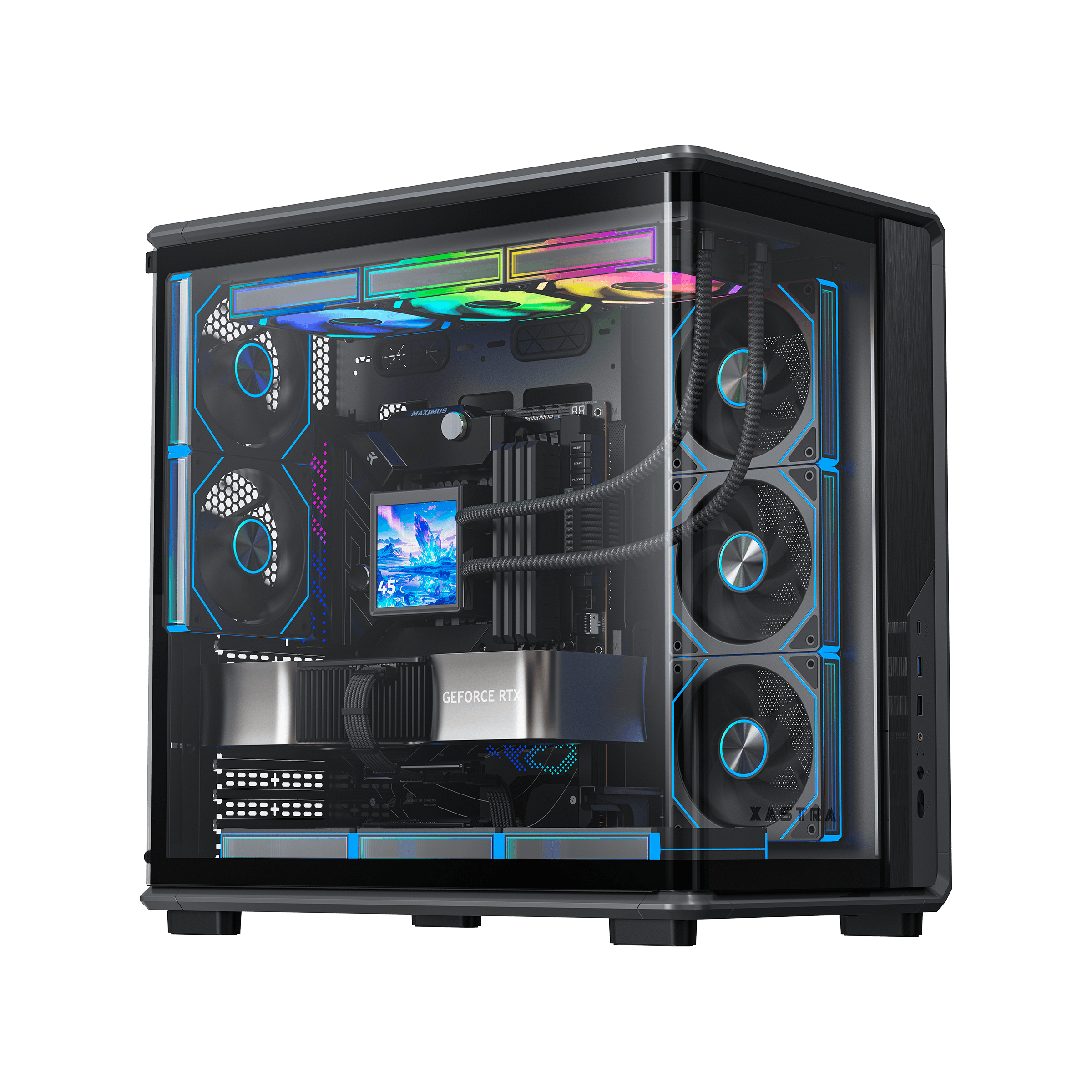

·Built-in with a graphics card bracket to provide stable support for high-end graphics cards.

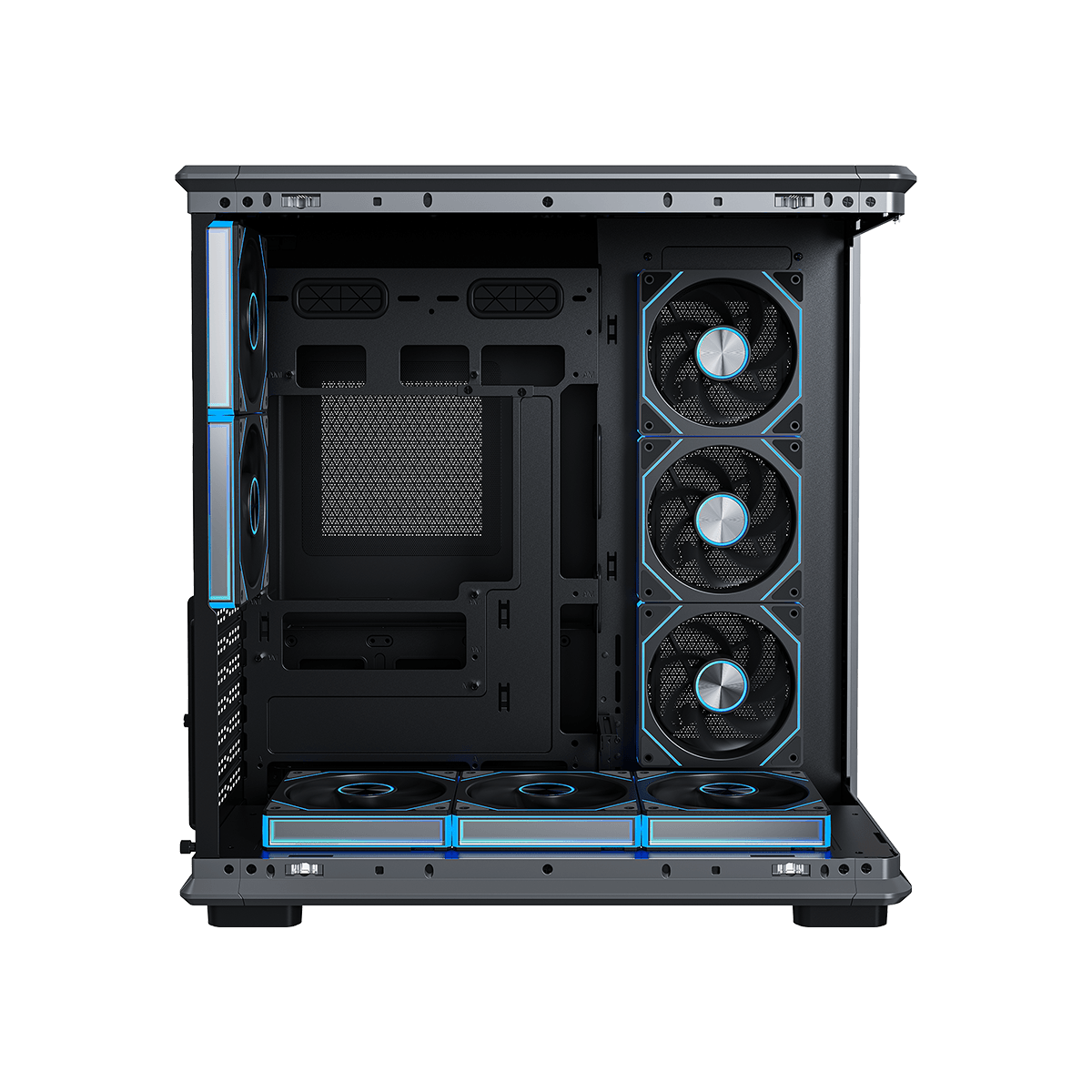

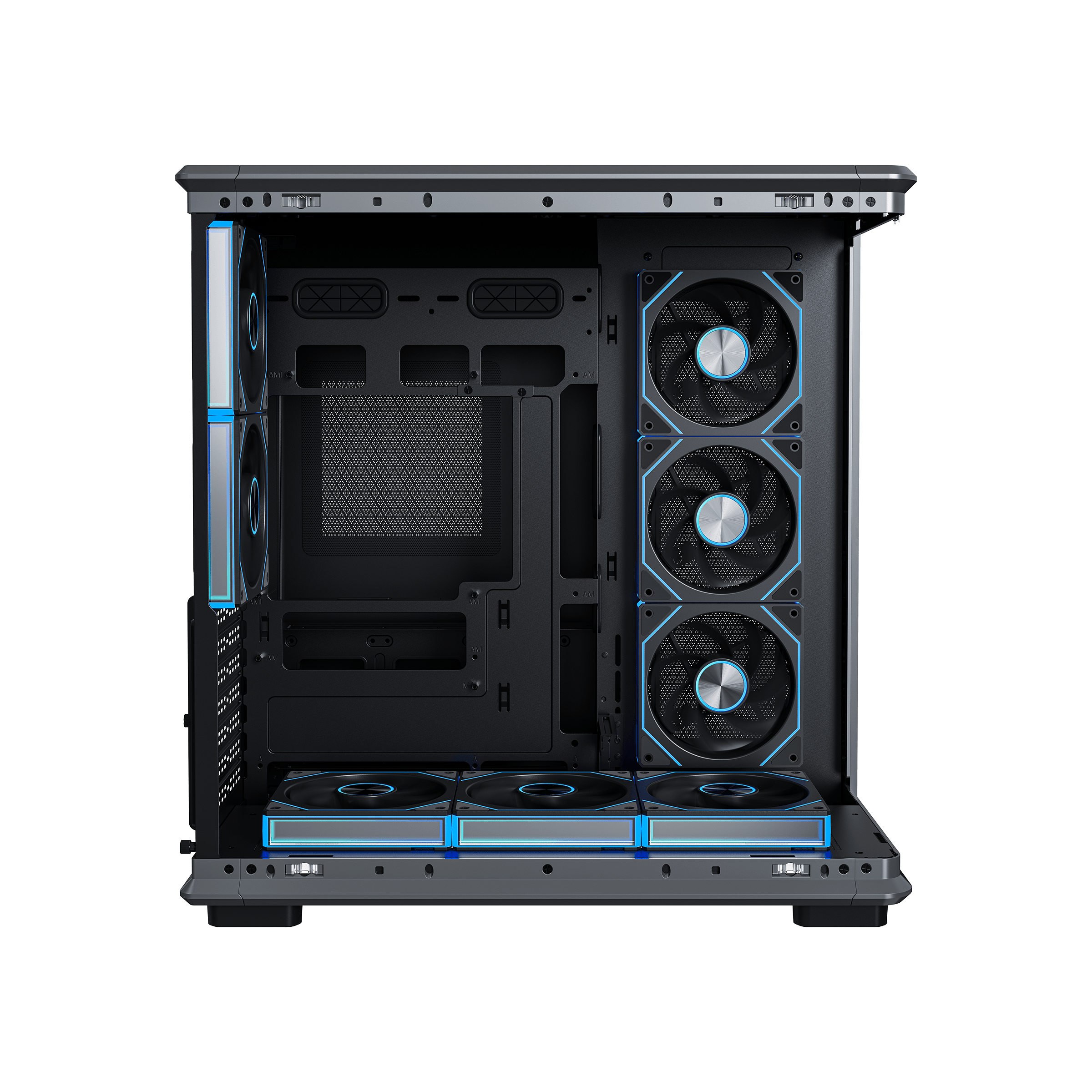

·Fits up to eleven 120mm fans across the top, side, rear, and bottom, as well as two 140mm fans in the top.

Categories:

Specifications



Product Specifications

General
Model QR720
Case type Mini-Tower
Product Dimensions 460 x 290 x 476 mm(LxWxH)
Material(s) SPCC + Tempered Glass +ABS

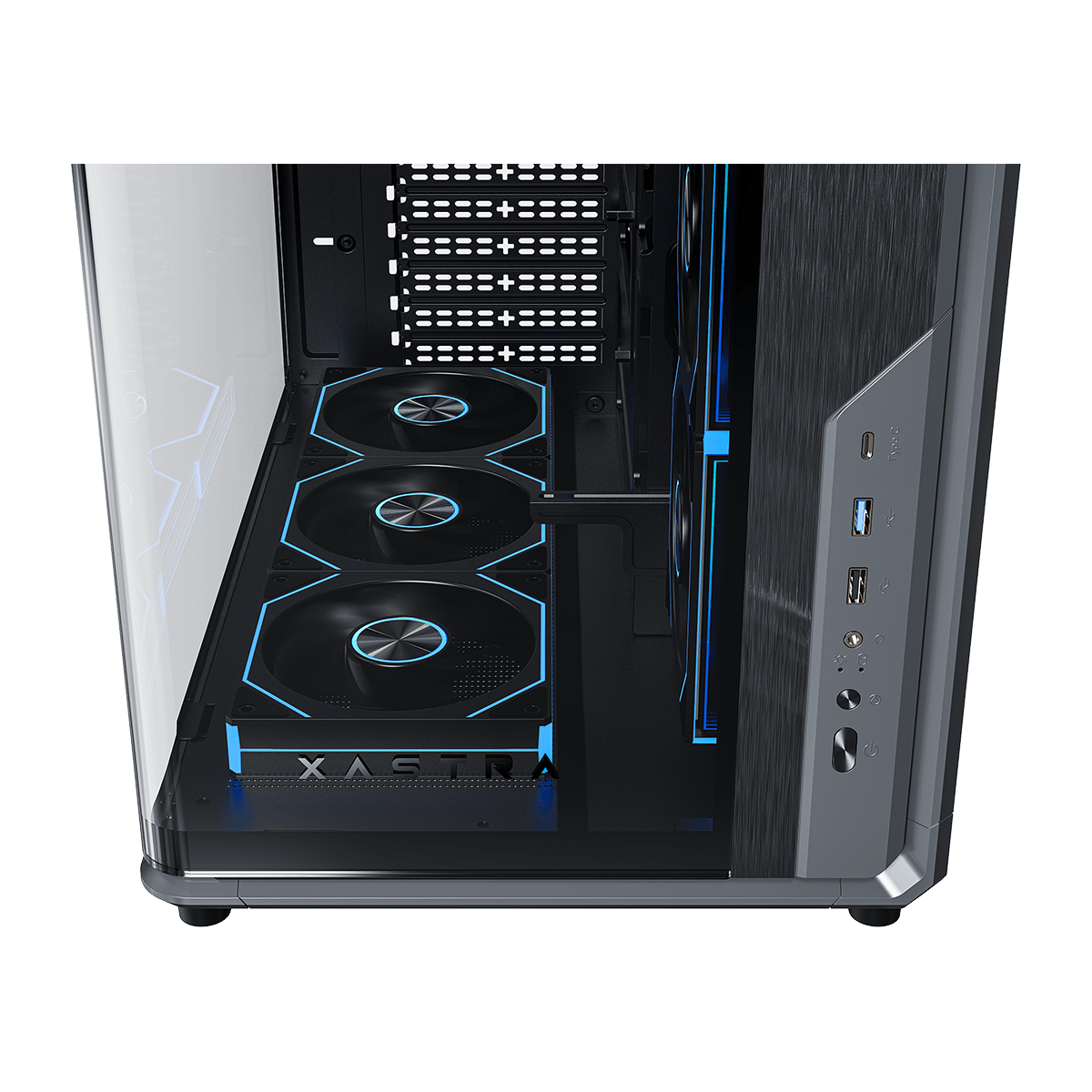

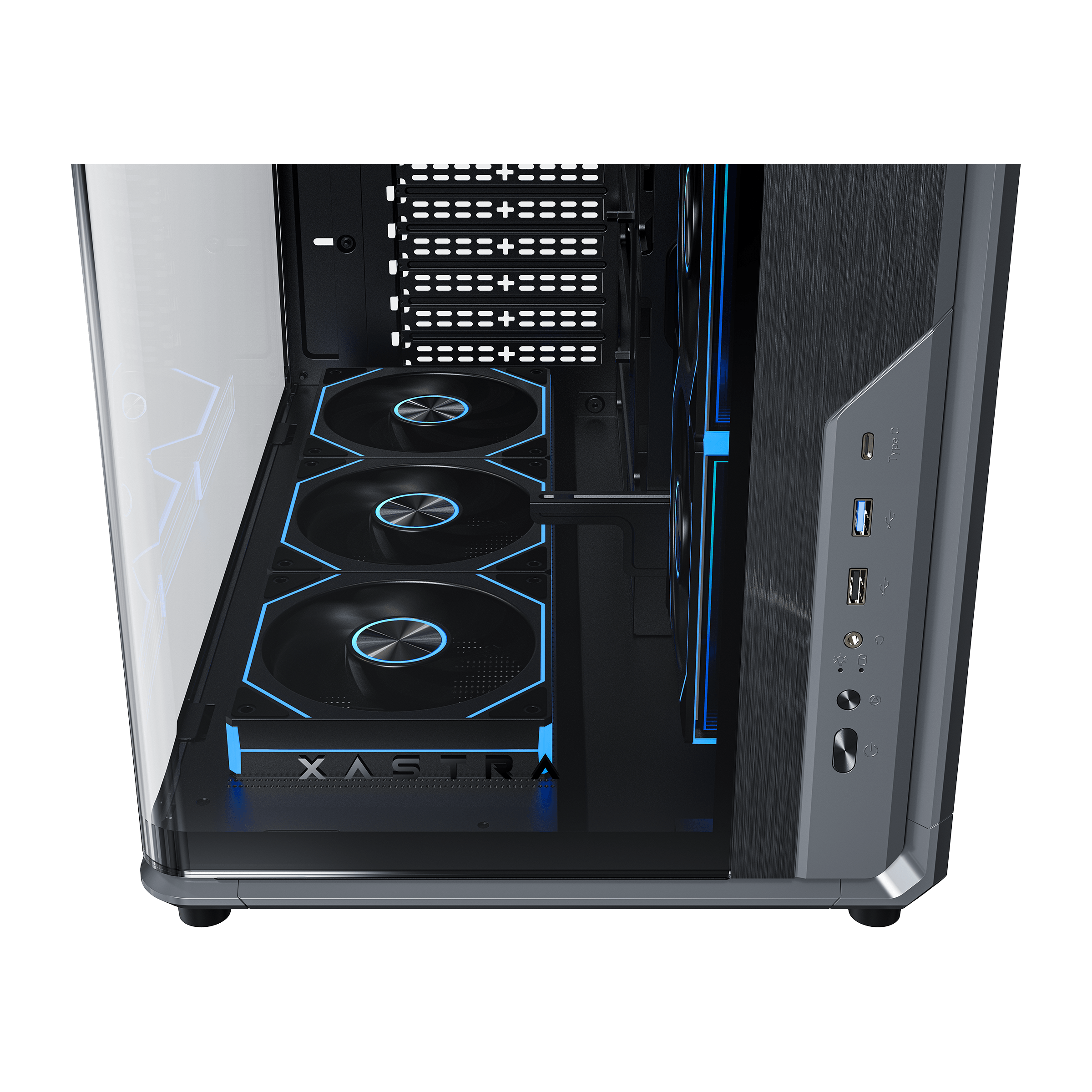

I/O Port USB 3.0 x 1, USB 2.0 x 1, Type-C，Power,Reset Button,HD Audio

Compatibility&Clearance
Motherboard support ATX/M-ATX/ITX
Max.PSU Length ATX-POWER (Max.L: 170 mm)
Max.CPU Cooler Height 165mm
Max.GPU Length 420mm

Expansion slots & Drive Bays
PCl Expansion slot 7
Storage 3.5″HDD x 1 + 2.5″SSD x 3

Radiator support
Front  /
Top 360mm/240mm/120mm
Bottom  /
M/B Side 360mm/240mm/120mm
Rear  /

Fan support
Front /
Rear 120mmx2
Top 120mmx3/140mmx2
Bottom 120mmx3
M/B Side 120mmx3
Maximum Number of Fans 8

Model

 P/N

EAN(13)

More information
QR720 8ARGB-C10-UC QR720-8FM12A-C10-UC 6977137652454 Pre-installed with 8FM12A ARGB FAN
QR720 8ARGB-FN-C10-UC QR720-8FN12A-C10-UC 6977137652461 Pre-installed with 8FN12A ARGB FAN

Downloads

QR720-User-Manual
