Q402M ARGB

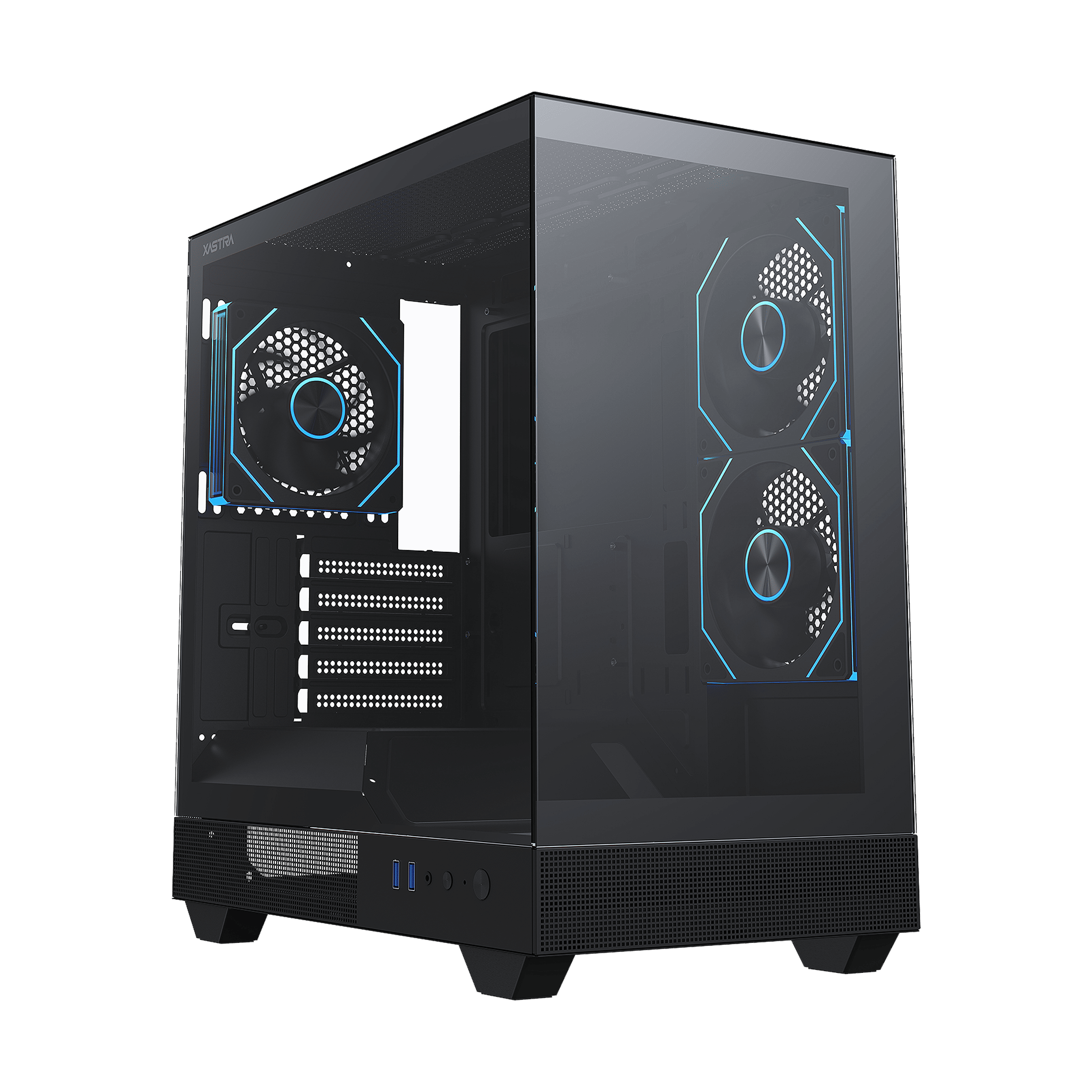

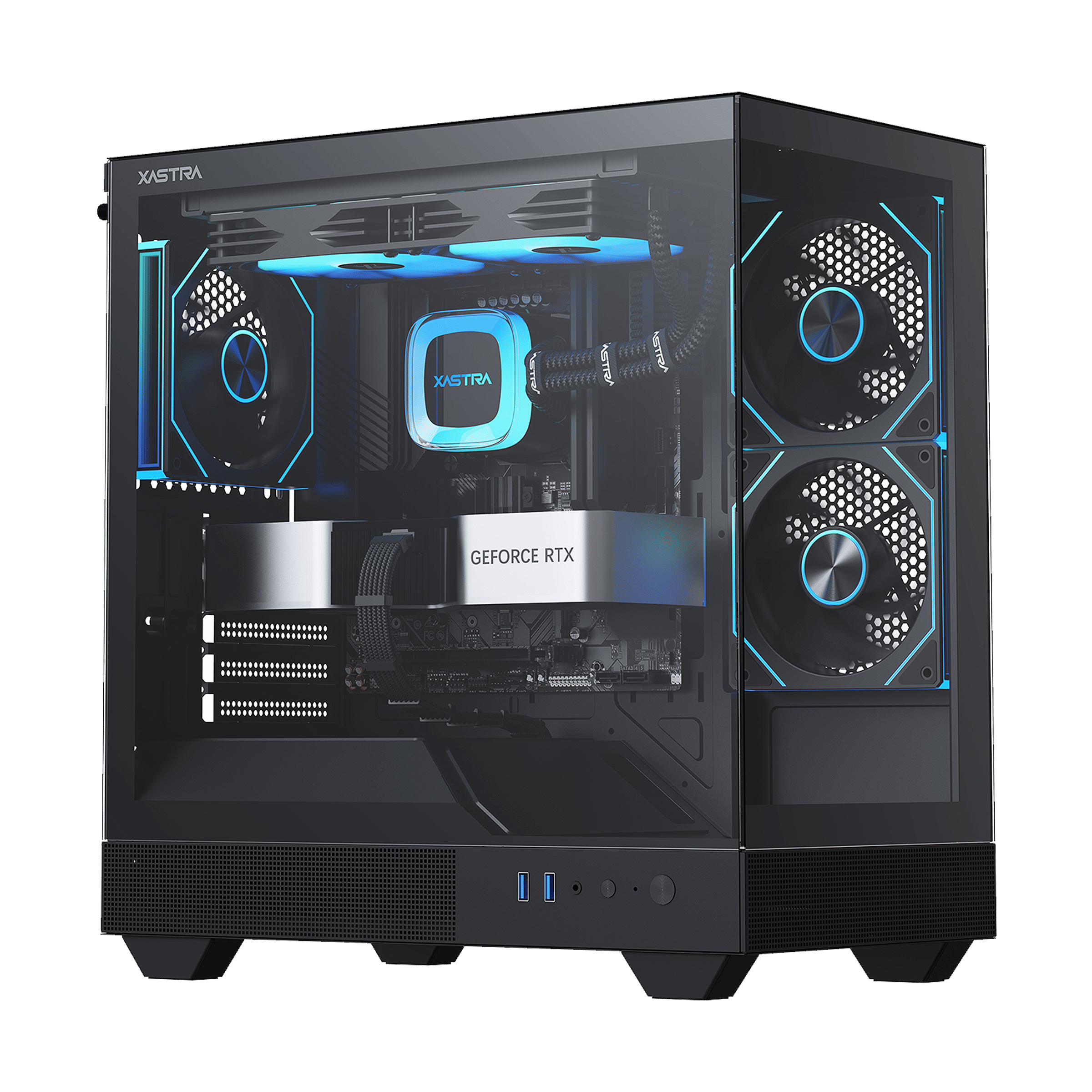

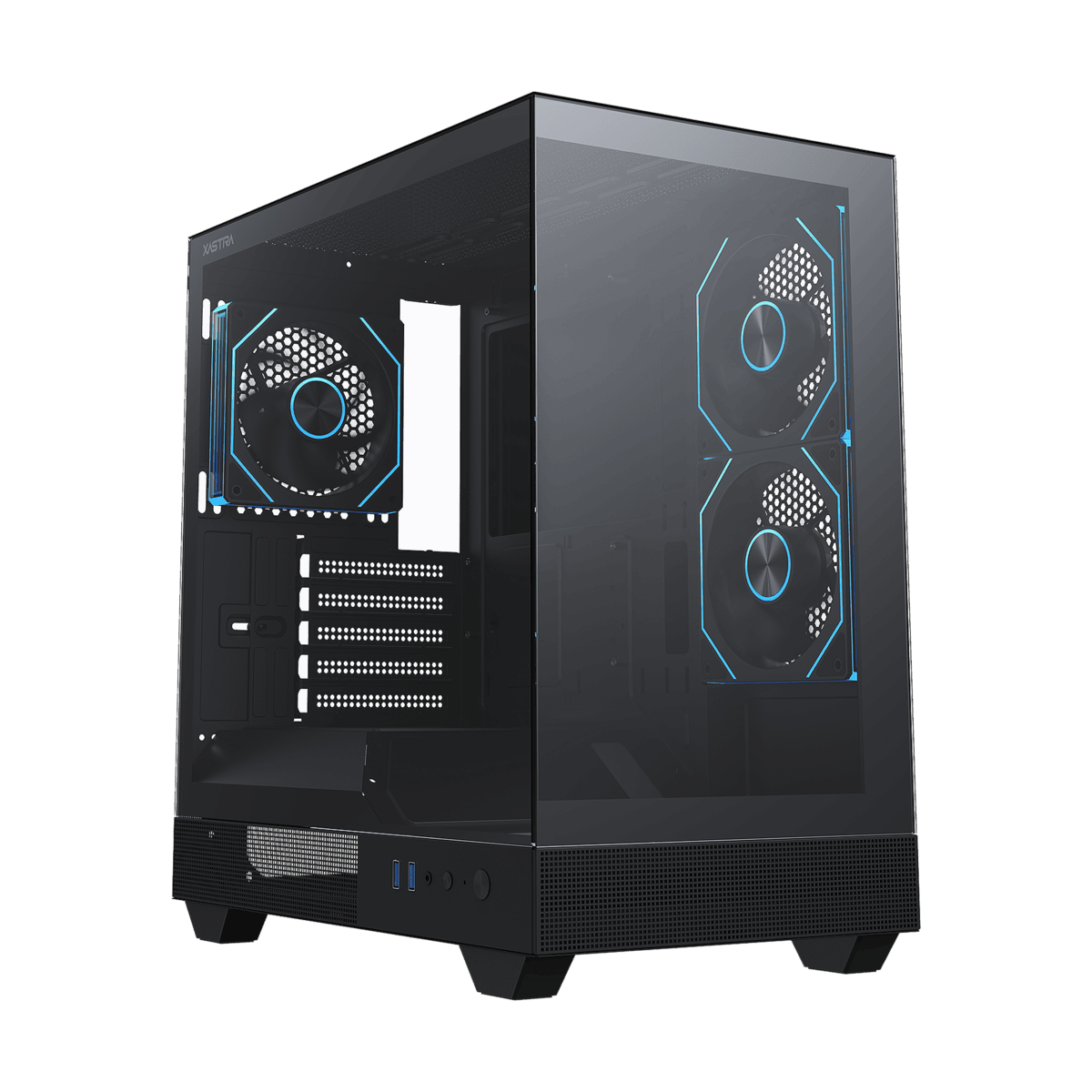

· Panoramic View: The front and side panel are crafted by high-transparency tempered glass, combined with a pillarless design.

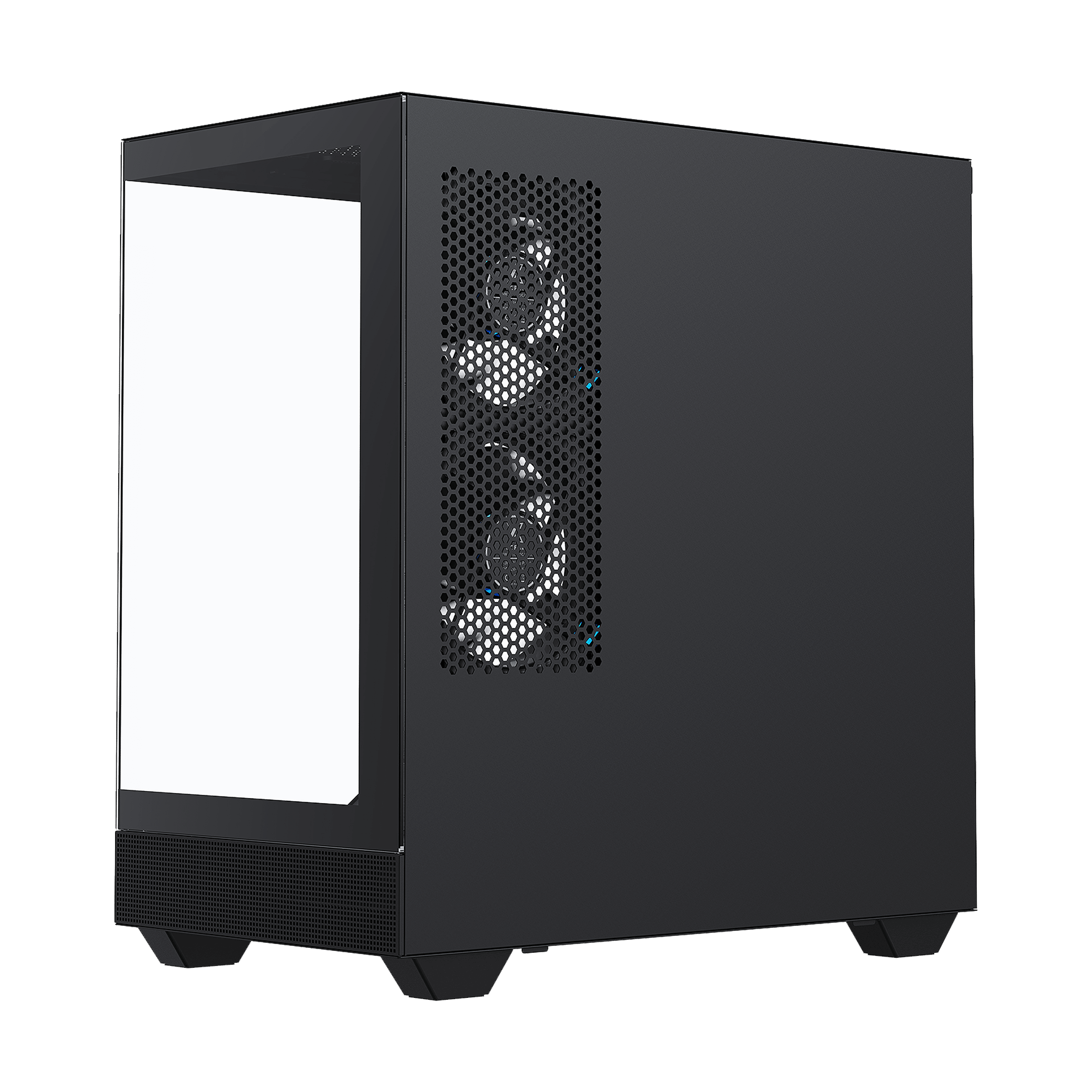

· Optimized Airflow: Featuring ventilated PSU shroud and mesh panel of bottom and side to maximize intake.
· Abundant Cooling Support: Supporting up to 280mm radiator on top, and up to 8pcsx120mm fan capacity, plus 2pcsx140mm fans on top and 1pcsx140mm fan on rear.
·Compatible with motherboard up to M-ATX, while fitting graphic cards up to 362mm for high-end build needs.
· Pre-installed Fans: Coming with six high-performance ARGB fans across the side, top and rear.
· Included Fan HUB: Equpped with 6-port ARGB & PWM fan hub for speed control and RGB lighting effects.
Gallery
Specifications
Product Specifications |
||||
General |
||||
| Model | Q402M ARGB | |||
| Case type | Mini-Tower | |||
| Product Dimensions | 395x225x410mm (LxWxH) | |||
| Material(s) | SPCC+Tempered Glass+ABS | |||

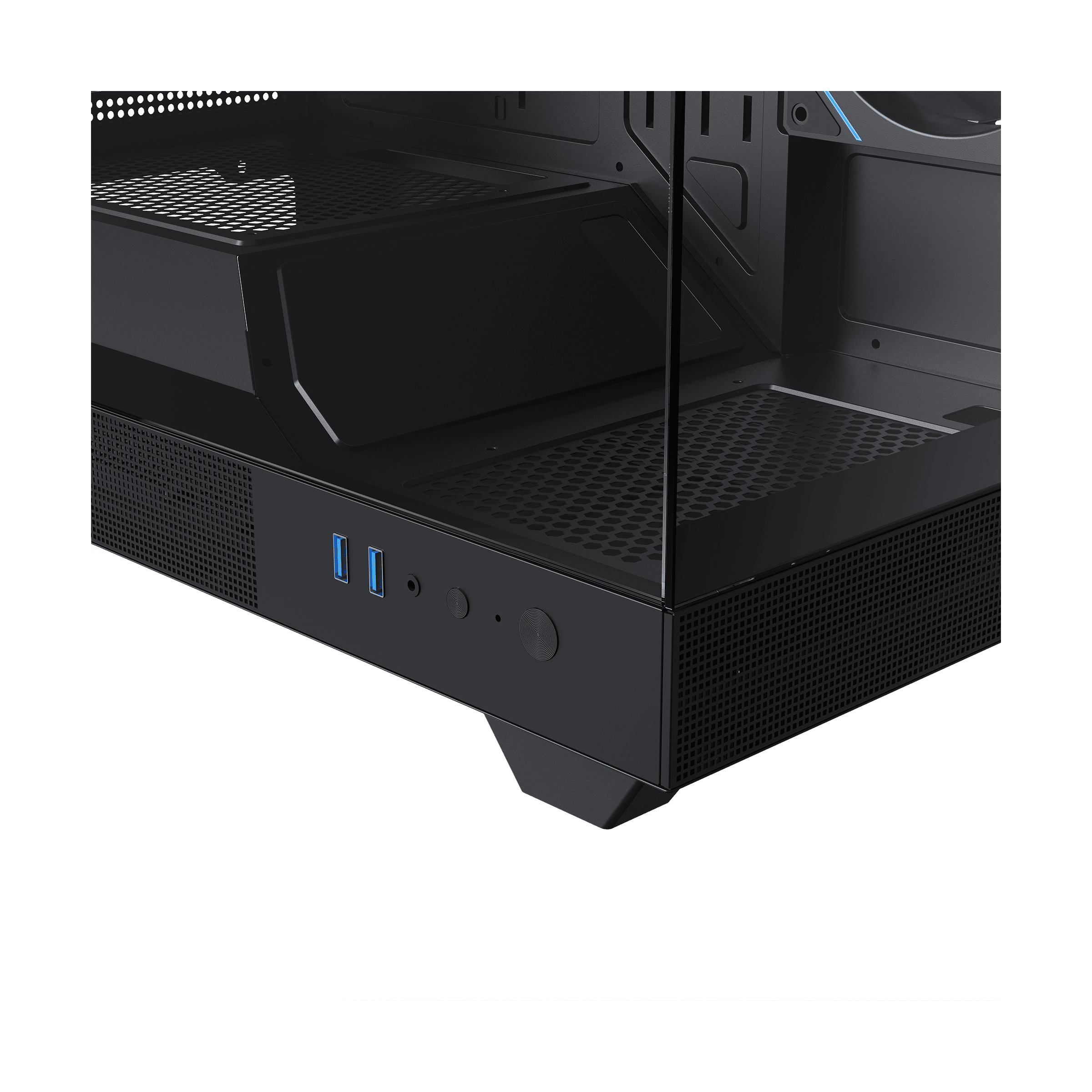

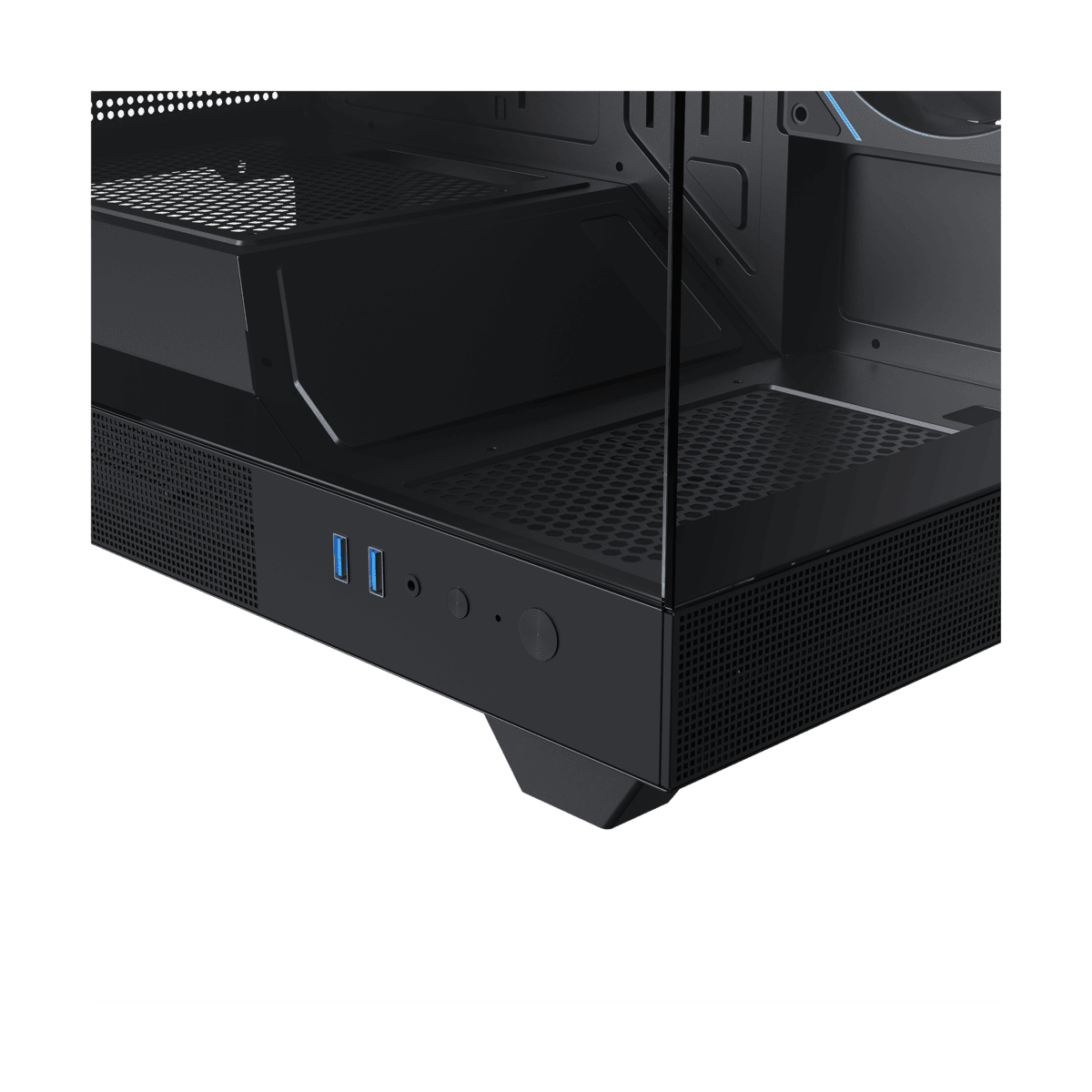

| I/O Port | USB 3.0 x 2, Power,Reset Button,HD Audio+Mic Jack | |||
Compatibility&Clearance |
||||
| Motherboard support | M-ATX / ITX | |||
| Max.PSU Length | ATX-POWER (Max.L: 160 mm) | |||
| Max.CPU Cooler Height | ≤180mm | |||
| Max.GPU Length | 362mm | |||
Expansion slots & Drive Bays |
||||

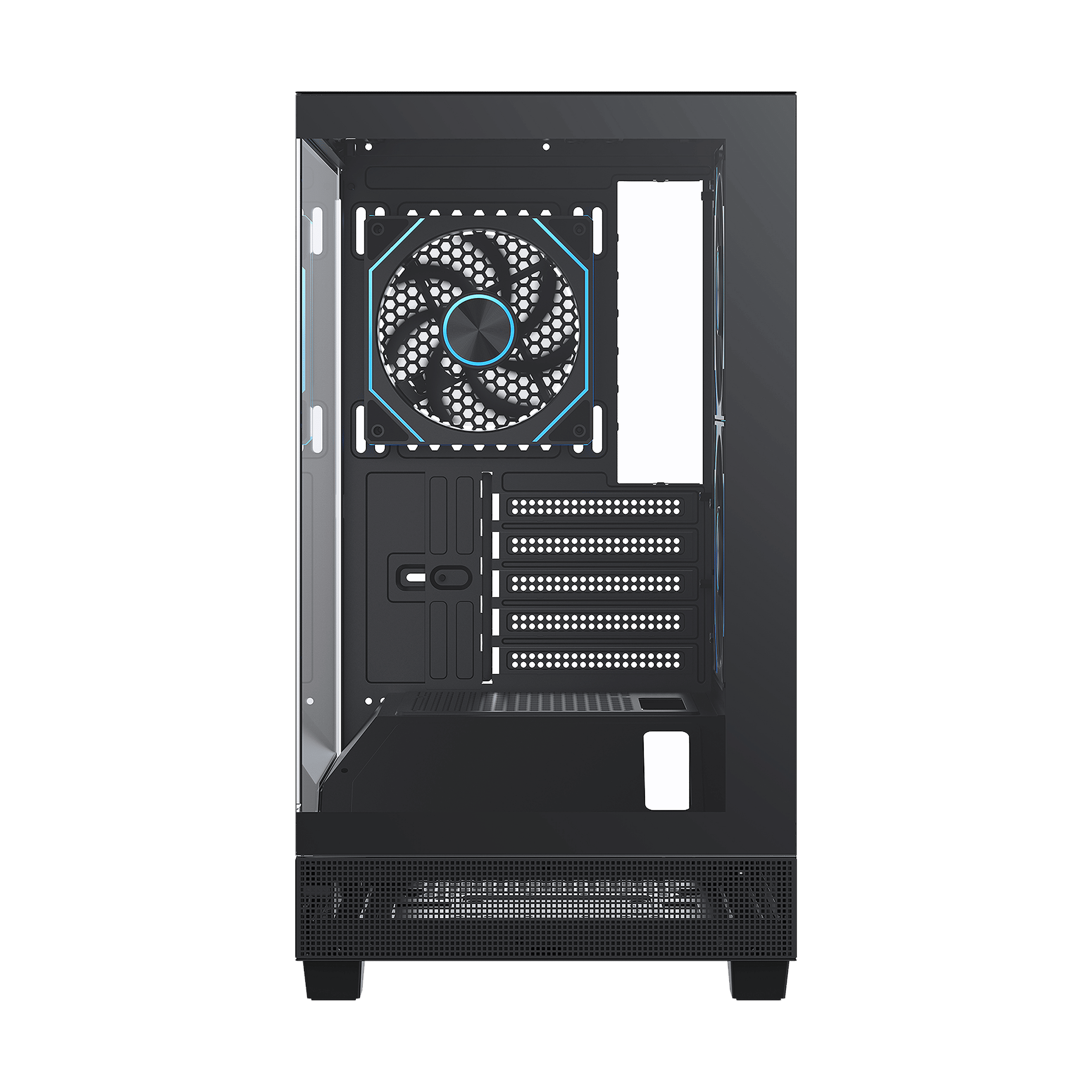

| PCl Expansion slot | 5 | |||
| Storage | 3.5″HDD x 1 + 2.5″SSD x 2 | |||
Radiator support |
||||
| Front | / | |||
| Top | 240mm/280mm | |||
| Bottom | / | |||
| M/B Side | / | |||
| Rear | 120mm/140mm | |||
Fan support |
||||
| Front | / | |||

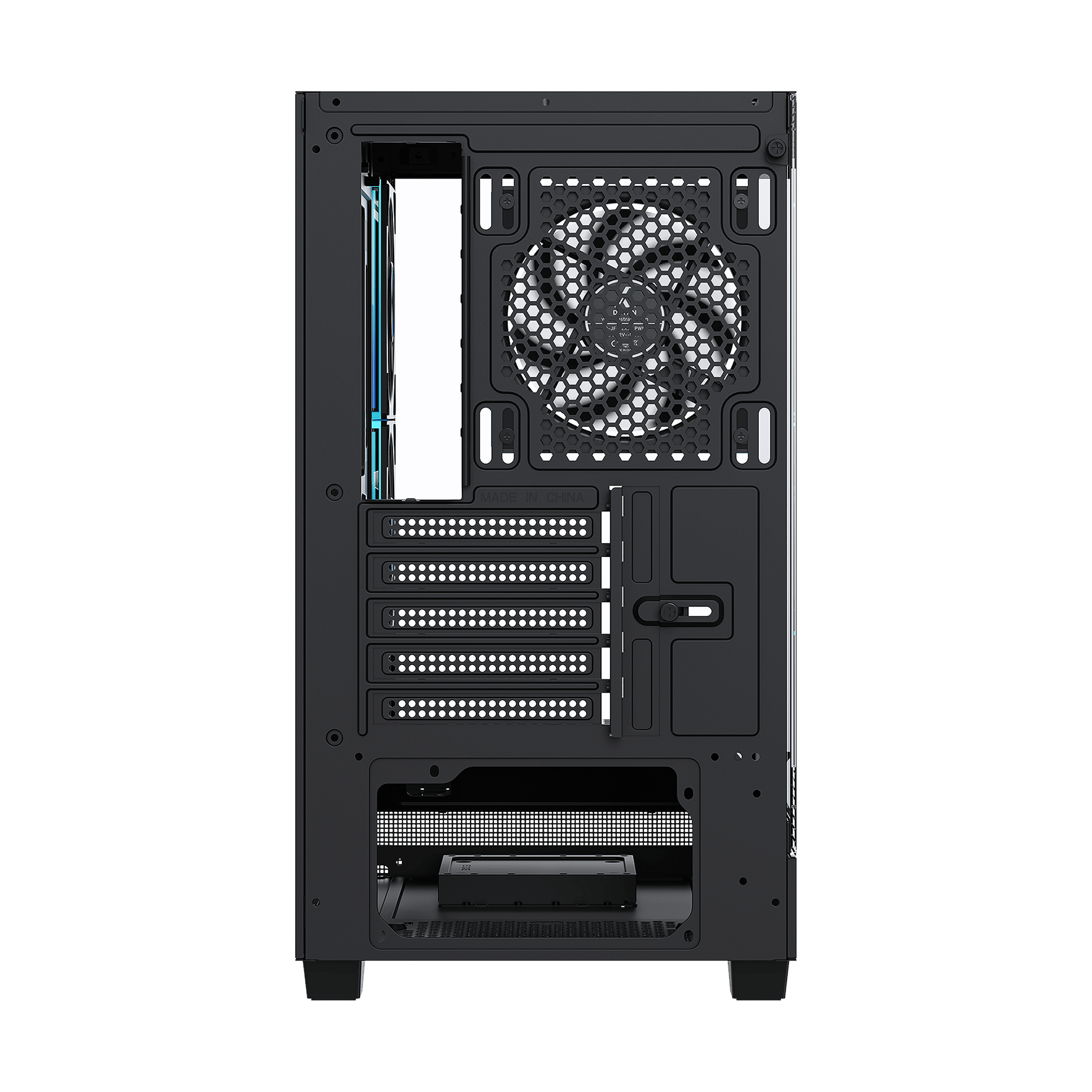

| Rear | 120mmx1/140mmx1 | |||
| Top | 120mmx3/140mmx2 | |||
| Bottom | 120mmx2 | |||

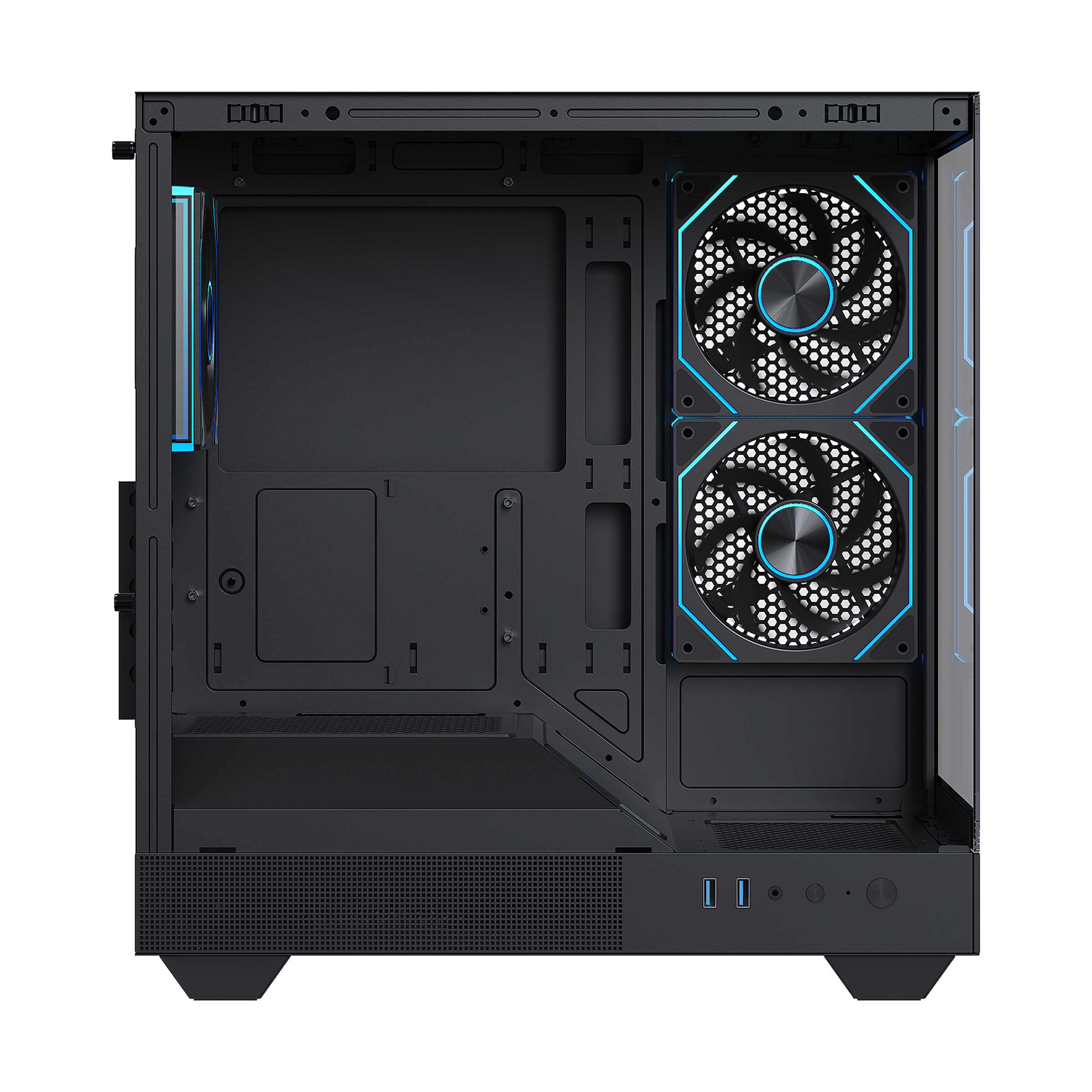

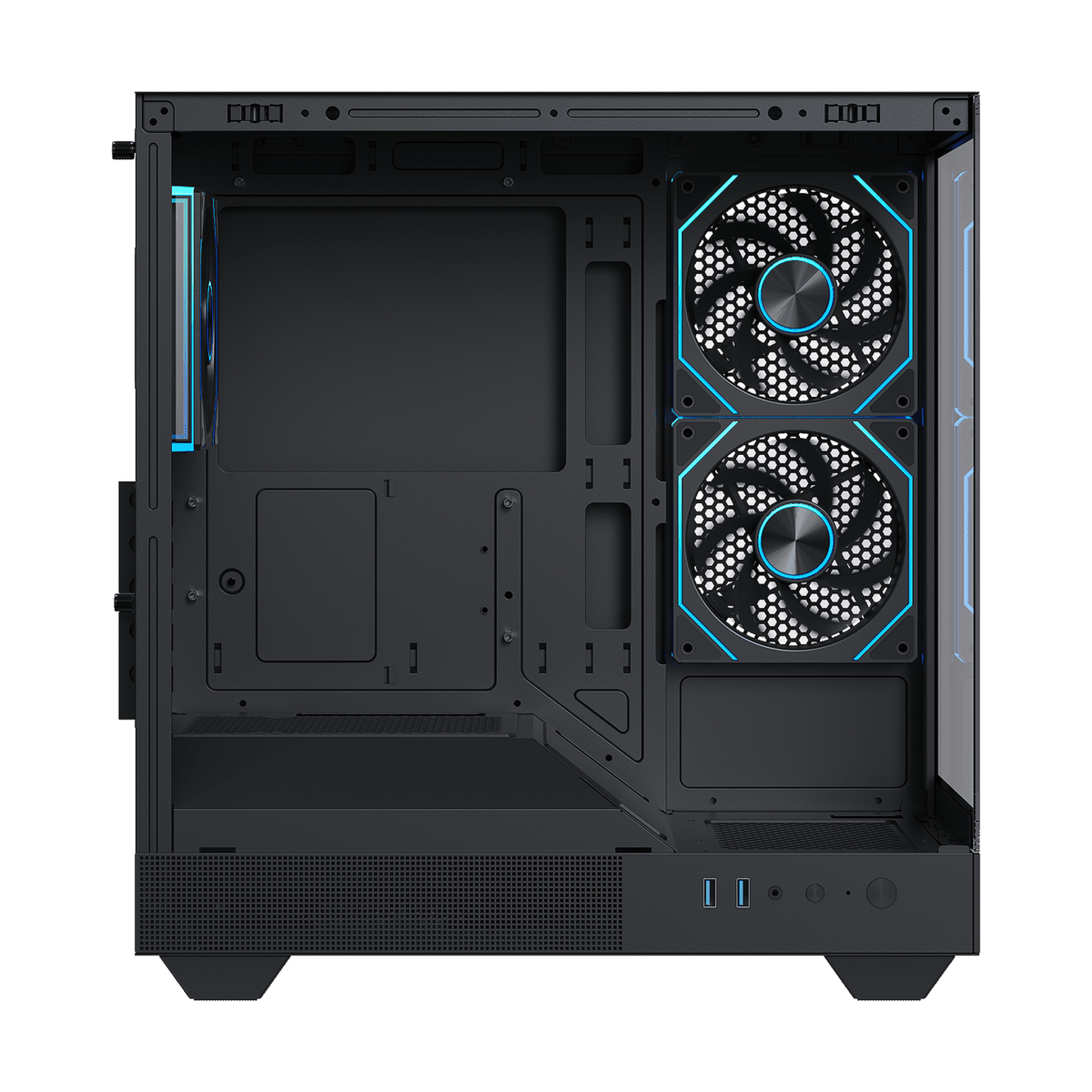

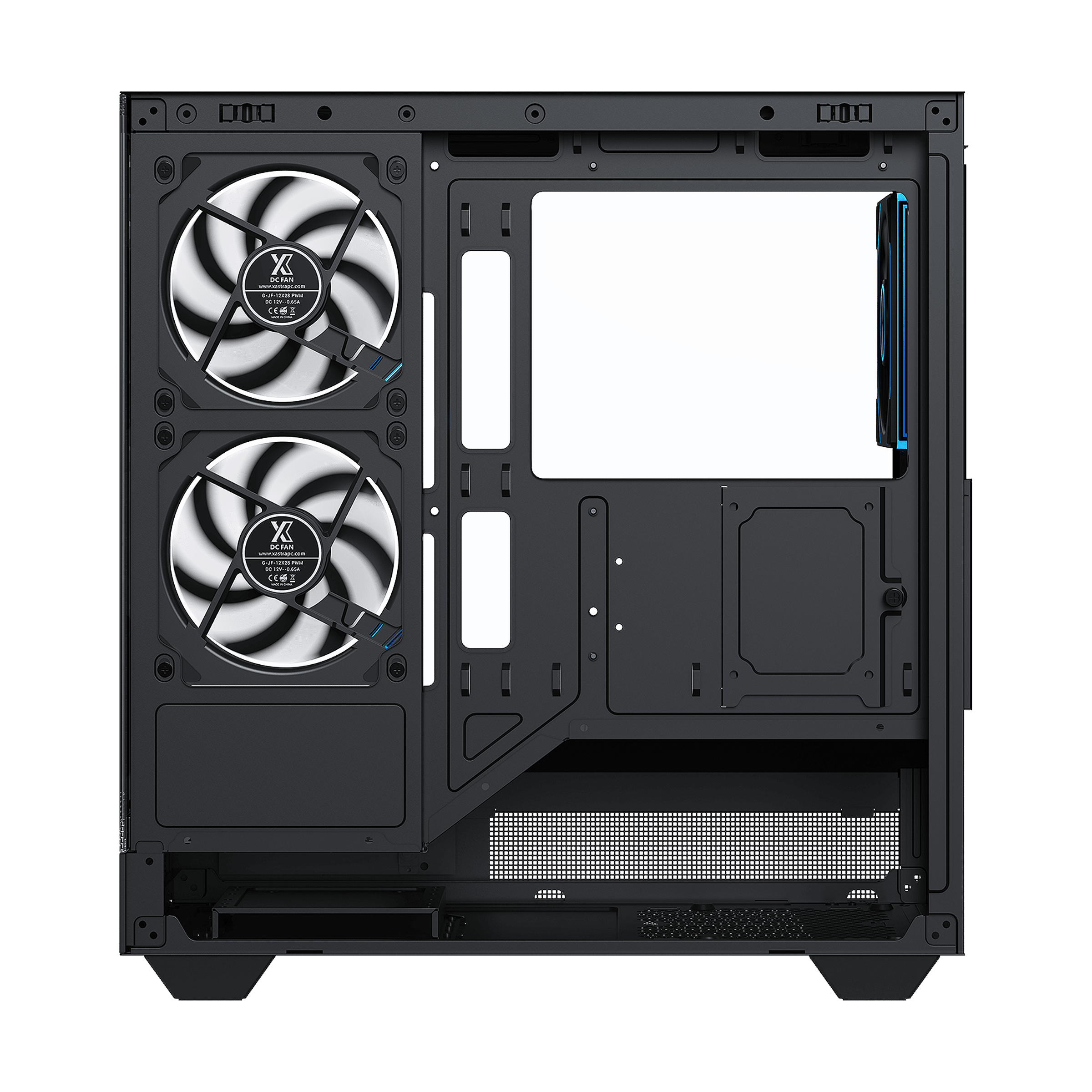

| M/B Side | 120mmx2 | |||
| Maximum Number of Fans | 8 | |||
Model |
P/N |
EAN(13) |
More information |
|||
| Q402M 3ARGB-FN-C6 | Q402M-3FN12A-C6 | 6977137652591 | Pre-installed with 3xFN120 ARGB FAN+6 Ports fan HUB (Type-C included) | |||
| Q402M 6ARGB-FA-C6 | Q402M-1FA36A-1FA24A-1FA12A-C6 | 6977137652607 | Pre-installed with 1xFA360 ARGB FAN+1xFA240 ARGB FAN+1xFA120 ARGB
FAN+ 6 Ports fan HUB (Type-C included) |
|||
