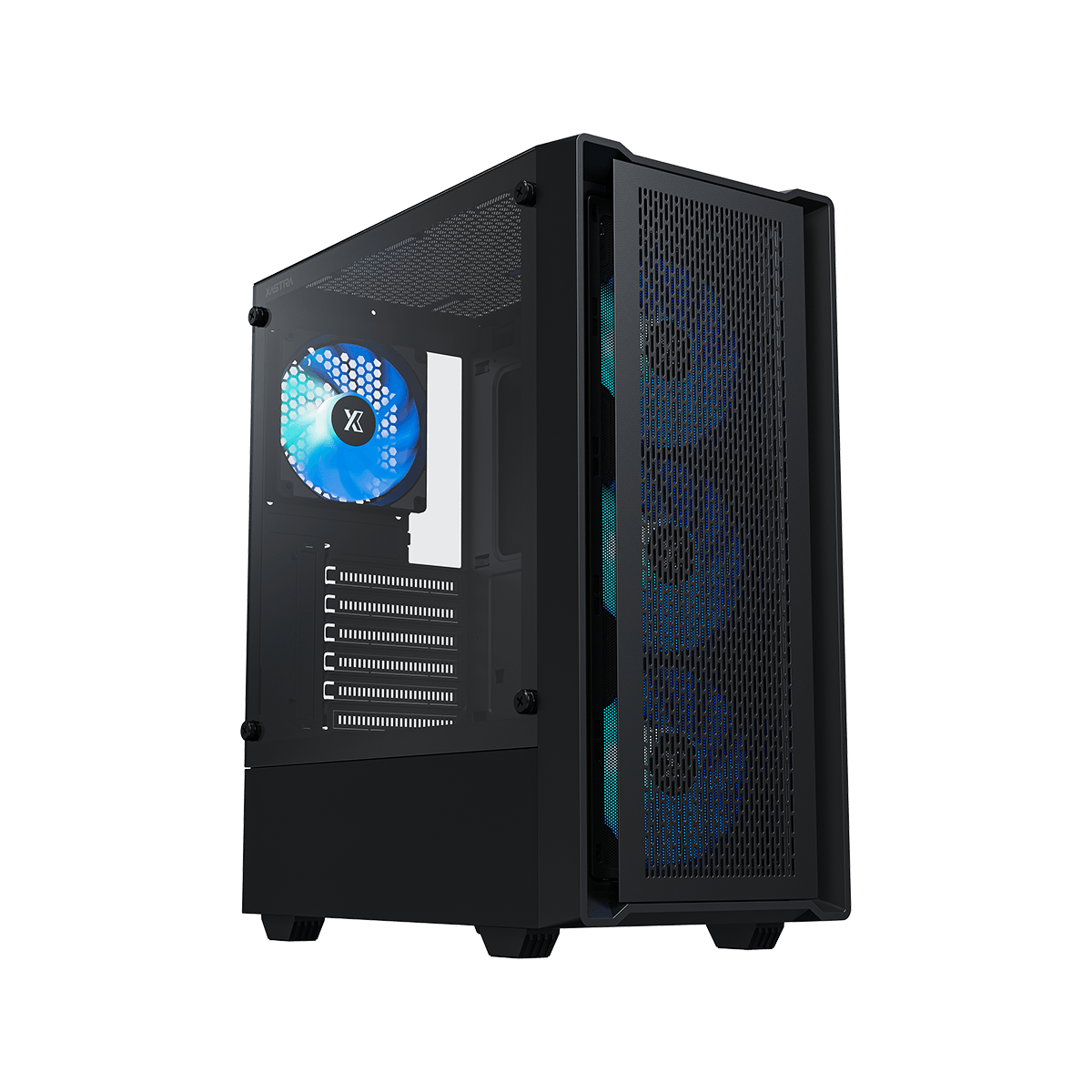

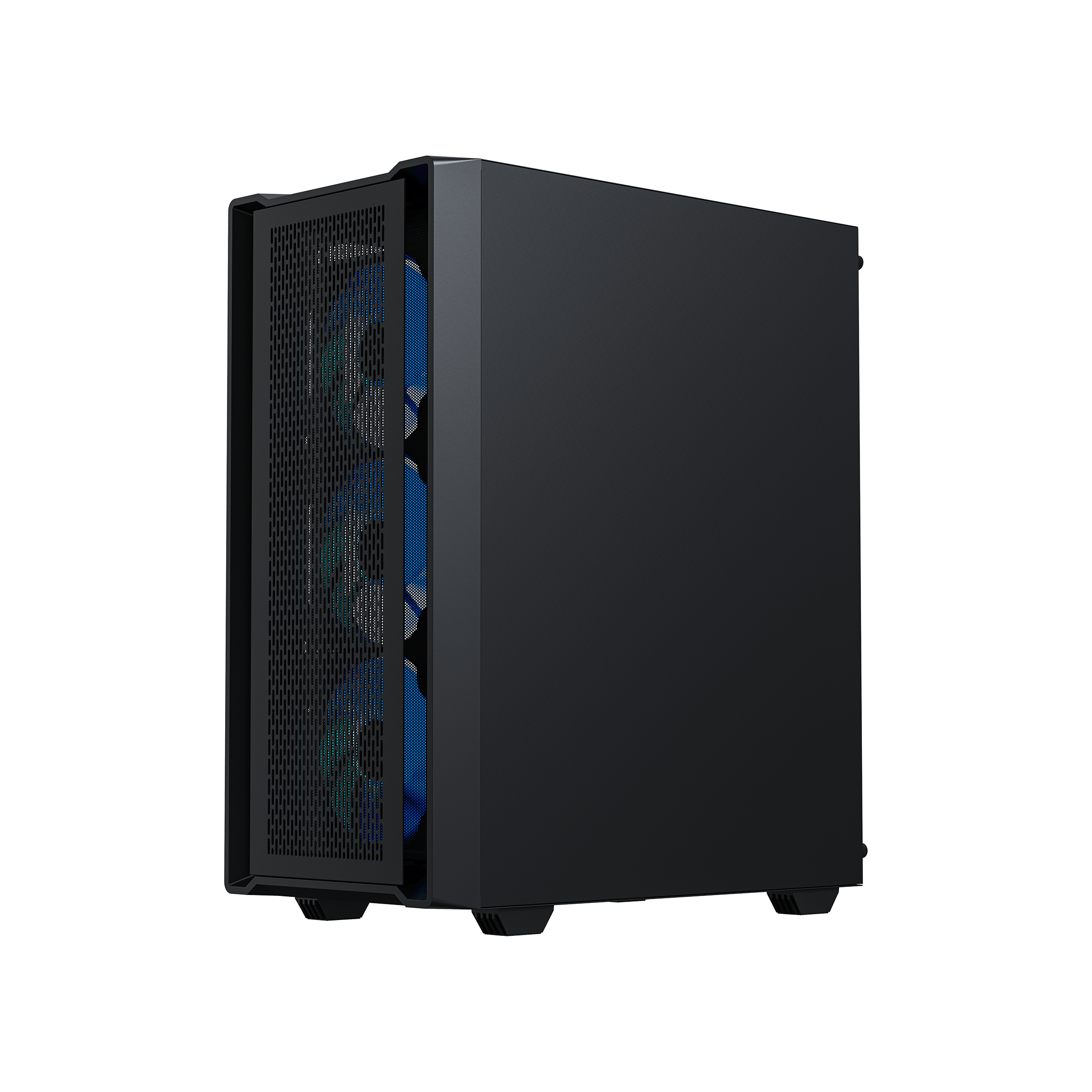

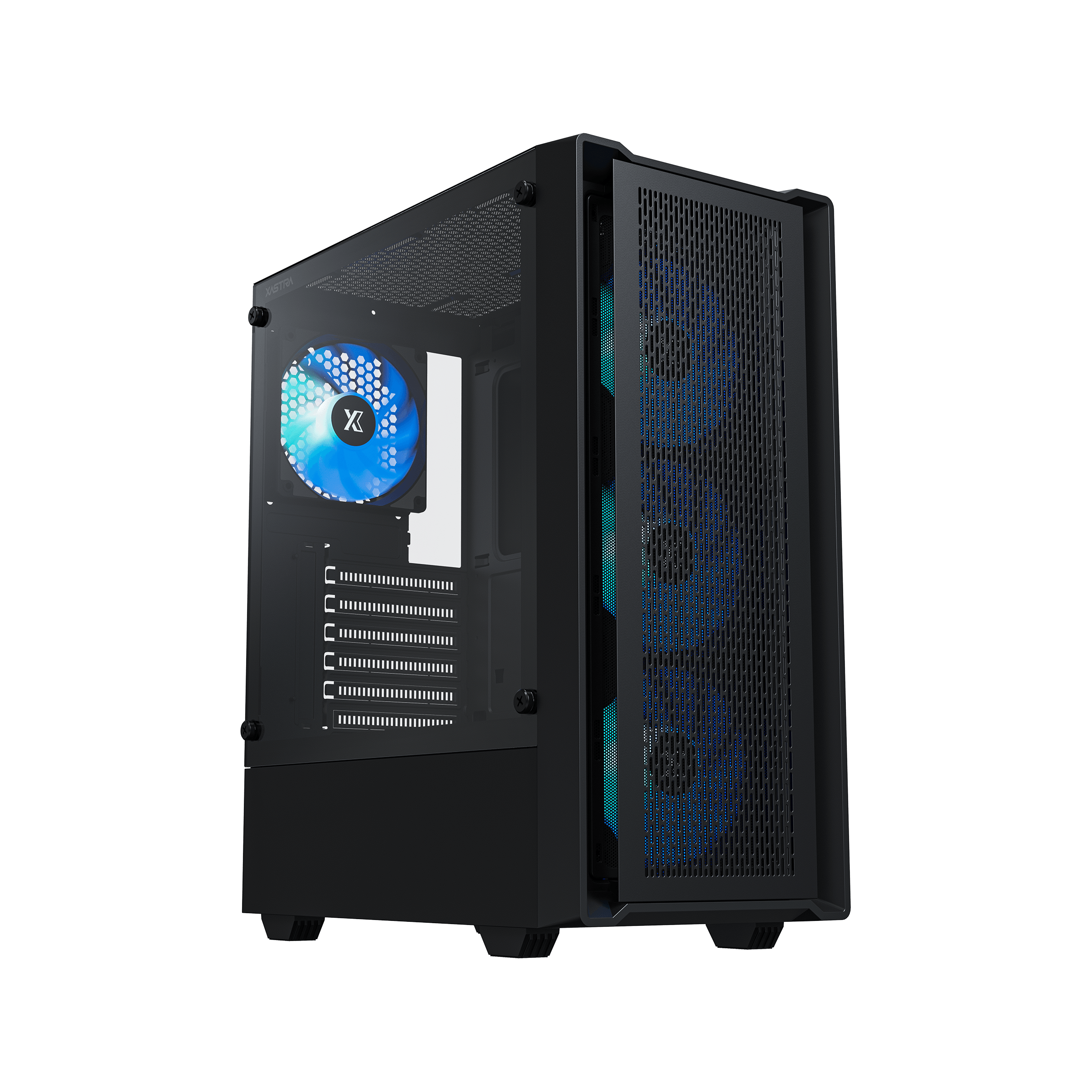

A320 ARGB

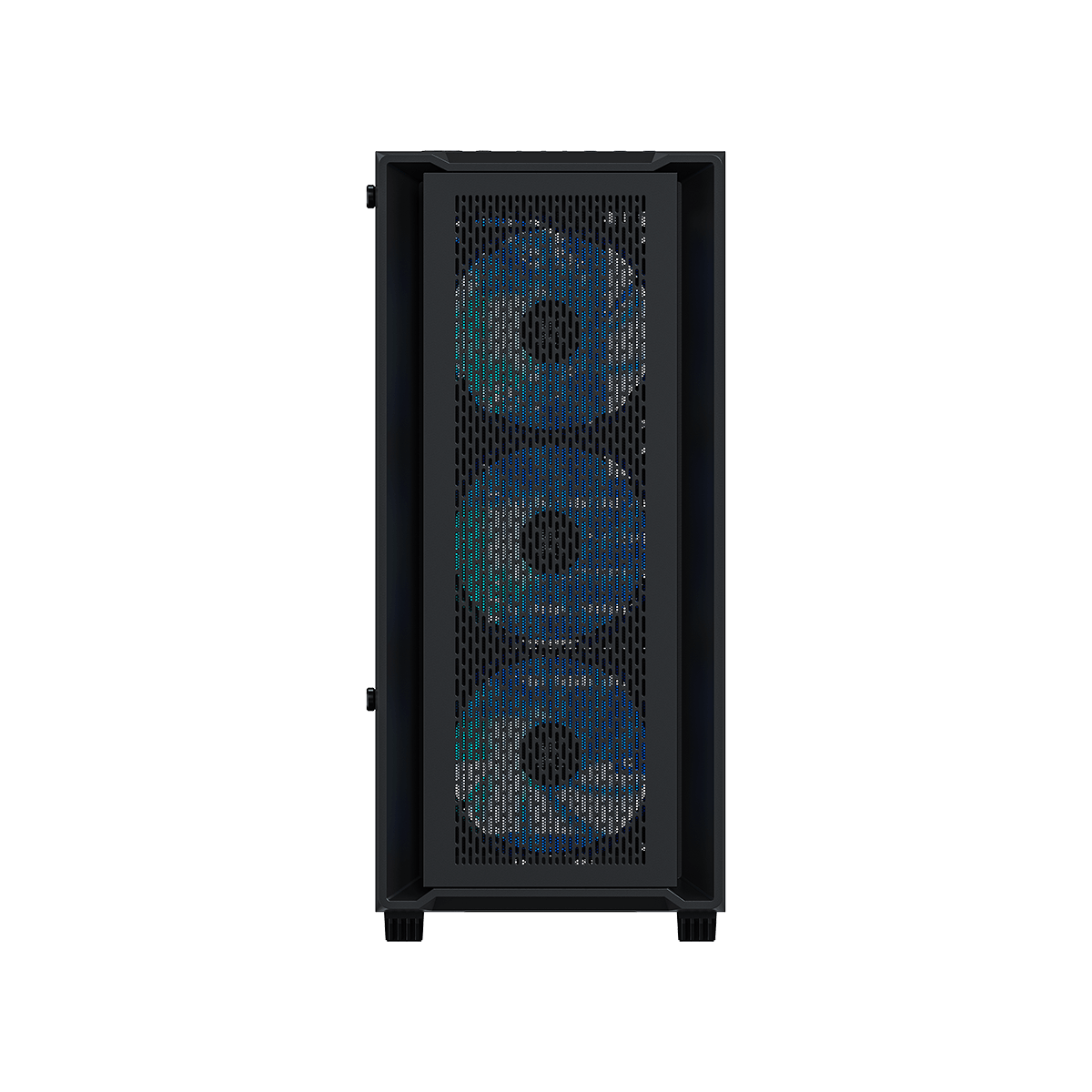

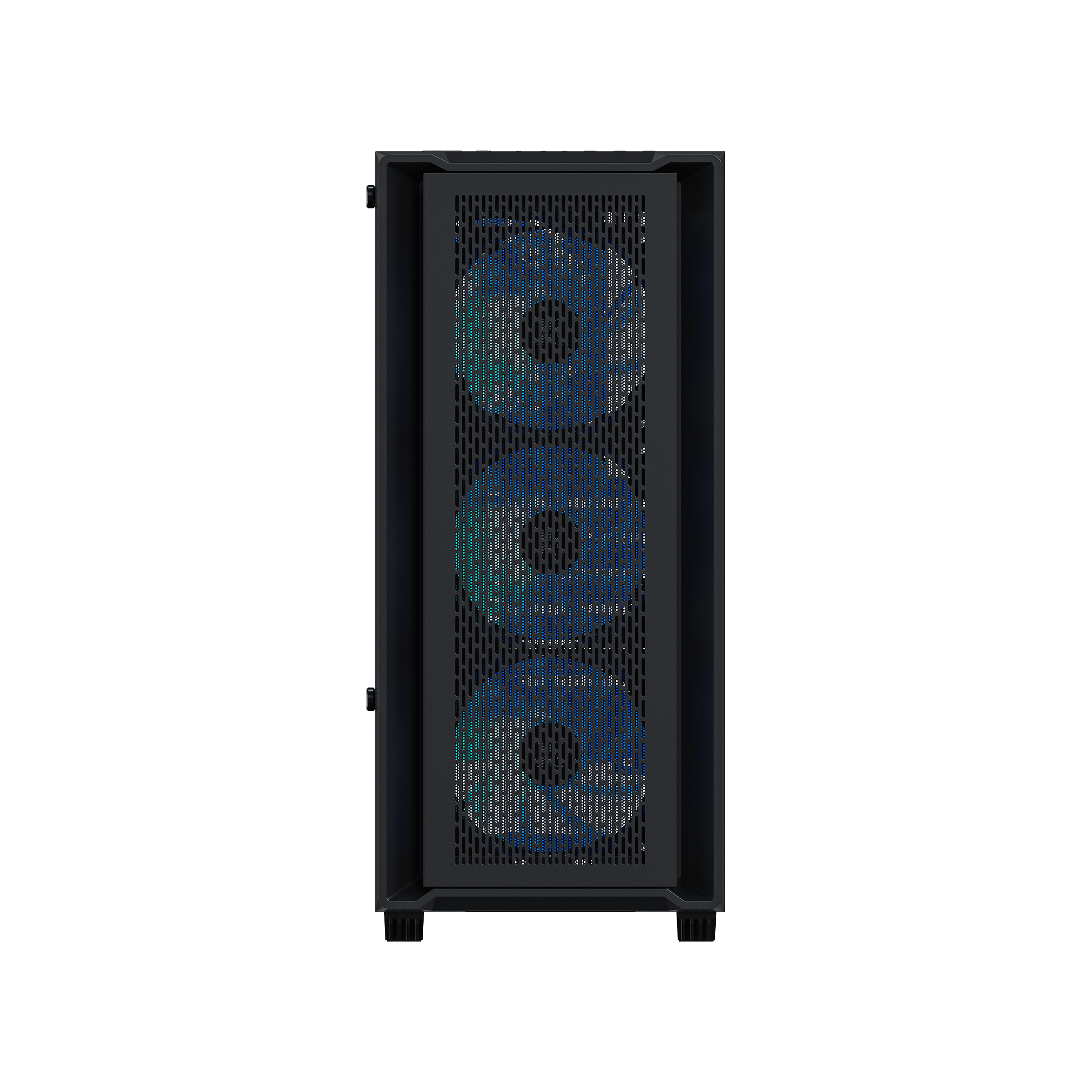

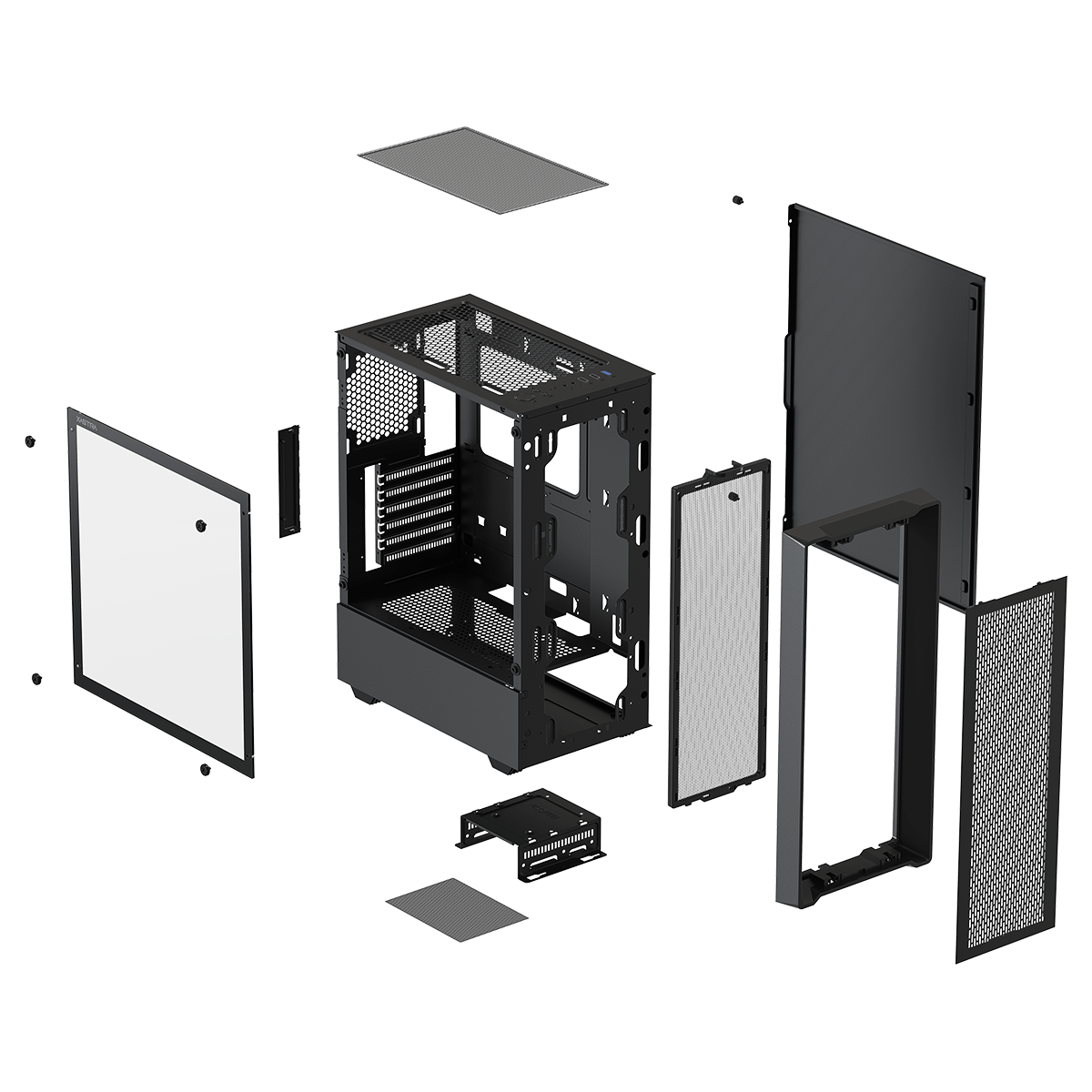

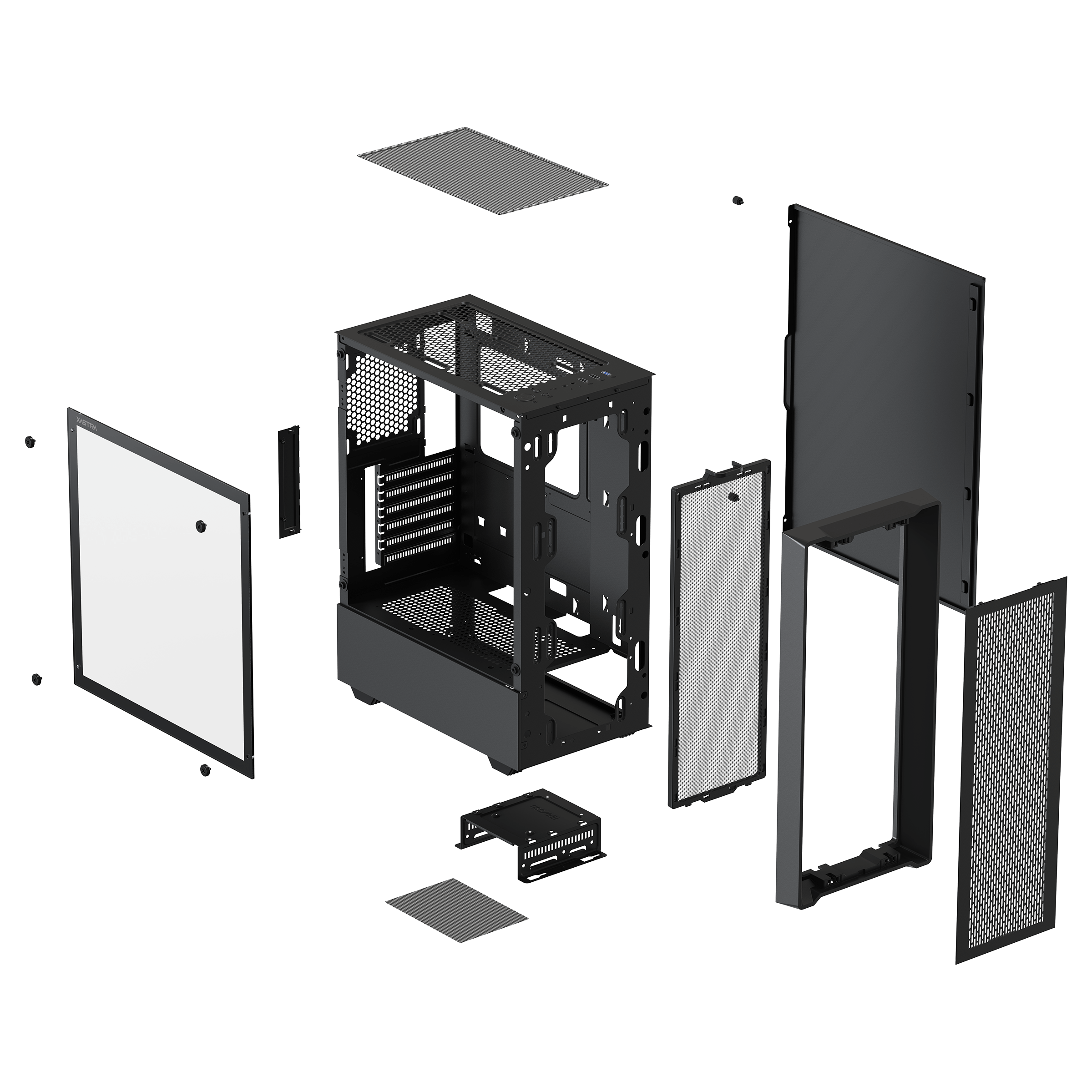

·The front panel adopts an open structural design with a floating geometric mesh panel and a high-density dust filter for optimized cooling and dust-proof.

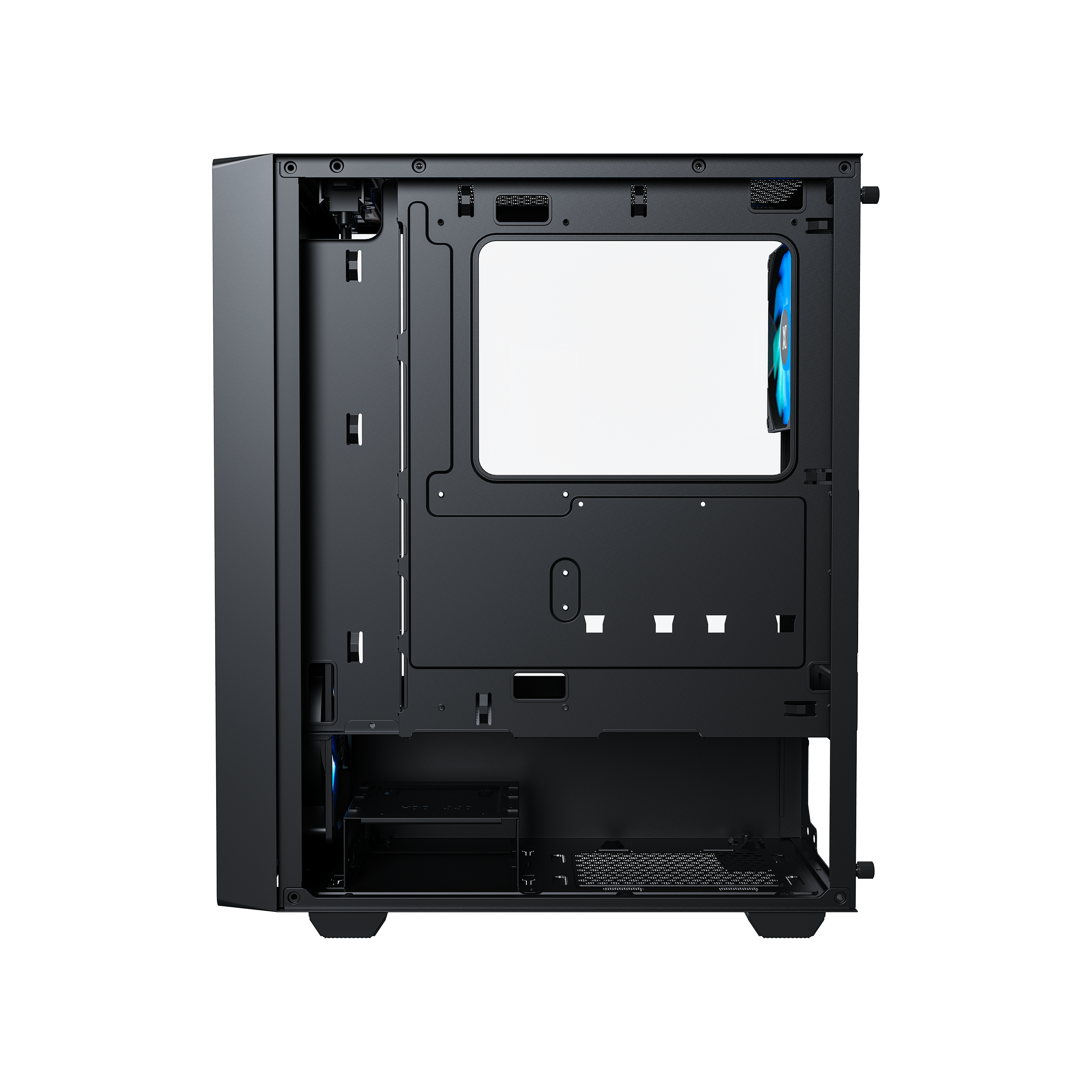

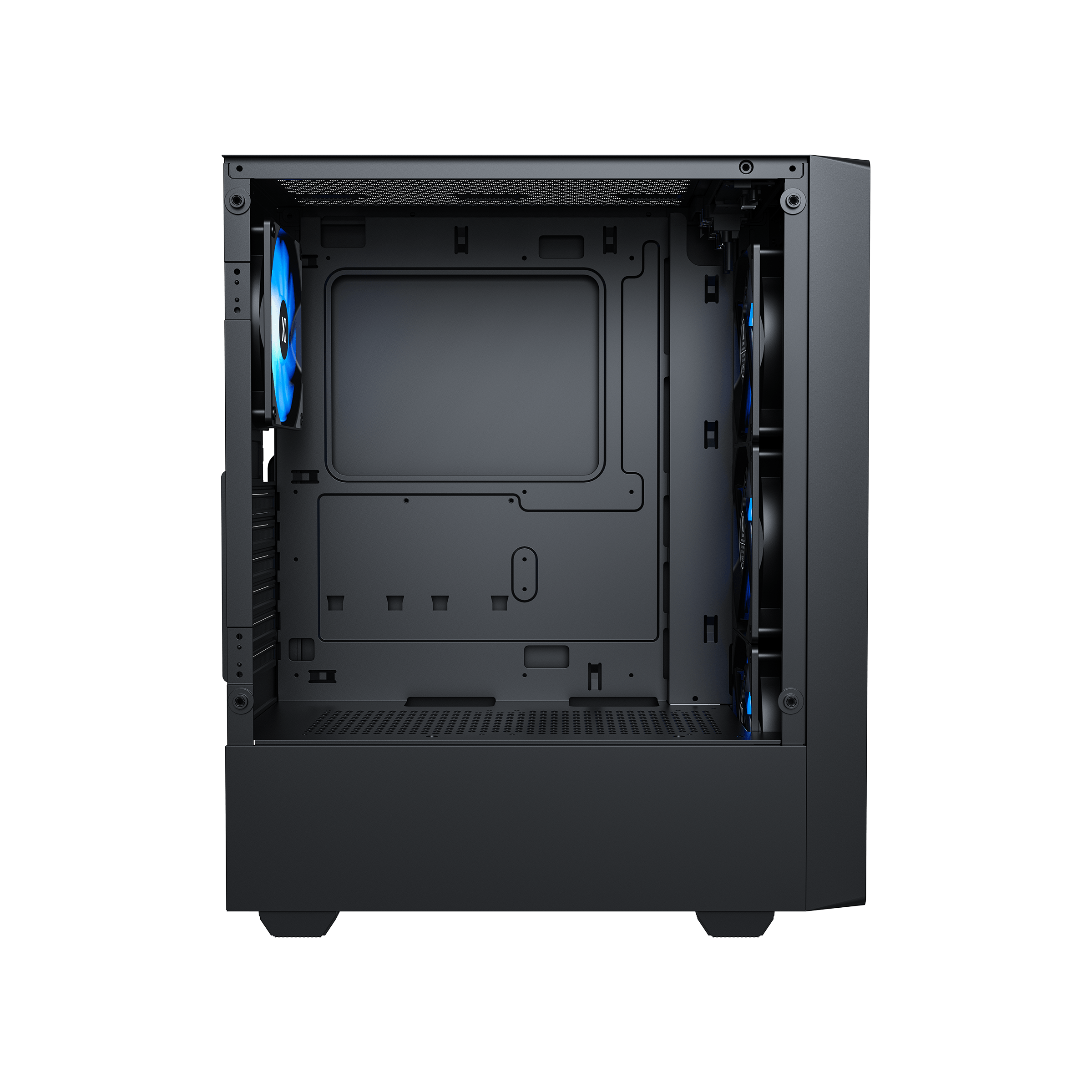

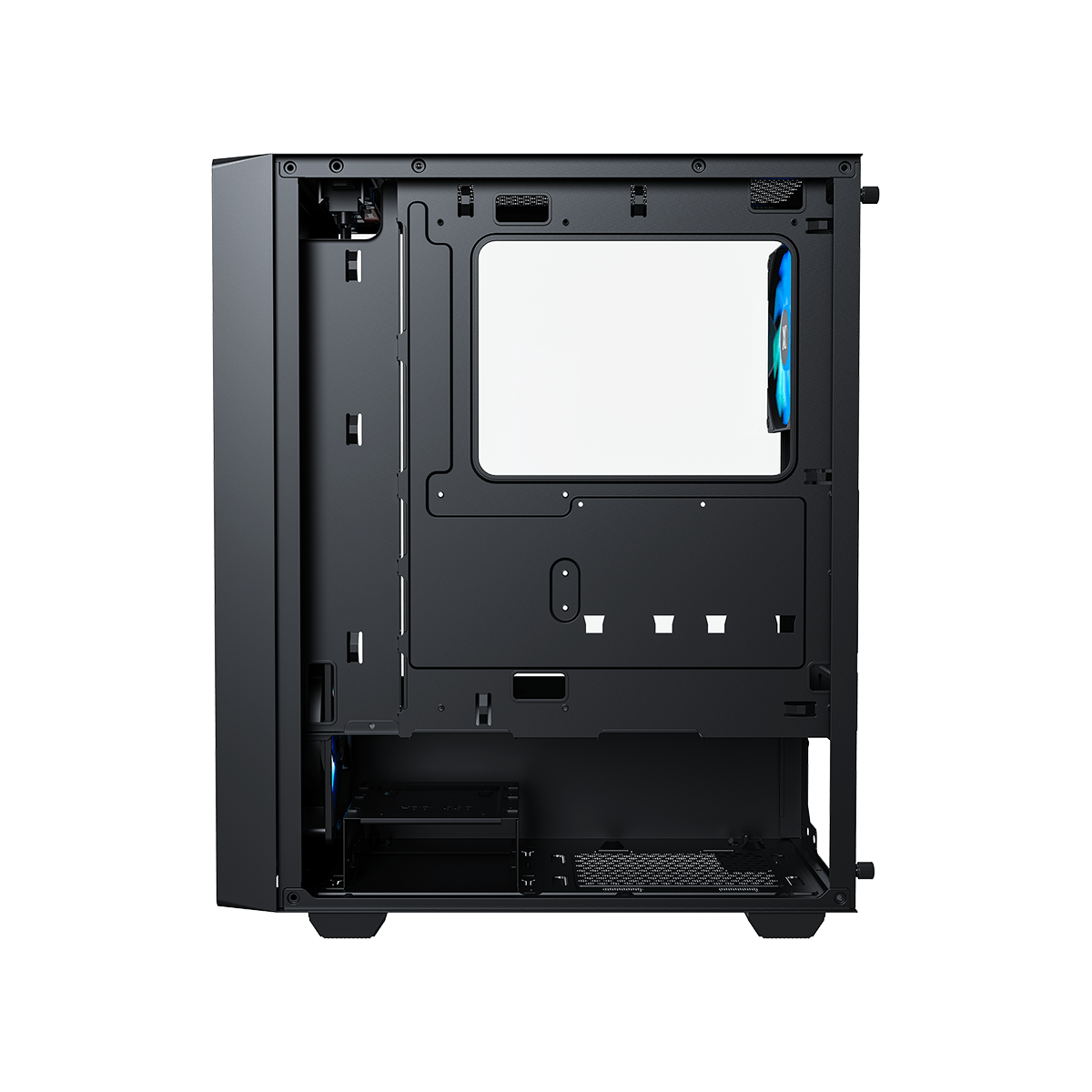

·Combined a vertical airflow design and upper-lower dual-chamber structure, alongside with the perforated PSU shroud to improve bottom air intake.

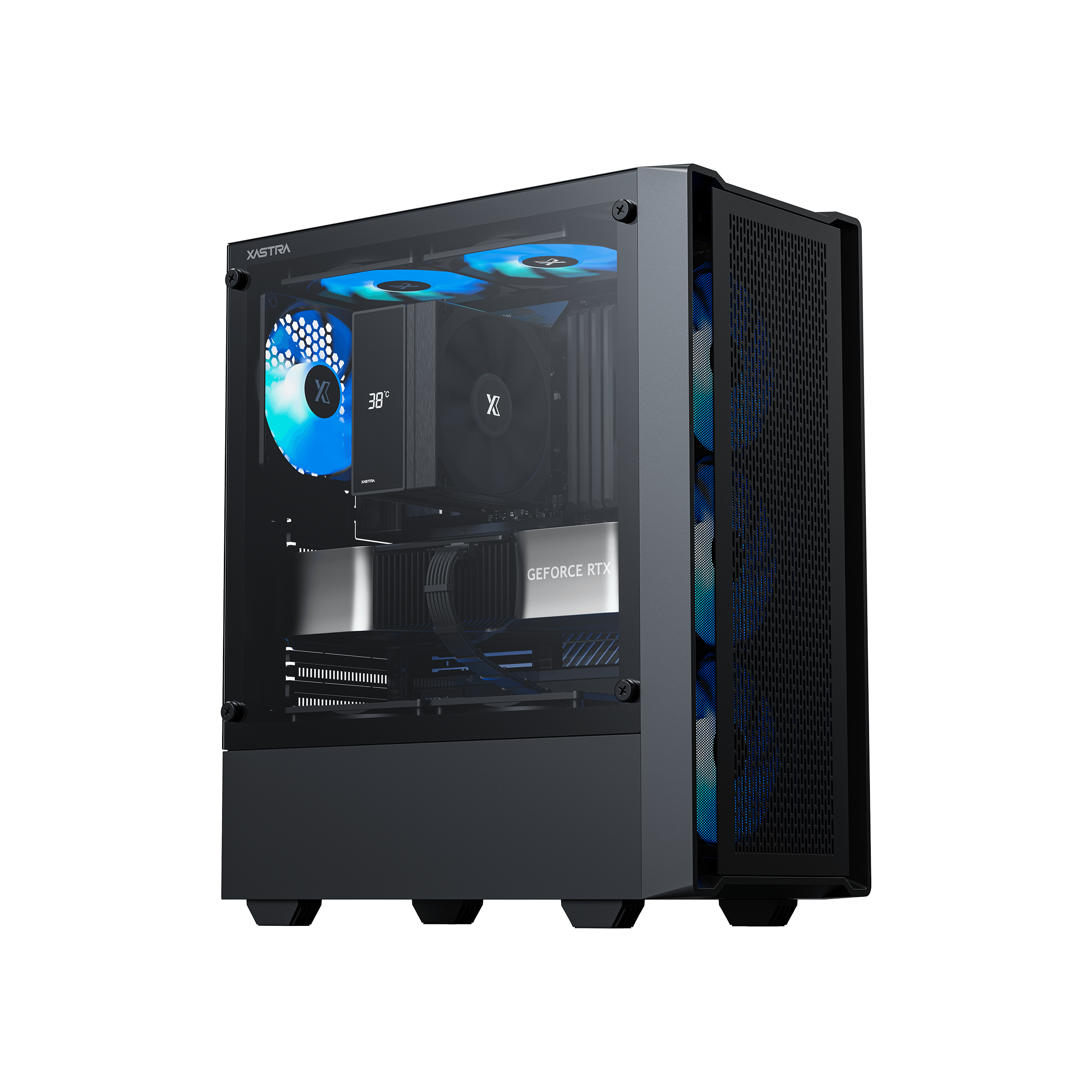

·Compatible with motherboard up to ATX, while fitting graphic cards up to 305mm for high-end build needs.
·Supports air coolers up to 165mm in height, up to eight 120mm fans across the top, front, PSU shroud and rear, and two 140mm fans on the front.
Gallery
Specifications
Product Specifications |
||||
General |
||||
| Model | A320 | |||
| Case type | Mid-Tower | |||
| Product Dimensions | 375 x 200 x 450mm(LxWxH) | |||
| Material(s) | SPCC + Tempered Glass + ABS | |||

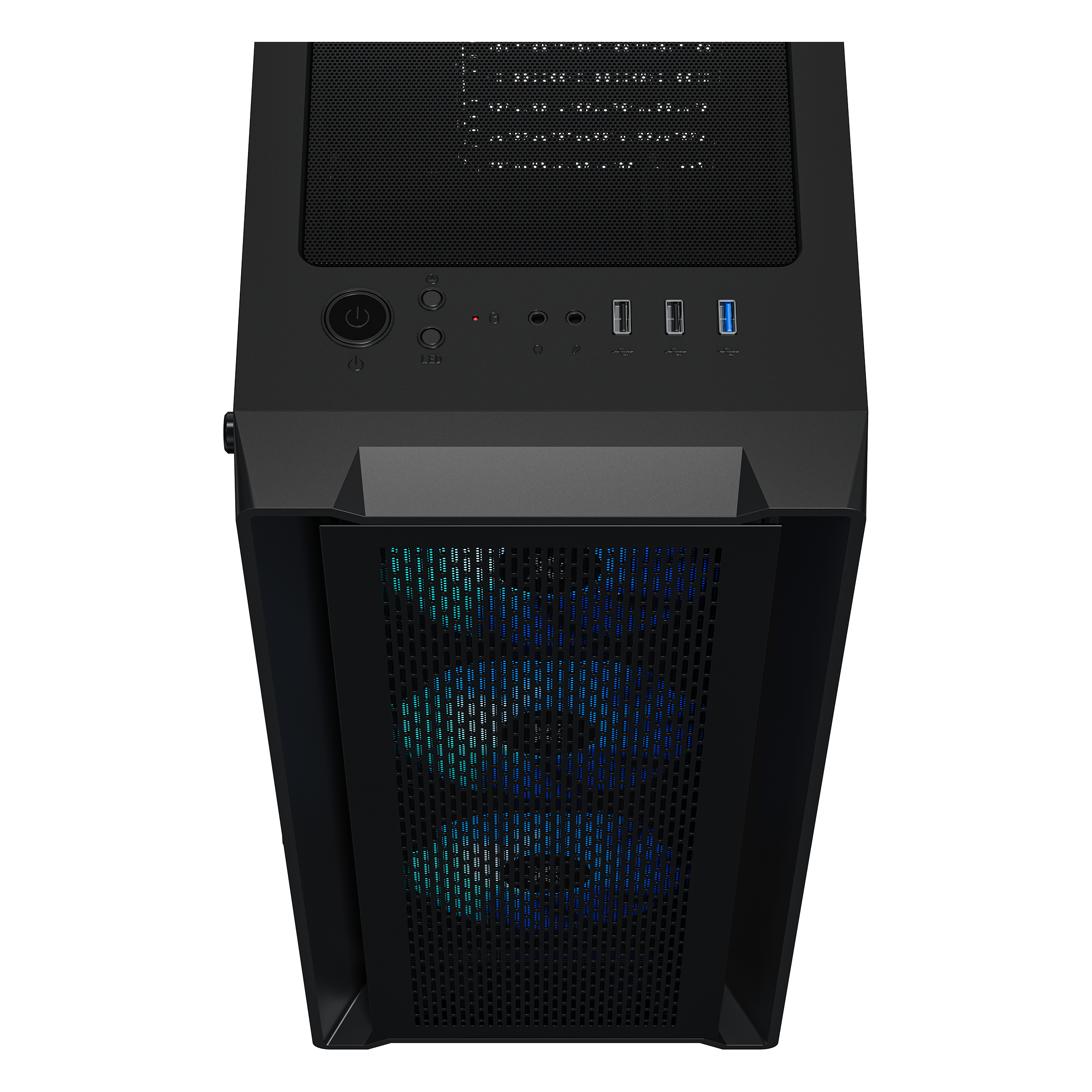

| I/O Port | USB 3.0 x 1, USB 2.0 x 2 ,Power,Reset Button,HD Audio | |||
Compatibility&Clearance |
||||
| Motherboard support | ATX/M-ATX/ITX | |||
| Max.PSU Length | ATX-POWER (Max.L: 150 mm) | |||
| Max.CPU Cooler Height | 165mm | |||
| Max.GPU Length | 305mm | |||
Expansion slots & Drive Bays |
||||

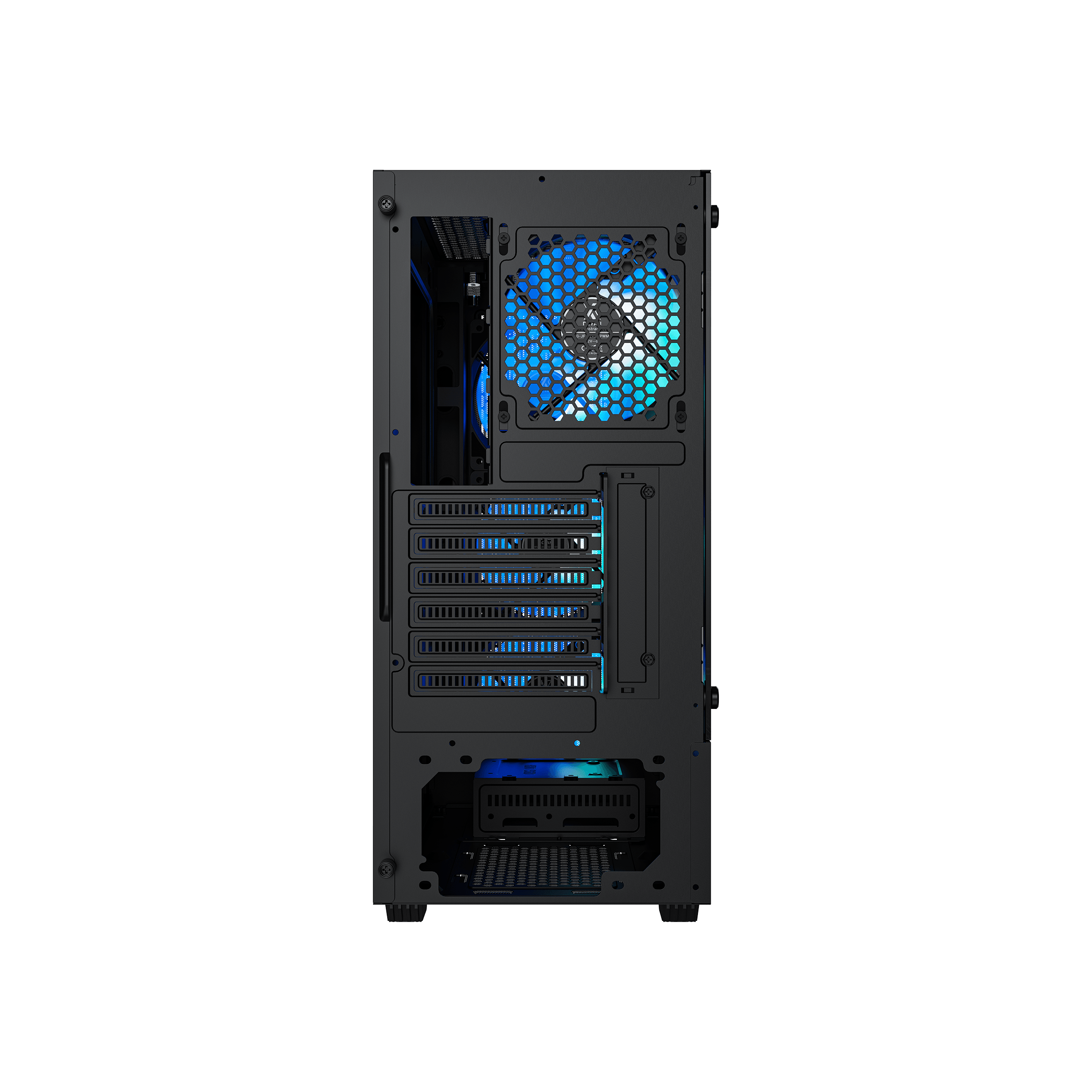

| PCl Expansion slot | 7 | |||
| Storage | 3.5″HDD x 1 + 2.5″SSD x 1 | |||
Radiator support |
||||
| Front | / | |||
| Top | / | |||
| Bottom | / | |||
| M/B Side | / | |||
| Rear | 120mm | |||
Fan support |
||||
| Front | 120mmx3/140mmx2 | |||
| Rear | 120mmx1 | |||
| Top | 120mmx2 | |||
| Bottom | 120mmx2 | |||
| M/B Side | / | |||
| Maximum Number of Fans | 8 | |||
Model |
P/N |
EAN(13) |
More information |
|||
| A320 4ARGB | A320-4FC12A | 6977137652447 | Pre-installed with 4FC12A ARGB FAN | |||
