QW500M WH

in stock

·Feature dual high-transparency tempered glass panels with pillarless structure for immersive visual experience,

·Support up to nine 120mm fans across the top, side, rear, and bottom, as well as two 140mm fans in the top,

·Fit up to 360mm radiators in the top and bottom, plus up to 160mm height of air cooler,

·Clearnce for graphic cards is up to 410mm,

·Compatible with M-ATX, and ITX motherboards,

·Equipped with dust filters across the top, bottom and side, plus the bottom filter adopts pull-out design,

·Built with a high data transfer speeds Type-C port of up to 10Gbps,

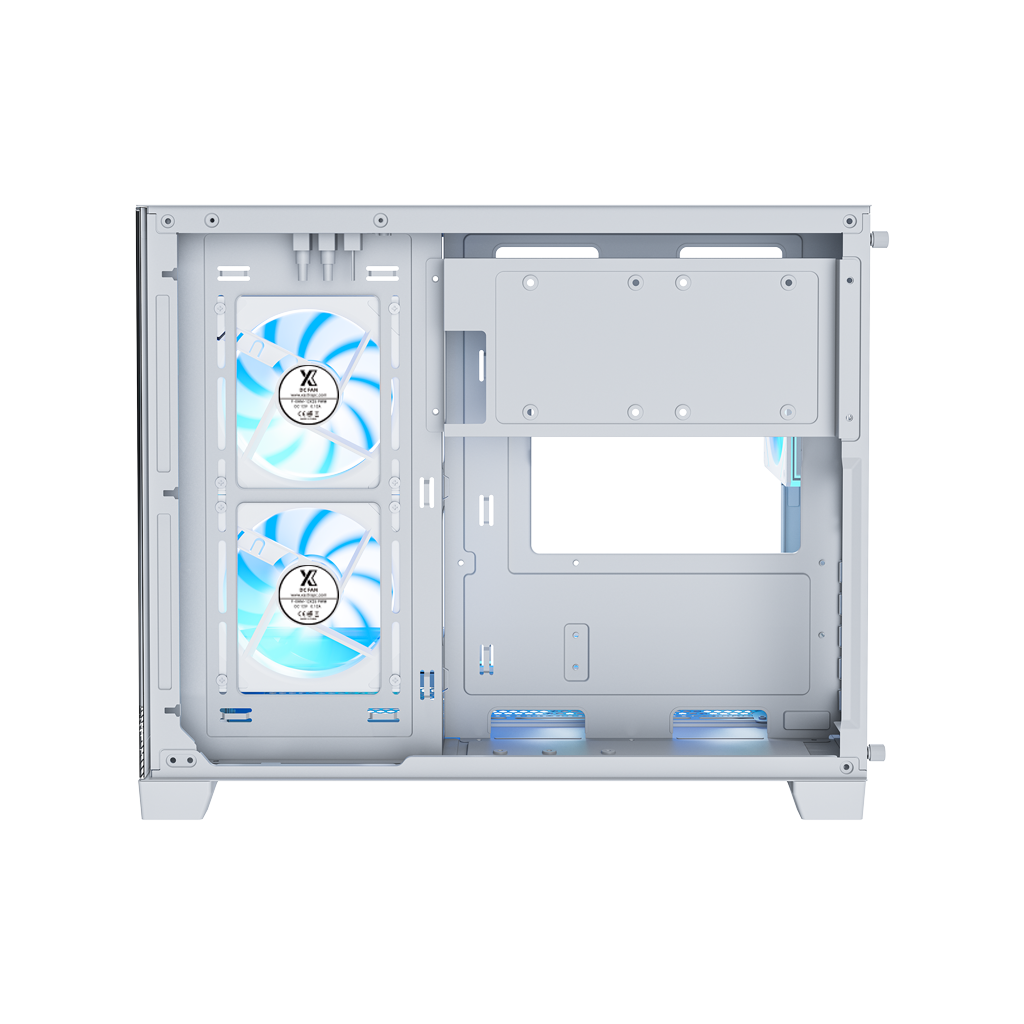

·Pre-install six 120mm high-performance ARGB fans across the front, side and rear, plus a 10-port hub for fan management.

Categories:

Specifications

Product Specifications

General
Model QW500M WH
Case type Mid-Tower
Product Dimensions 425x275x355mm(LxWxH)
Material(s) Steel+ABS+Tempered Glass
I/O Port USB3.0x1，USB2.0x1，Type-Cx1，HD Audio，Power， Reset

Compatibility&Clearance
Motherboard support M-ATX,ITX
Max.PSU Length ATX-POWER(Max.L:230mm)
Max.CPU Cooler Height 160mm
Max.GPU Length 410mm

Expansion slots & Drive Bays
PCl Expansion slot 5
Storage 3.5″HDDx1+2.5″SSDx2

Radiator support
Front /
Rear 120mm
Top 360mm/280mm/240mm/120mm
Bottom 360mm/240mm/120mm
M/B Side 240mm/120mm

Fan support
Front /
Rear 1x120mm
Top 2x140mm/3x120mm
Bottom 3x120mm
M/B Side 2x120mm
Maximum Number of Fans 9

Model

 P/N

EAN(13)

More information
QW500M 6ARGB-C10-UC WH QW500M-6FM12A-C10-UC-WH 6977137651495 Pre-installed with 6xFM120 ARGB FAN+10 Ports fan HUB
