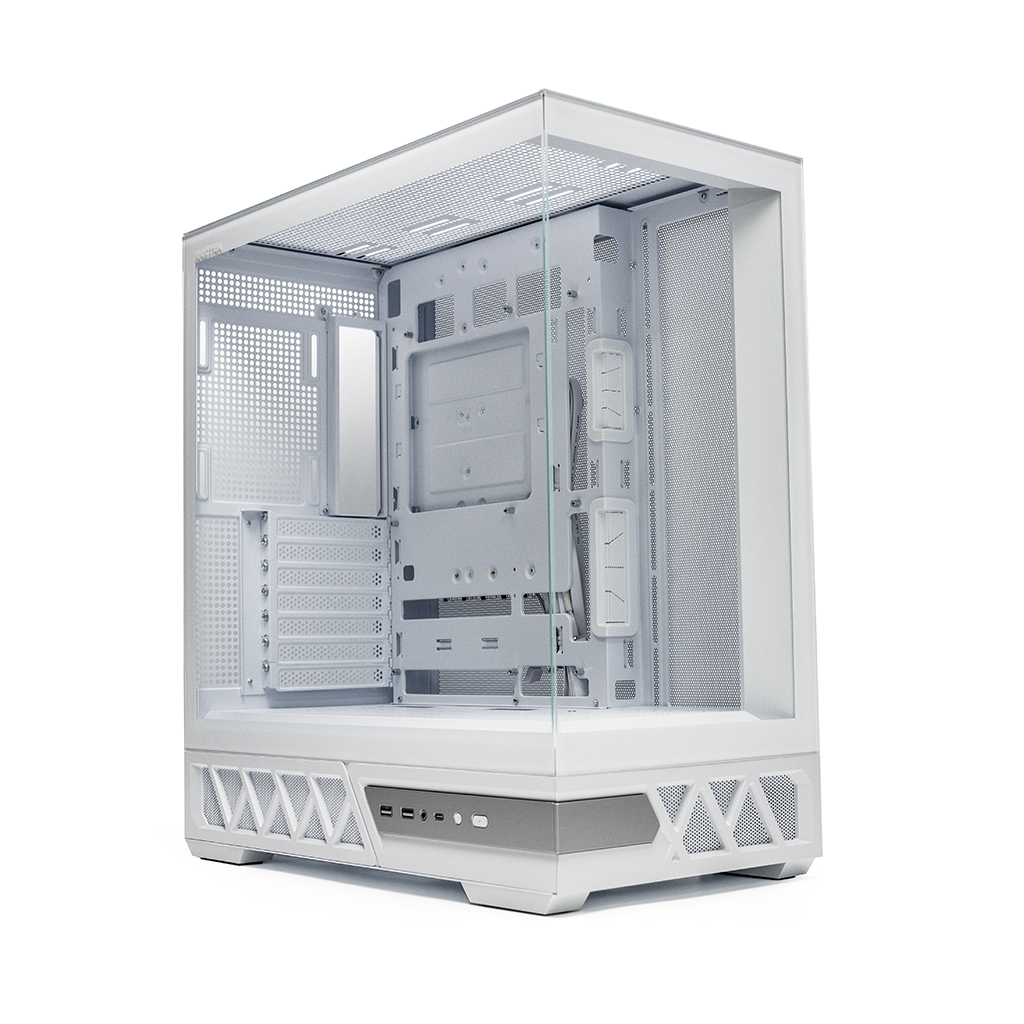

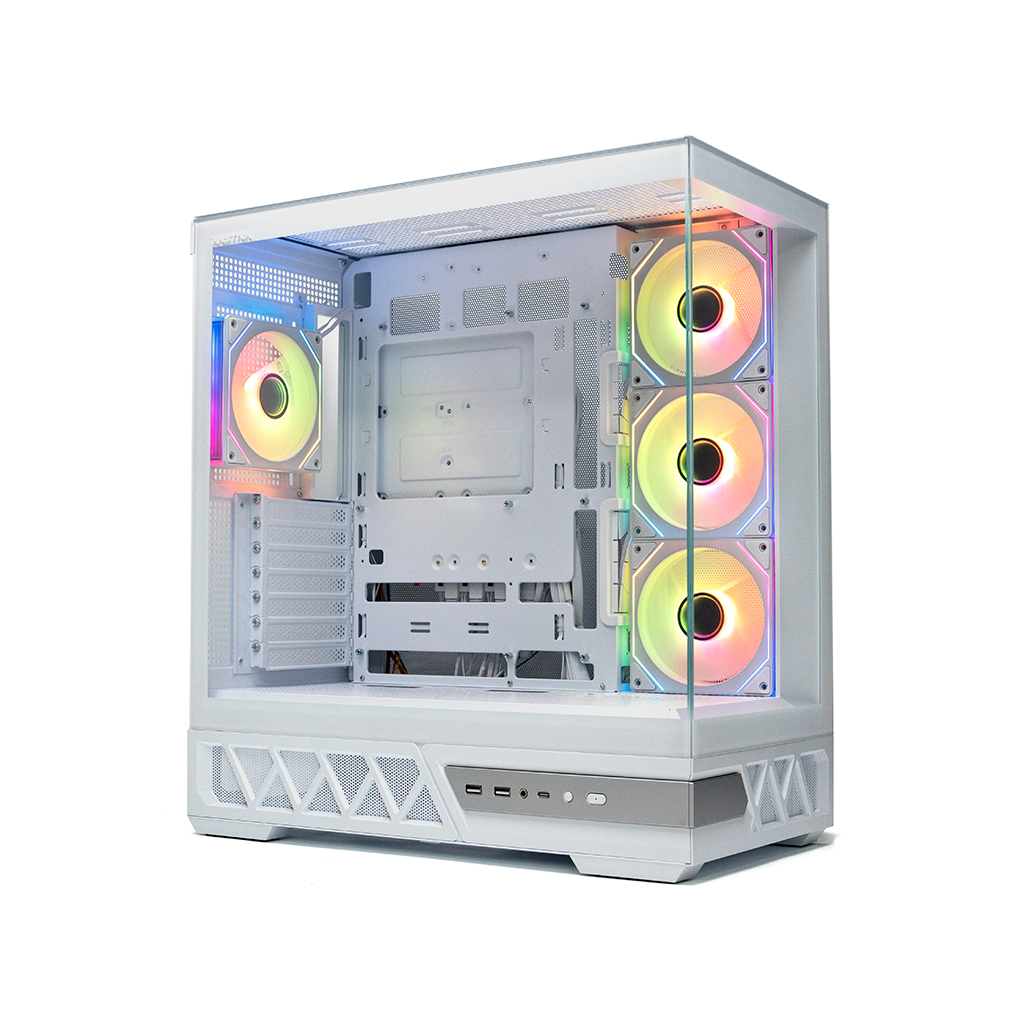

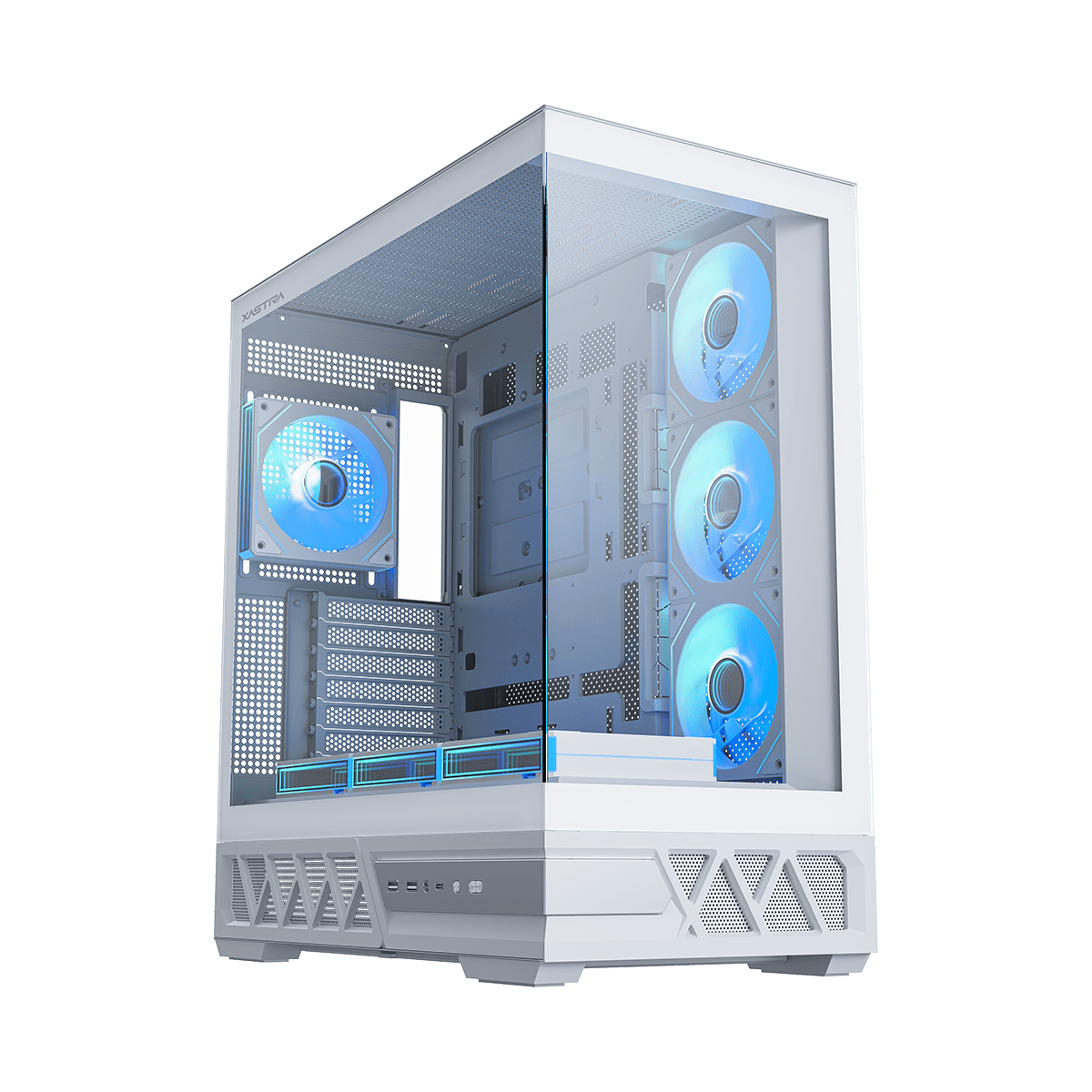

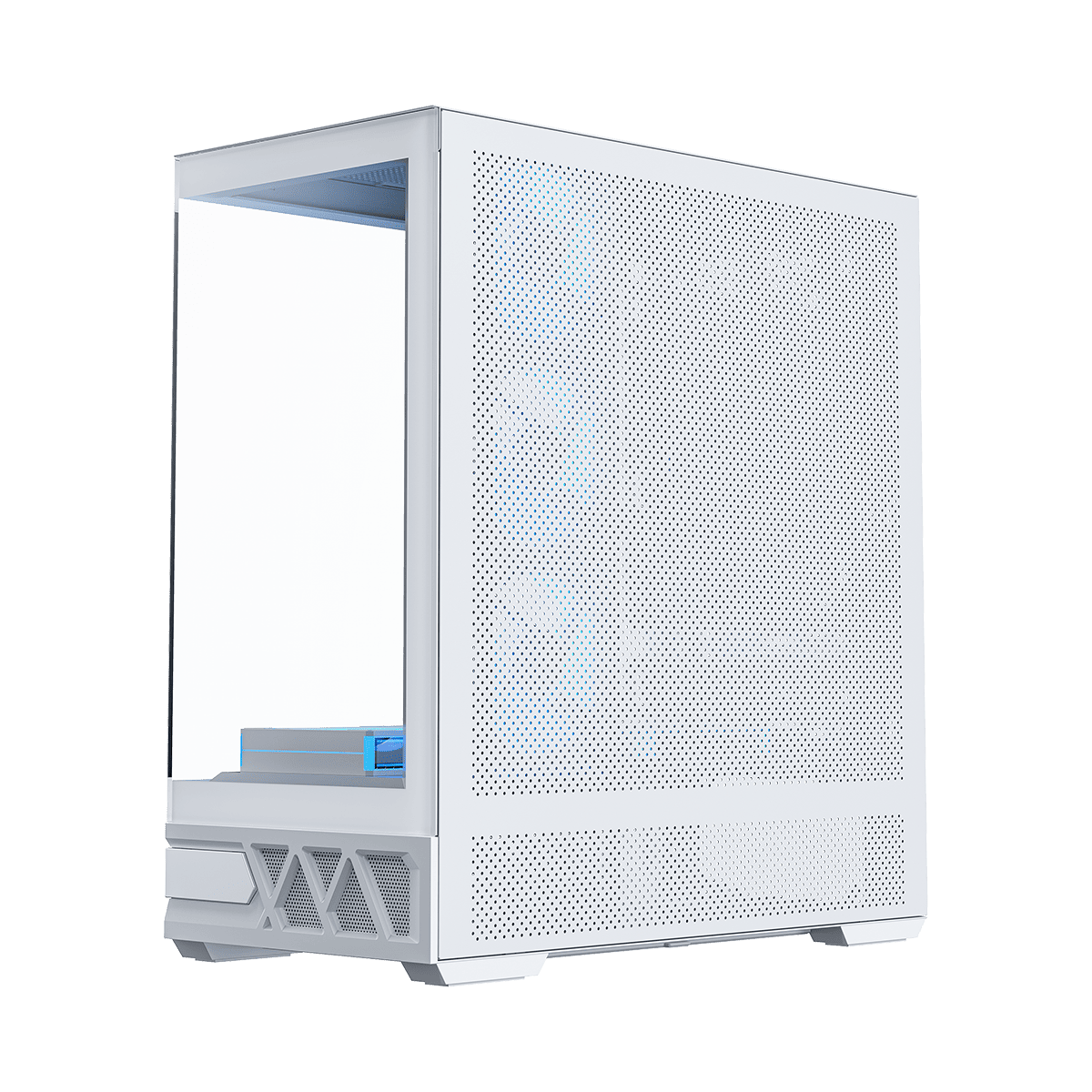

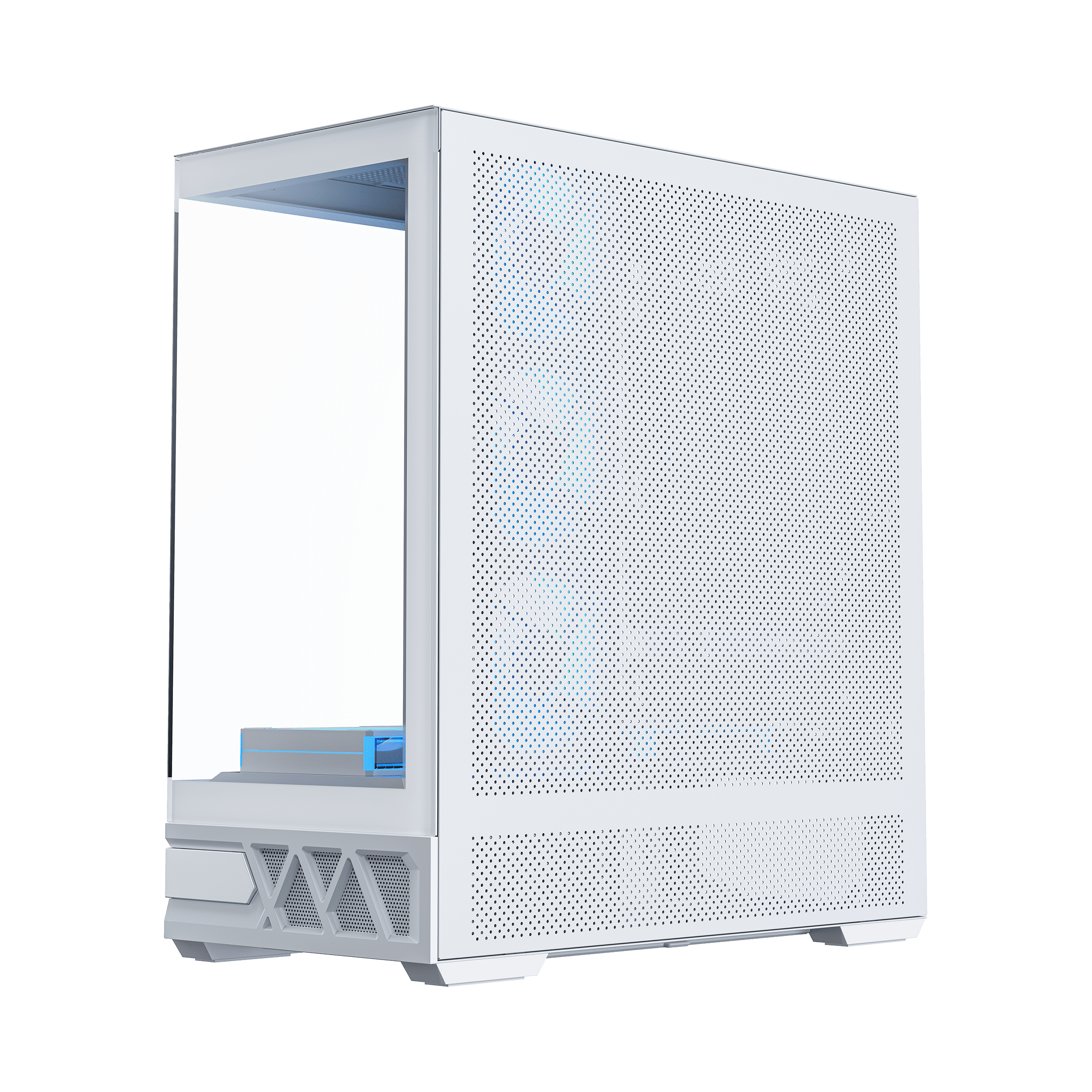

Q700 WH

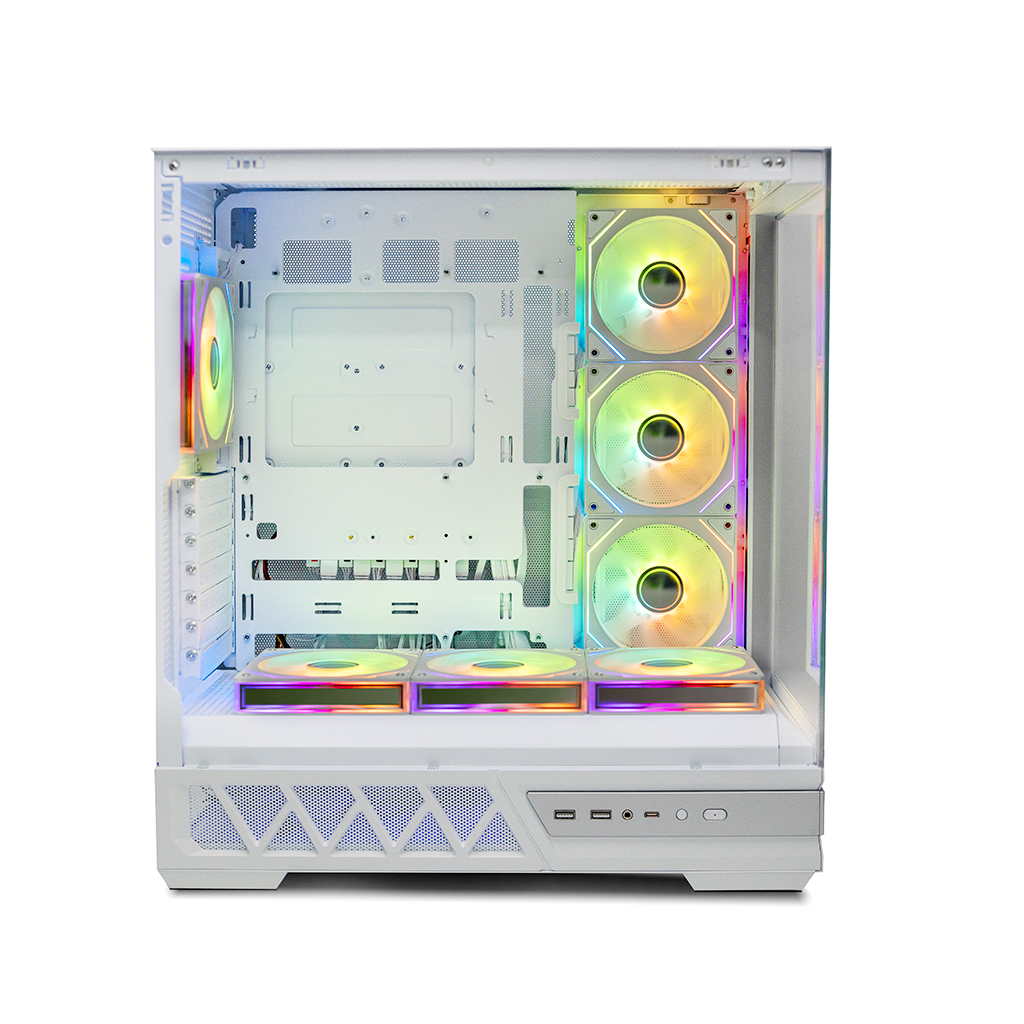

- Support 10pcs Fans Max
- Type-C included

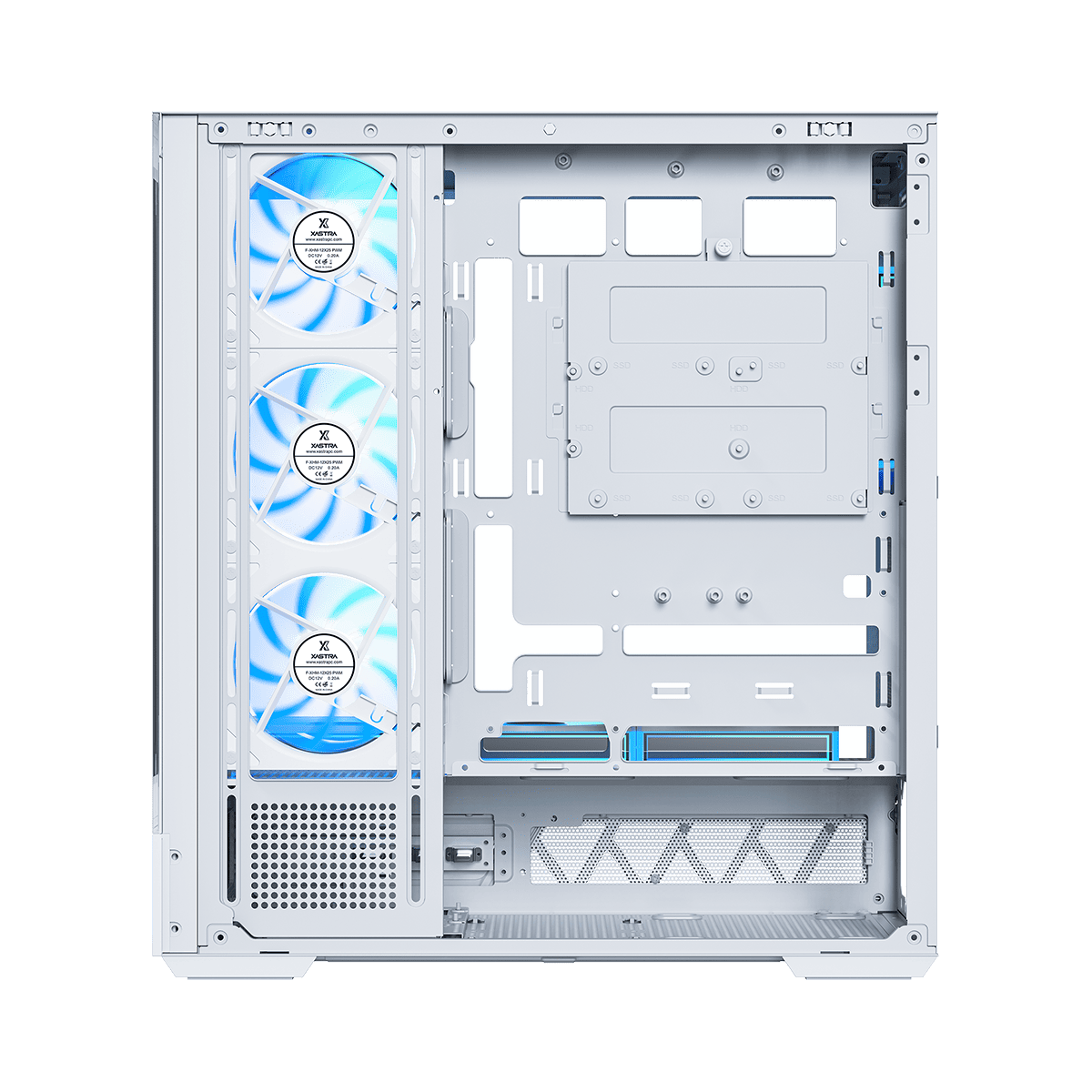

- Support MB backside-mounted
- Vertical GPU installation
- Support dual 360mm radiator design(Top& MB side)

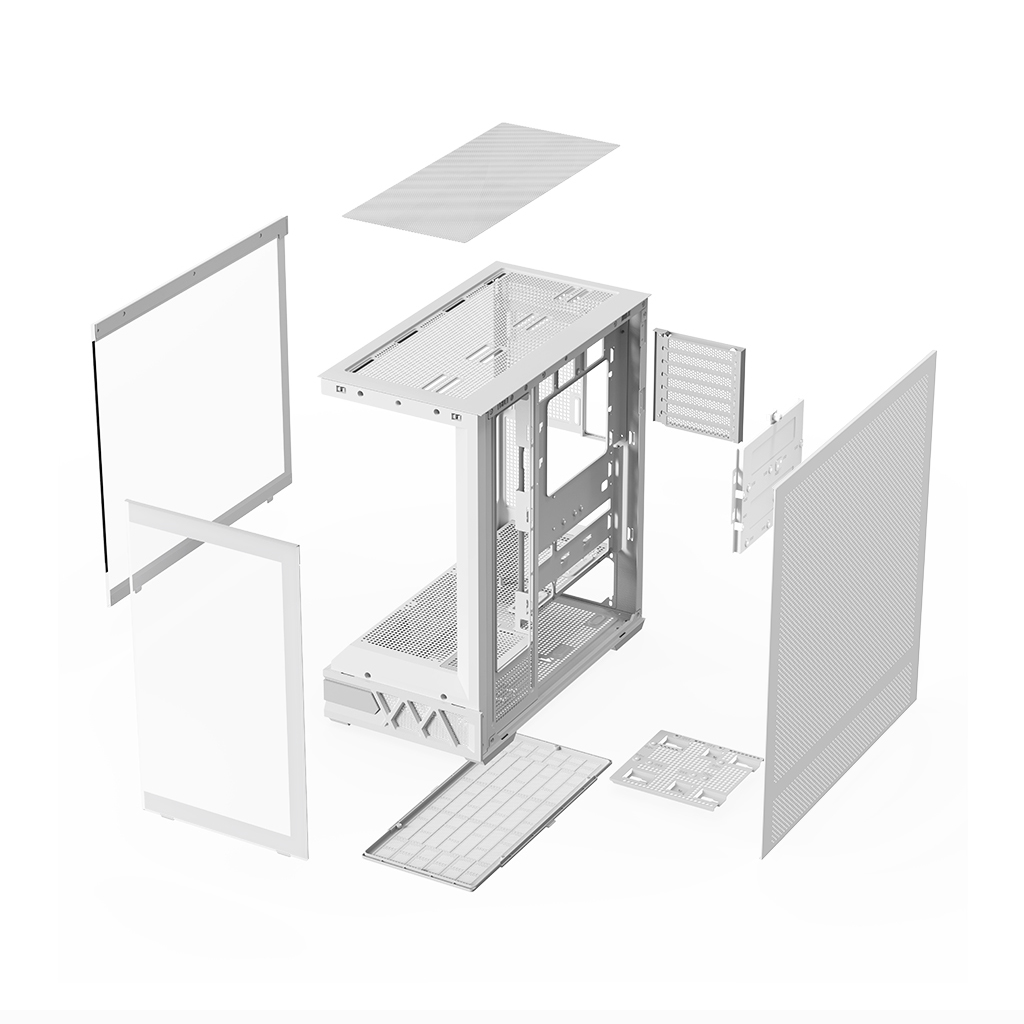

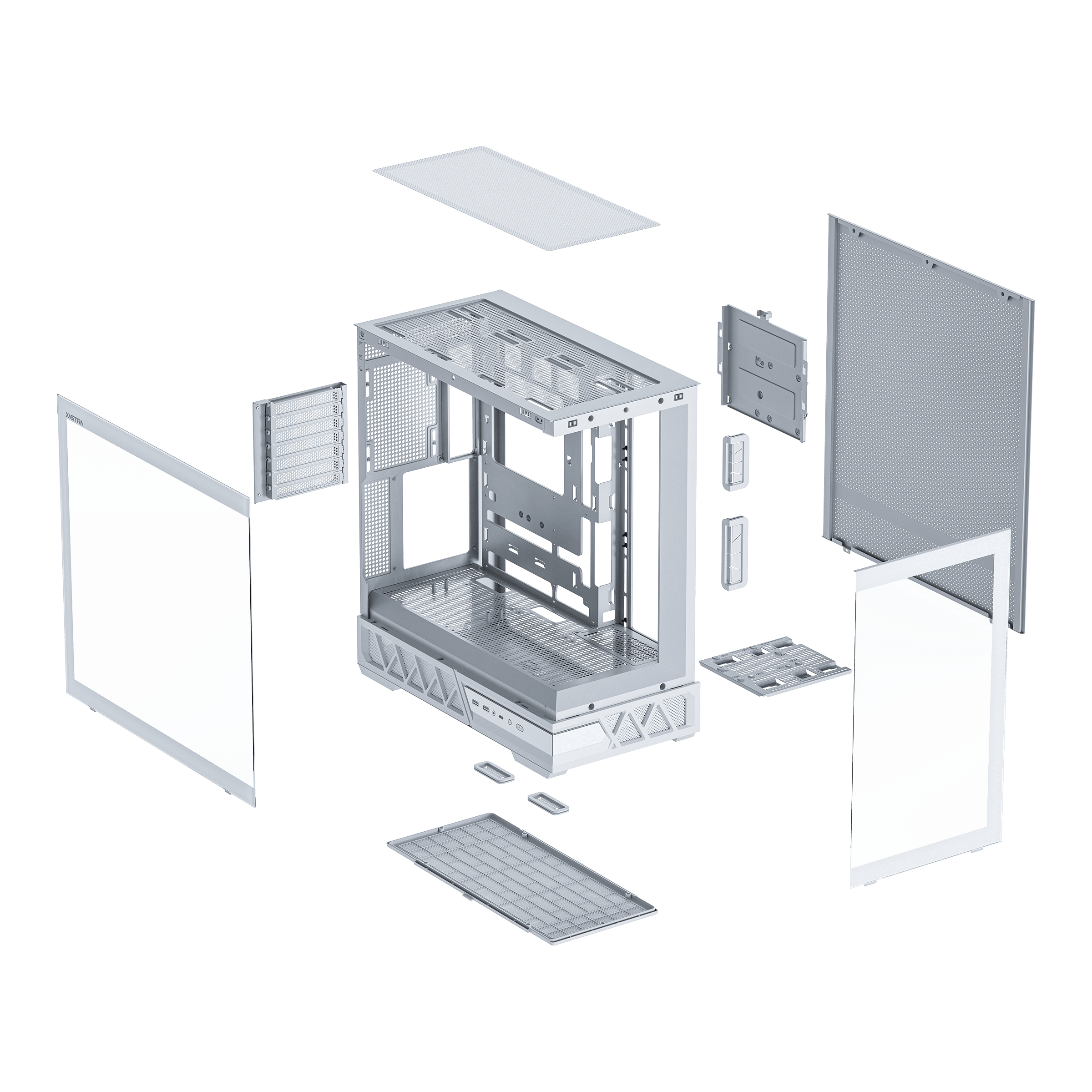

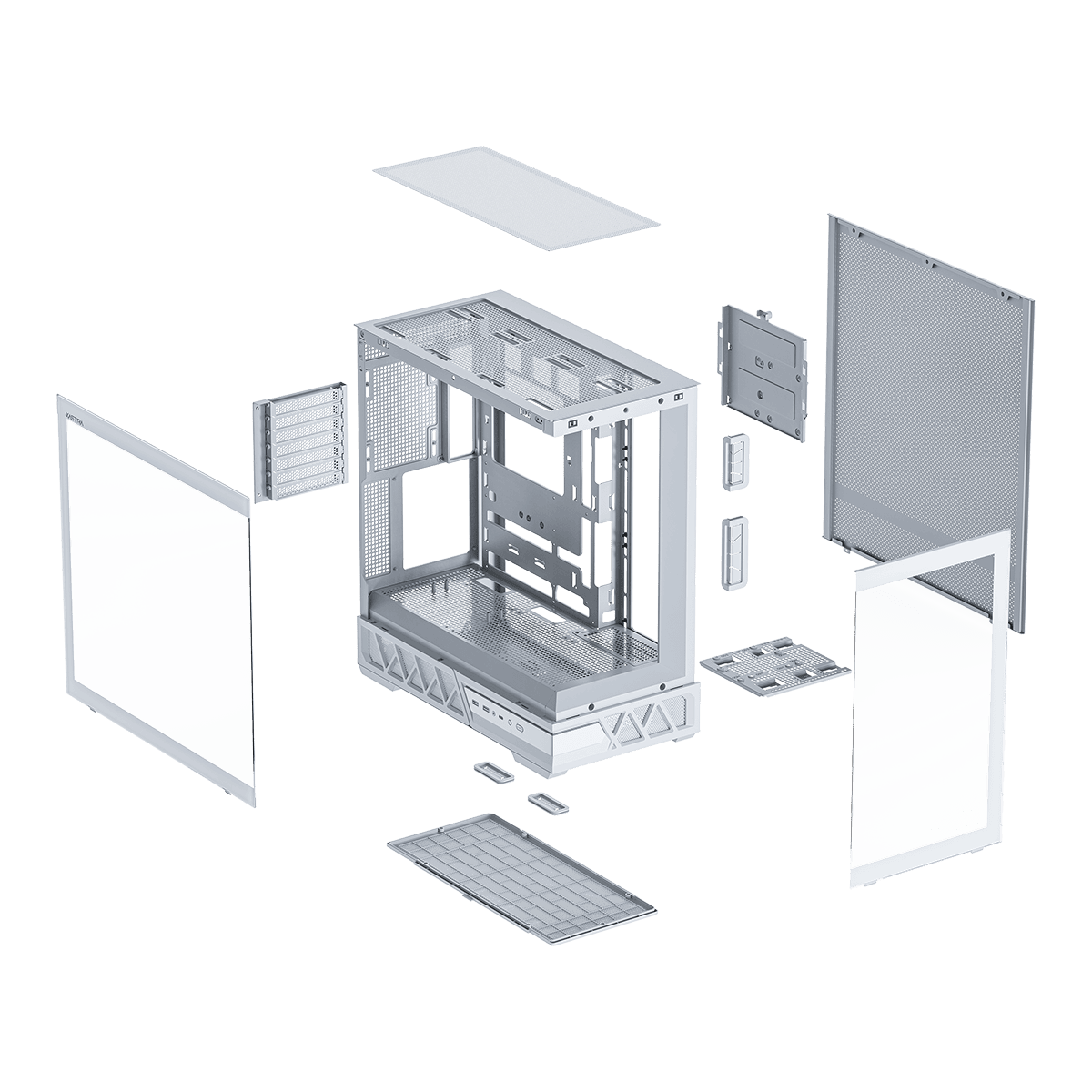

- Modular and easy to disassemble with 3 sides(screwless)

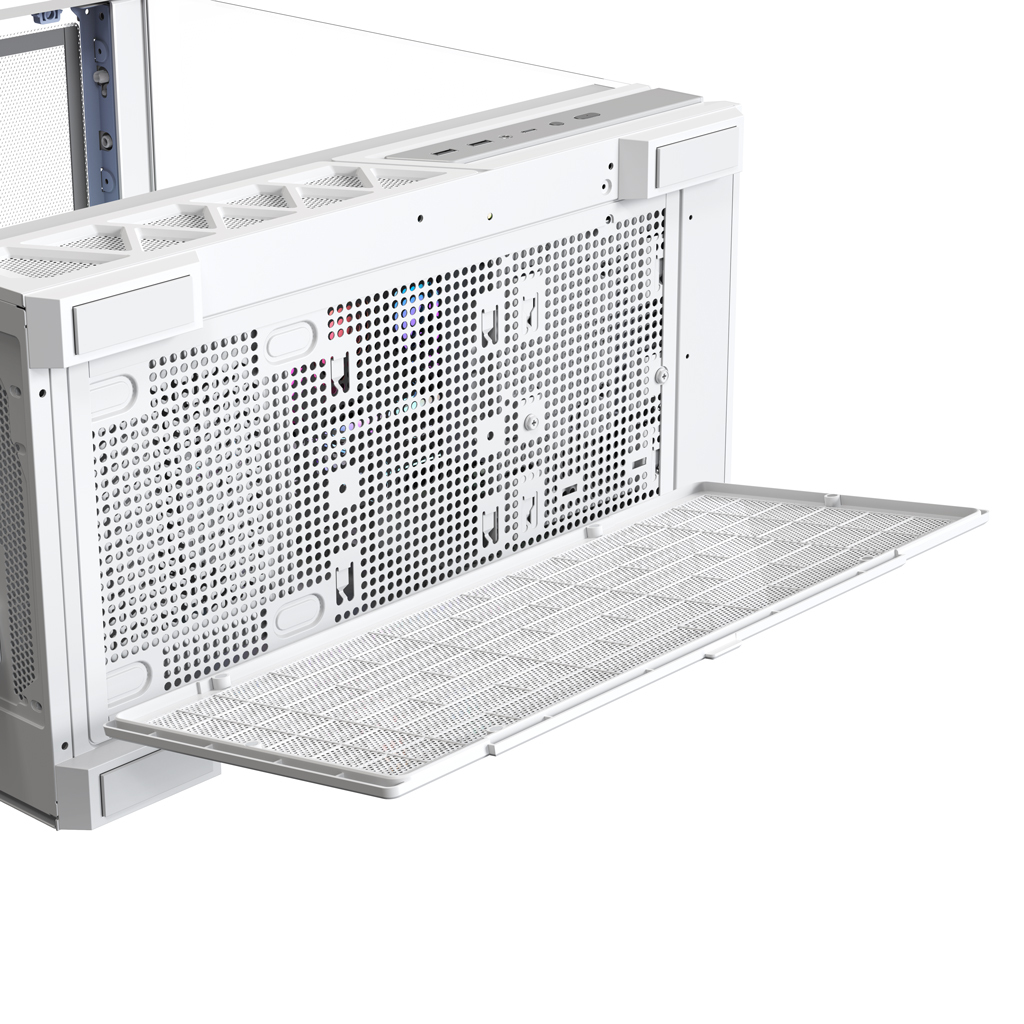

- Bottom with magnetic filter
- Motherboard Support: ATX/M-ATX/ITX (Support MB backside-mounted )
- Max.GPU Length: ≤420mm
- Max.CPU Cooler Height: ≤172mm
- Max.PSU Length: ATX-POWER(Max.L:180mm)

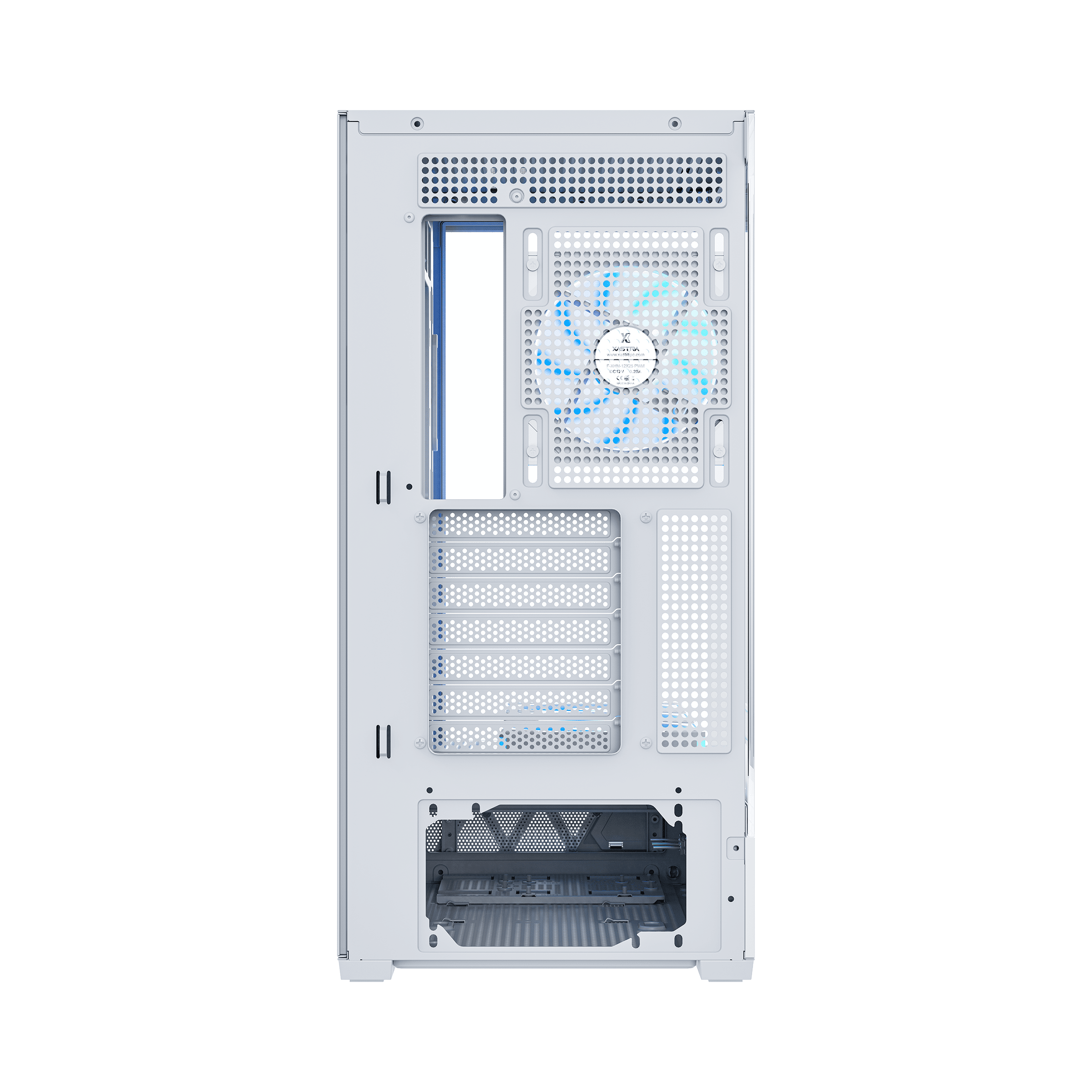

- Expansion slot: 7 (PCIe slot covers with screws)

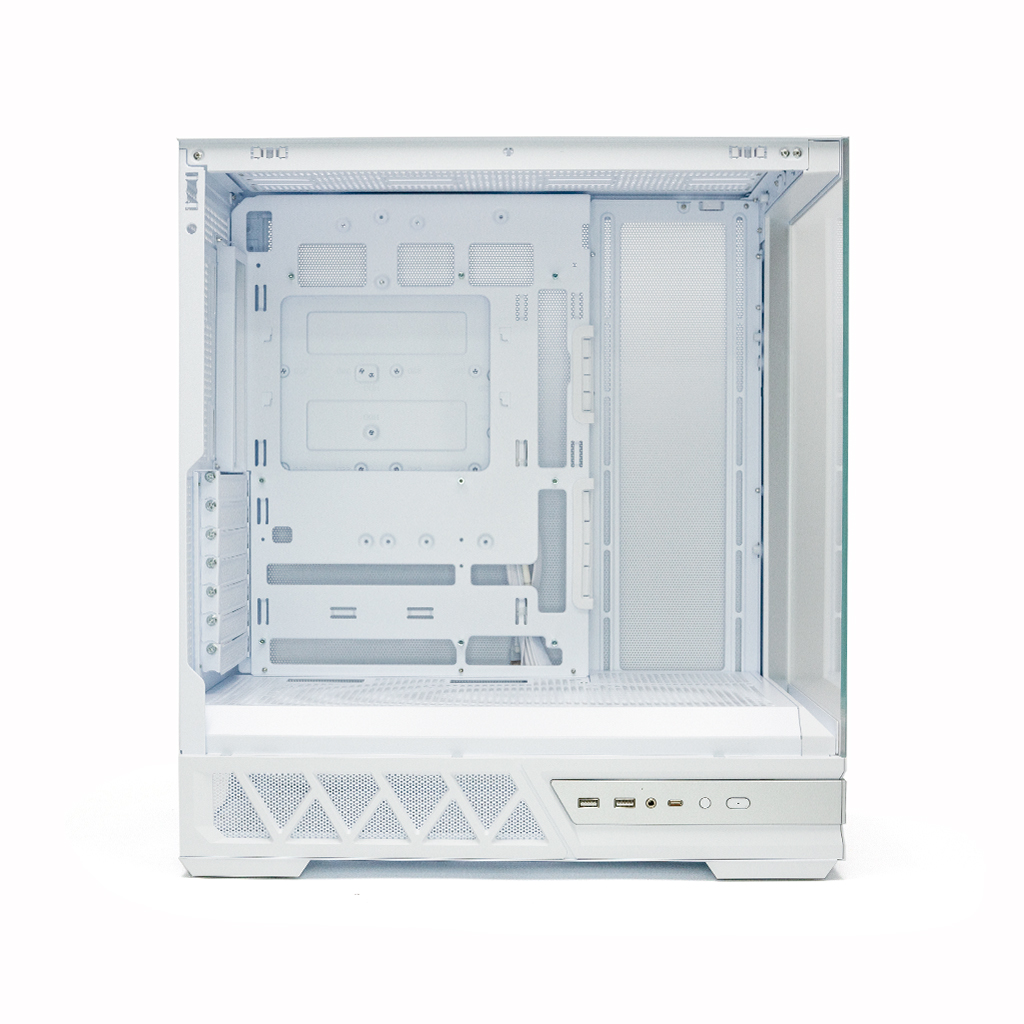

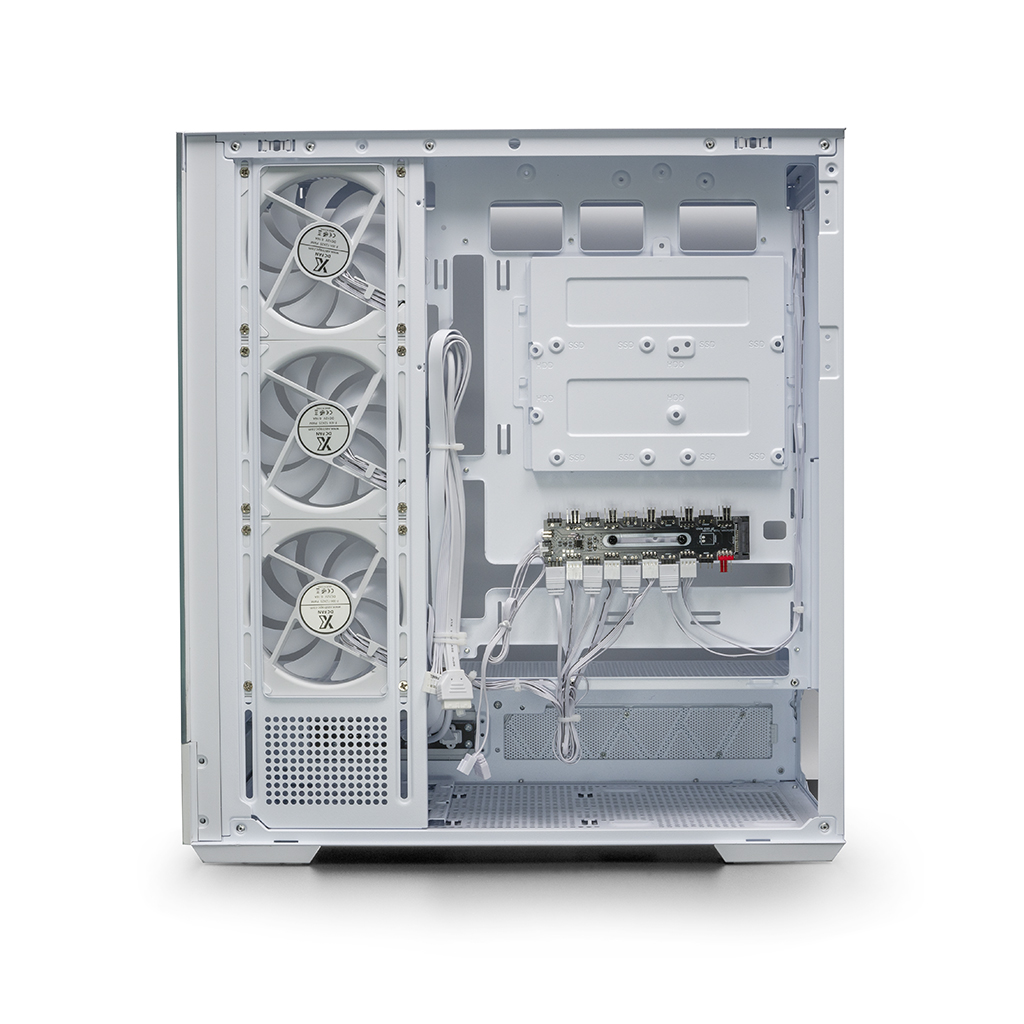

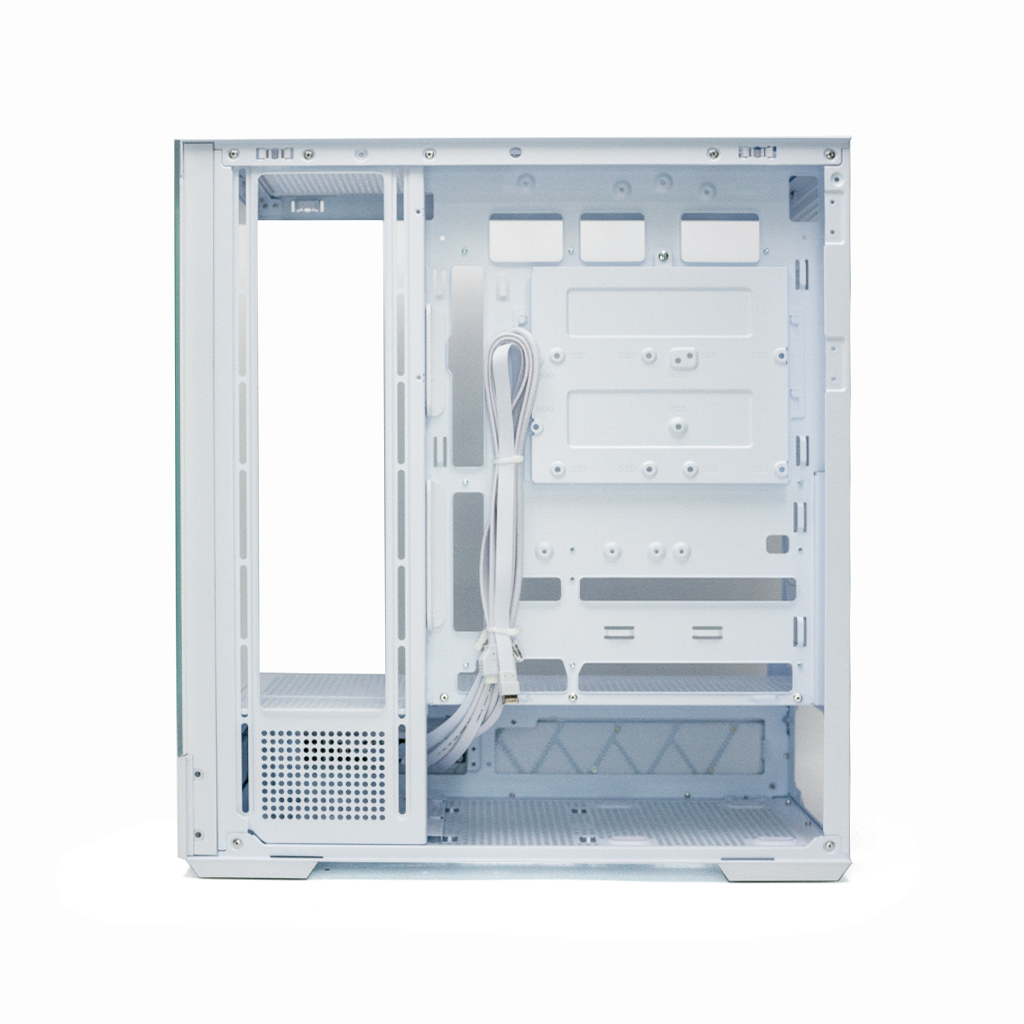

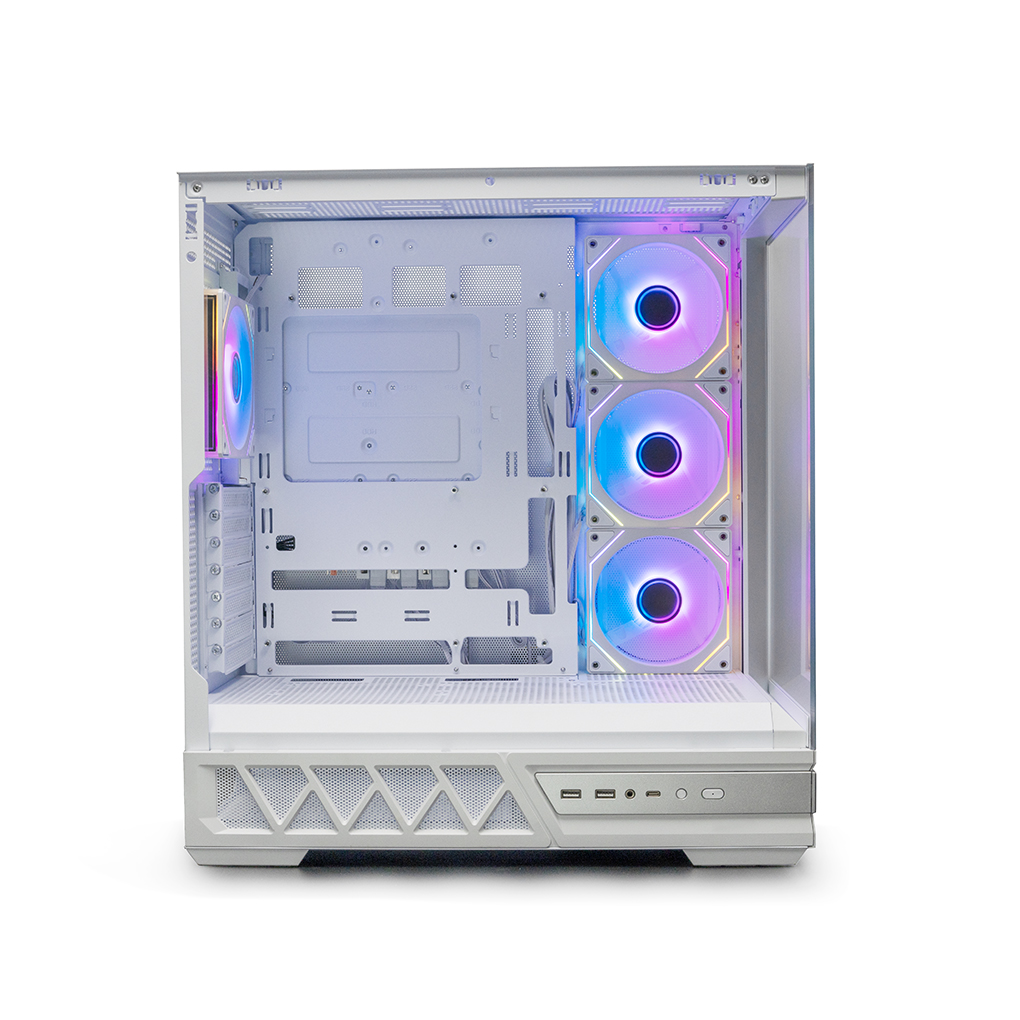

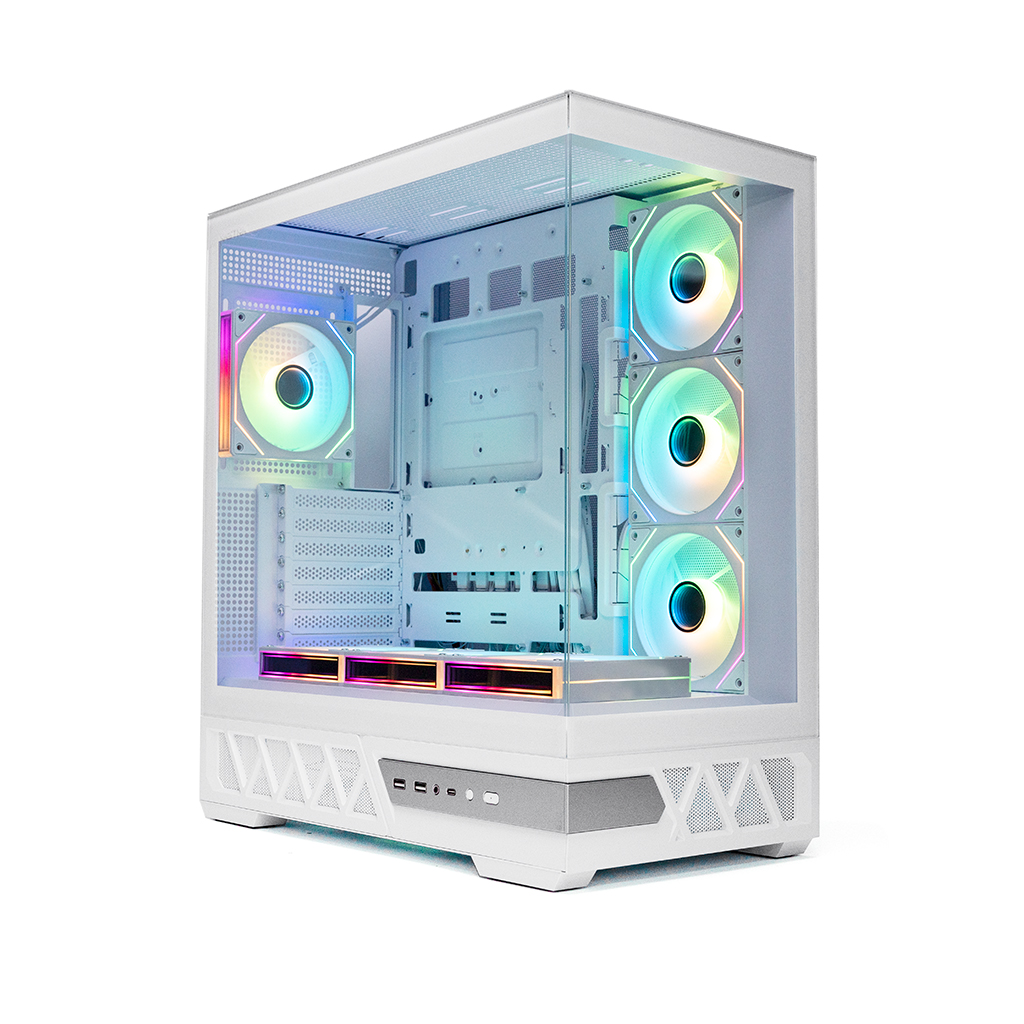

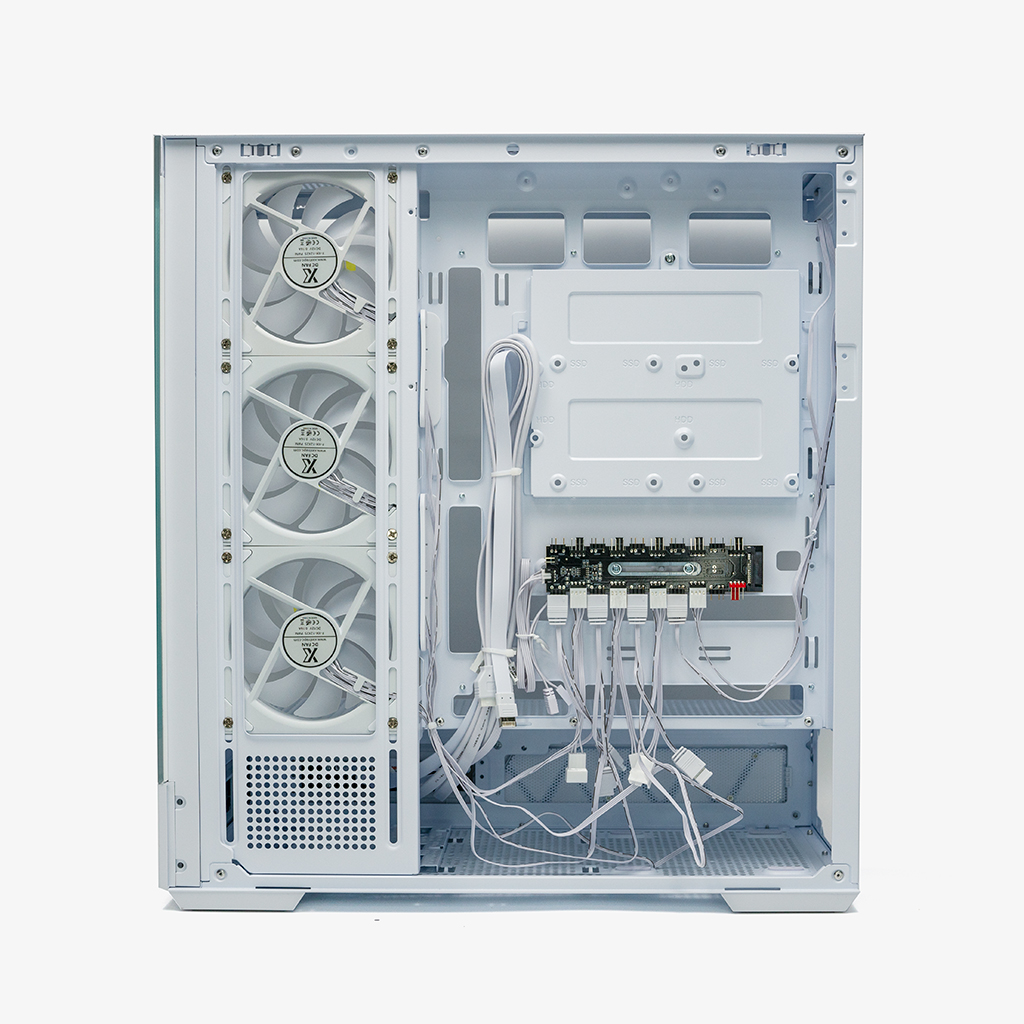

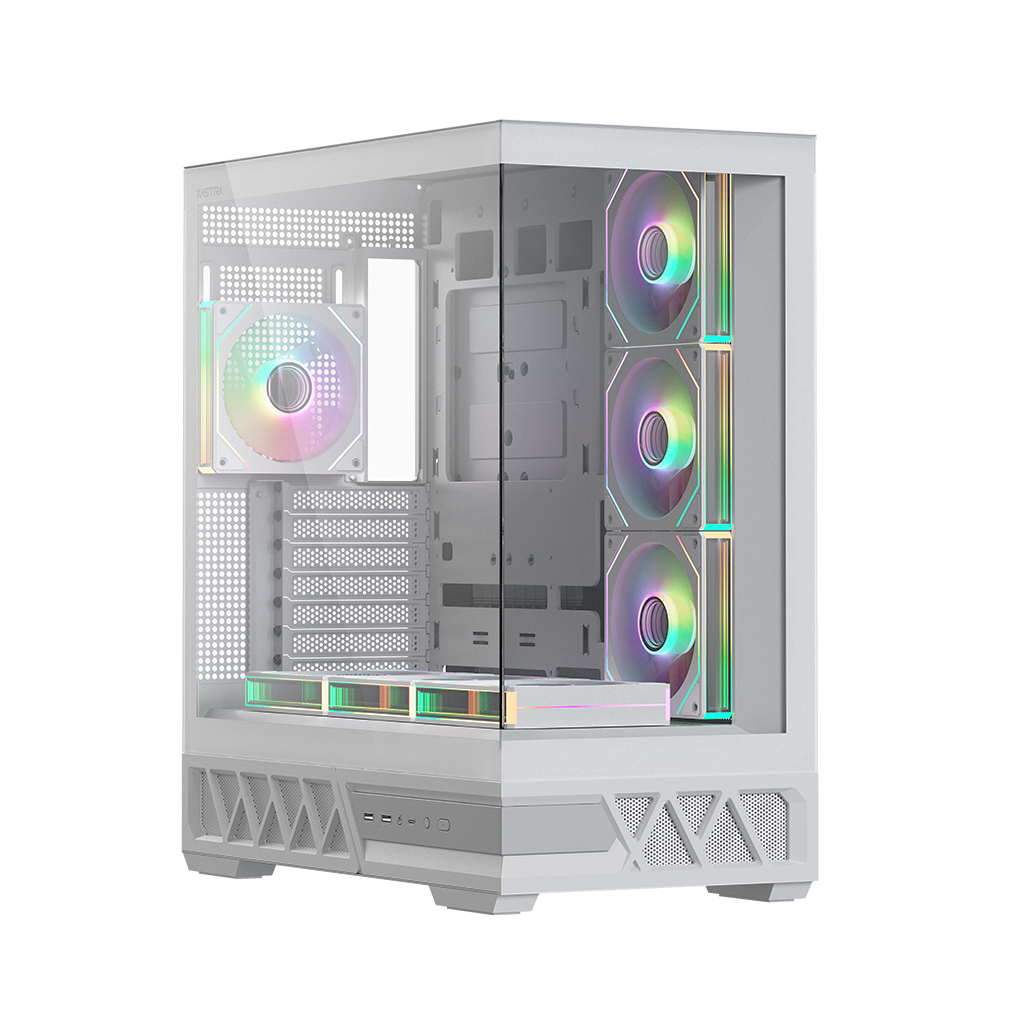

Gallery
Specification
Product Specifications |
||||
General |
||||
Model | Q700 WH | |||
Case type | Mid-Tower | |||

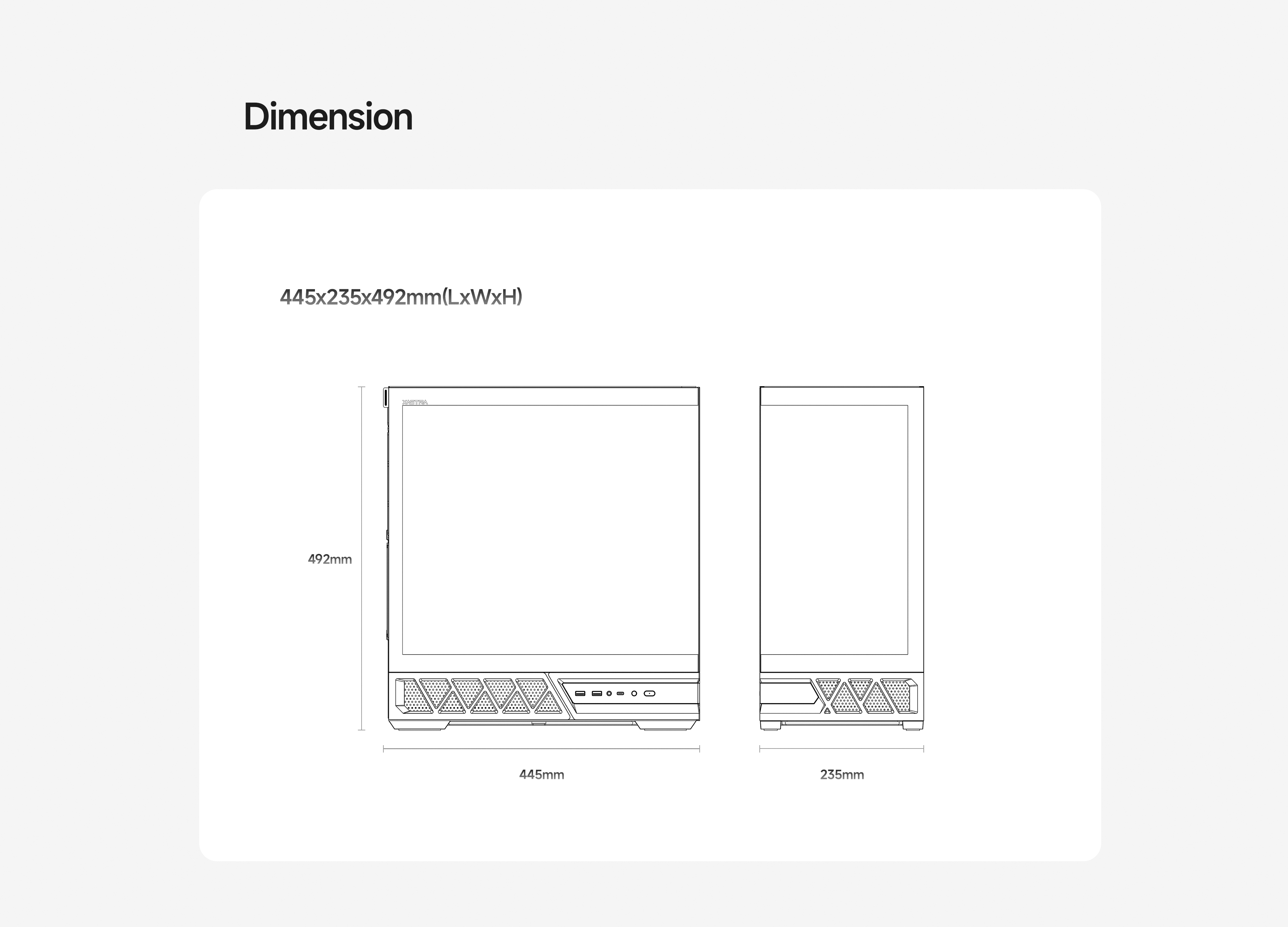

Product Dimensions | 445x235x492mm(LxWxH) | |||
Material(s) | Steel+ABS+Tempered Glass | |||

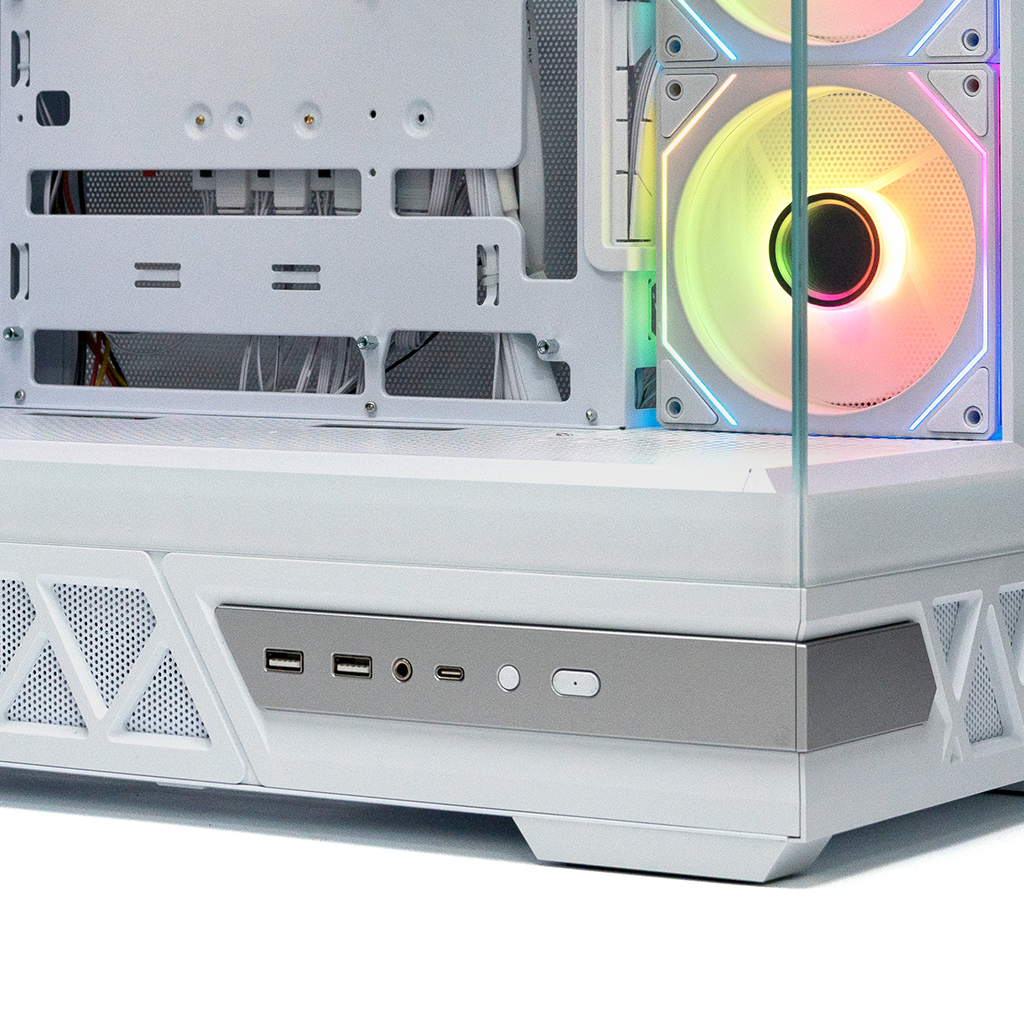

I/O Port | USB3.0x2,Type-Cx1,HD Audio, Power, Reset | |||
Compatibility&Clearance |
||||

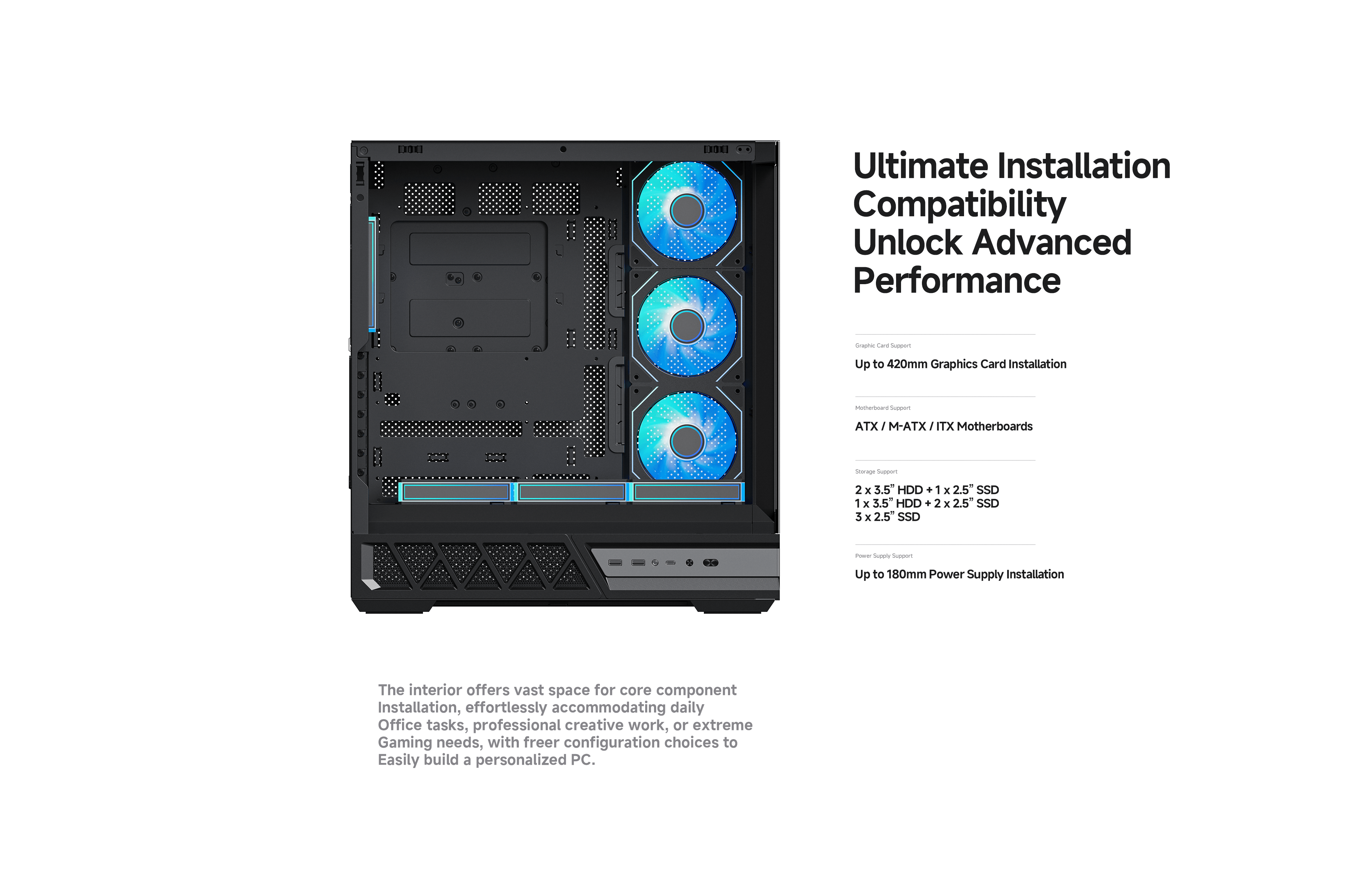

Motherboard support | ATX,M-ATX,ITX,(Support MB backside-mounted ) | |||
Max.PSU Length | ATX-POWER(Max.L:180mm) | |||
Max.CPU Cooler Height | <170mm | |||
Max.GPU Length | <420mm | |||
Expansion slots & Drive Bays |
||||

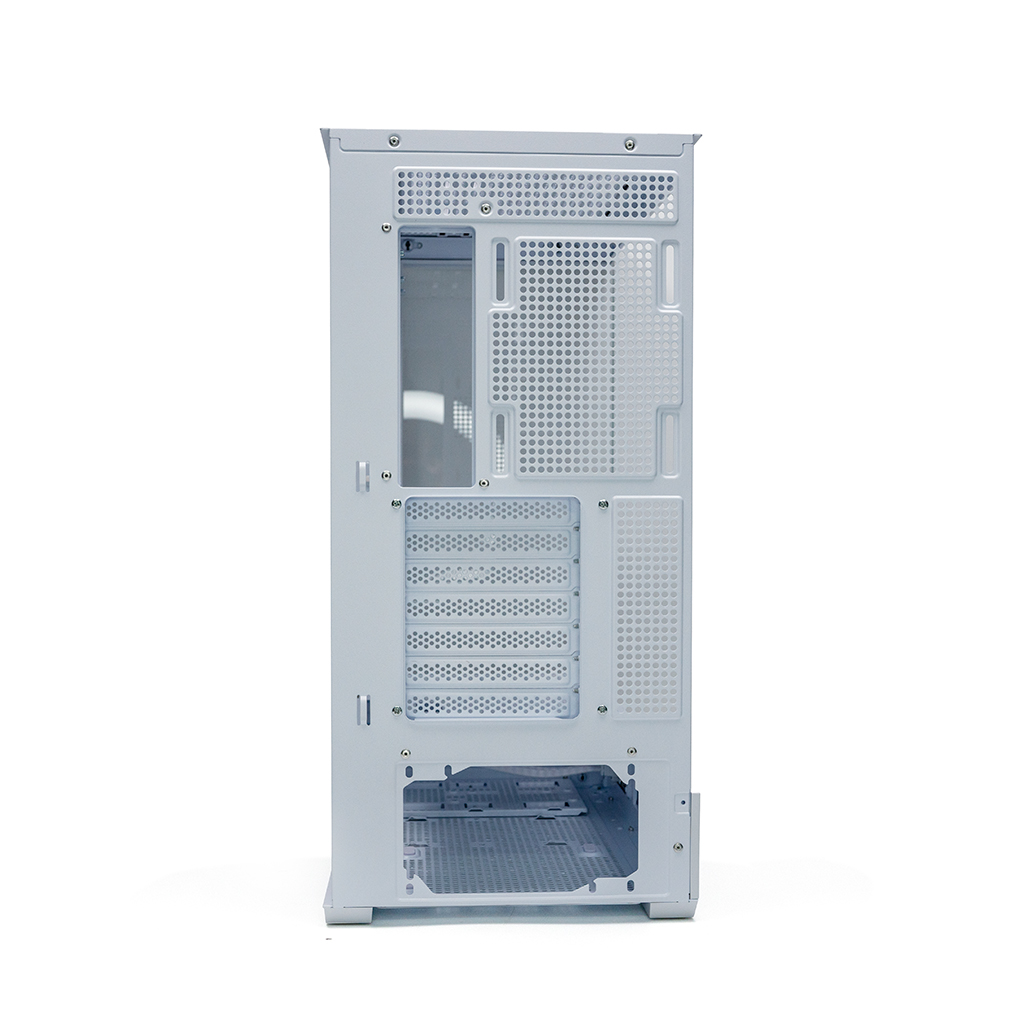

PCl Expansion slot | 7 | |||
Storage | 2.5″SSDx3,3.5″HDDx1+2.5″SSDx2,3.5″HDDx2+2.5″SSDx1 | |||
Radiator support |
||||
Top | 360mm/280mm/240mm/120mm | |||
Front | / | |||
M/B Side | 360mm/240mm/120mm | |||
Rear | 120mm | |||
Fan support |
||||
Front | / | |||
Rear | 1x120mm | |||
Top | 3x120mm/2x140mm | |||
Bottom | 3x120mm | |||

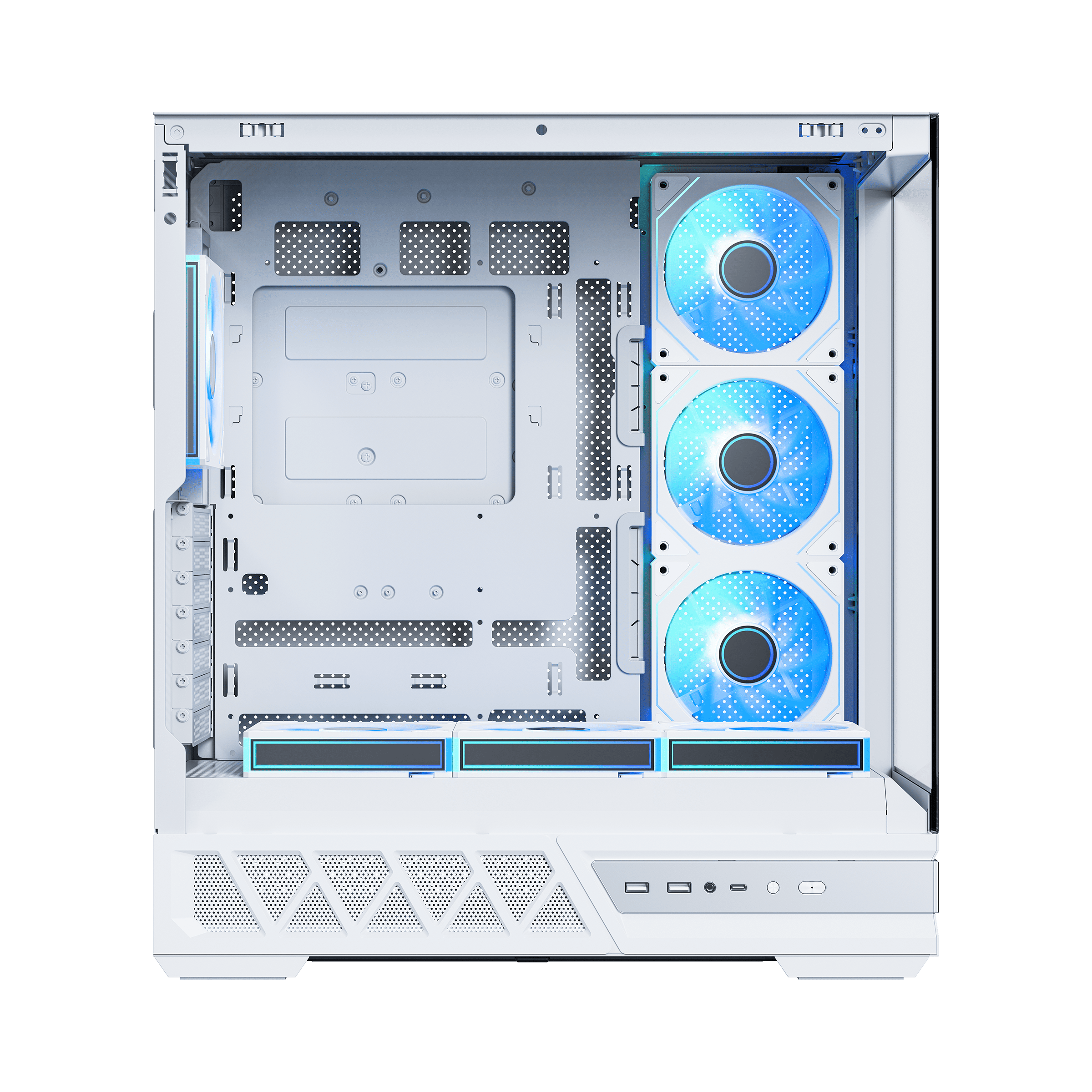

M/B Side | 3x120mm | |||
Maximum Number of Fans | 10 |
Model |
P/N |
EAN(13) |
More information |
|||
Q700 0F-UC WH | Q700-0F-UC-WH | 6977137650931 | Case only | |||

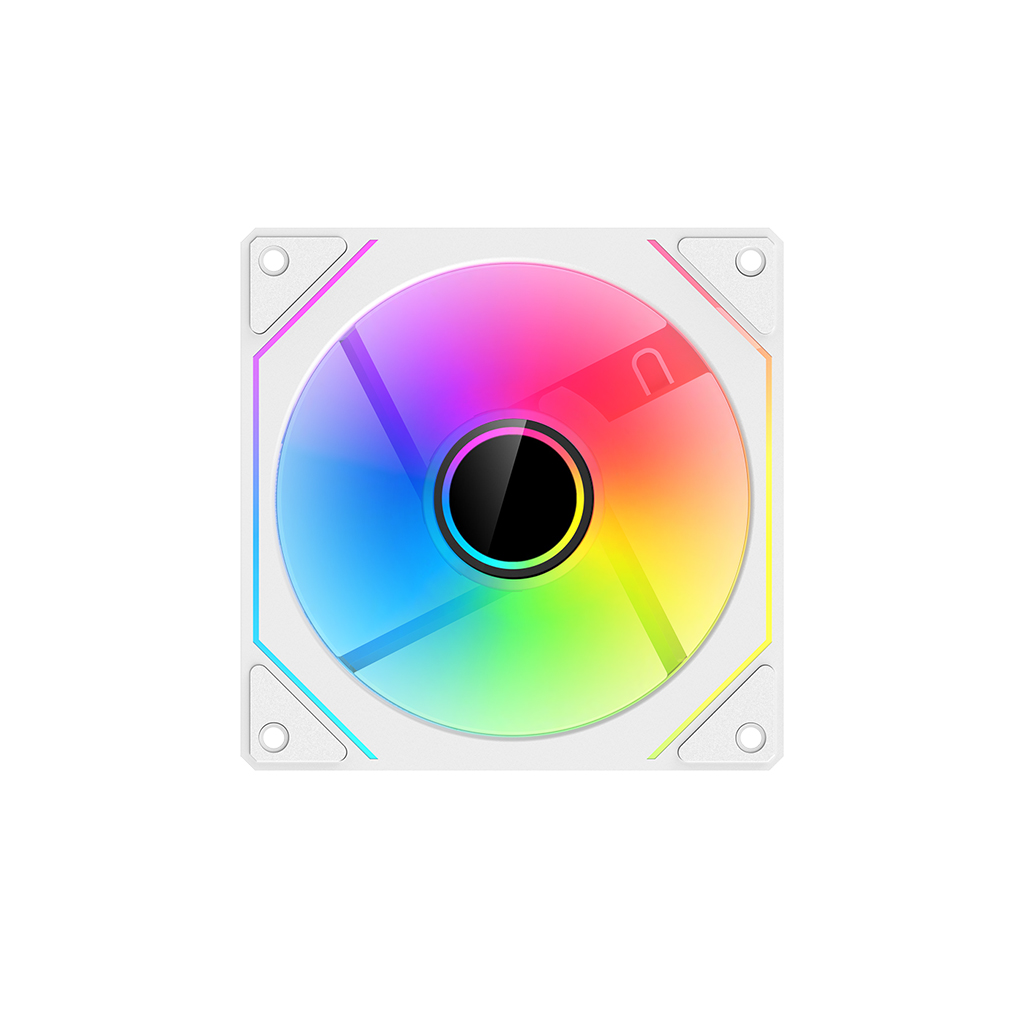

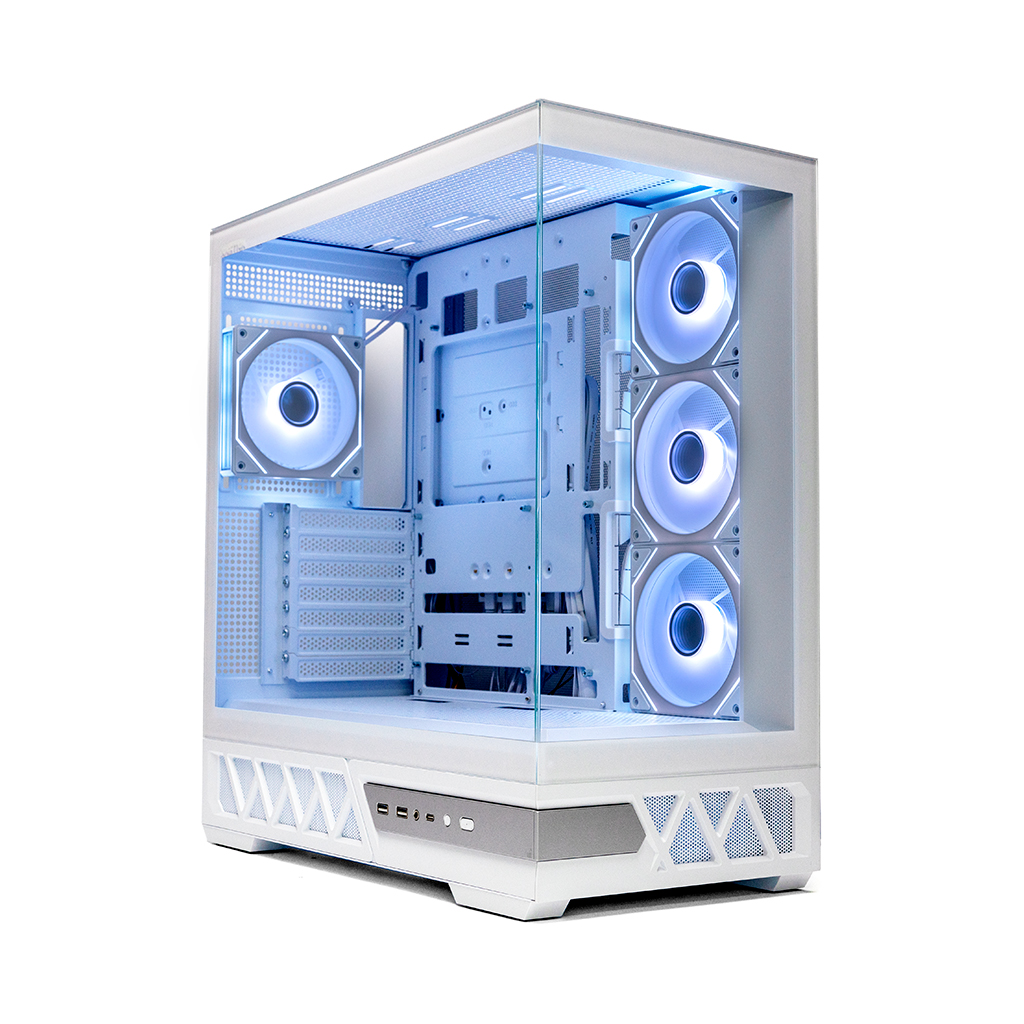

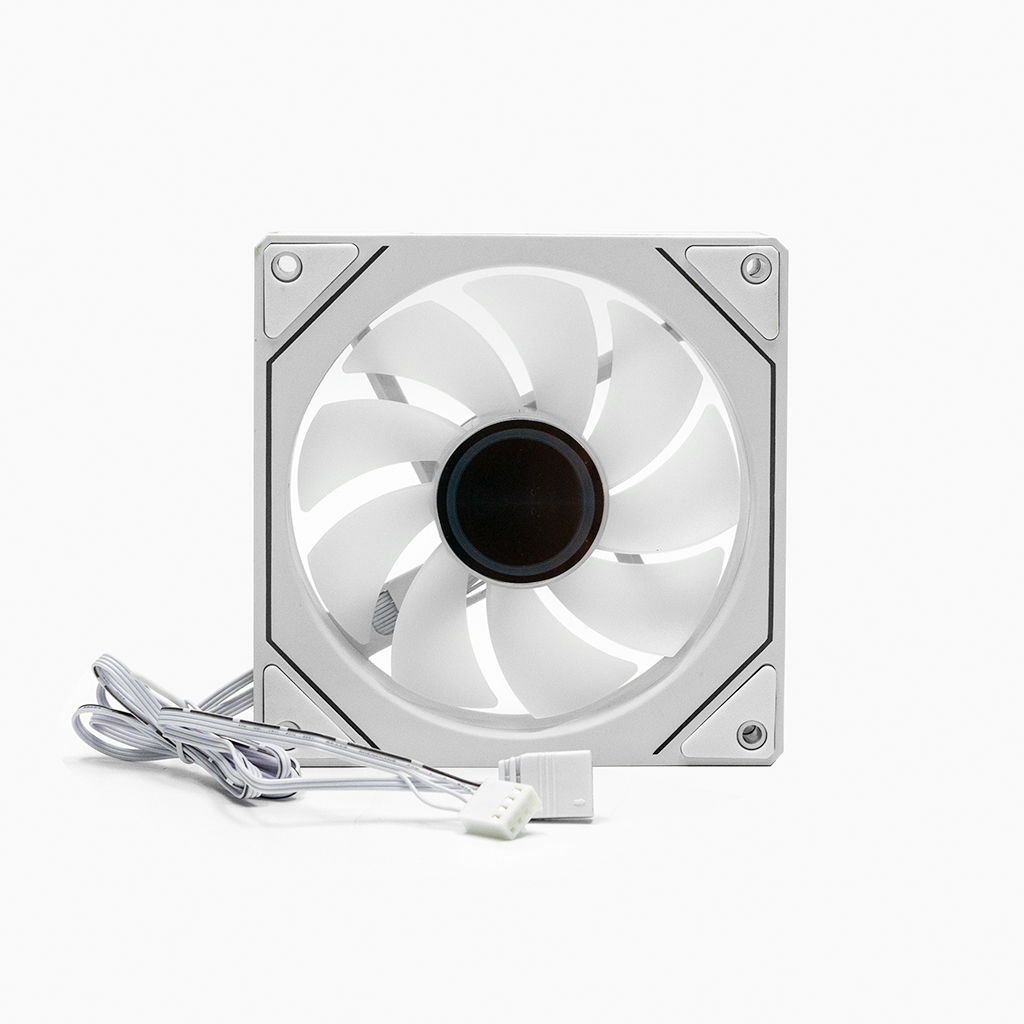

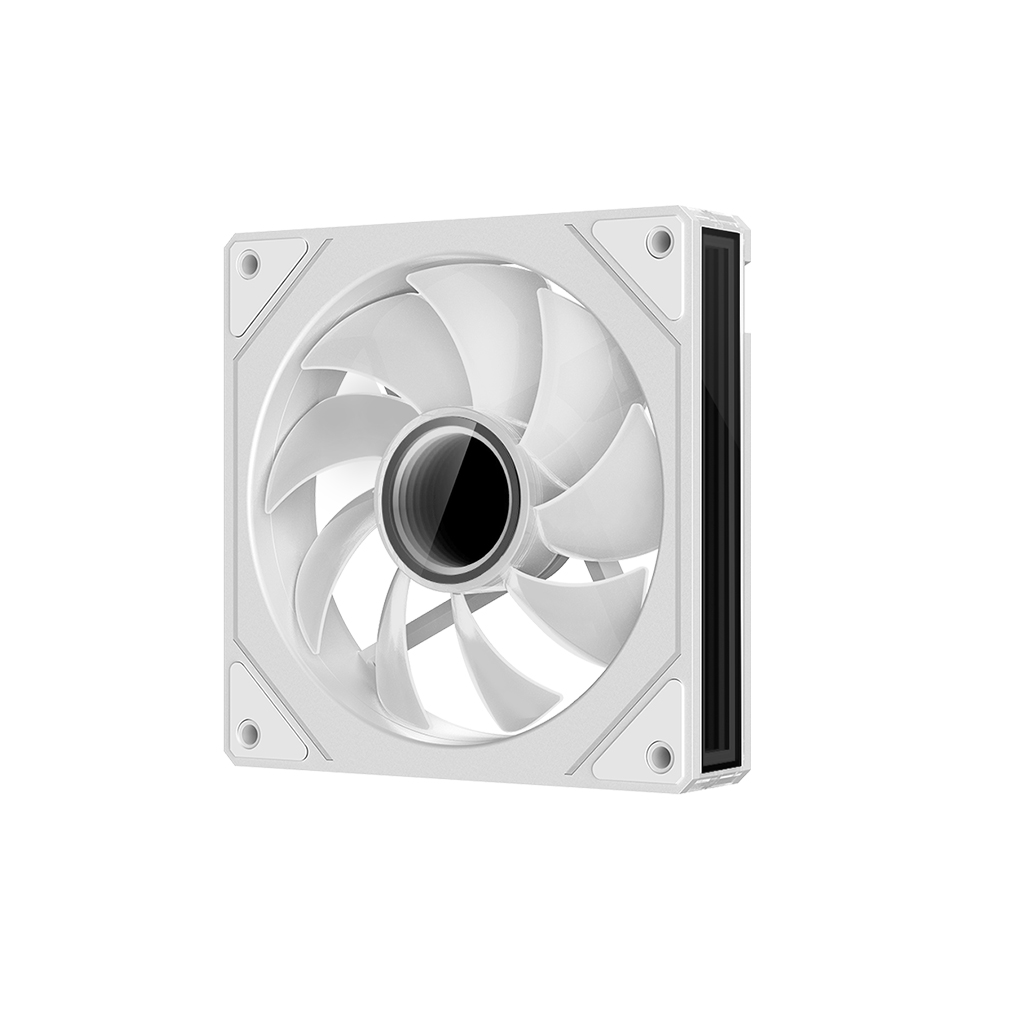

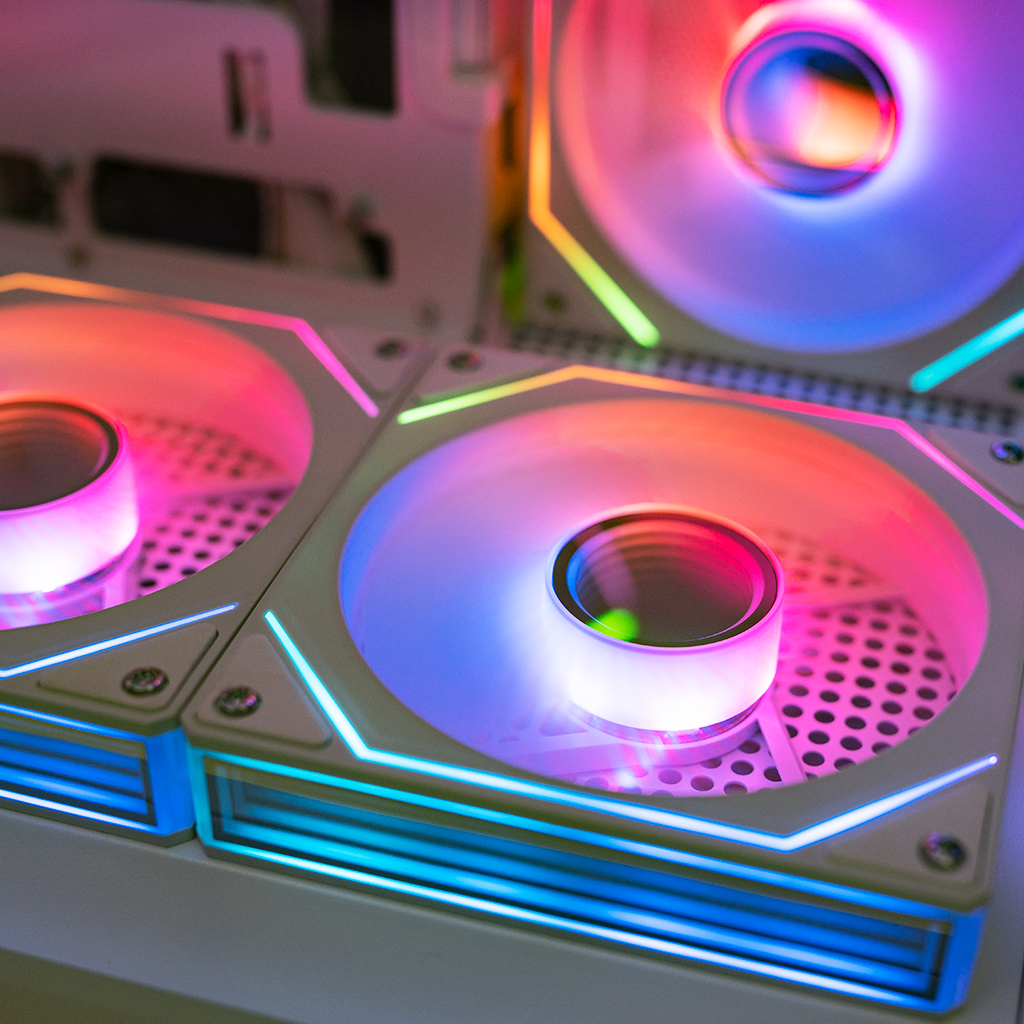

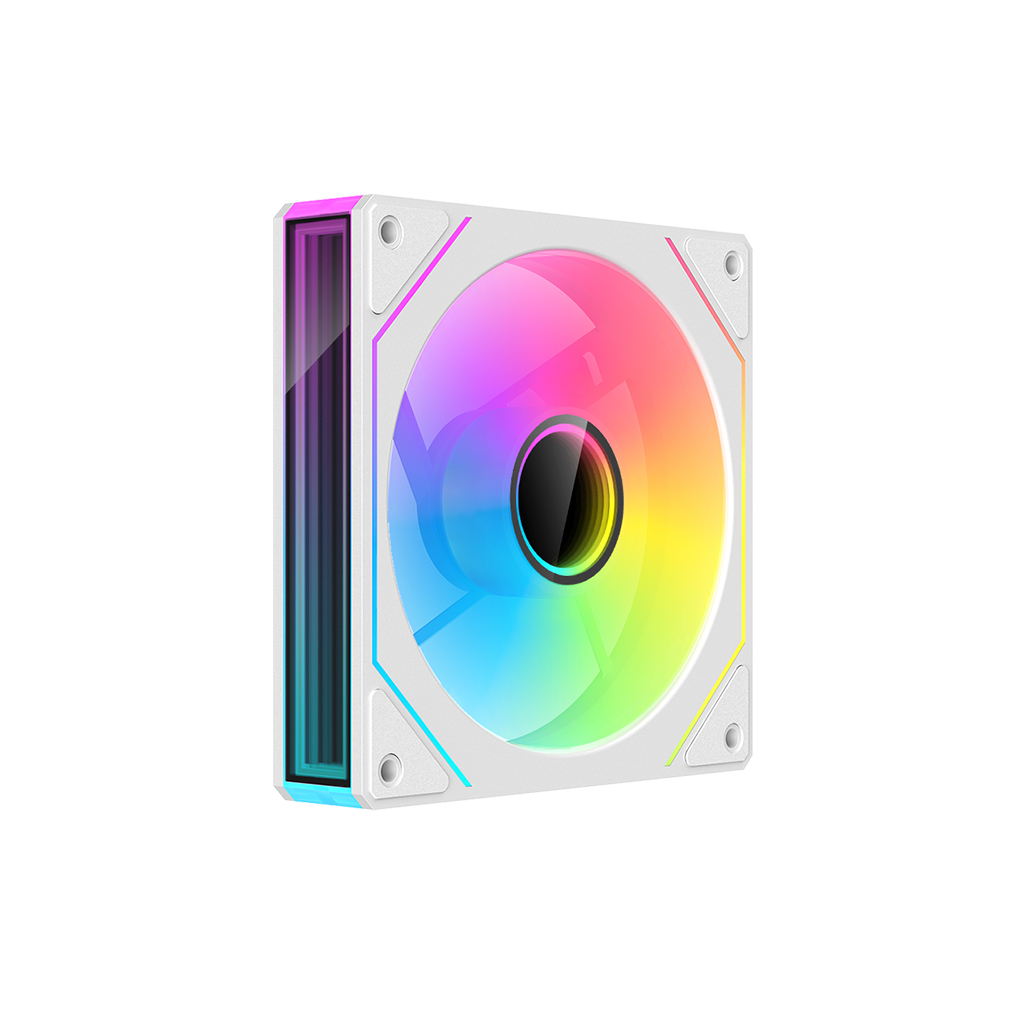

Q700 4ARGB-C10-UC WH | Q700-4FM12A-C10-UC-WH | 6977137650948 | Pre-installed with 4xFM120 ARGB FAN+10 Ports fan HUB (Type-C included) | |||

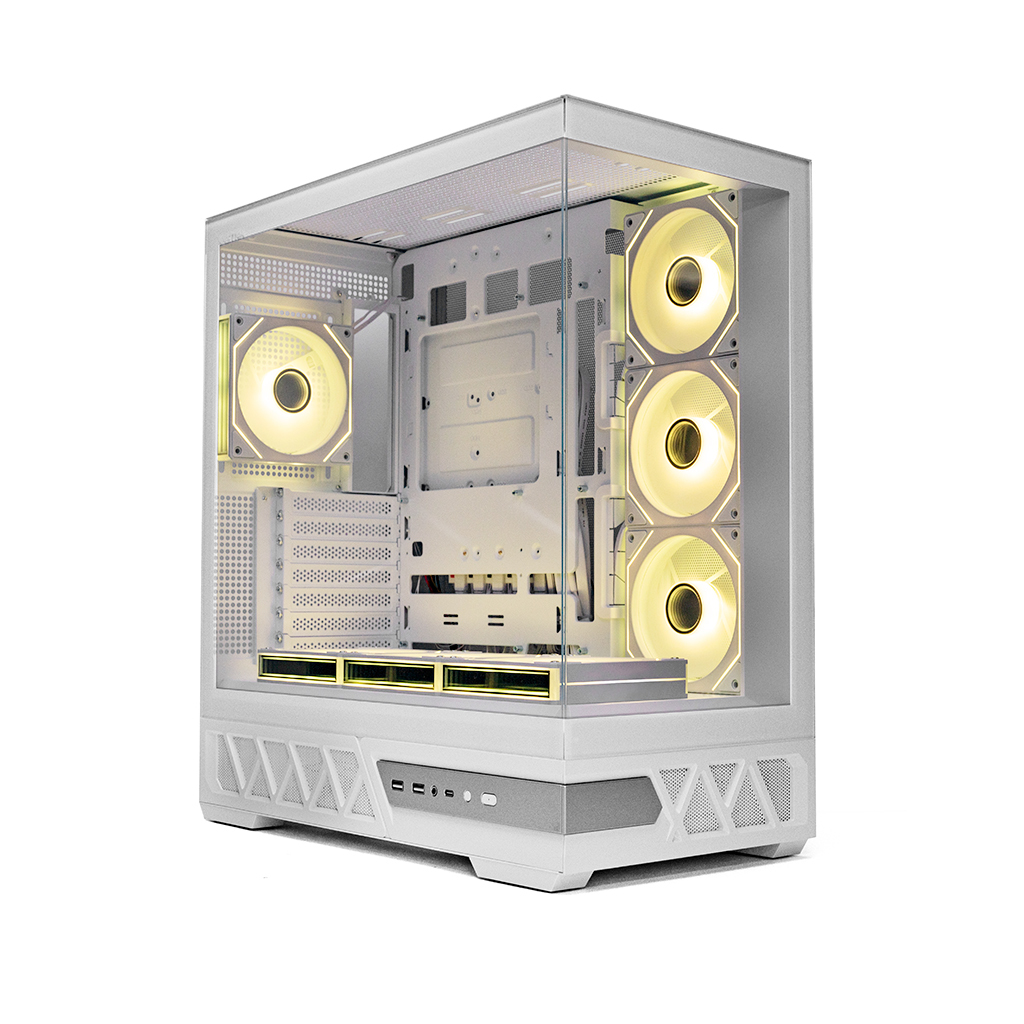

Q700 7ARGB-C10-UC WH | Q700-7FM12A-C10-UC-WH | 6977137650955 | Pre-installed with 7xFM120 ARGB FAN+10 Ports fan HUB (Type-C included) |
