Q600 WH
- Support Max.9pcs fans
- Support 360mm radiator on top

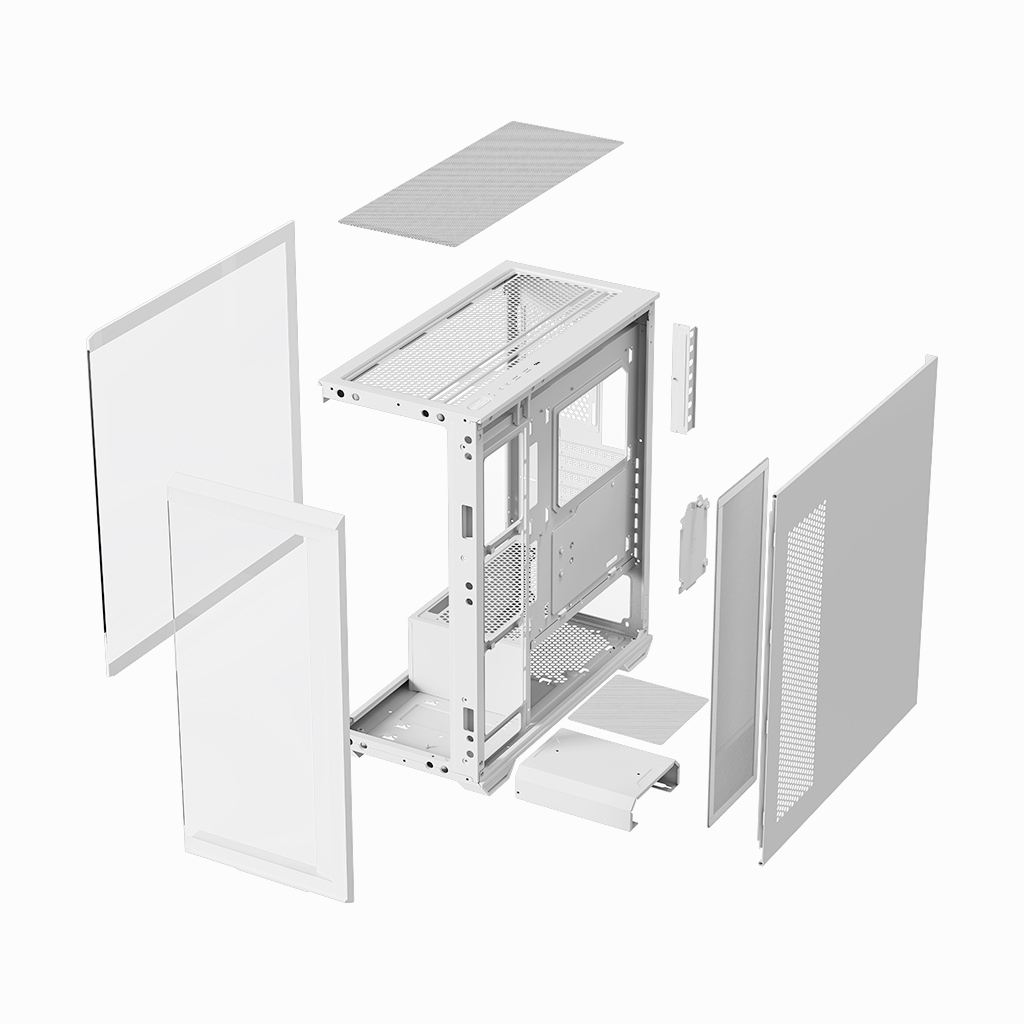

- Tool-free disassembly design
- Motherboard Support: ATX/M-ATX/ITX
- Max.GPU Length: ≤400mm
- Max.CPU Cooler Height: ≤160mm
- Max.PSU Length: ATX-POWER(Max.L:180mm)
- Expansion slot: 7
Gallery
Specification

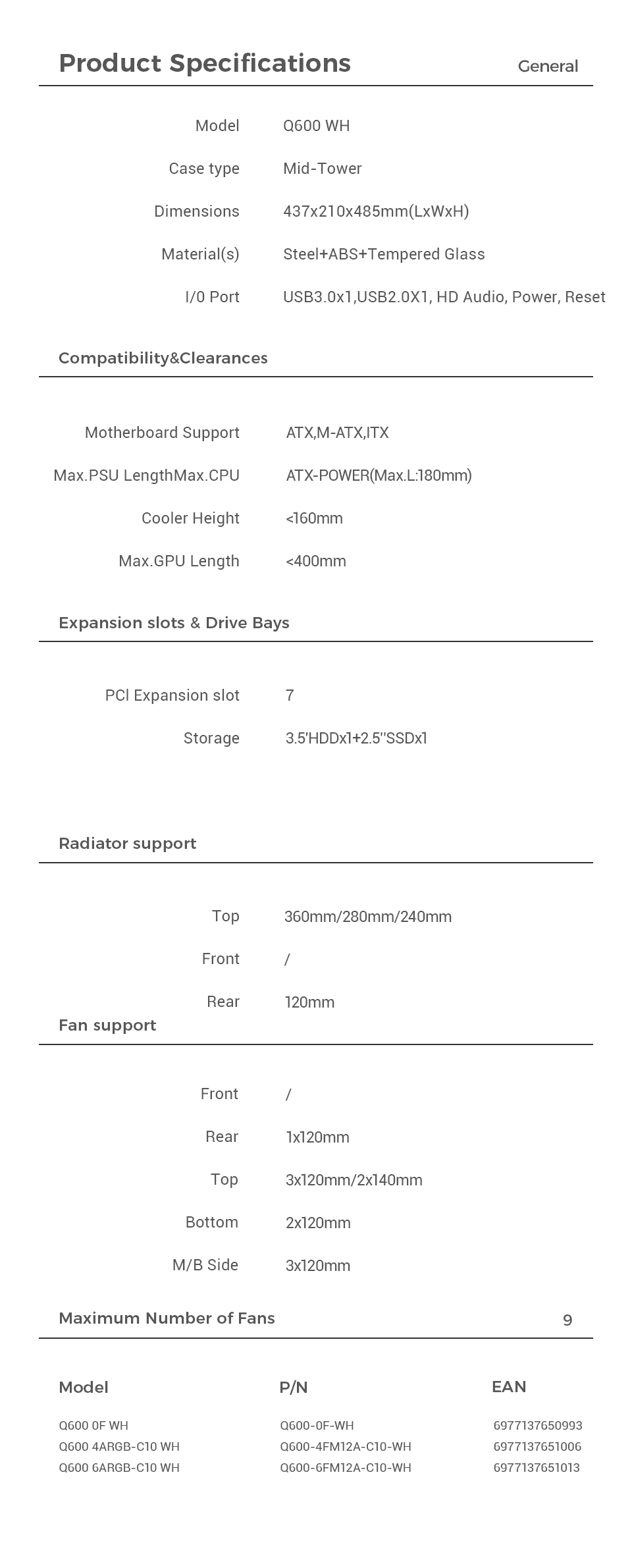

Product Specifications |
||||||
General |
||||||
| Model | Q600 WH | |||||
| Case type | Mid-Tower | |||||
| Product Dimensions | 437x210x485mm(LxWxH) | |||||
| Material(s) | Steel+ABS+Tempered Glass | |||||
| I/O Port | USB3.0x1,USB2.0x1,HD Audio, Power, Reset | |||||
Compatibility&Clearance |
||||||
| Motherboard support | ATX,M-ATX,ITX | |||||
| Max.PSU Length | ATX-POWER(Max.L:180mm) | |||||
| Max.CPU Cooler Height | <160mm | |||||
| Max.GPU Length | <400mm | |||||
Expansion slots & Drive Bays |
||||||
| PCl Expansion slot | 7 | |||||
| Storage | 3.5″HDDx1+2.5″SSDx1 | |||||
Radiator support |
||||||
| Top | 360mm/280mm/240mm/120mm | |||||
| Front | / | |||||
| Rear | 120mm | |||||
Fan support |
||||||
| Front | / | |||||
| Rear | 1x120mm | |||||
| Top | 3x120mm/2x140mm | |||||
| Bottom | 2x120mm | |||||
| M/B Side | 3x120mm | |||||
| Maximum Number of Fans | 9 | |||||
|
|
||||||
Model |
P/N |
EAN(13) |
More information |
|||
| Q600 0F WH | Q600-0F-WH | 6977137650993 | Case only | |||
| Q600 4ARGB-C10 WH | Q600-4FM12A-C10-WH | 6977137651006 | Pre-installed with 4xFM120 ARGB FAN+10 Ports fan HUB | |||
| Q600 6ARGB-C10 WH | Q600-6FM12A-C10-WH | 6977137651013 | Pre-installed with 6xFM120 ARGB FAN+10 Ports fan HUB | |||
