A307M 2BK SI
• Motherboard Support:Micro ATX,ITX
• Radiator support: 120mm in top/front/rear
• Max.GPU Length:≤275mm
• Max.CPU Cooler Height:≤160mm
• Max.PSU Length:ATX-POWER(Max.L:145mm)
Gallery
Specifications
Product Specifications |
|||||||
General |
|||||||
| Model | A307M 2BK SI | ||||||
| Case type | Mid-Tower | ||||||
| Product Dimensions | 325x195x387mm(LxWxH) | ||||||
| Material(s) | Steel+ABS+Tempered Glass | ||||||

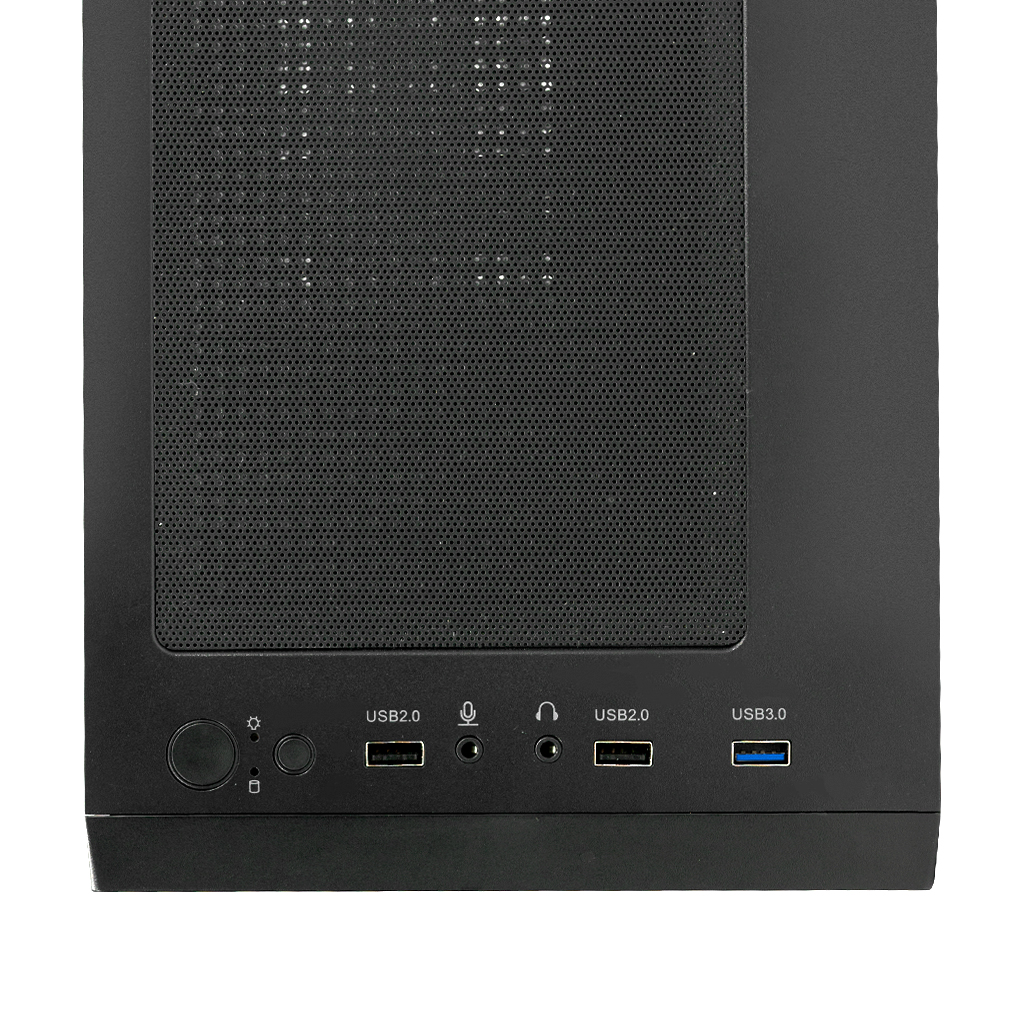

| I/O Port | USB3.0x1,USB2.0x2,HD Audio, Power, Reset | ||||||
Compatibility&Clearance |
|||||||
| Motherboard support | M-ATX,ITX | ||||||
| Max.PSU Length | ATX-POWER(Max.L:145mm) | ||||||
| Max.CPU Cooler Height | <160mm | ||||||
| Max.GPU Length | <275mm | ||||||
Expansion slots & Drive Bays |
|||||||
| PCl Expansion slot | 4 | ||||||
| Storage | 3.5″HDDx1+2.5″SSDx1,3.5″HDDx2 | ||||||
Radiator support |
|||||||
| Top | 120mm | ||||||
| Front | 120mm | ||||||
| Rear | 120mm | ||||||
Fan support |
|||||||
| Front | 2x120mm | ||||||
| Rear | 1x120mm | ||||||
| Top | 2x120mm | ||||||
| Bottom | 2x120mm | ||||||
| M/B Side | / | ||||||
| Maximum Number of Fans | 7 | ||||||
|
|
|||||||
Model |
P/N |
EAN(13) |
More information |
||||
| A307M 2BK SI | A307M-2FC12BK-SI |
|

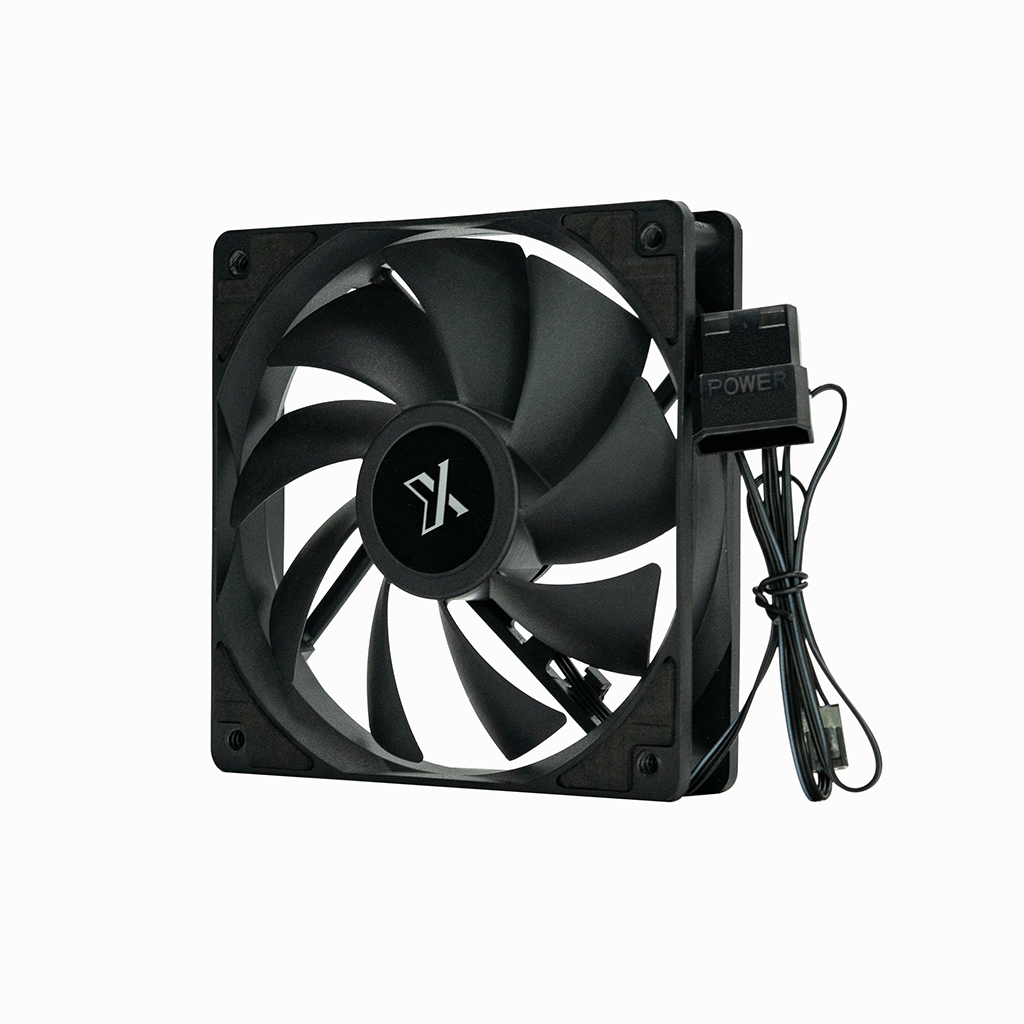

Pre-installed with 2xFC120 BLACK FAN | ||||
