A305M 3FRGB
A305M 3FRGB

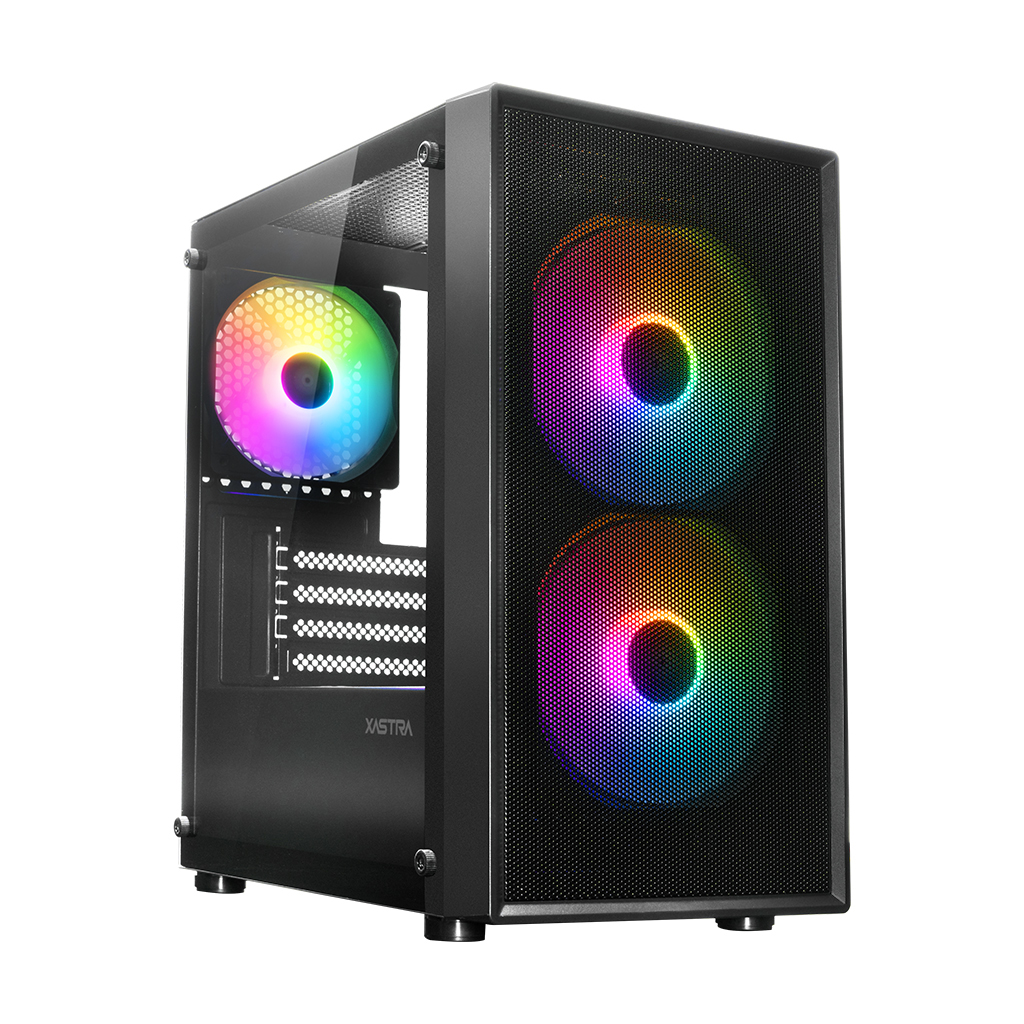

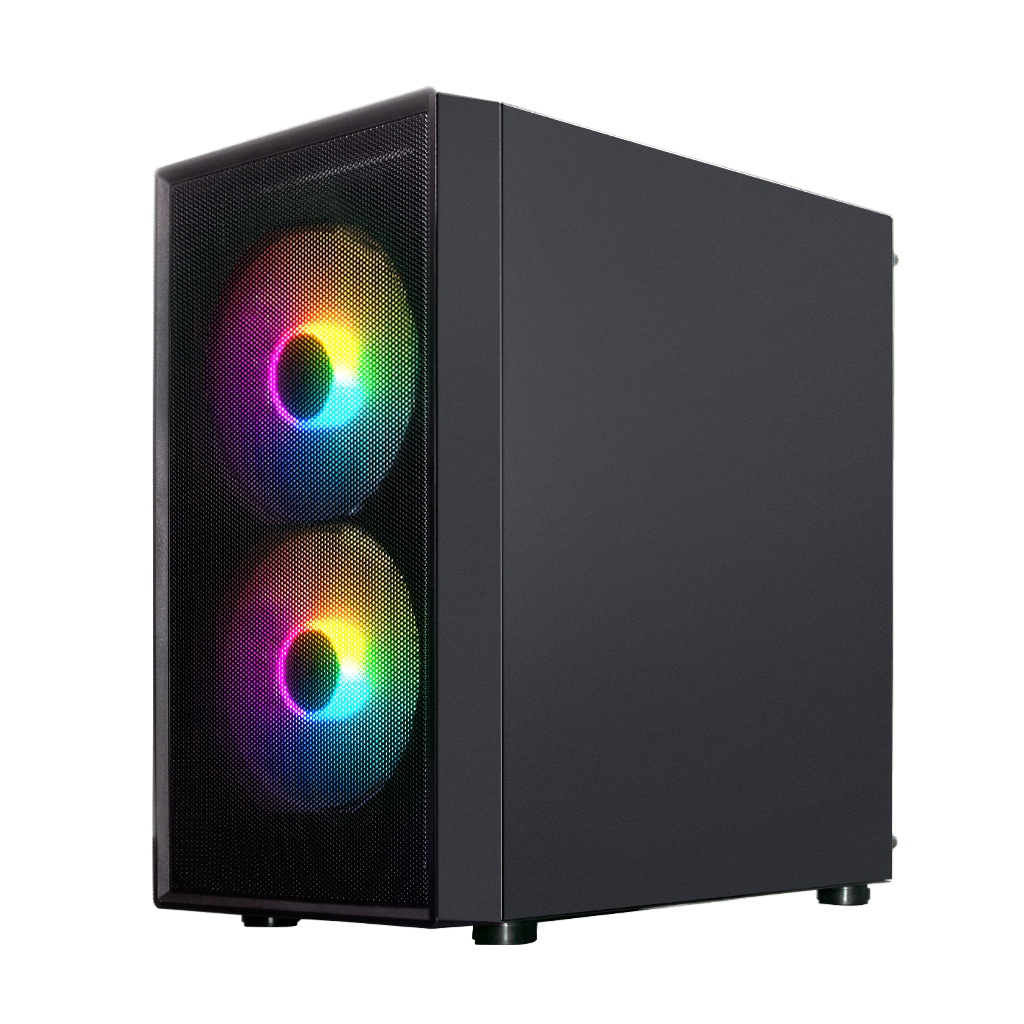

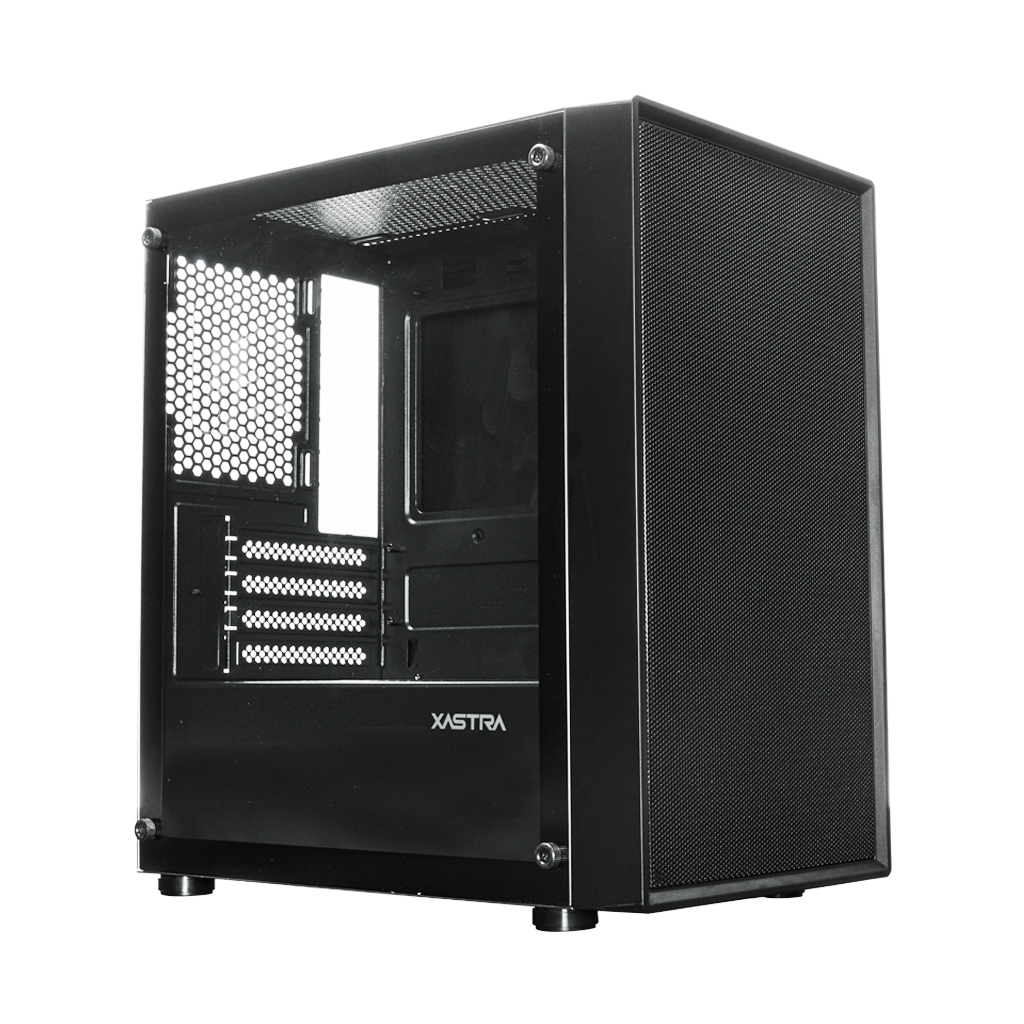

• Mid-tower case

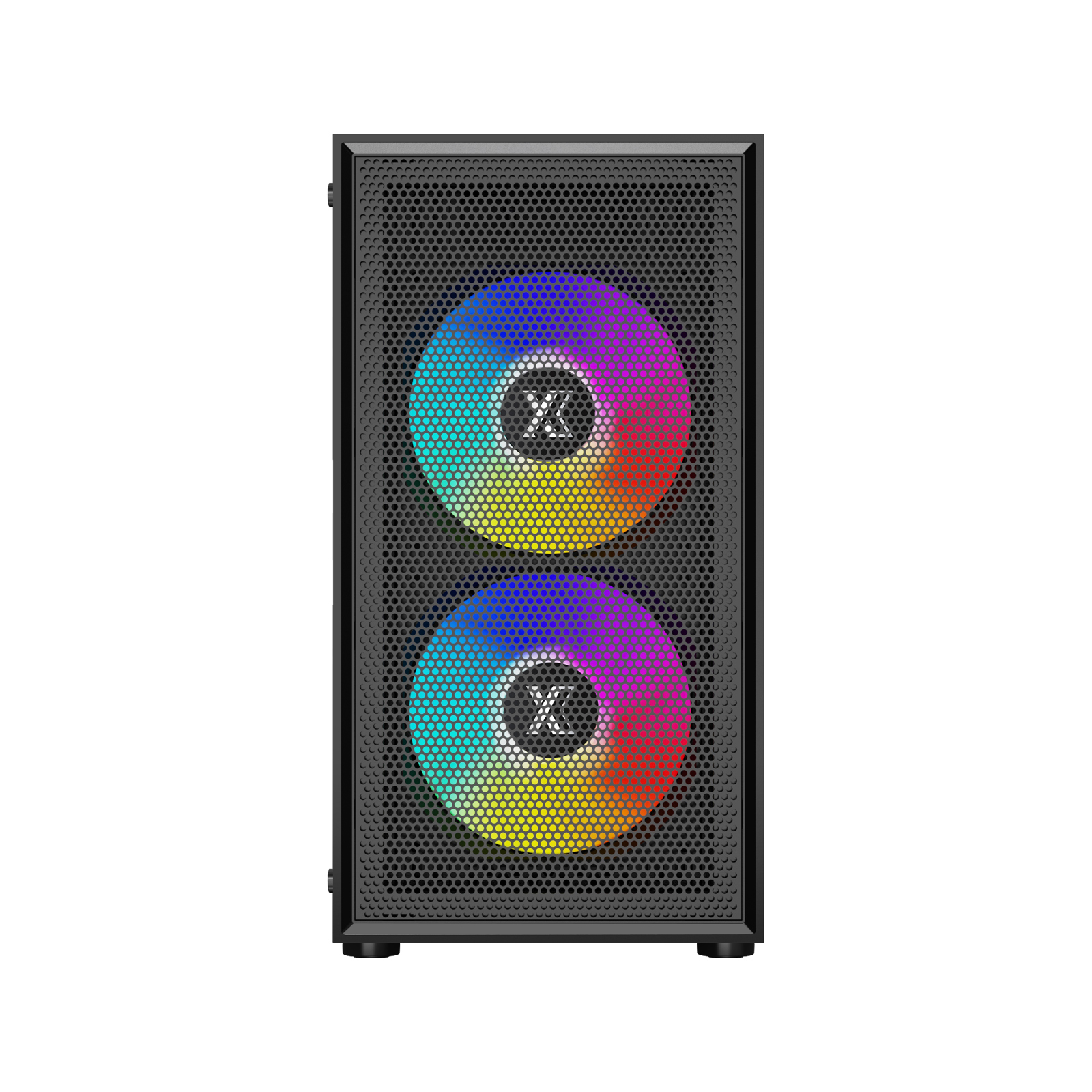

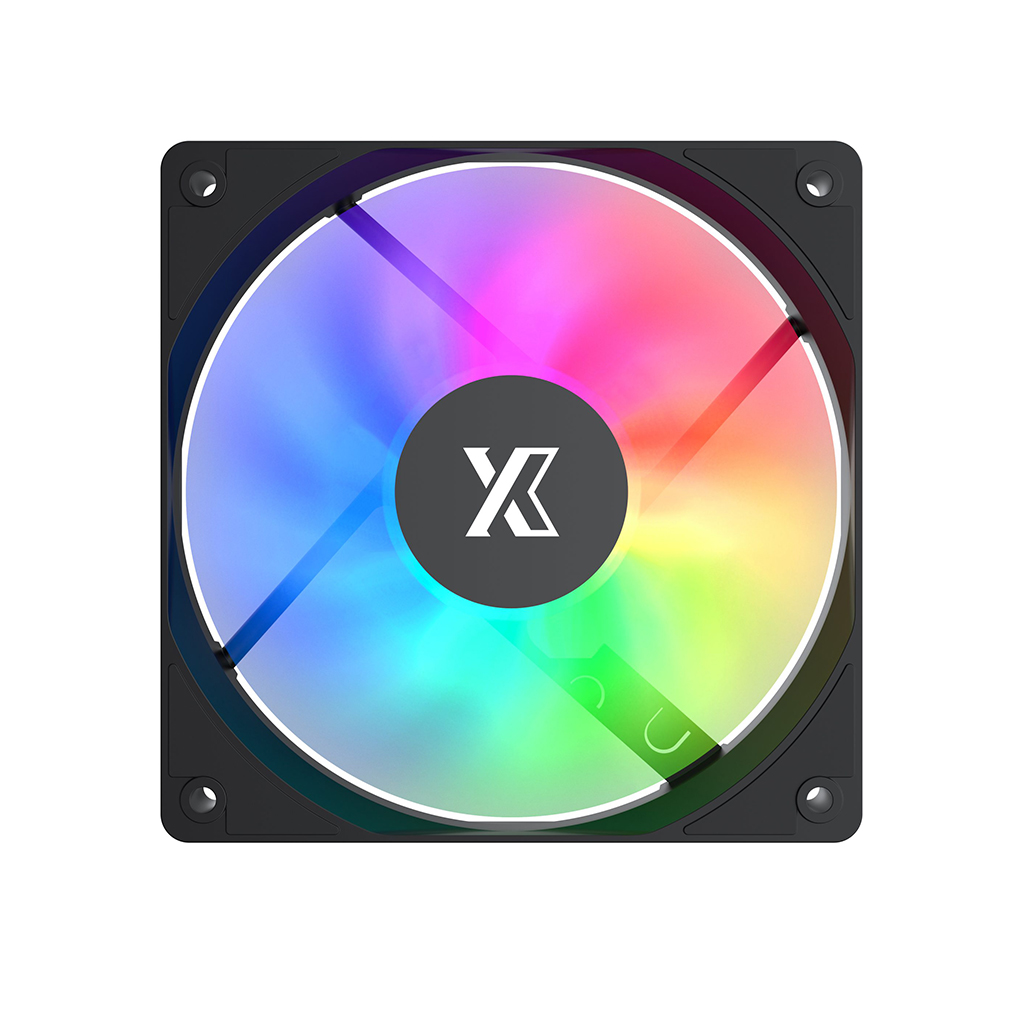

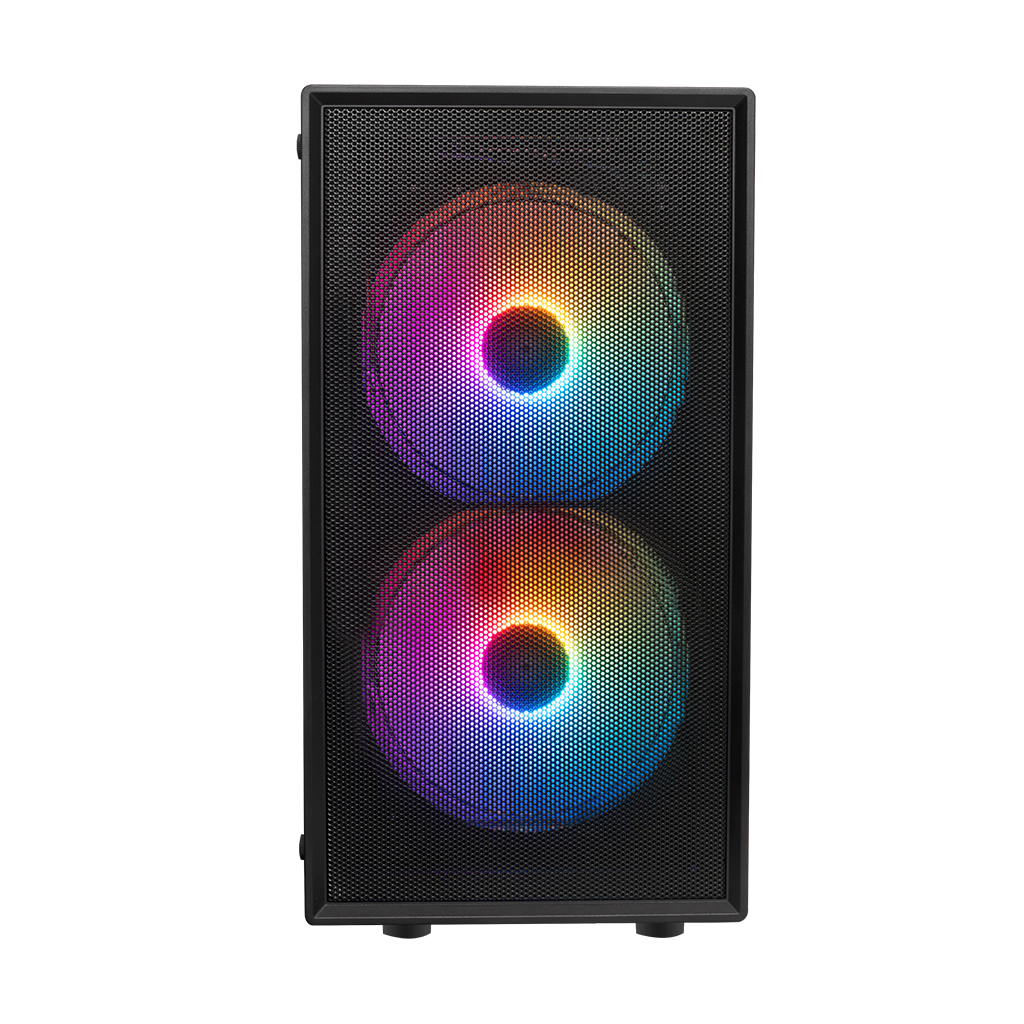

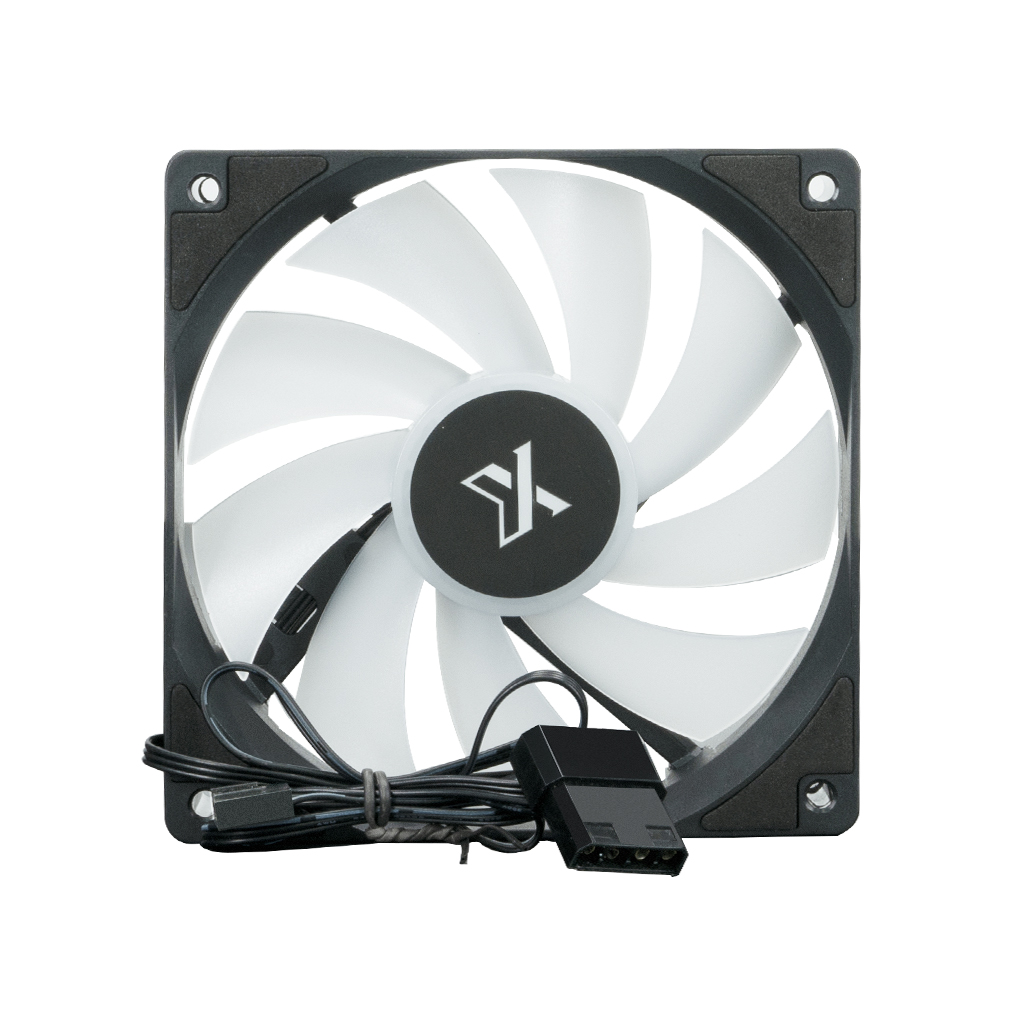

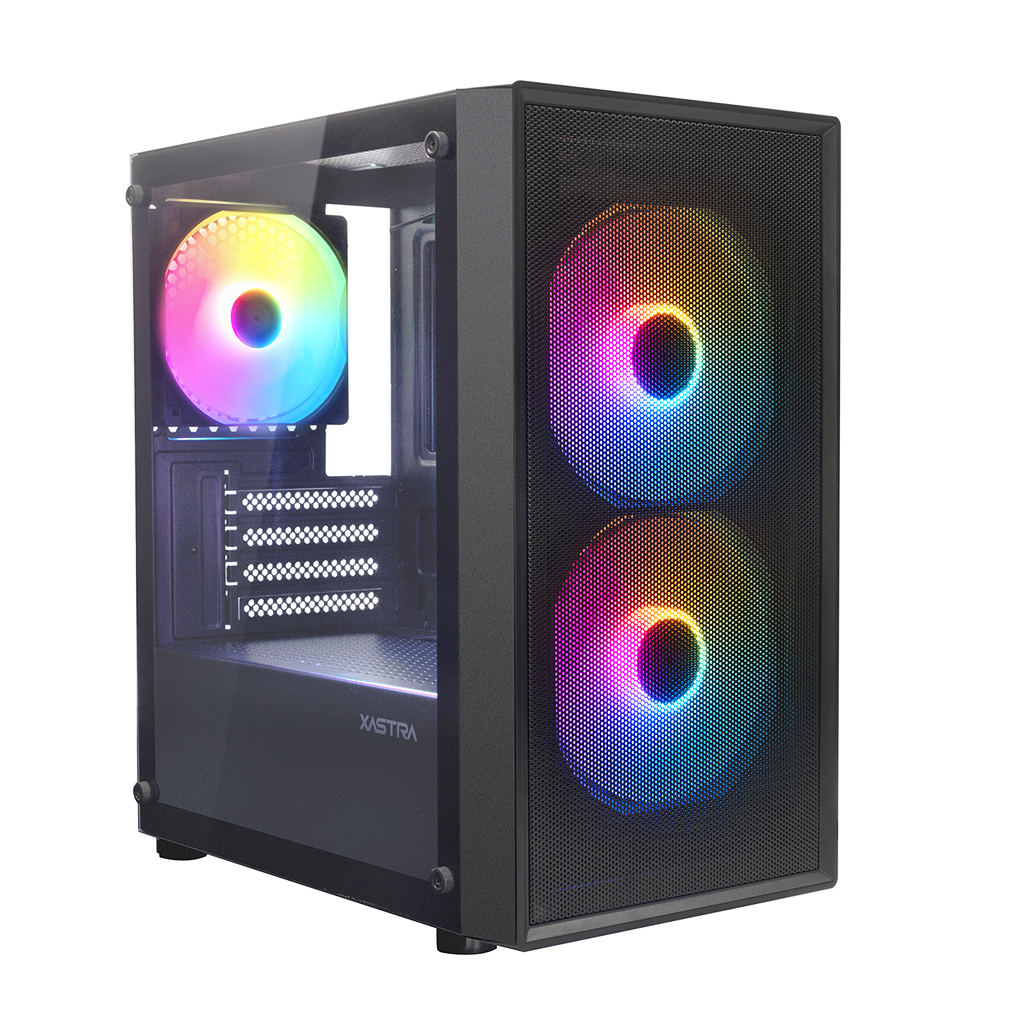

• Pre-installed fans:2pcs*FC140 FRGB+1pcs*FC120 FRGB
• Motherboard Support:Micro ATX,ITX
• Support 240mm AIO liquid cooling in front
• Max.GPU Length:≤285mm
• Max.CPU Cooler Height:≤160mm
• Max.PSU Length:ATX-POWER(Max.L:140mm)
Gallery
Specifications
Product Specifications |
||||||
General |
||||||
| Model | A305M 3FRGB | |||||
| Case type | Mid-Tower | |||||
| Product Dimensions | 350x200x387mm(LxWxH) | |||||

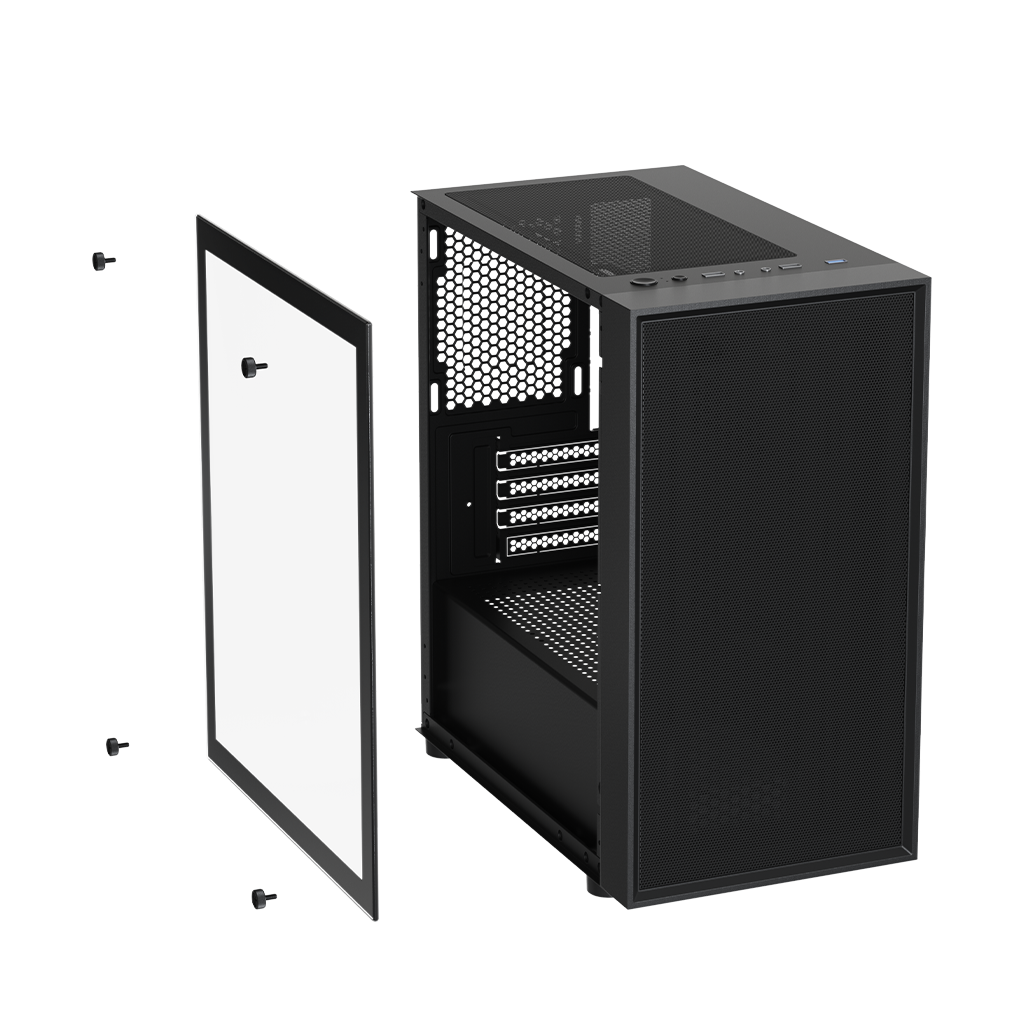

| Material(s) | Steel+ABS+Tempered Glass | |||||

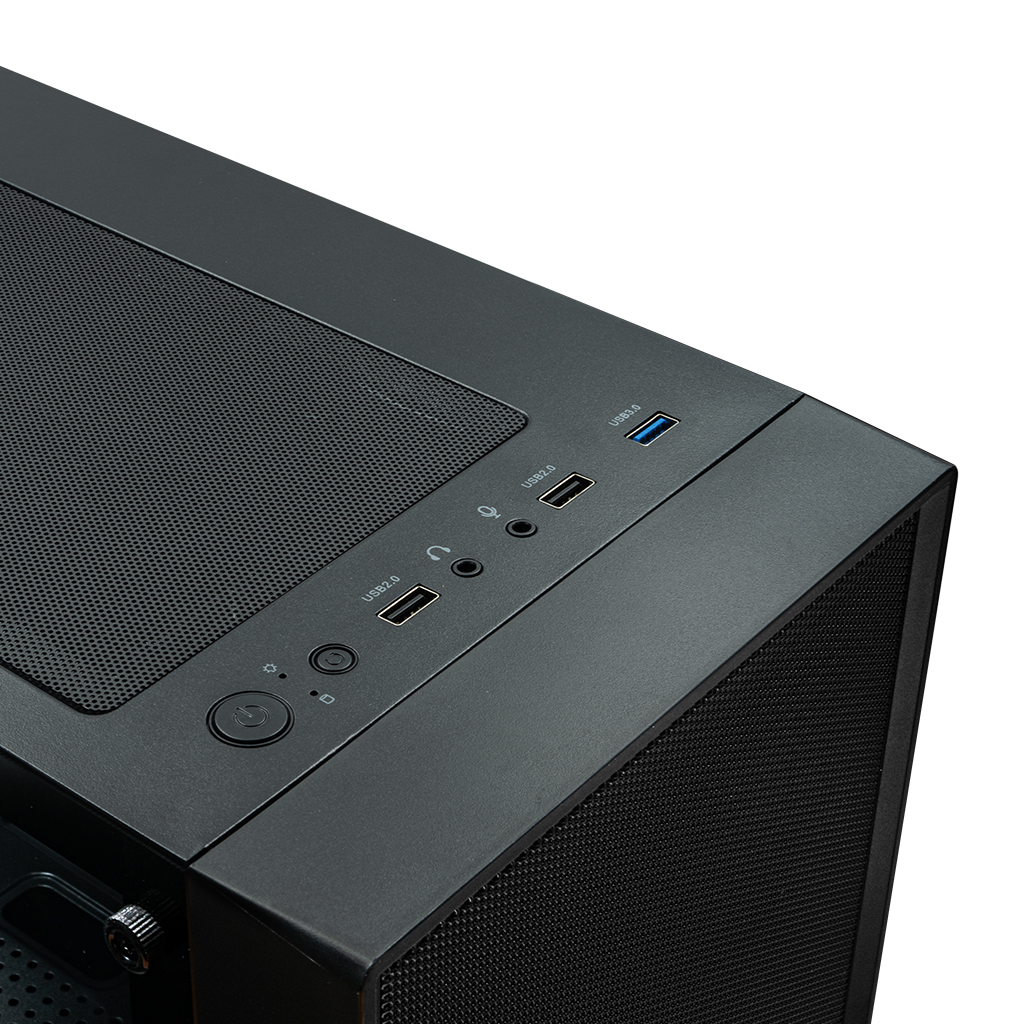

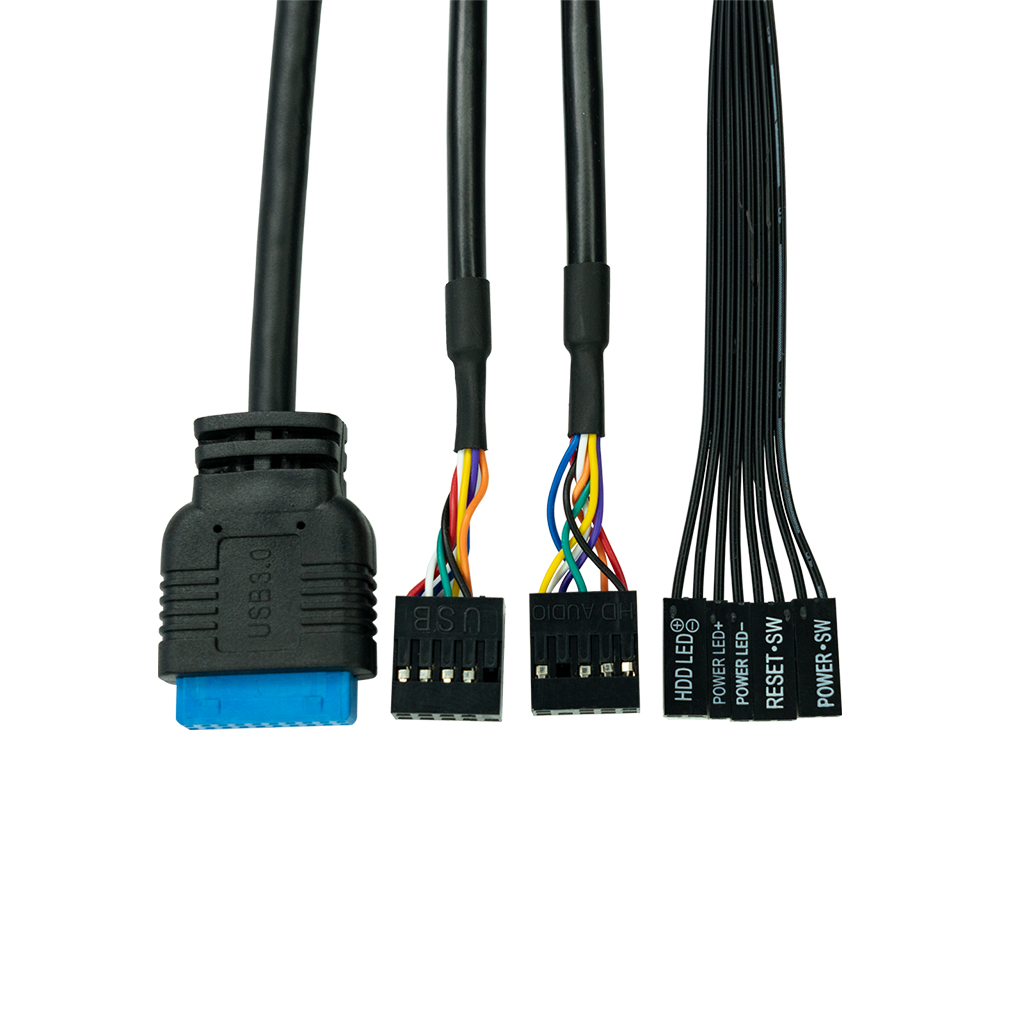

| I/O Port | USB3.0x1,USB2.0x2,HD Audio, Power, Reset | |||||
Compatibility&Clearance |
||||||

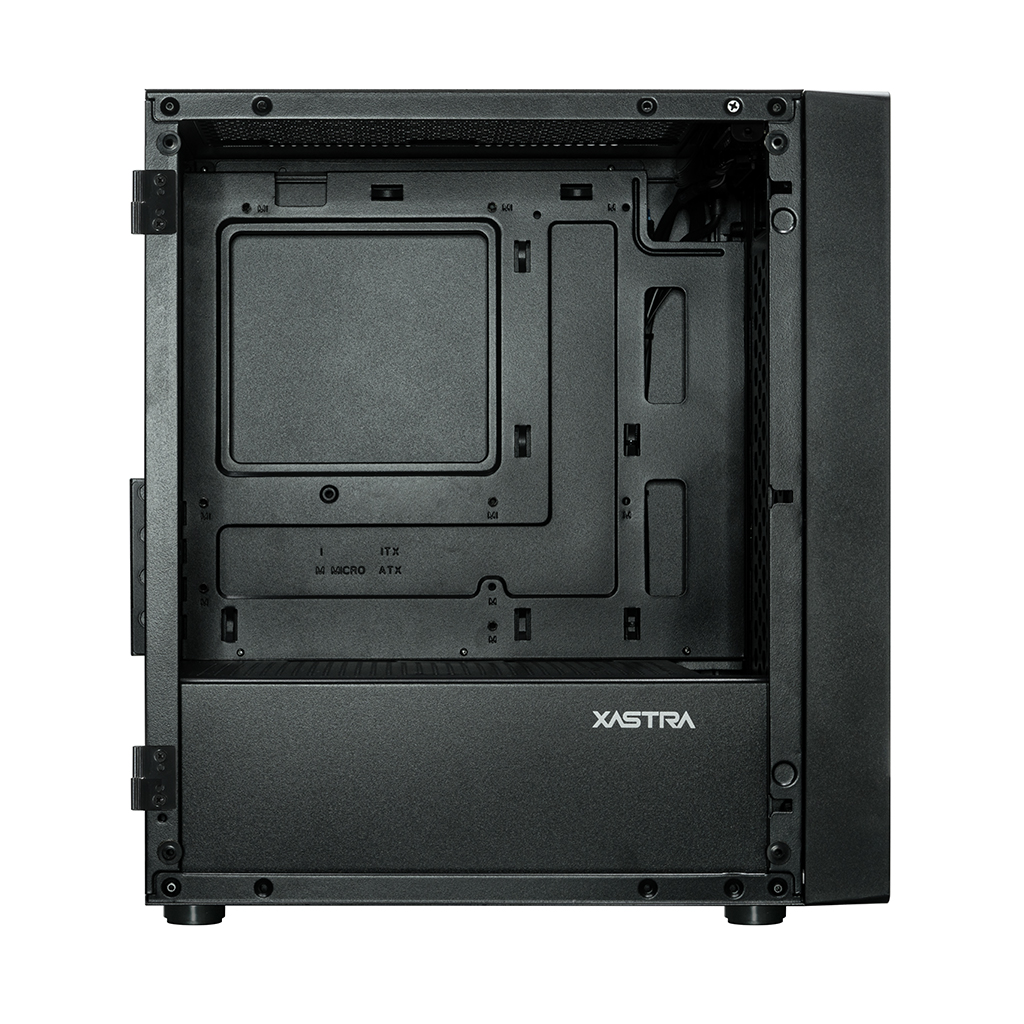

| Motherboard support | M-ATX,ITX | |||||
| Max.PSU Length | ATX-POWER(Max.L:140mm) | |||||
| Max.CPU Cooler Height | <160mm | |||||
| Max.GPU Length | <285mm | |||||
Expansion slots & Drive Bays |
||||||
| PCl Expansion slot | 4 | |||||
| Storage | 3.5″HDDx1+2.5″SSDx1,3.5″HDDx2 | |||||
Radiator support |
||||||
| Top | / | |||||
| Front | 240mm/120mm | |||||
| Rear | 120mm | |||||
Fan support |
||||||
| Front | 2x120mm/ 2x140mm | |||||
| Rear | 1x120mm | |||||
| Top | 2x120mm | |||||
| Bottom | 2x120mm | |||||
| M/B Side | / | |||||
| Maximum Number of Fans | 7 | |||||
|
|
||||||
Model |
P/N |
EAN(13) |
More information |
|||
| A305M 3FRGB | A305M-2FC14F-1FC12F | 6977137650573 | Pre-installed with 2xFC140 FRGB FAN+1xFC120 FRGB FAN | |||
