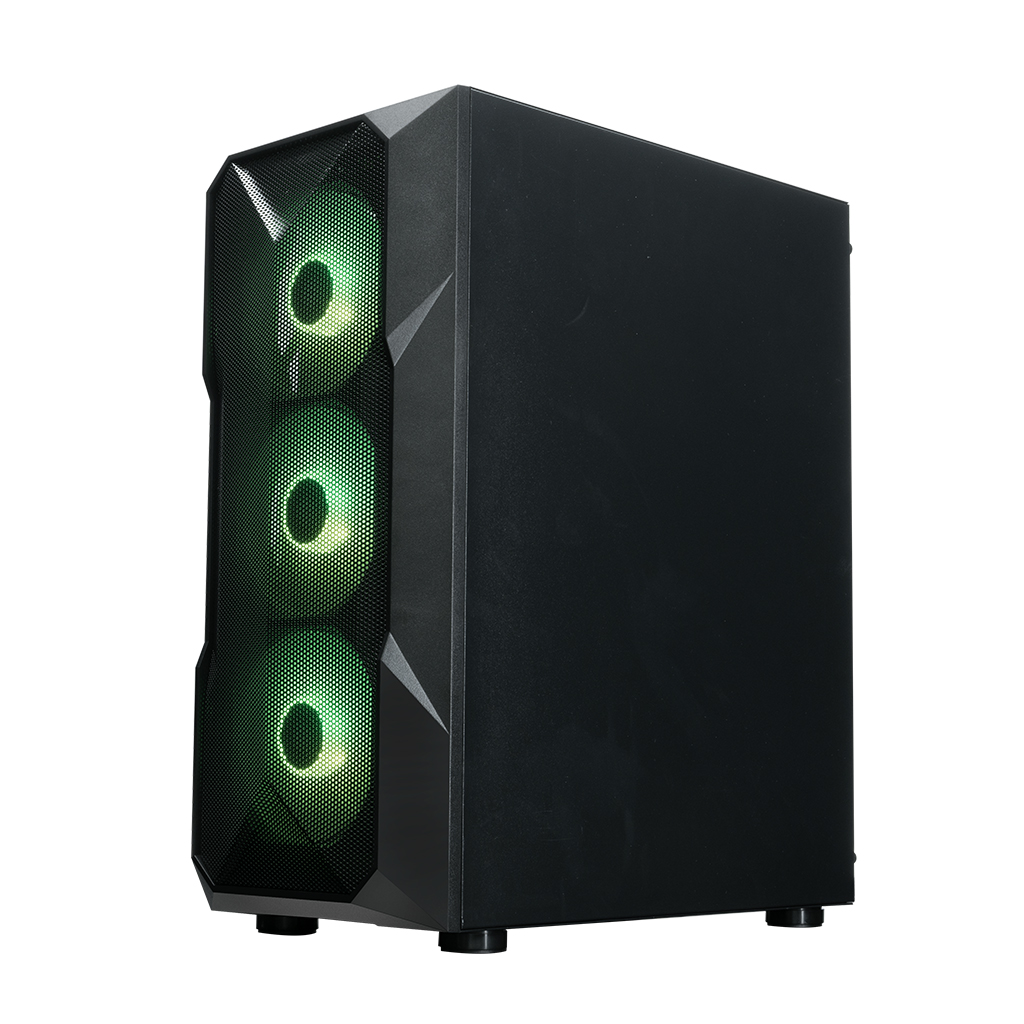

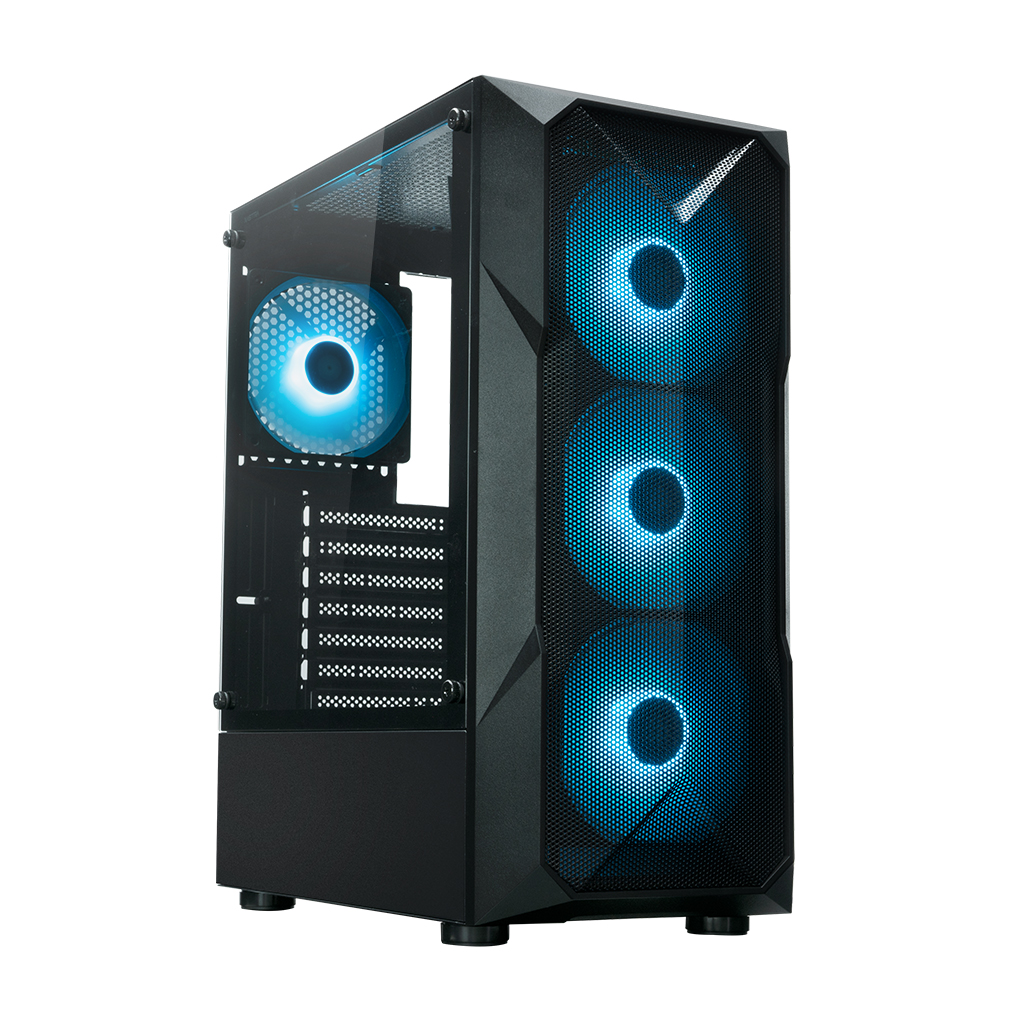

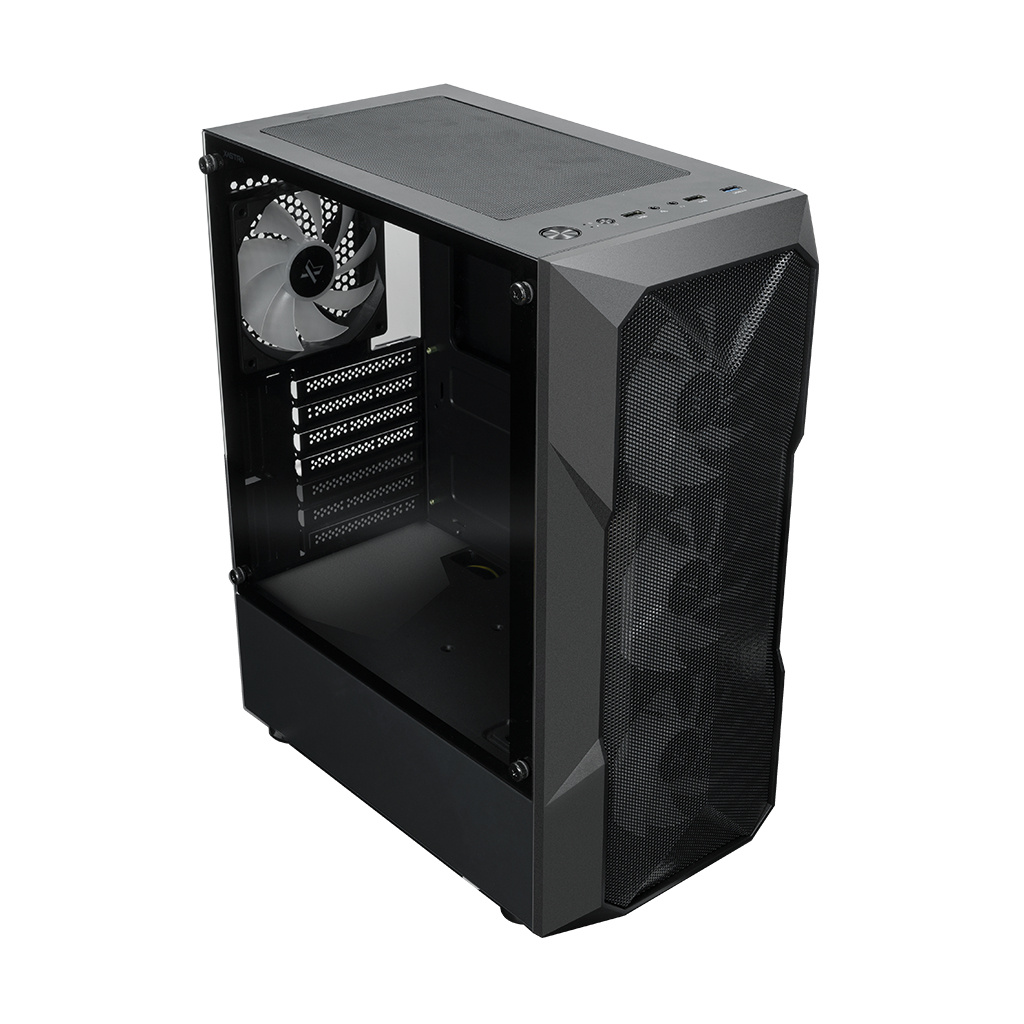

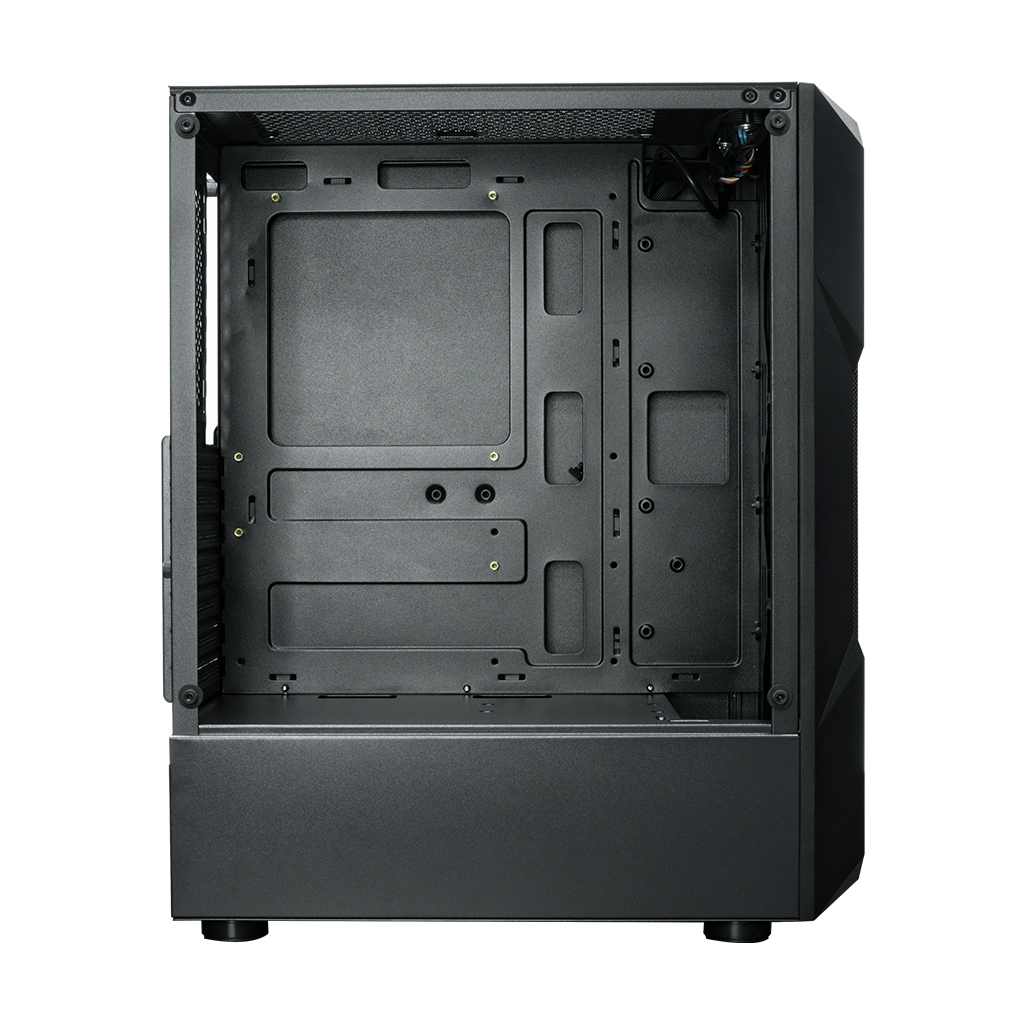

A304
• Motherboard Support:ATX, Micro ATX,ITX
• Radiator Support: 240/120mm (Front)
• Max.GPU Length:≤310mm
• Max.CPU Cooler Height:≤157mm
• Max.PSU Length:ATX-POWER(Max.L:155mm)
Gallery
Specifications
Product Specifications |
||||||
General |
||||||
| Model | A304 | |||||
| Case type | Mid-Tower | |||||
| Product Dimensions | 380x200x456mm(LxWxH) | |||||
| Material(s) | Steel+ABS+Tempered Glass | |||||

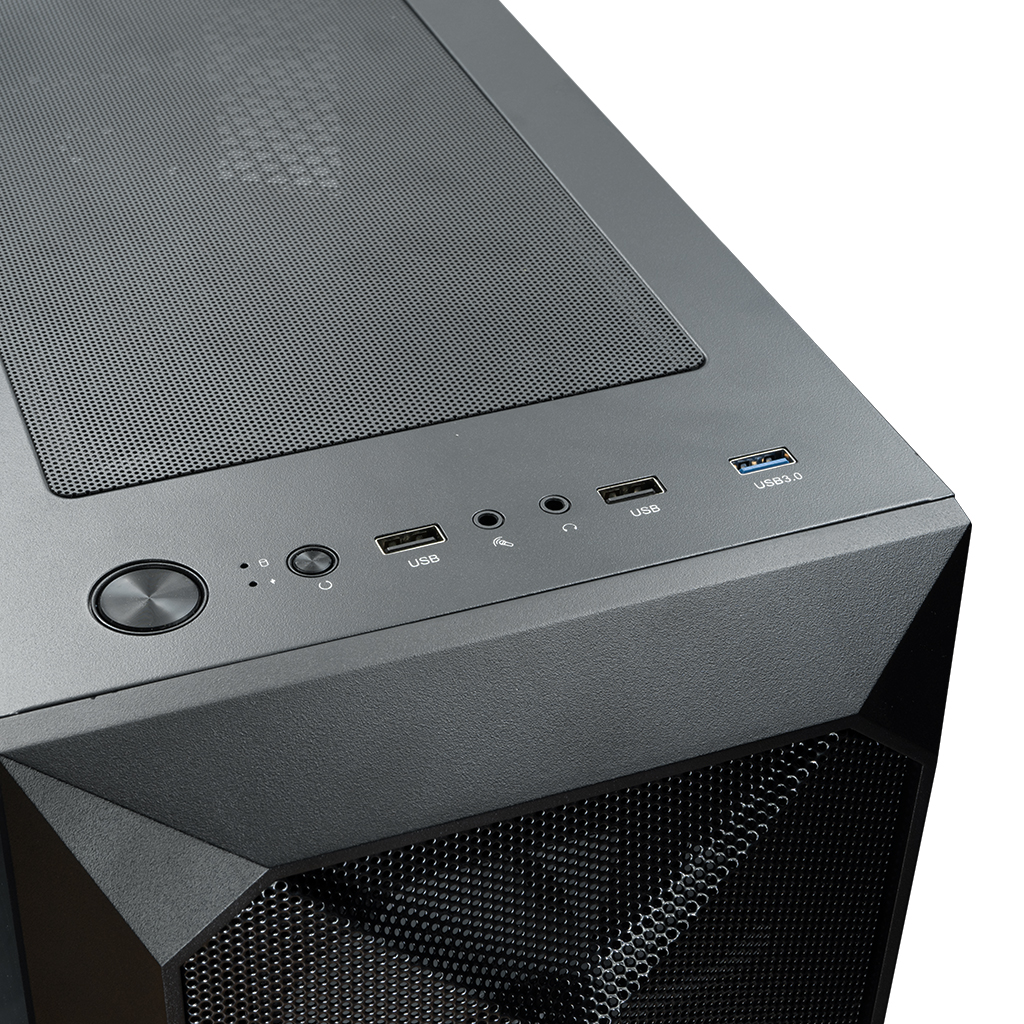

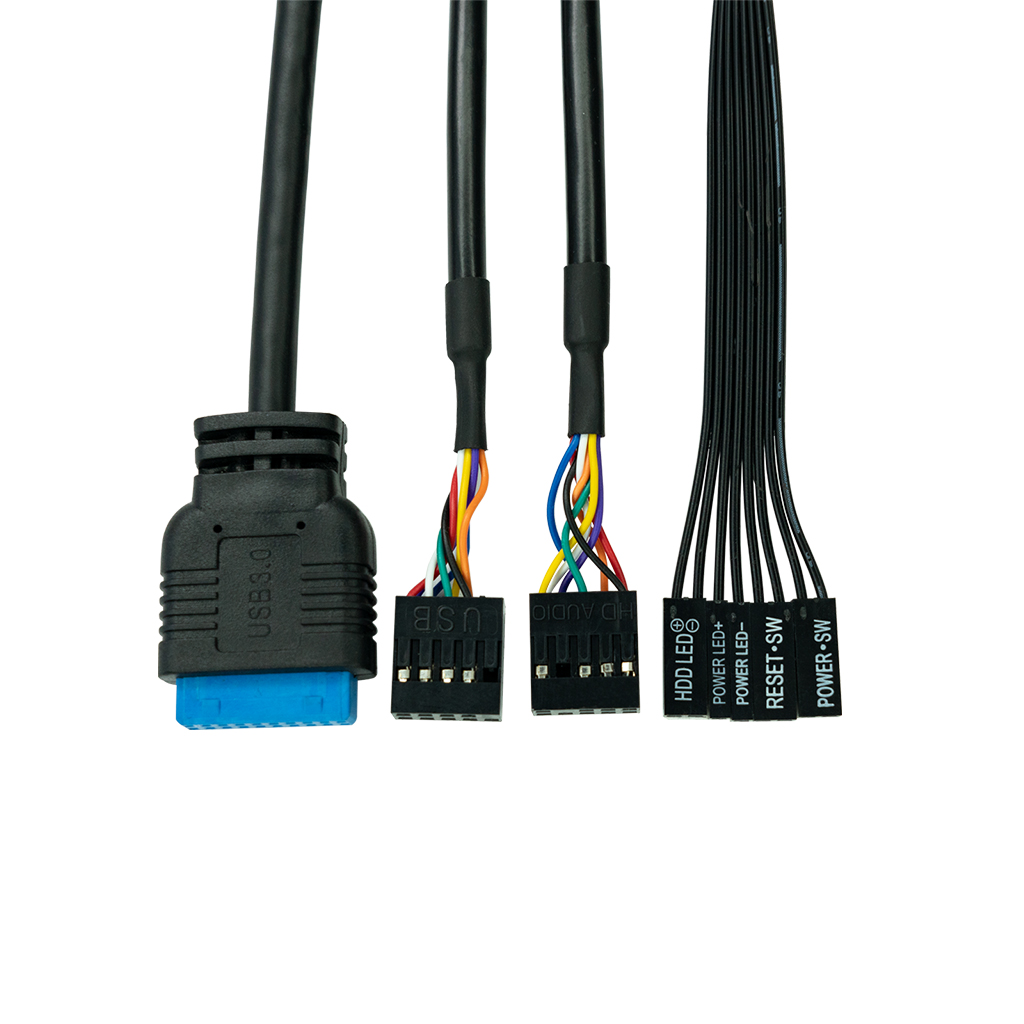

| I/O Port | USB3.0x1,USB2.0x2,HD Audio, Power, Reset | |||||
Compatibility&Clearance |
||||||

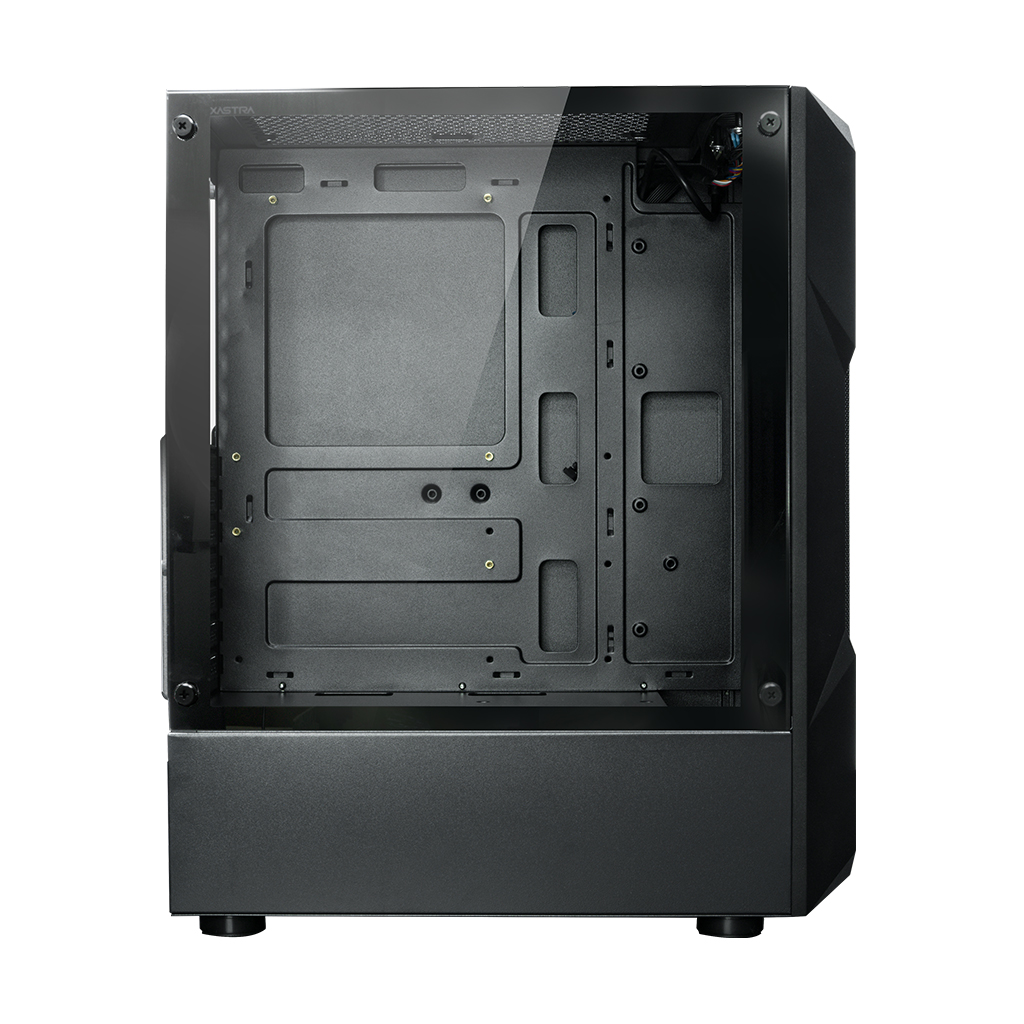

| Motherboard support | ATX,M-ATX,ITX | |||||
| Max.PSU Length | ATX-POWER(Max.L:155mm) | |||||
| Max.CPU Cooler Height | 157mm | |||||
| Max.GPU Length | 310mm | |||||
Expansion slots & Drive Bays |
||||||

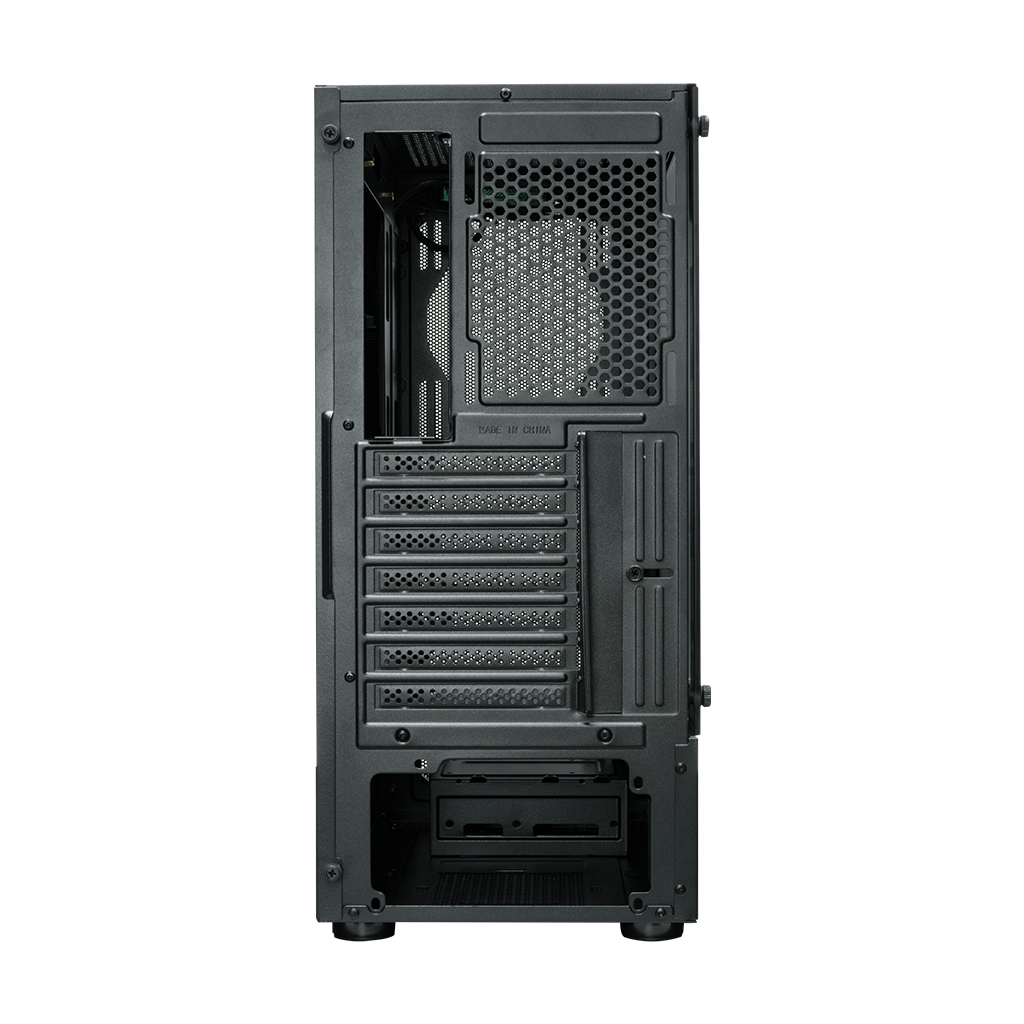

| PCl Expansion slot | 7 | |||||
| Storage | 3.5″HDDx2+2.5″SSDx3 | |||||
Radiator support |
||||||
| Top | / | |||||
| Front | 240mm/120mm | |||||
| Rear | 120mm | |||||
Fan support |
||||||
| Front | 3x120mm/2x140mm | |||||
| Rear | 1x120mm | |||||
| Top | 2x120mm | |||||
| Bottom | / | |||||
| M/B Side | / | |||||
| Maximum Number of Fans | 6 | |||||
|
|
||||||
Model |
P/N |
EAN(13) |
More information |
|||

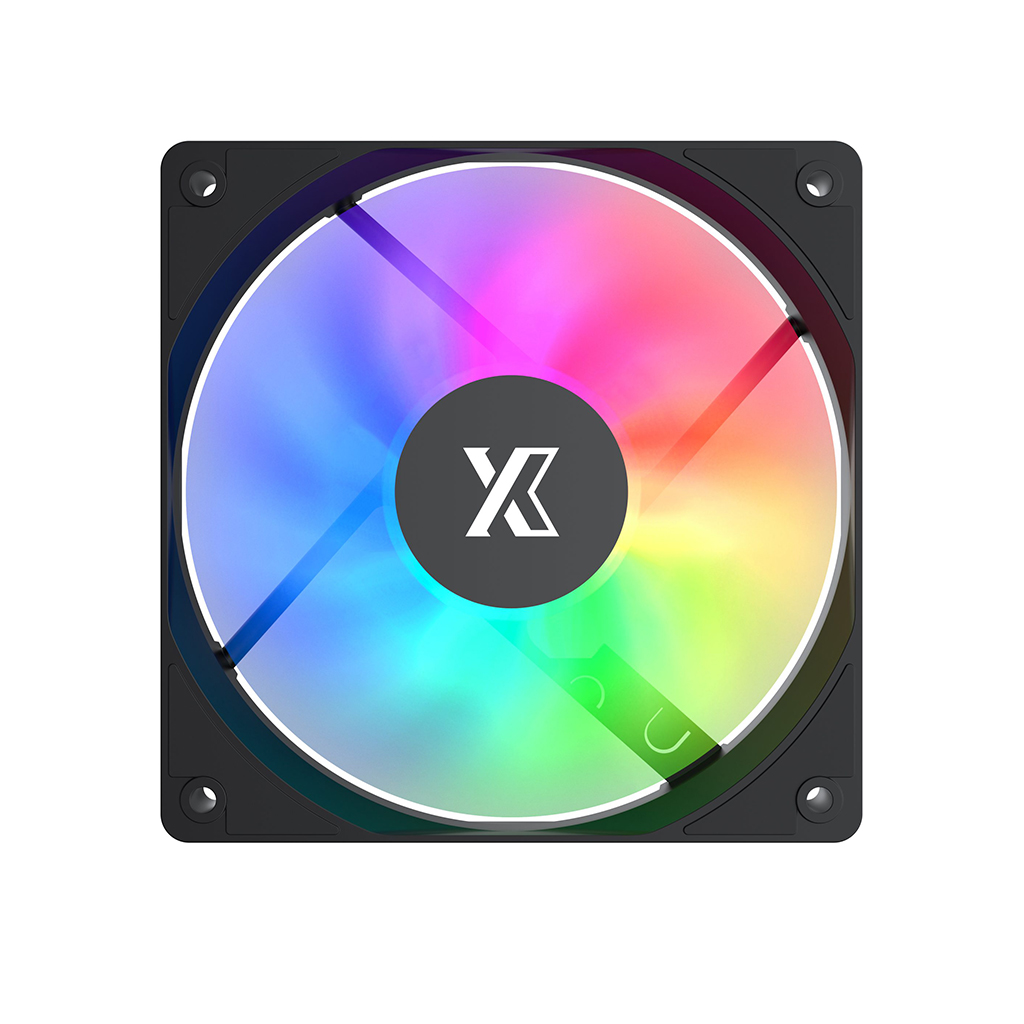

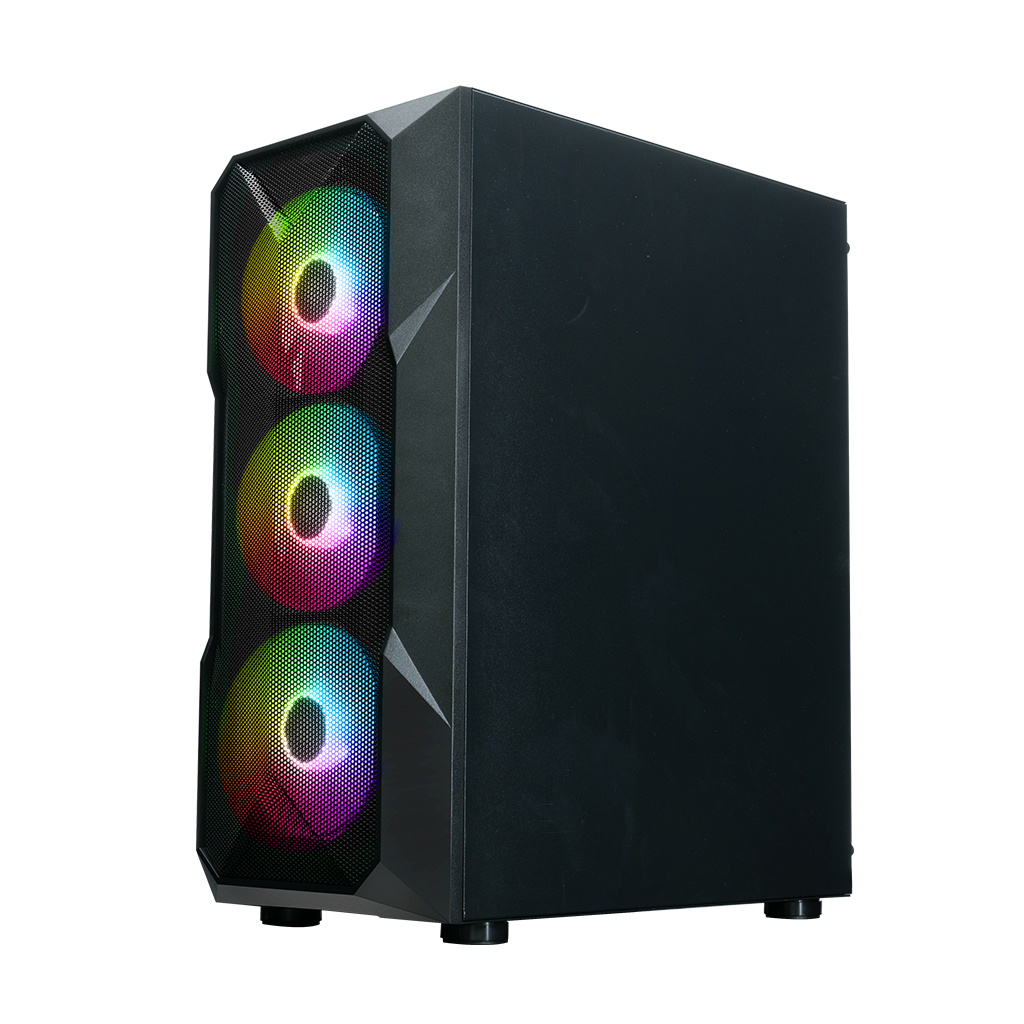

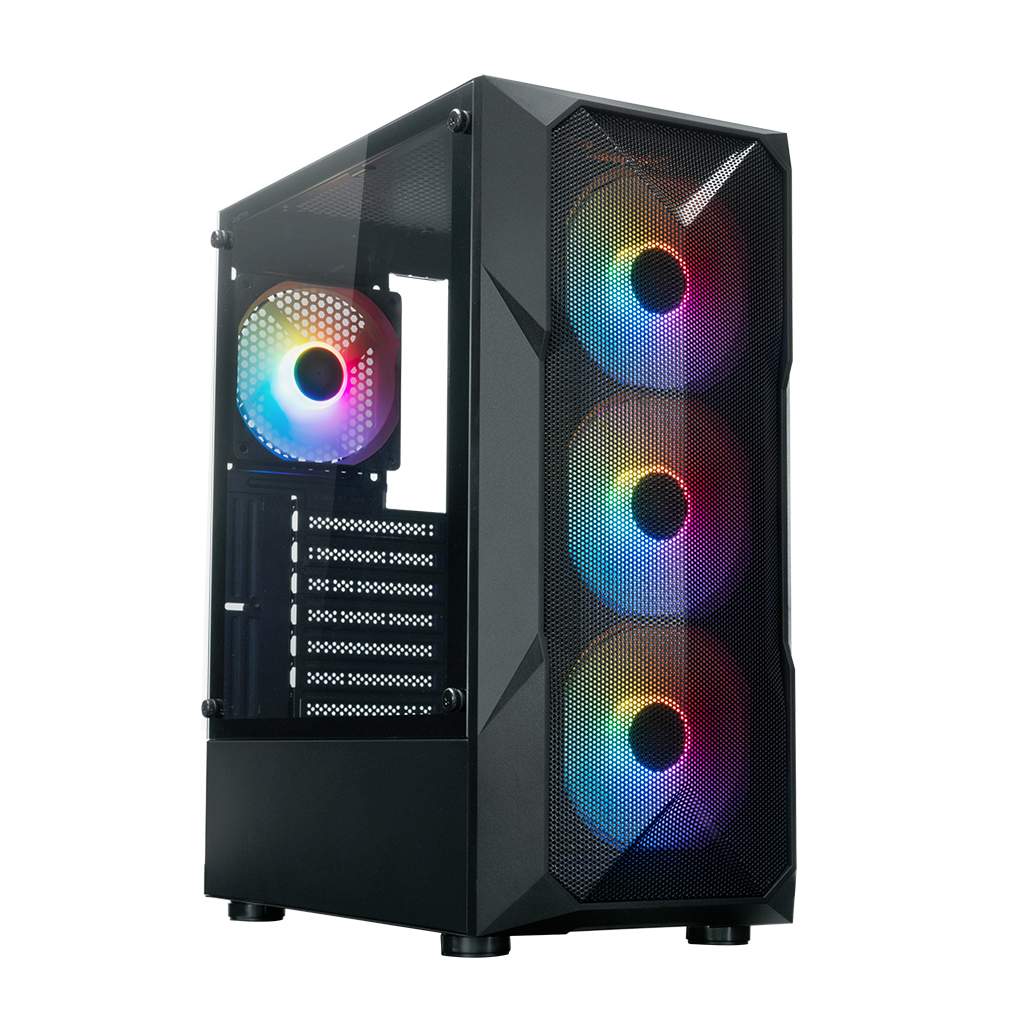

| A304 4FRGB | A304-4FC12F | 6977137651297 | Pre-installed with 4xFC120 FRGB | |||

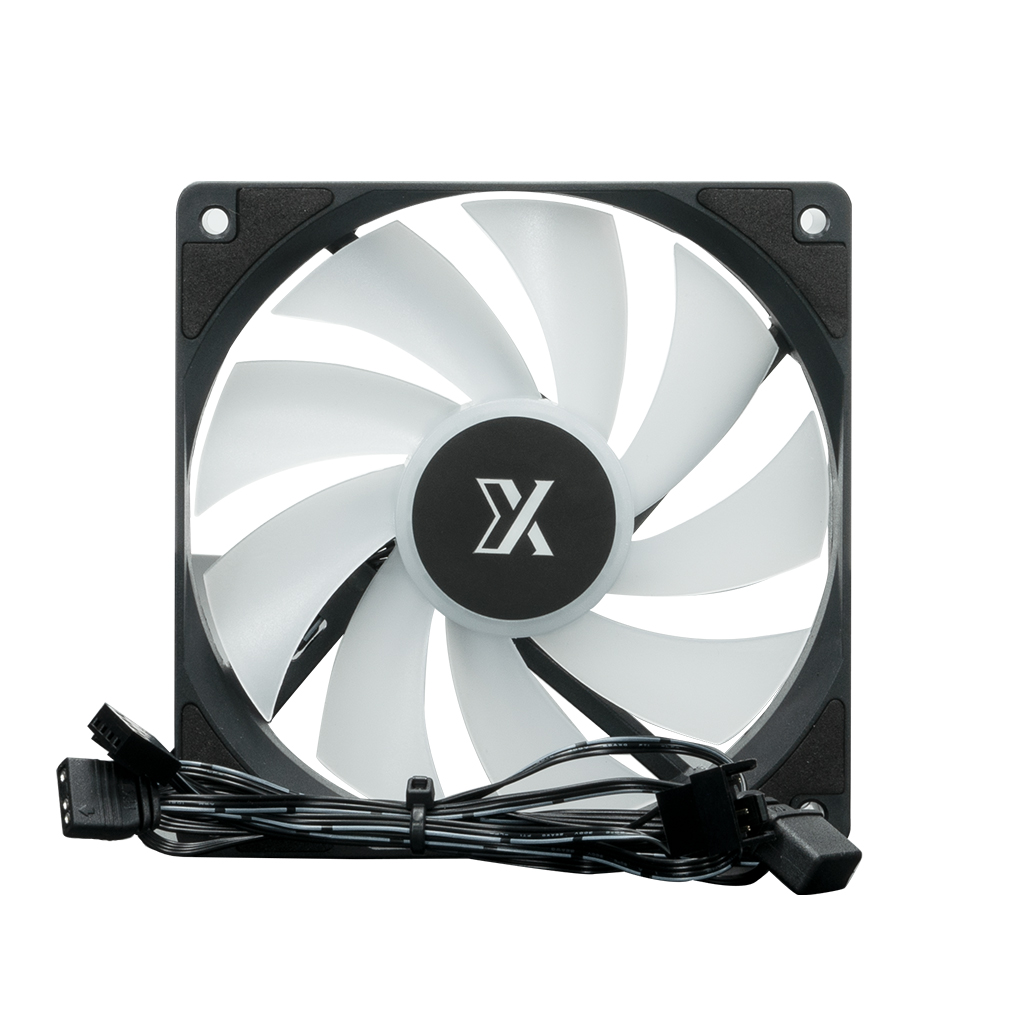

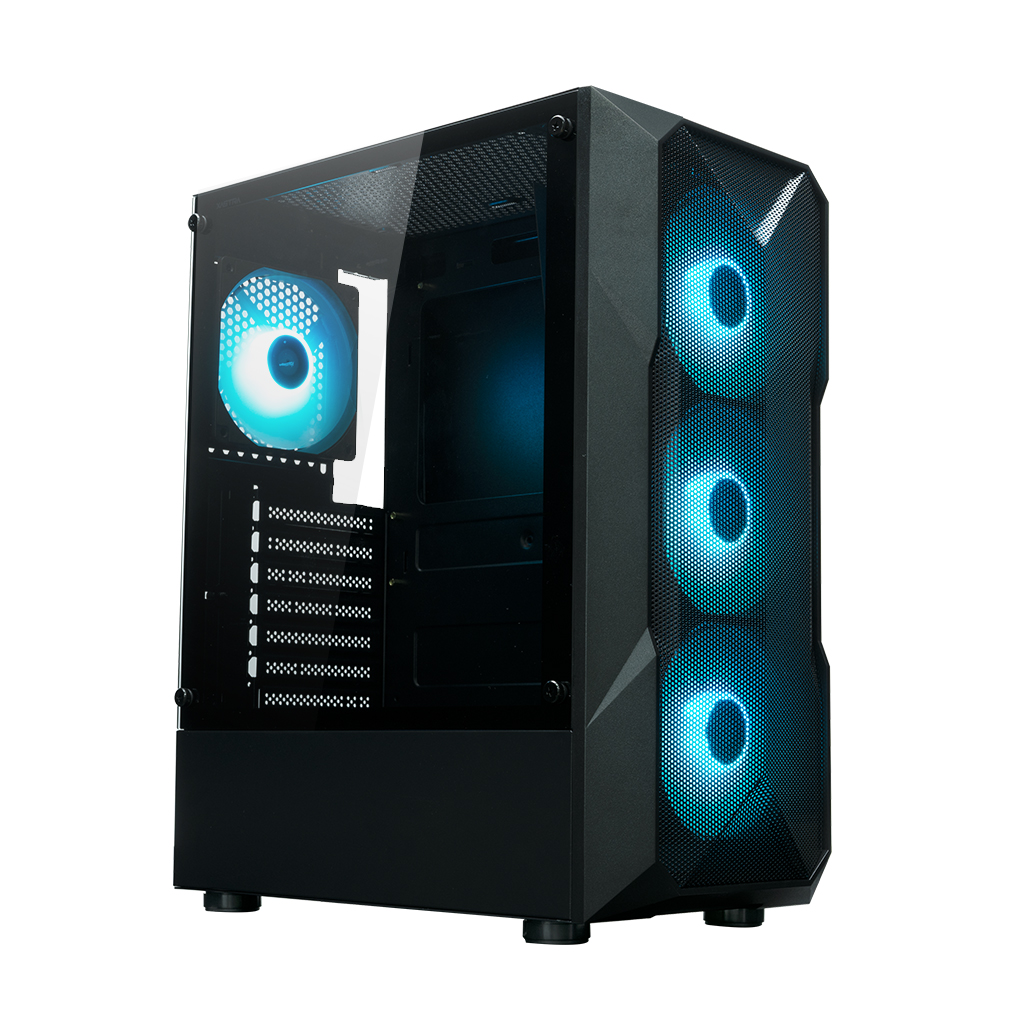

| A304 4ARGB | A304-4FC12A | 6977137651303 | Pre-installed with 4xFC120 ARGB | |||

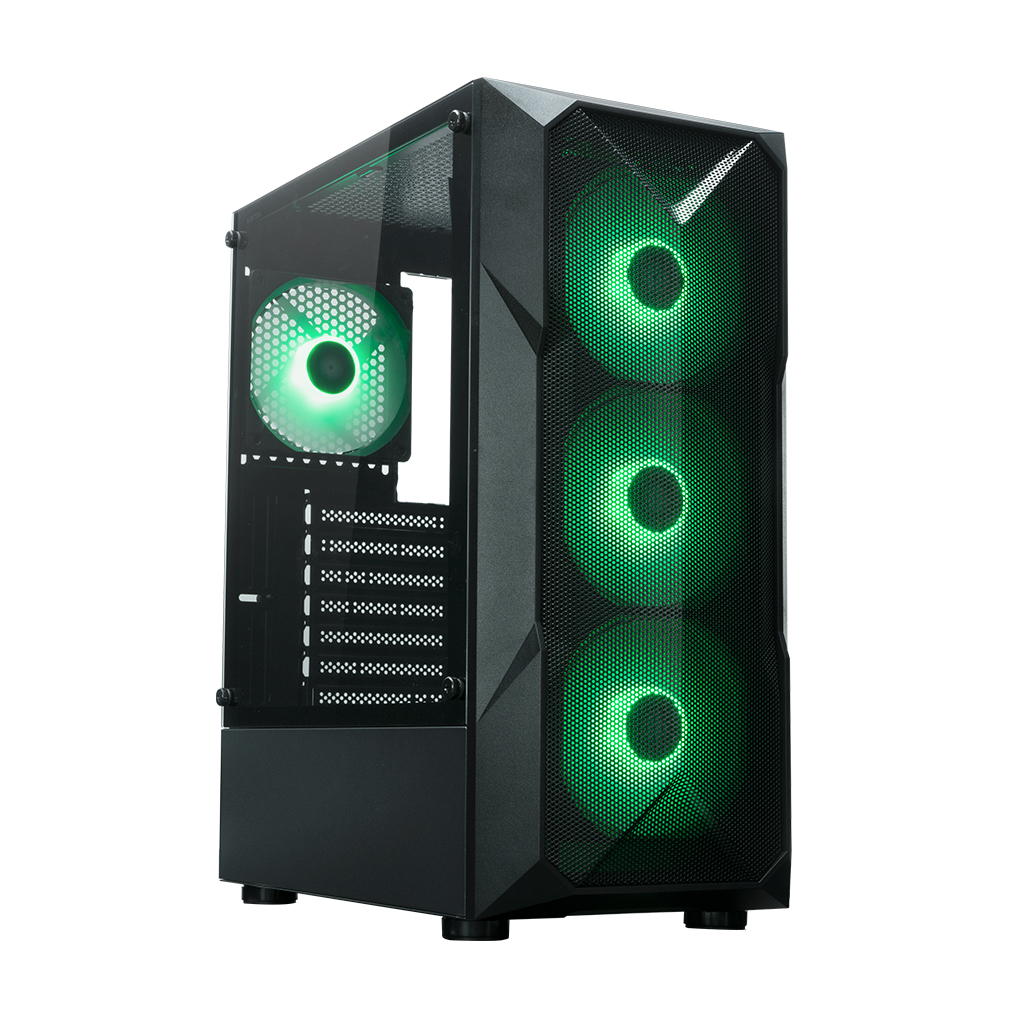

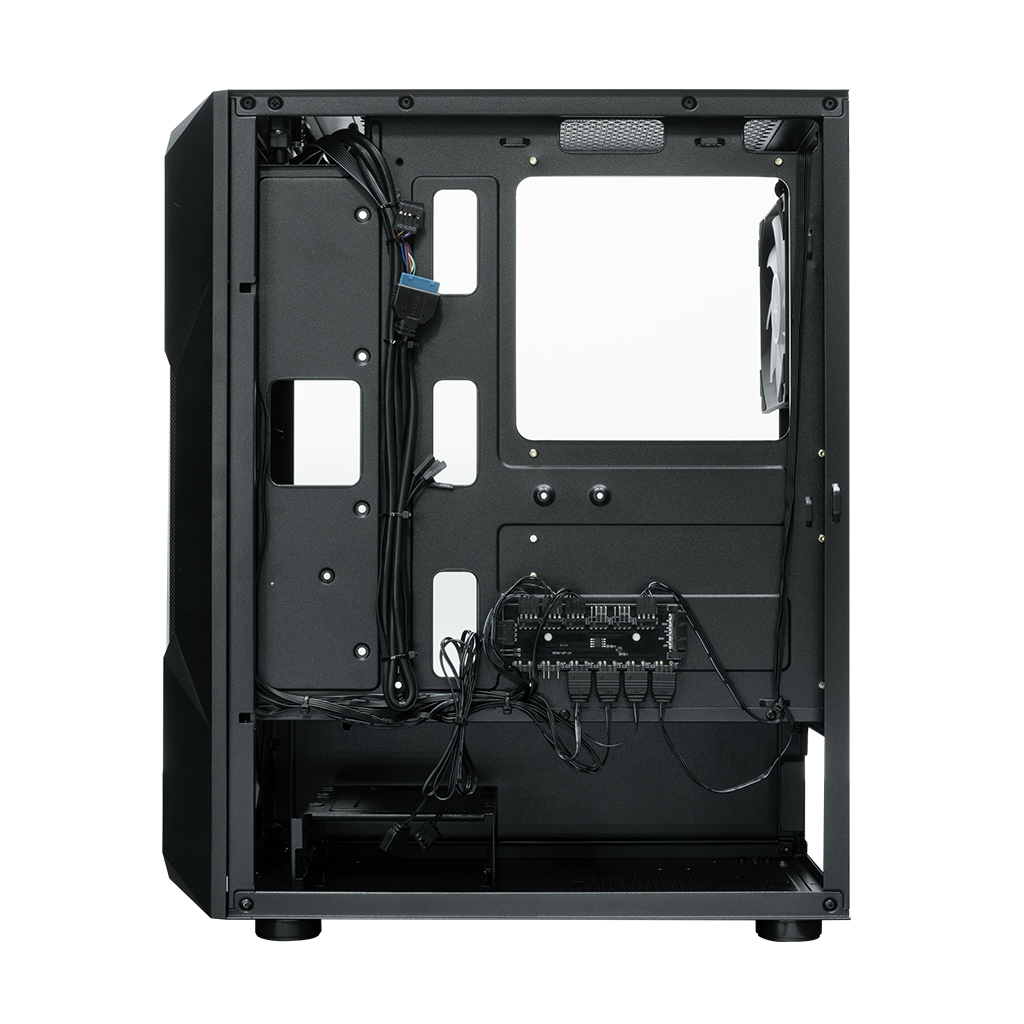

| A304 4ARGB-C6 | A304-4FC12A-C6 | 6977137651310 | Pre-installed with 4xFC120 ARGB+6 Ports fan HUB | |||
