A301 4FRGB
A301 4FRGB
• Mid-tower case

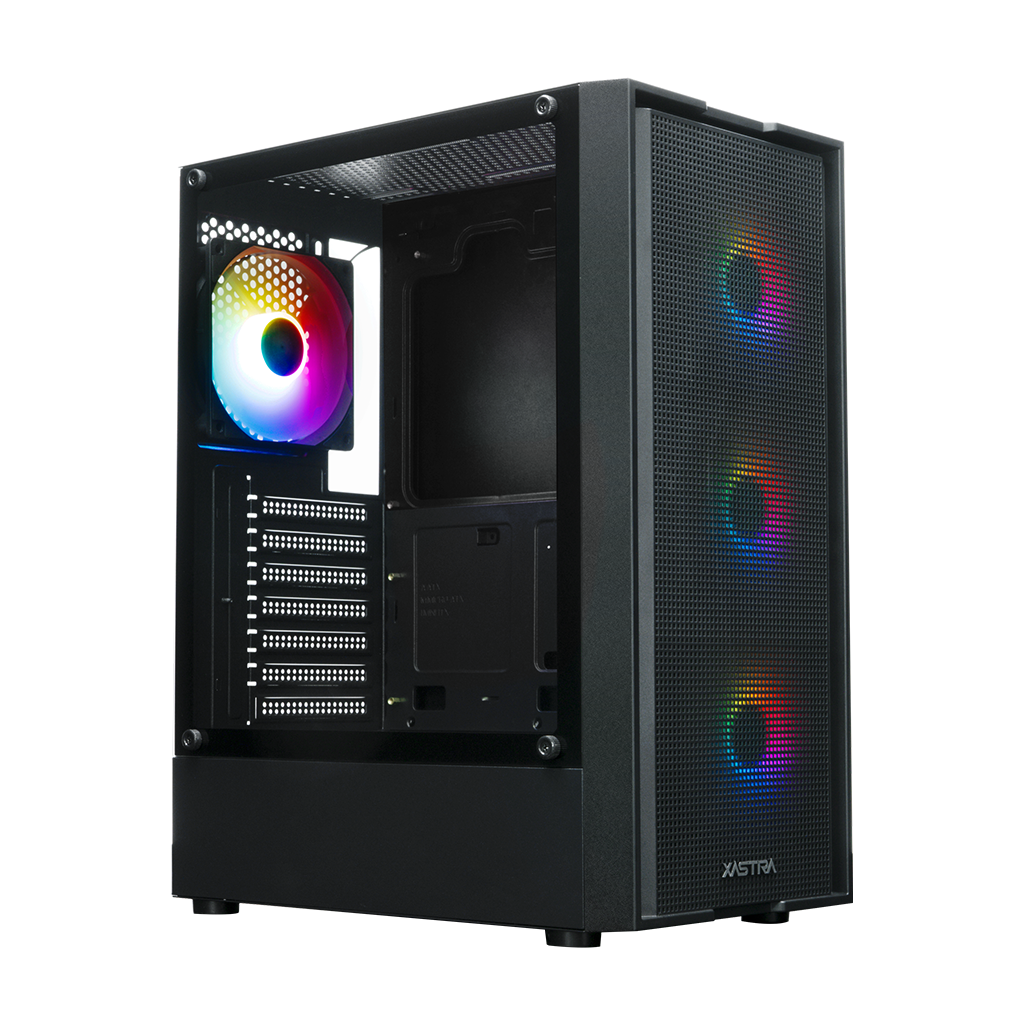

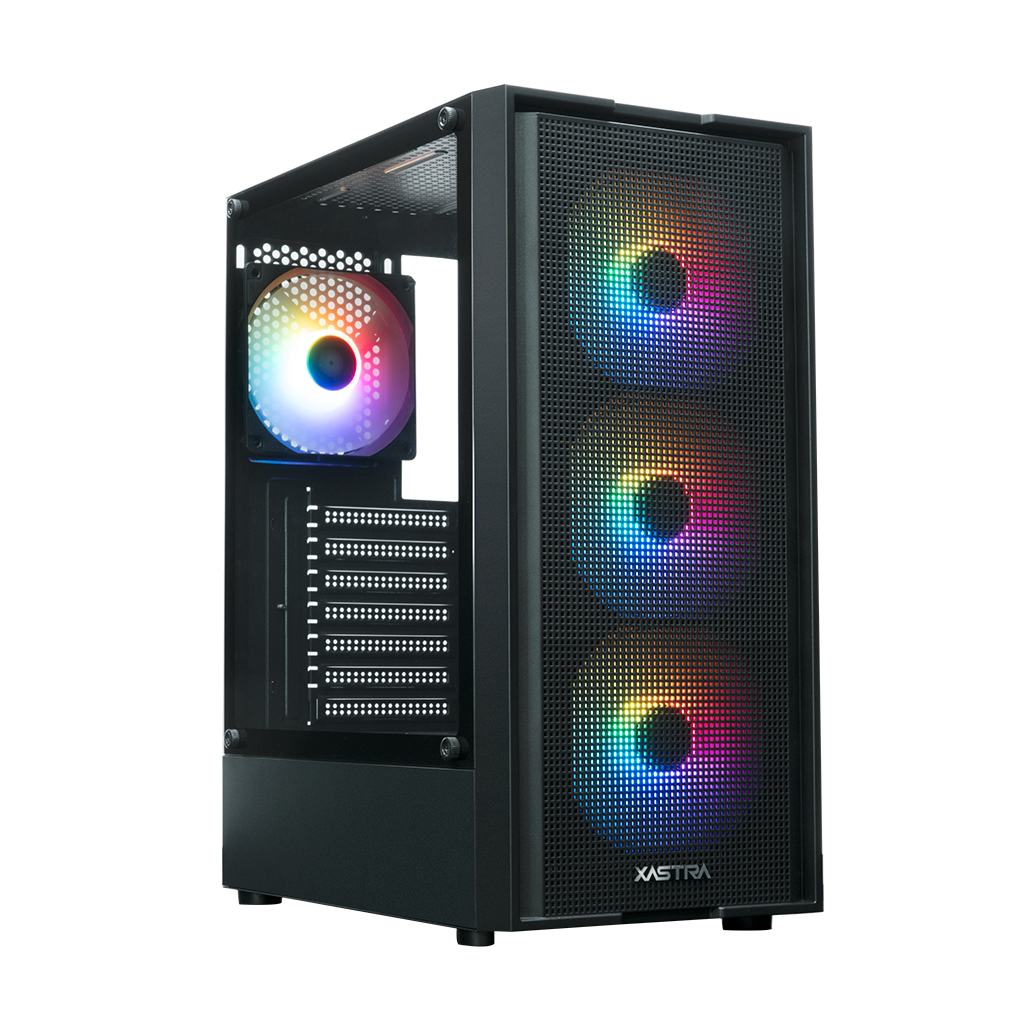

• Pre-installed fans:4xFC120 FRGB FAN
• Motherboard Support: ATX,M-ATX,ITX
• Support 240mm AIO liquid cooling in front
• Max.GPU Length:≤290mm
• Max.CPU Cooler Height:≤160mm
• Max.PSU Length:ATX-POWER(Max.L:140mm)
Overview
Gallery
Specifications
Product Specifications |
||||||
General |
||||||
| Model | A301 4FRGB | |||||
| Case type | Mid-Tower | |||||
| Product Dimensions | 340x200x440mm(LxWxH) | |||||
| Material(s) | Steel+ABS+Tempered Glass | |||||

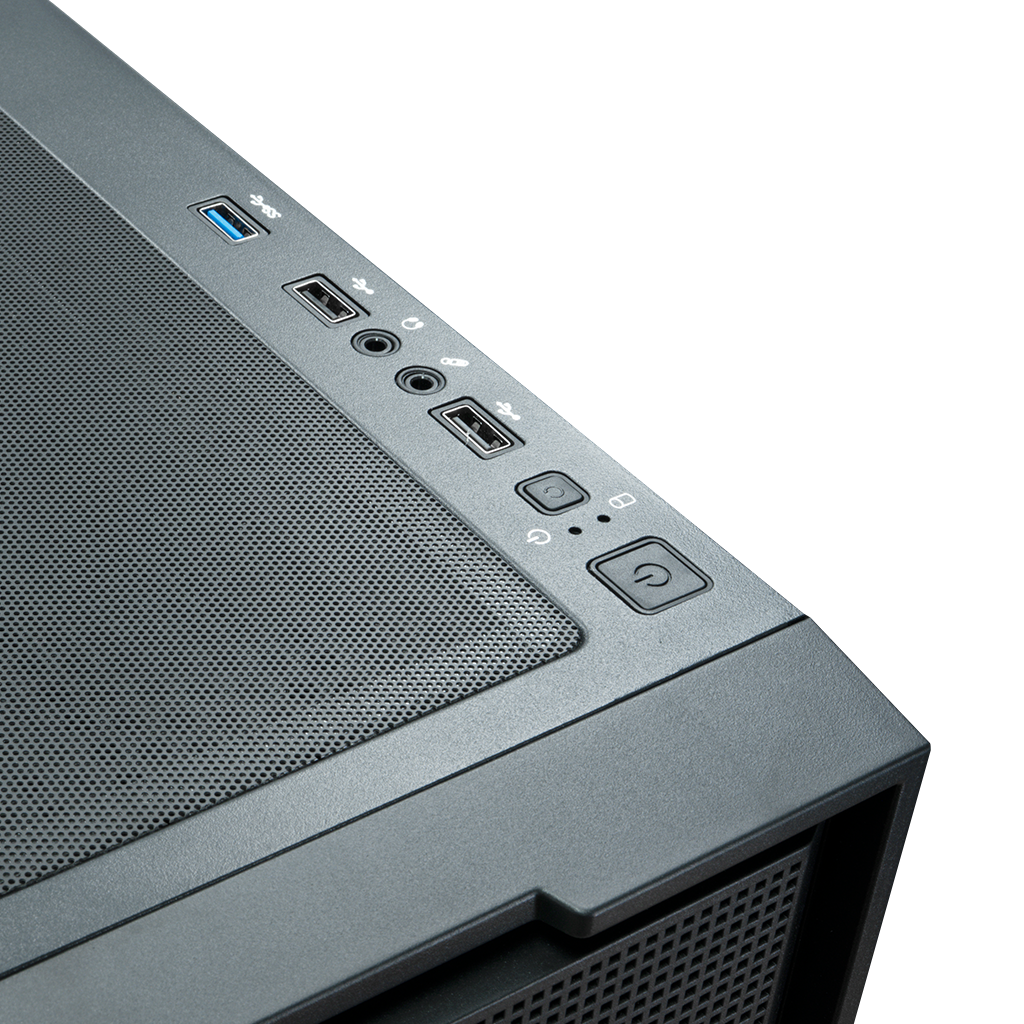

| I/O Port | USB3.0x1,USB2.0x2,HD Audio, Power, Reset | |||||
Compatibility&Clearance |
||||||
| Motherboard support | ATX,M-ATX,ITX | |||||
| Max.PSU Length | ATX-POWER(Max.L:140mm) | |||||
| Max.CPU Cooler Height | <160mm | |||||
| Max.GPU Length | <290mm | |||||
Expansion slots & Drive Bays |
||||||
| PCl Expansion slot | 7 | |||||
| Storage | 3.5″HDDx1+2.5″SSDx1,2.5″SSDx2 | |||||
Radiator support |
||||||
| Top | / | |||||
| Front | 240mm/120mm | |||||
| Rear | 120mm | |||||
Fan support |
||||||
| Front | 3x120mm | |||||
| Rear | 1x120mm | |||||
| Top | 2x120mm | |||||
| Bottom | 2x120mm | |||||
| M/B Side | / | |||||
| Maximum Number of Fans | 8 | |||||
|
|
||||||
Model |
P/N |
EAN(13) |
More information |
|||
| A301 4FRGB | A301-BK-FC120FRGB-4F-GL | 6977137650474 | Pre-installed with 4xFC120 FRGB FAN | |||
