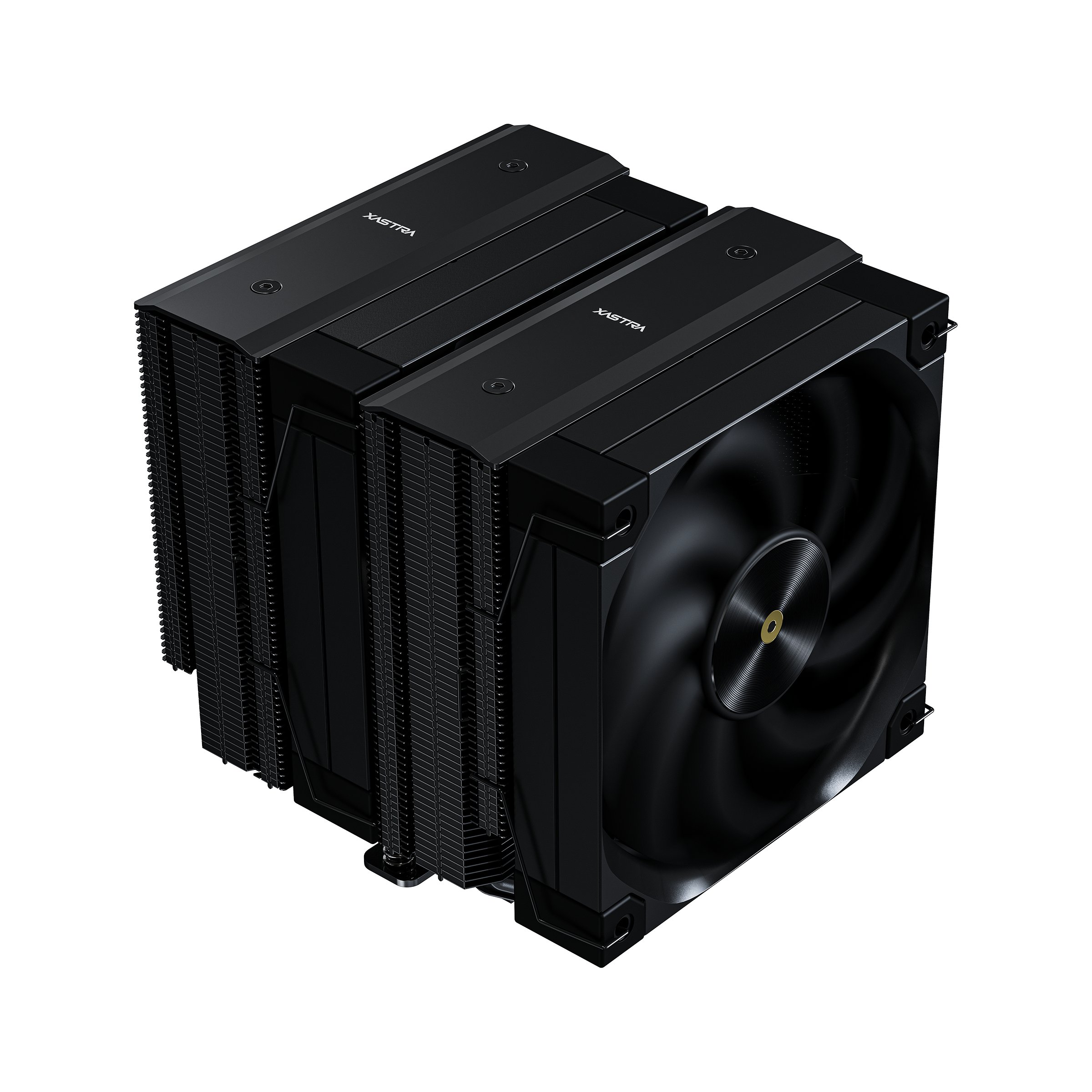

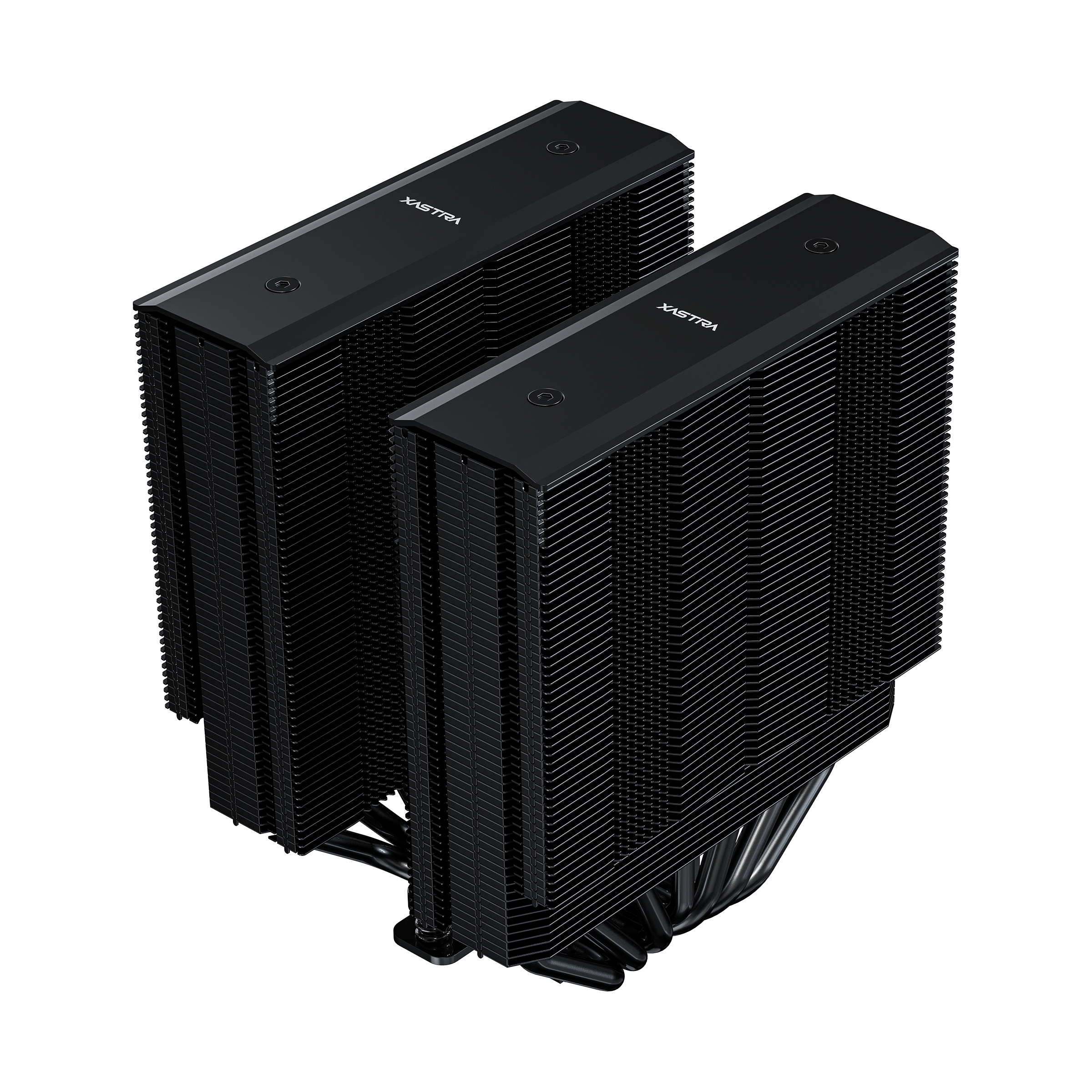

AX620 PRO BK

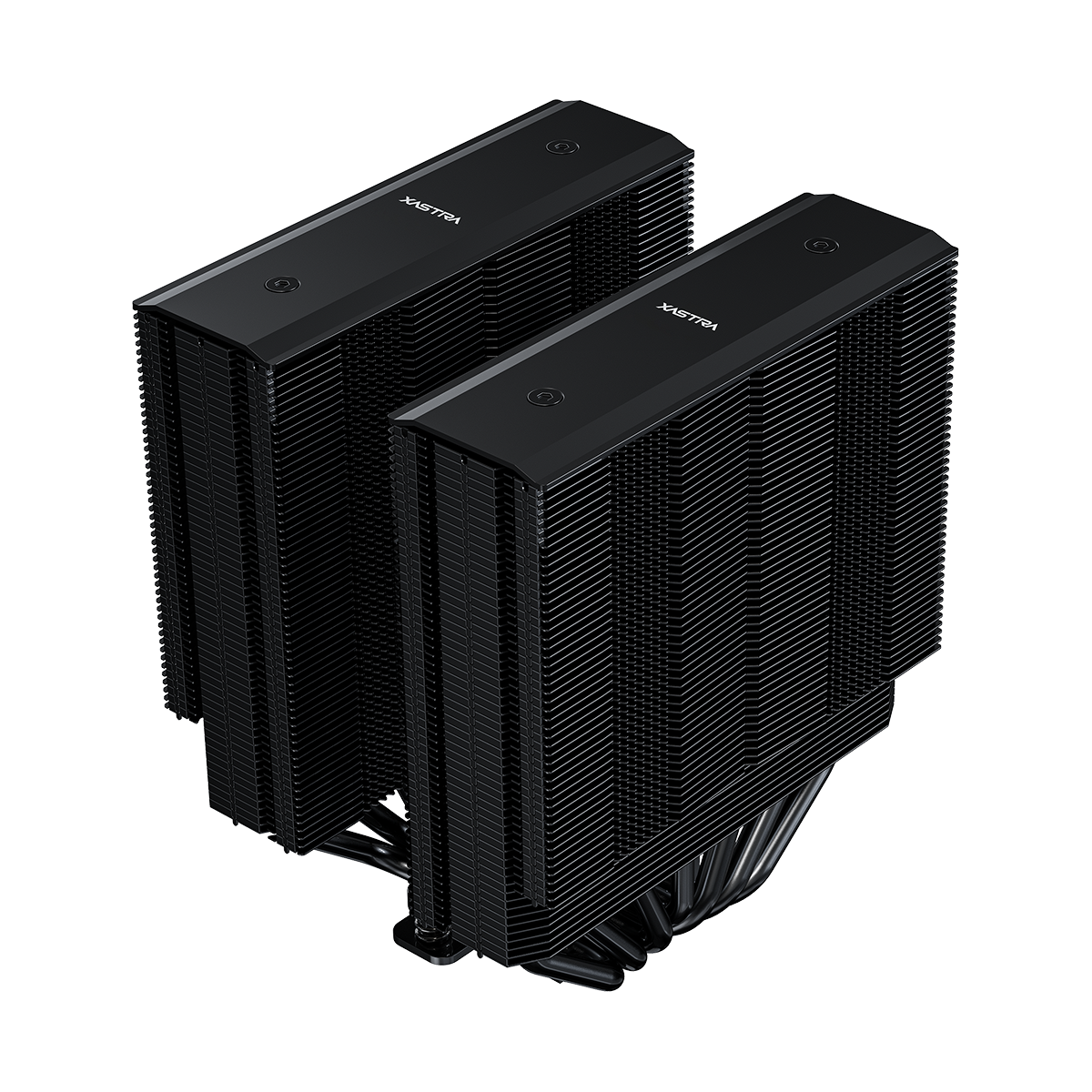

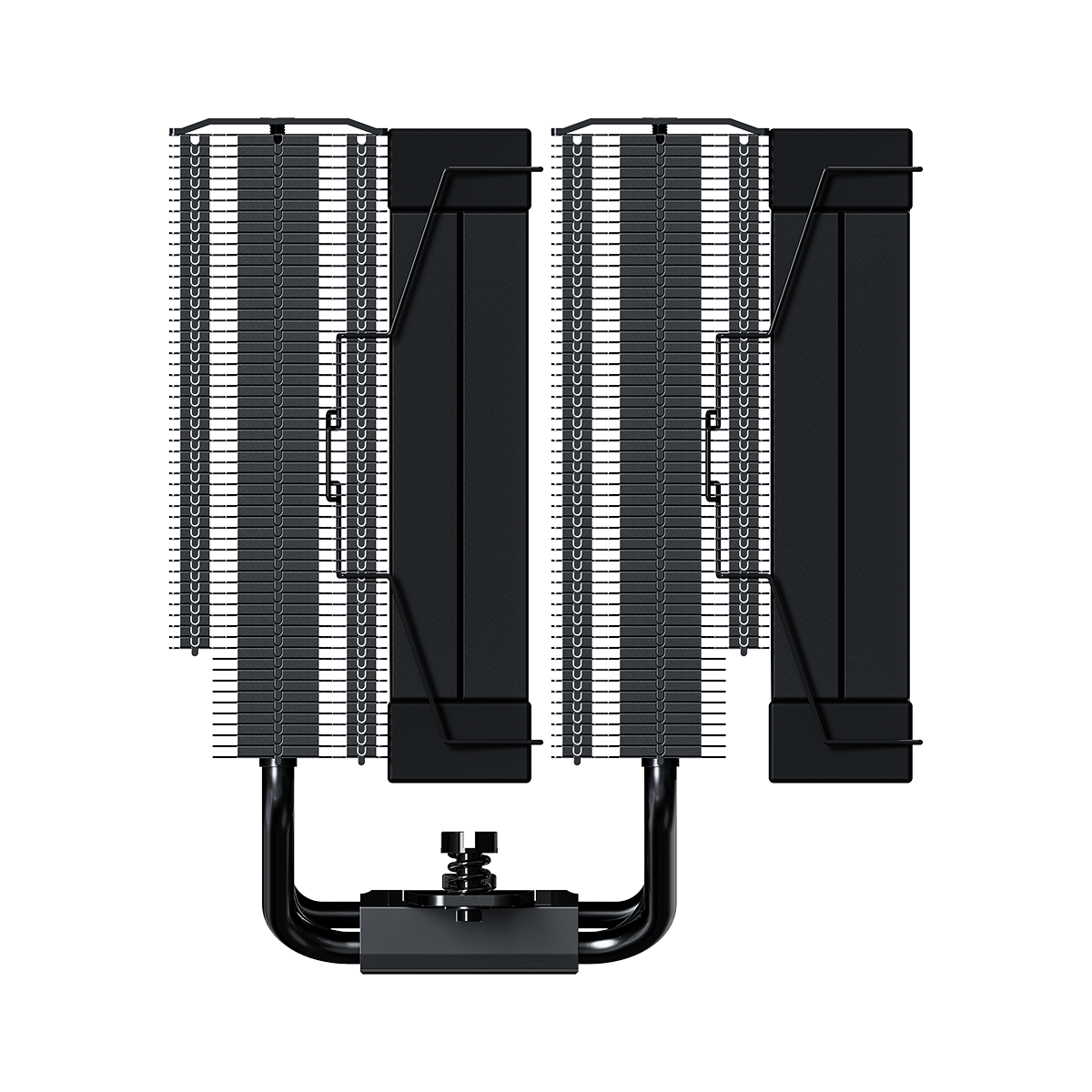

· Feature reflow soldered fins, edge-folded fin process and integrated tower reinforcement bracket for enhanced structural strength and airflow stability
· Equipped with anti-gravity pipes to ensure installation in any orientation with stable cooling

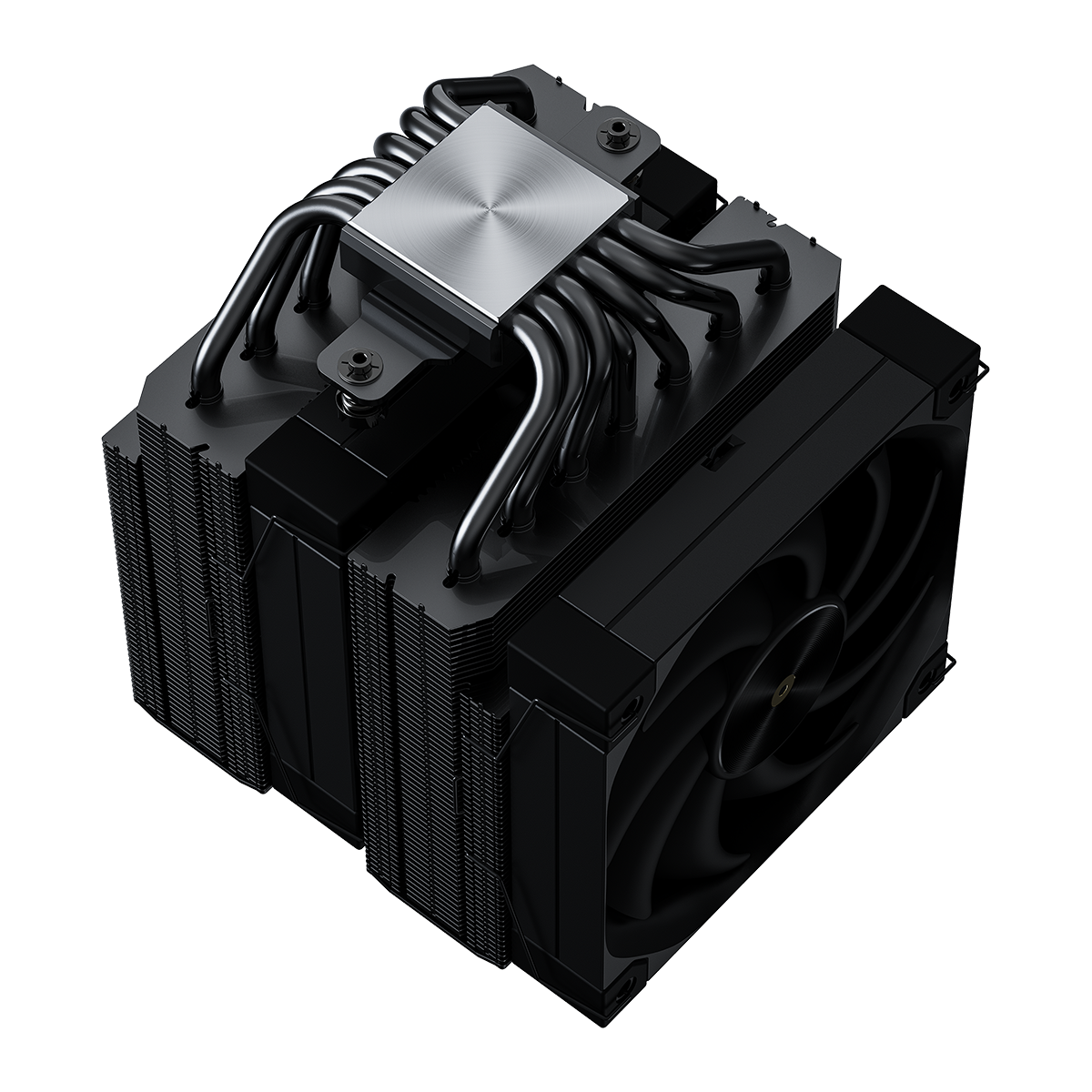

· Tower base crafted with reflow soldering process, nickel-plated surface treatment and micro-convex design to increase heat transfer from CPU core to heatsink

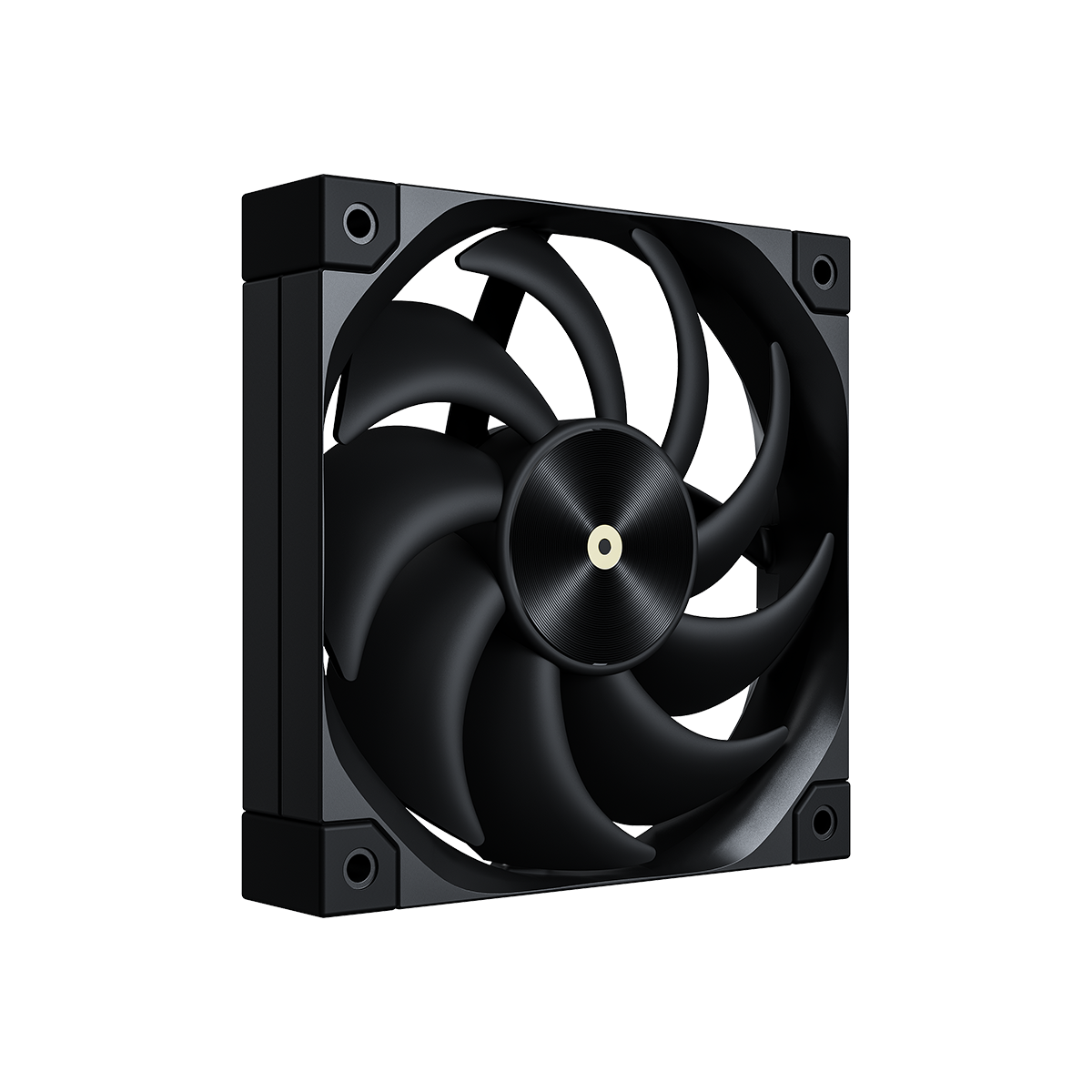

· Come with the industrial-grade Dual Ball Bearing fans for consistent and stable cooling even during prolonged high-RPM operation
· Utilize partial cutouts on the bottom of heatsink for ample clearance of RAM.
Overview


Gallery



Specifications
| Model | AX620 Pro BK |
| Socket compatibility(Intel) | Intel LGA1851/1700/1200/115X |
| Socket compatibility(AMD) | AMD AM5/AM4 |
| Product dimensions | 125x135x157mm(LxWxH) |
| Heatsink dimensions | 125x110x157mm(LxWxH) |
| Heatpipes | Φ6mmx6 |
| Bearing Type | Dual Ball bearing |
| Number of fans | 2 |

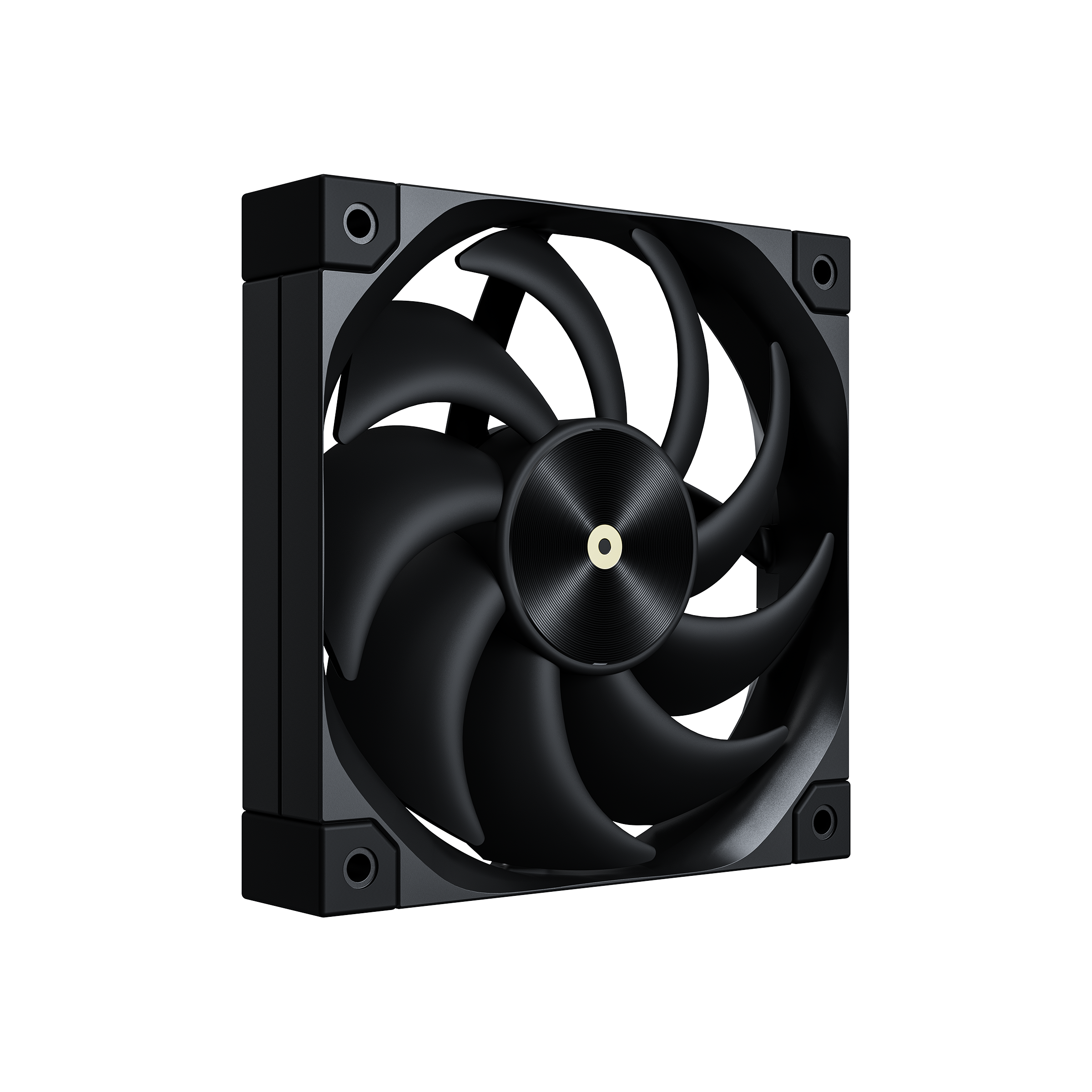

| Fan Dimensions | 120x120x25mm(LxWxH) |
| Fan Speed | 600~2000RPM±10% |
| Fan Airflow77.68 | 77.68CFM |
| Fan Air Pressure | 2.68mmH2O |
| Fan Noise | ≤ 30.8dB(A) |
| Fan Connector | 4-pin PWM |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.20A±10% |
| Fan Power Consumption | 2.4W |
