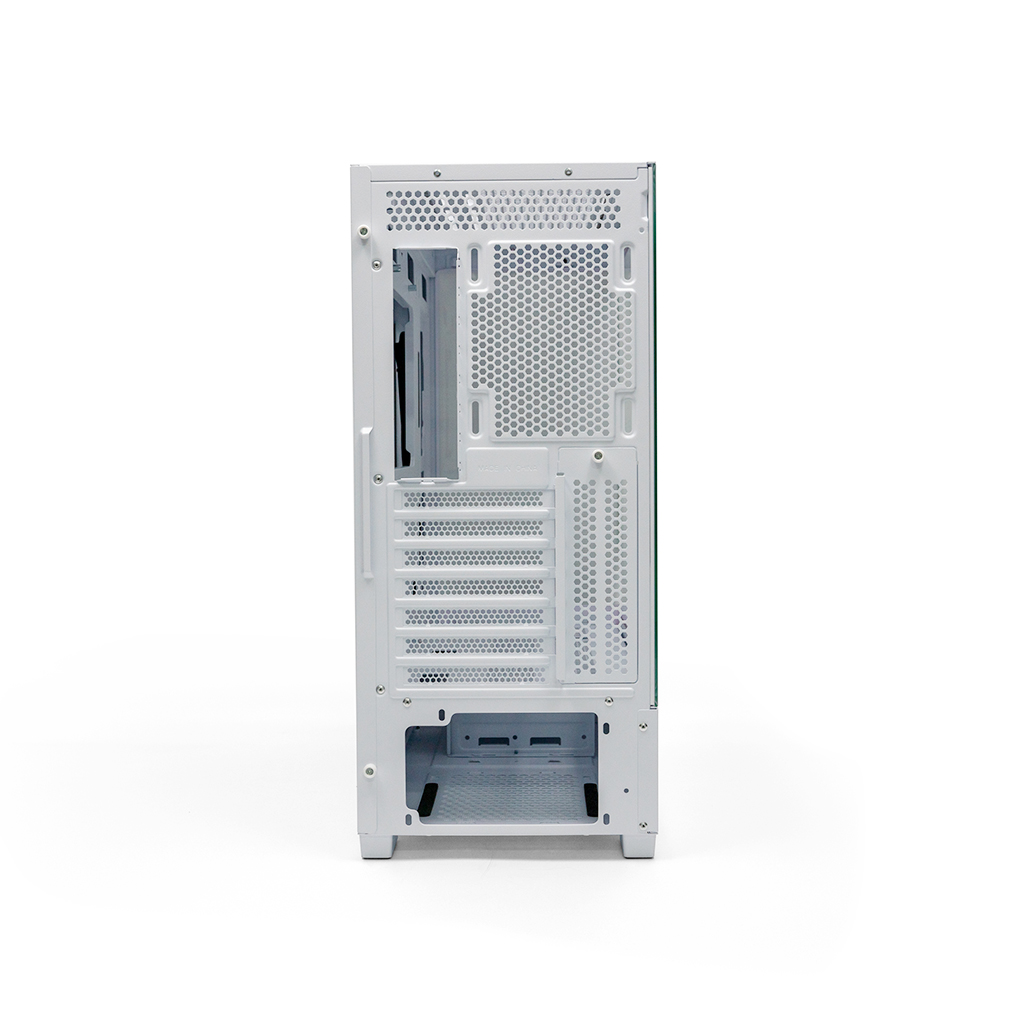

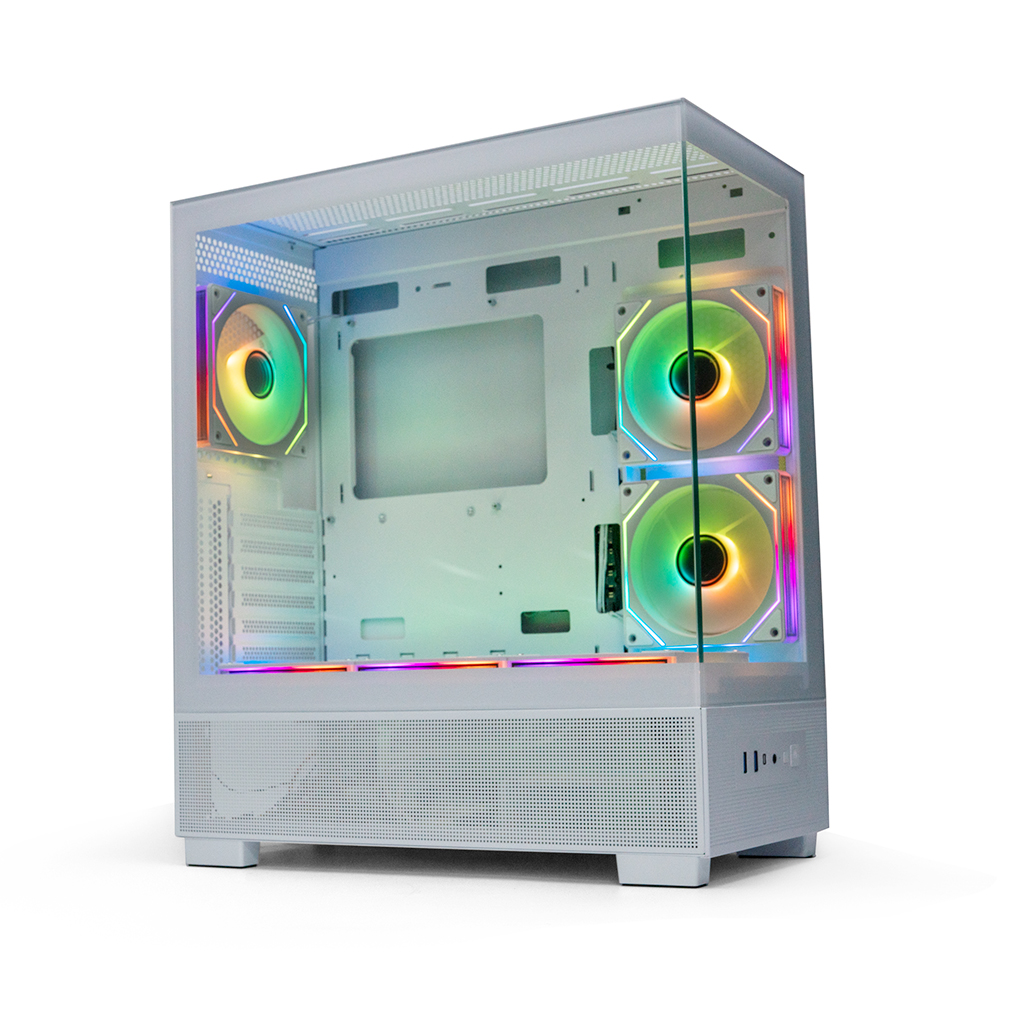

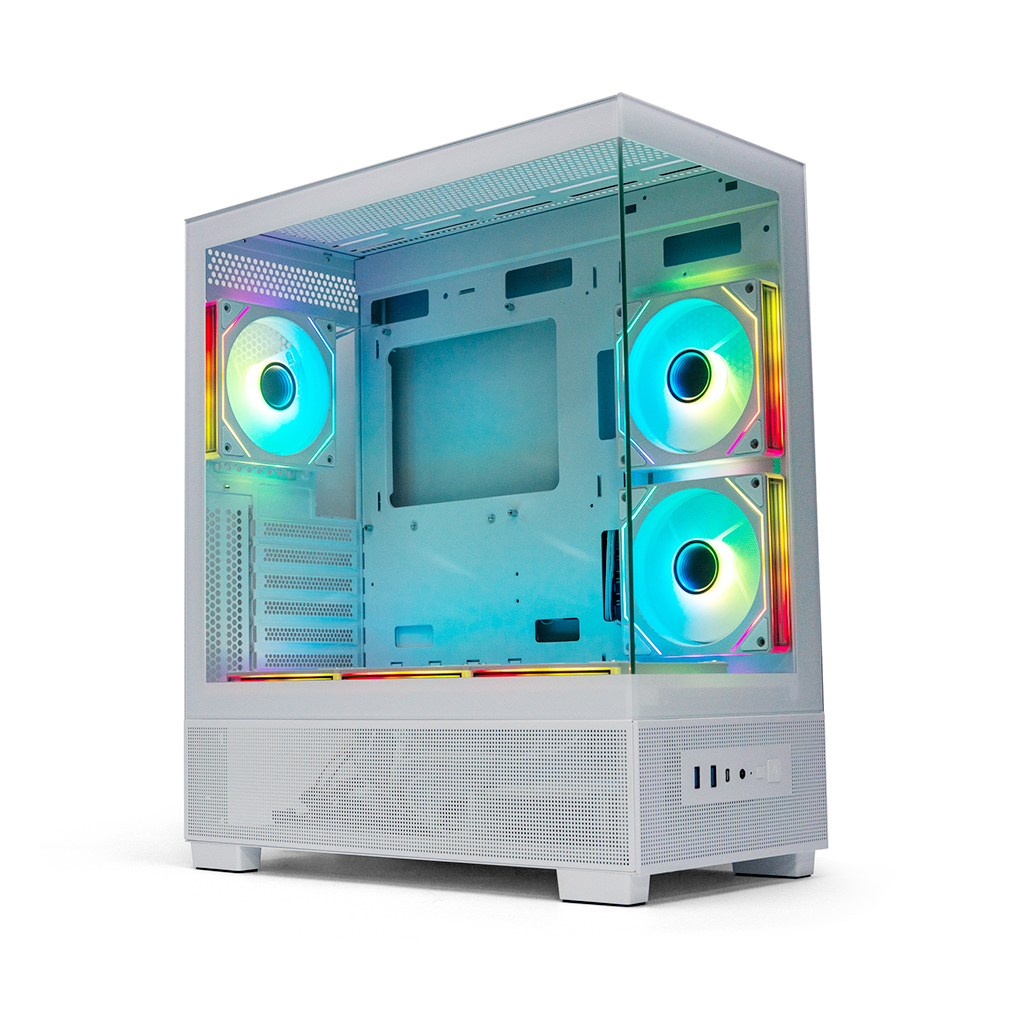

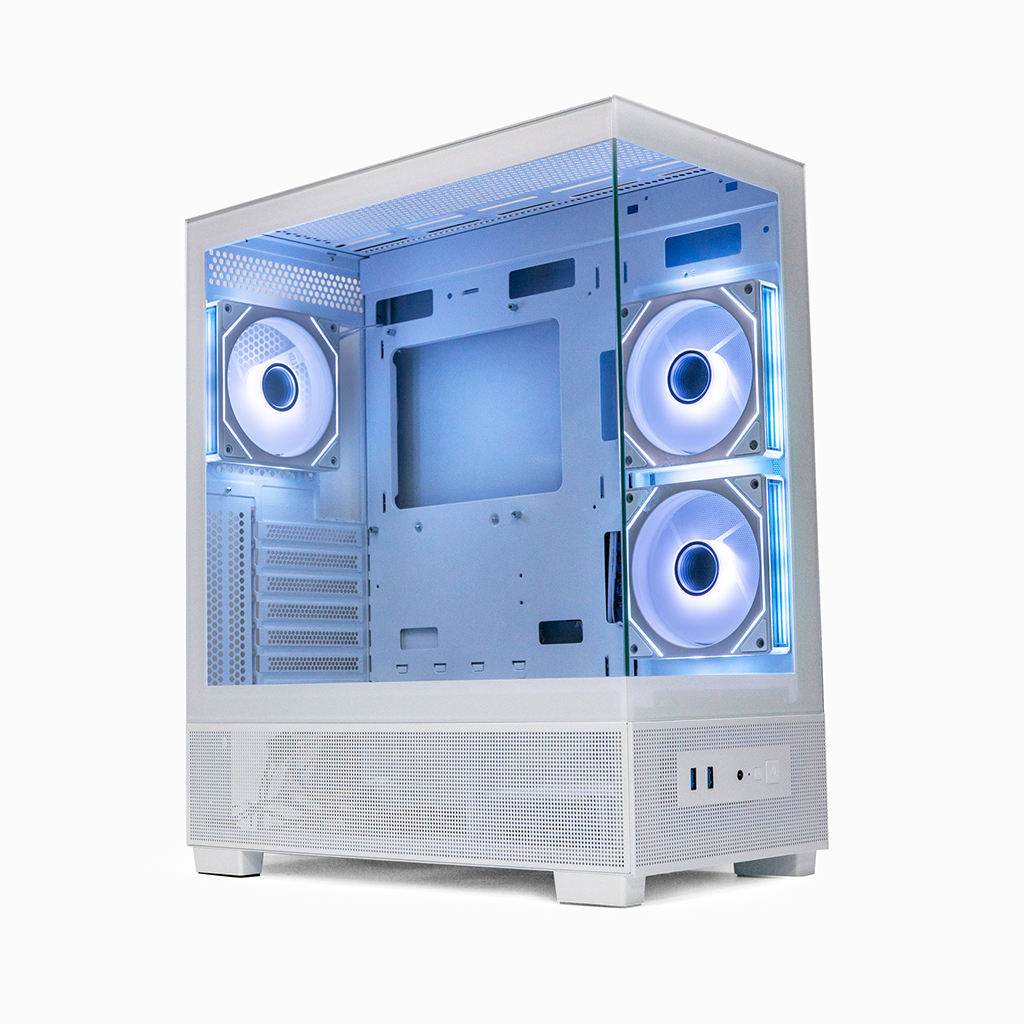

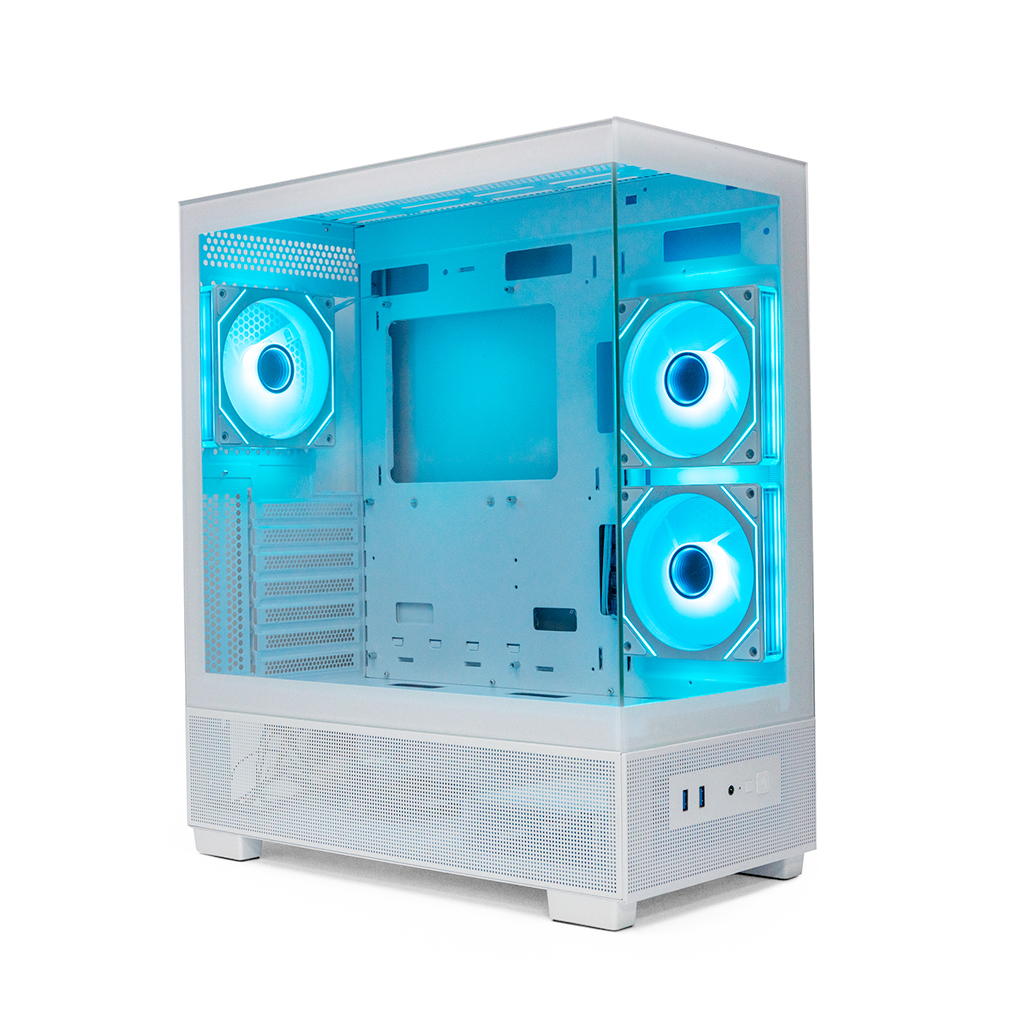

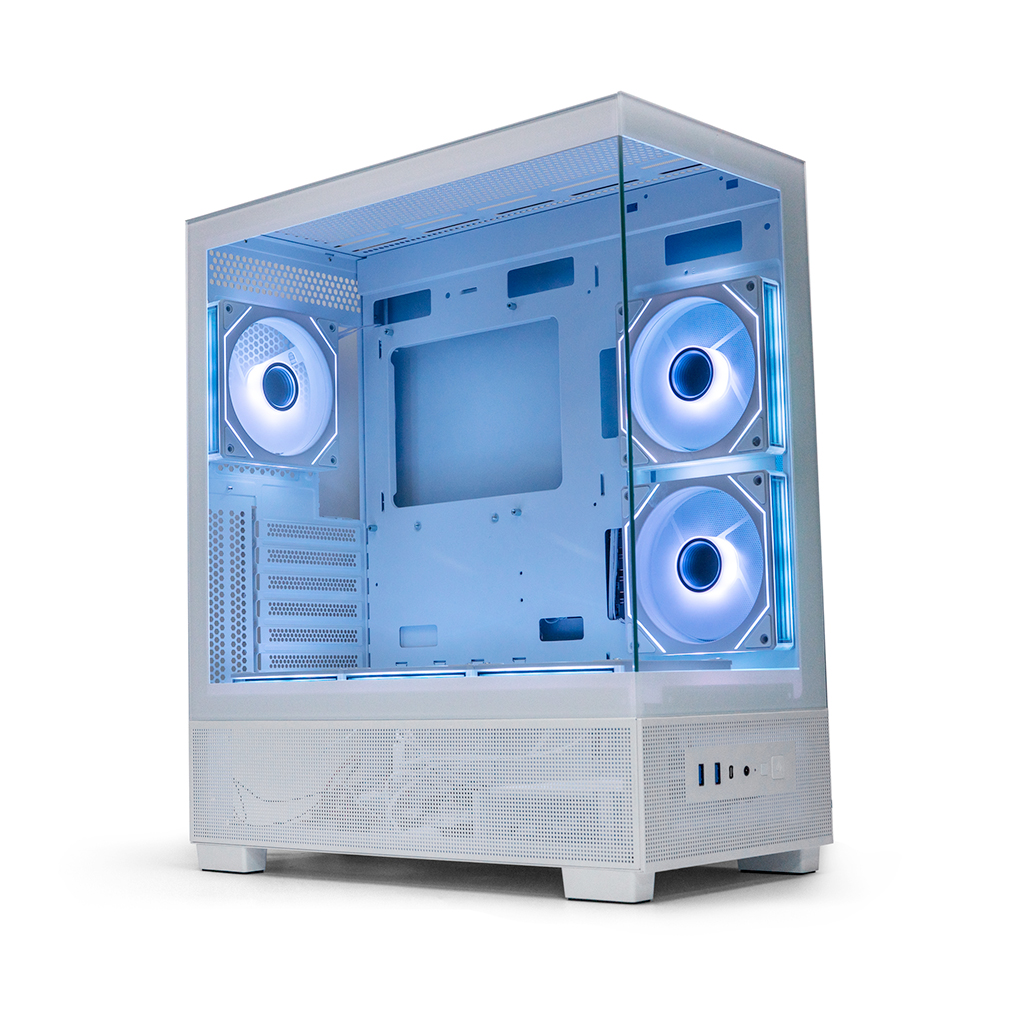

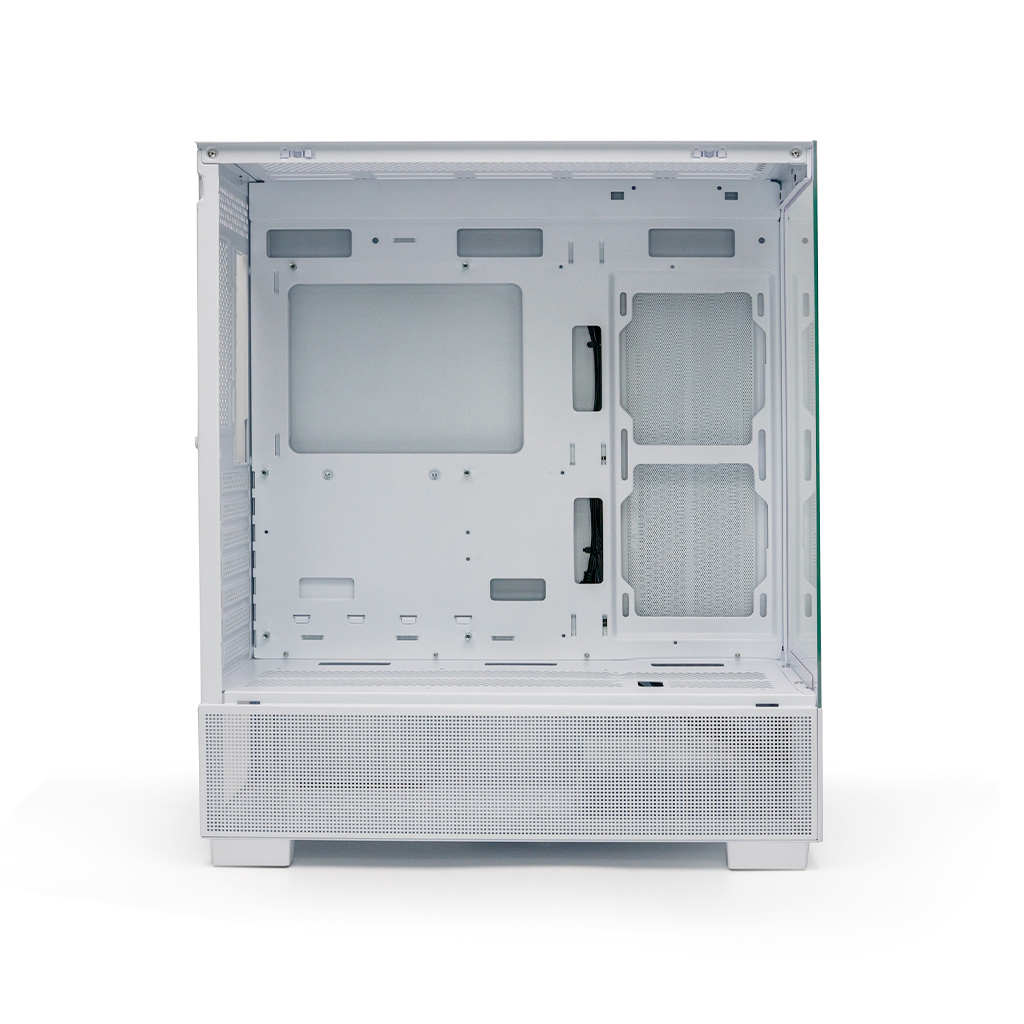

Q500 WH
- Support Max.9pcs fans
- Support 360mm radiator design(Top)
- Support VGA Cards Vertical insertion.
- Motherboard Support:E-ATX/ATX/M-ATX/ITX
- Max.GPU Length:≤400mm
- Max.CPU Cooler Height:≤165mm
- Max.PSU Length:ATX-POWER(Max.L:170mm)
Фото
Характеристики
Product Specifications |
||||
General |
||||
| Model | Q500 WH | |||
| Case type | Mid-Tower | |||
| Product Dimensions | 413x210x485mm(LxWxH) | |||
| Material(s) | Steel+ABS+Tempered Glass | |||

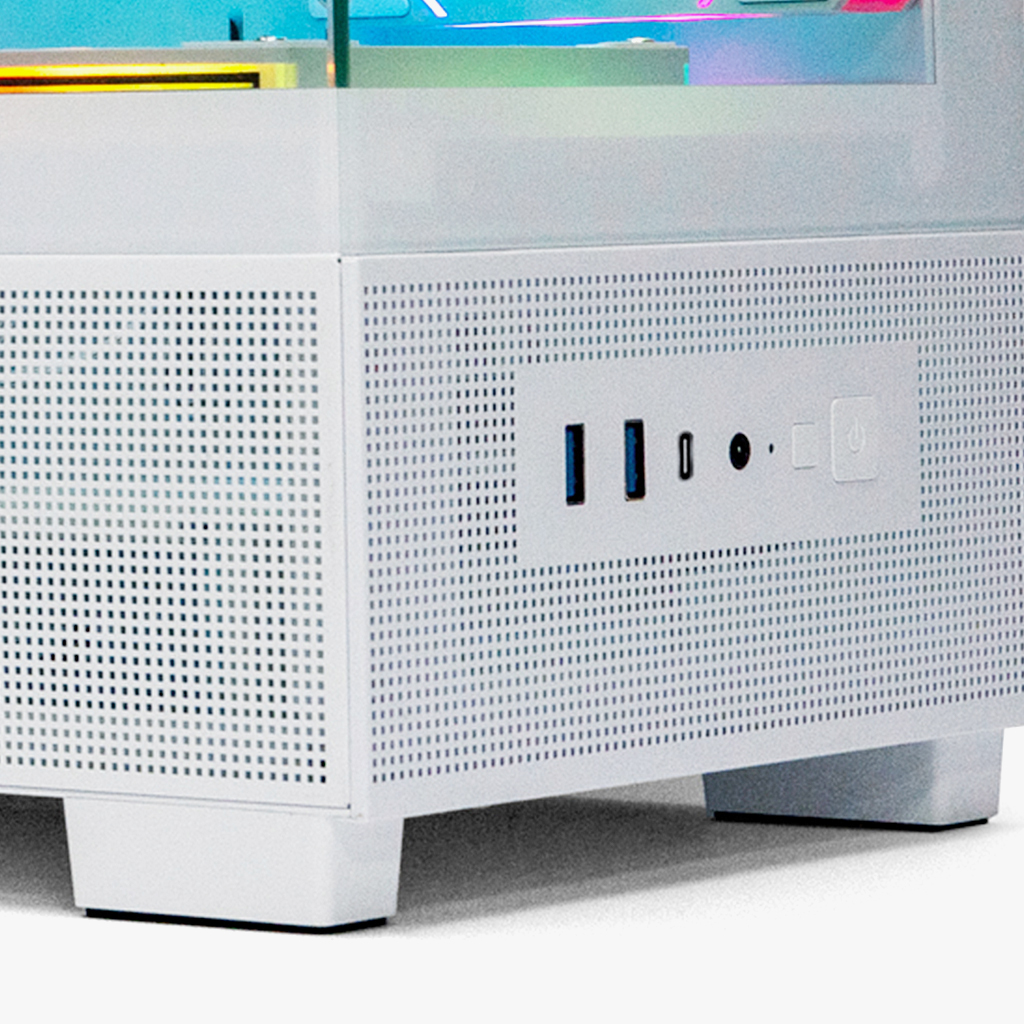

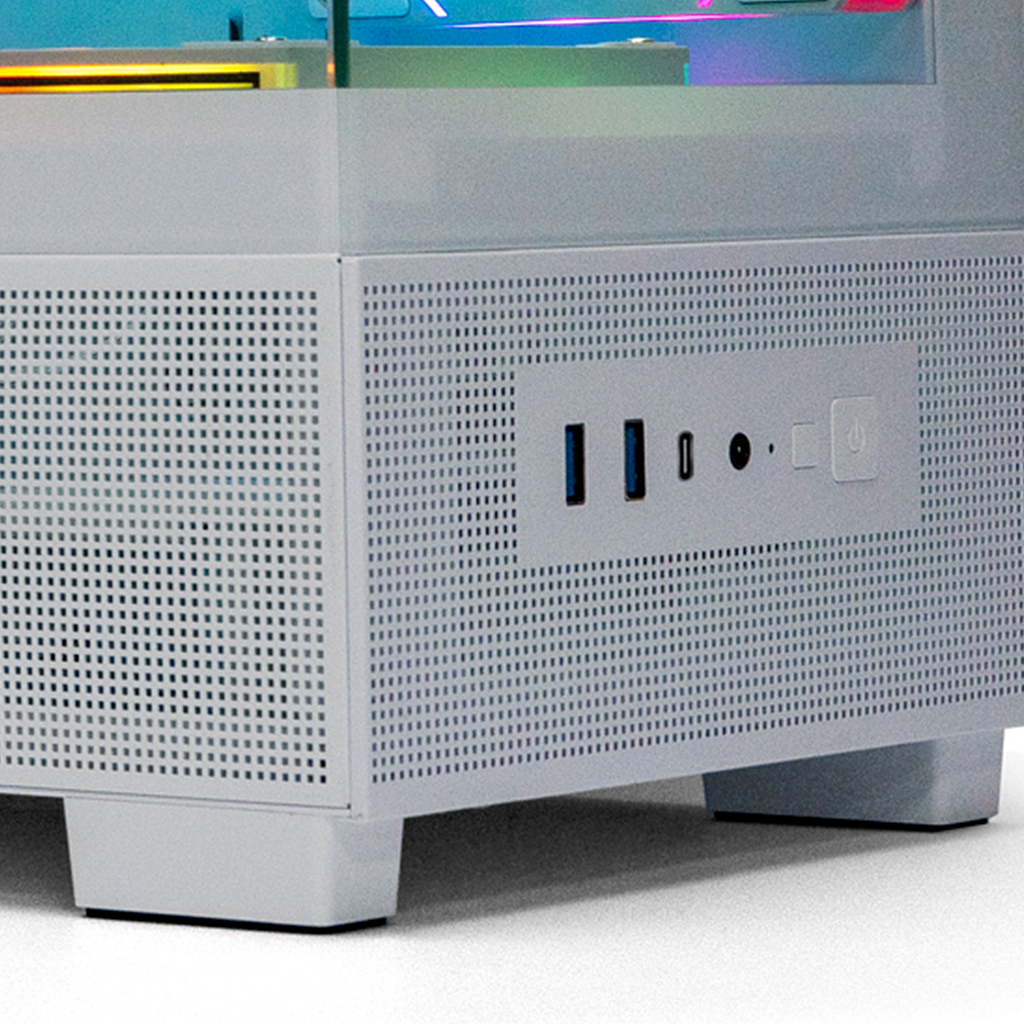

| I/O Port | USB3.0x2,HD Audio, Power, Reset | |||
Compatibility&Clearance |
||||
| Motherboard support | E-ATX, ATX, M-ATX,ITX | |||
| Max.PSU Length | ATX-POWER(Max.L:160mm) | |||
| Max.CPU Cooler Height | <165mm | |||
| Max.GPU Length | <400mm | |||
Expansion slots & Drive Bays |
||||
| PCl Expansion slot | 7 | |||

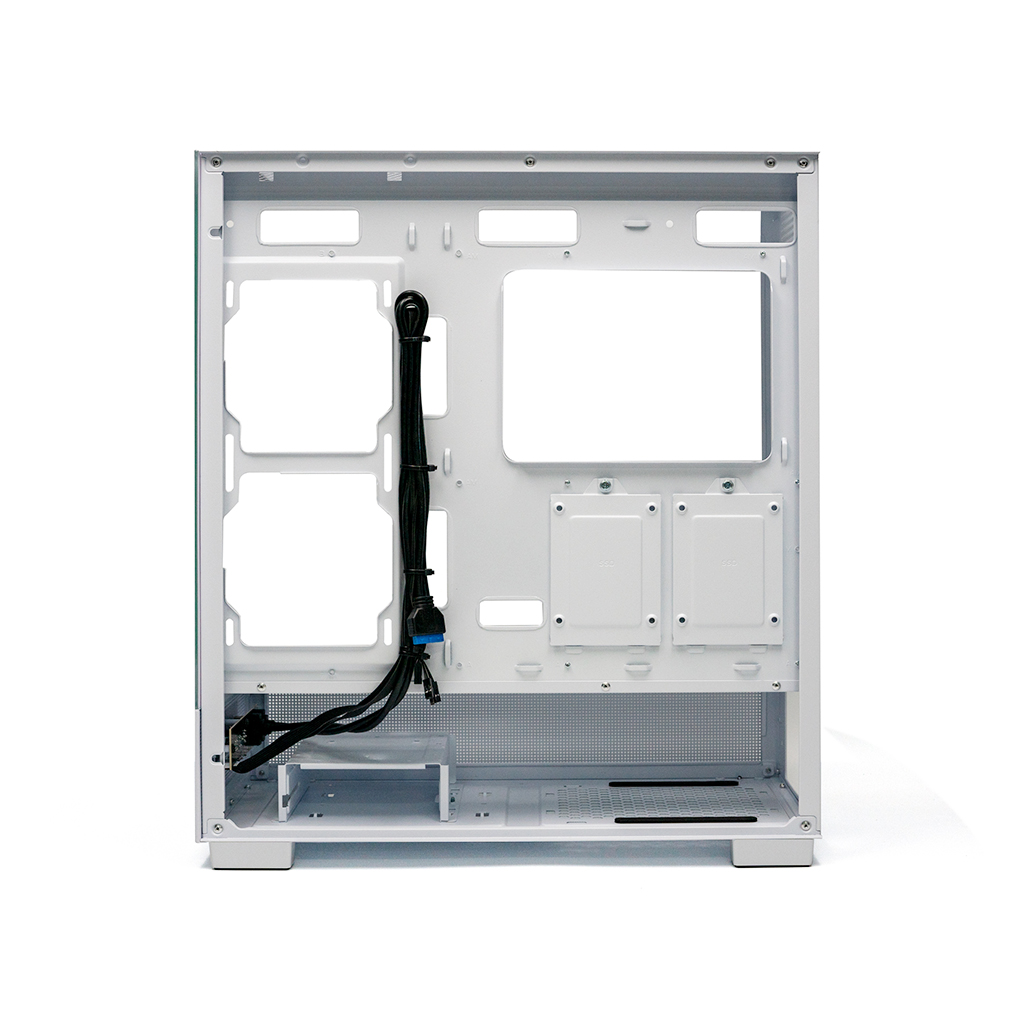

| Storage | 3.5″HDDx1+2.5″SSDx3/3.5’HDDx2+SSDx2 | |||
Radiator support |
||||
| Top | 360mm/280mm/240mm/120mm | |||
| Front | / | |||
| Rear | 120mm | |||
Fan support |
||||
| Front | / | |||
| Rear | 1x120mm | |||
| Top | 3x120mm/2x140mm | |||

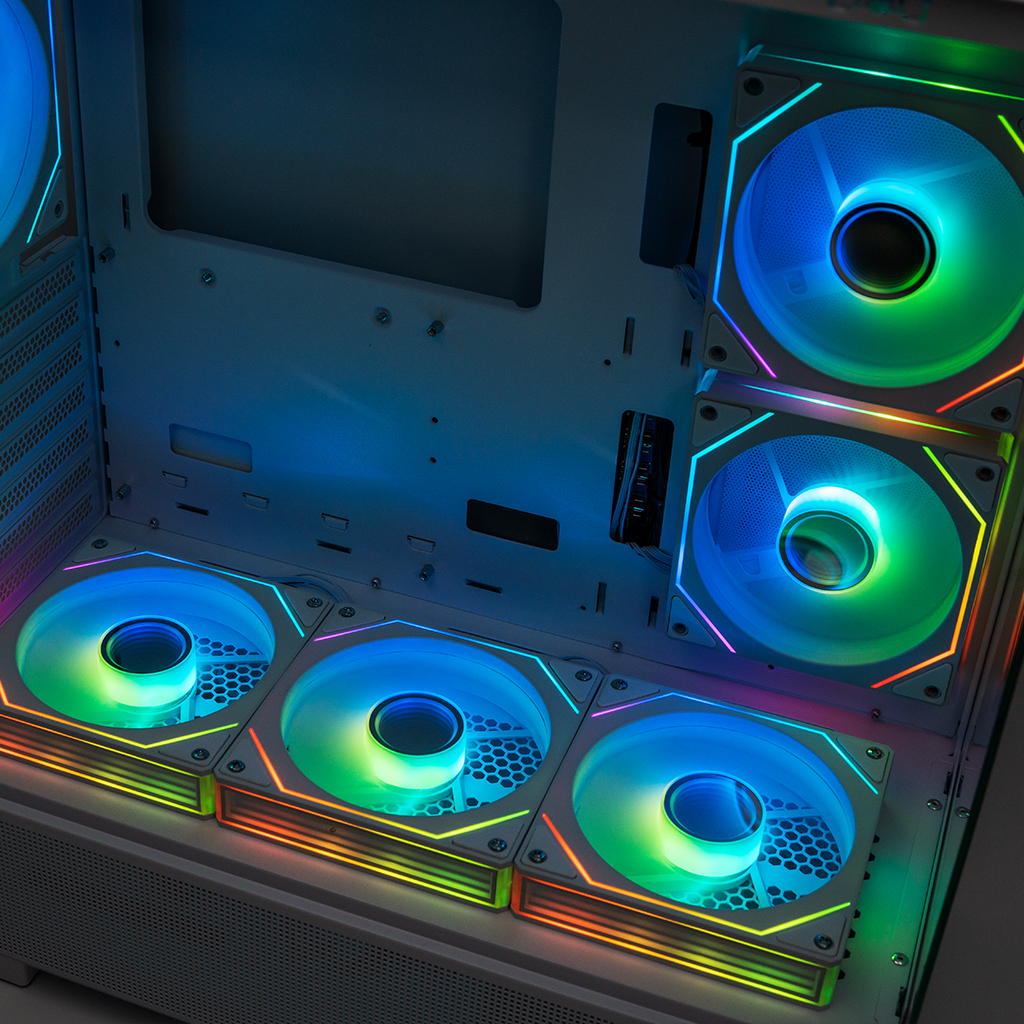

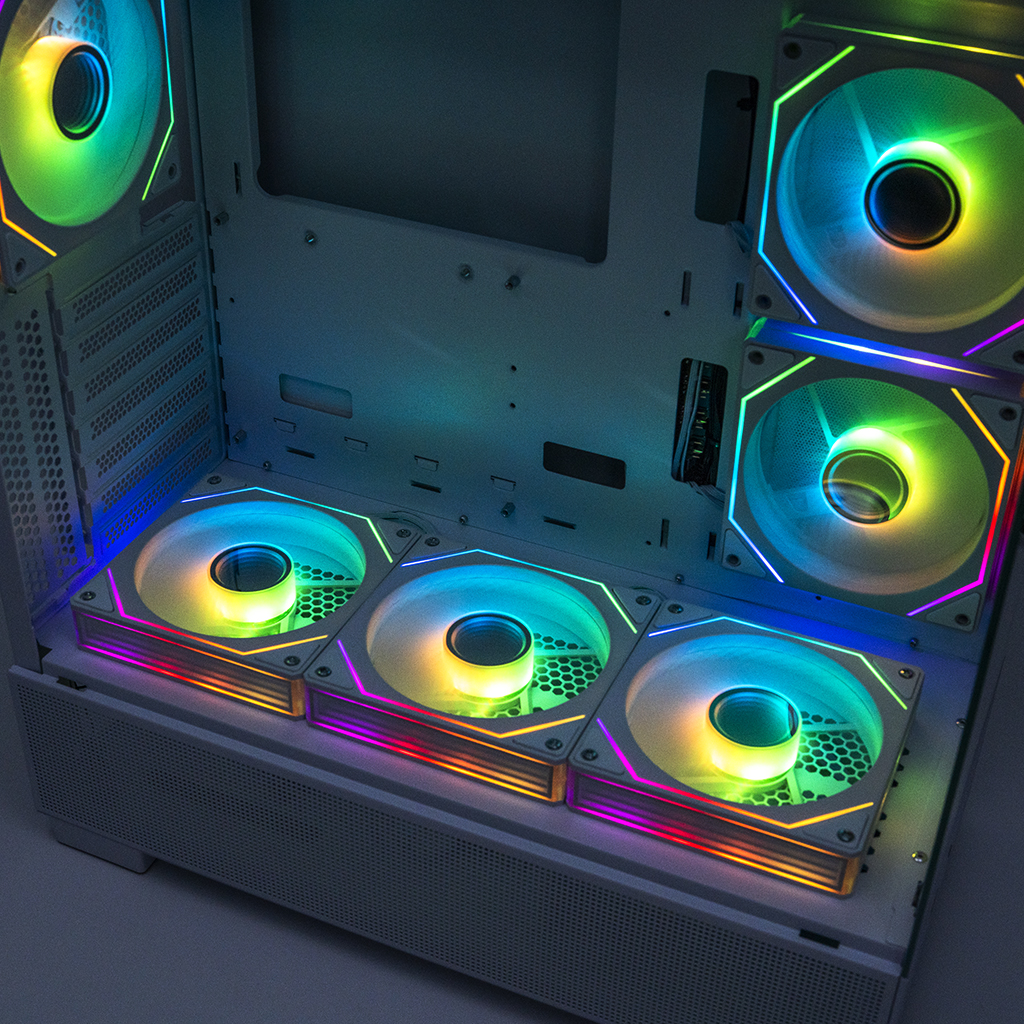

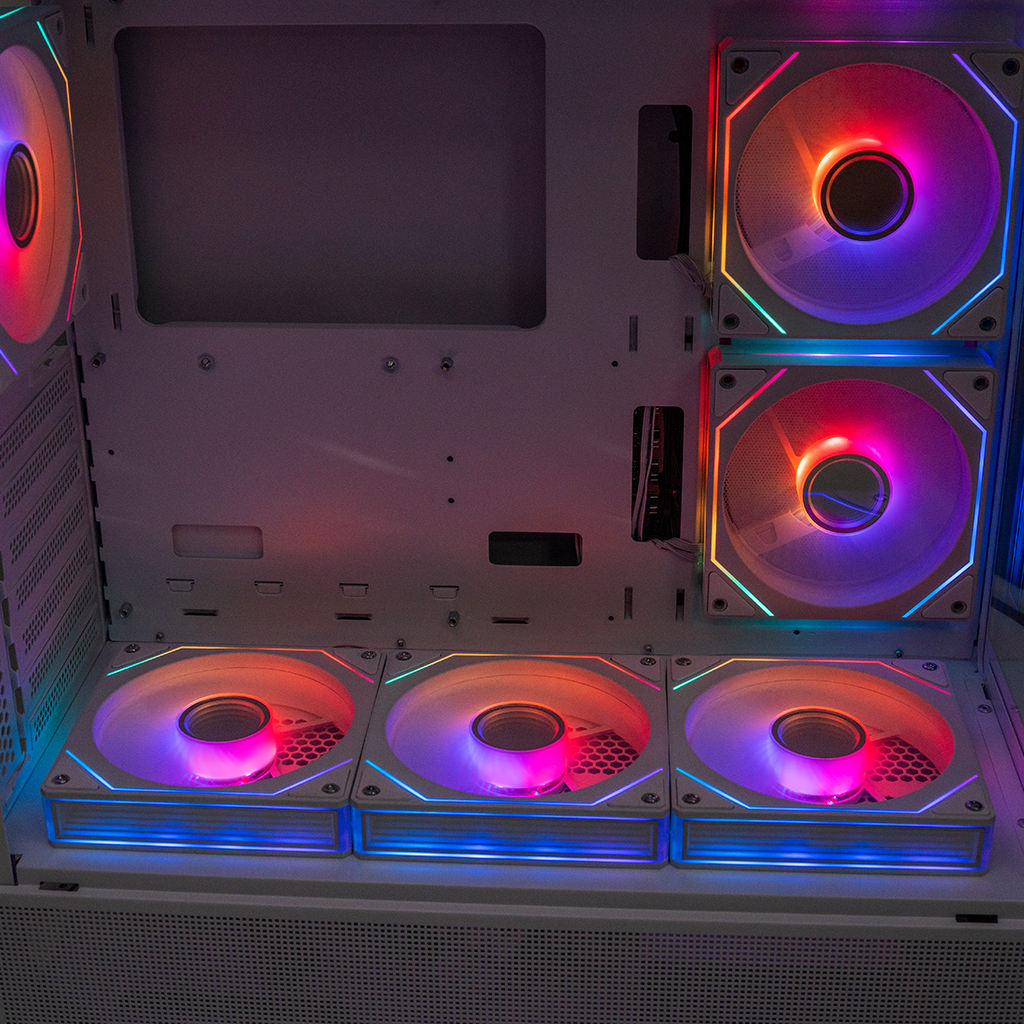

| Bottom | 3x120mm | |||
| M/B Side | 2x120mm | |||
| Maximum Number of Fans | 9 | |||
|
|
||||
Model |
P/N |
EAN(13) |
More information |
|

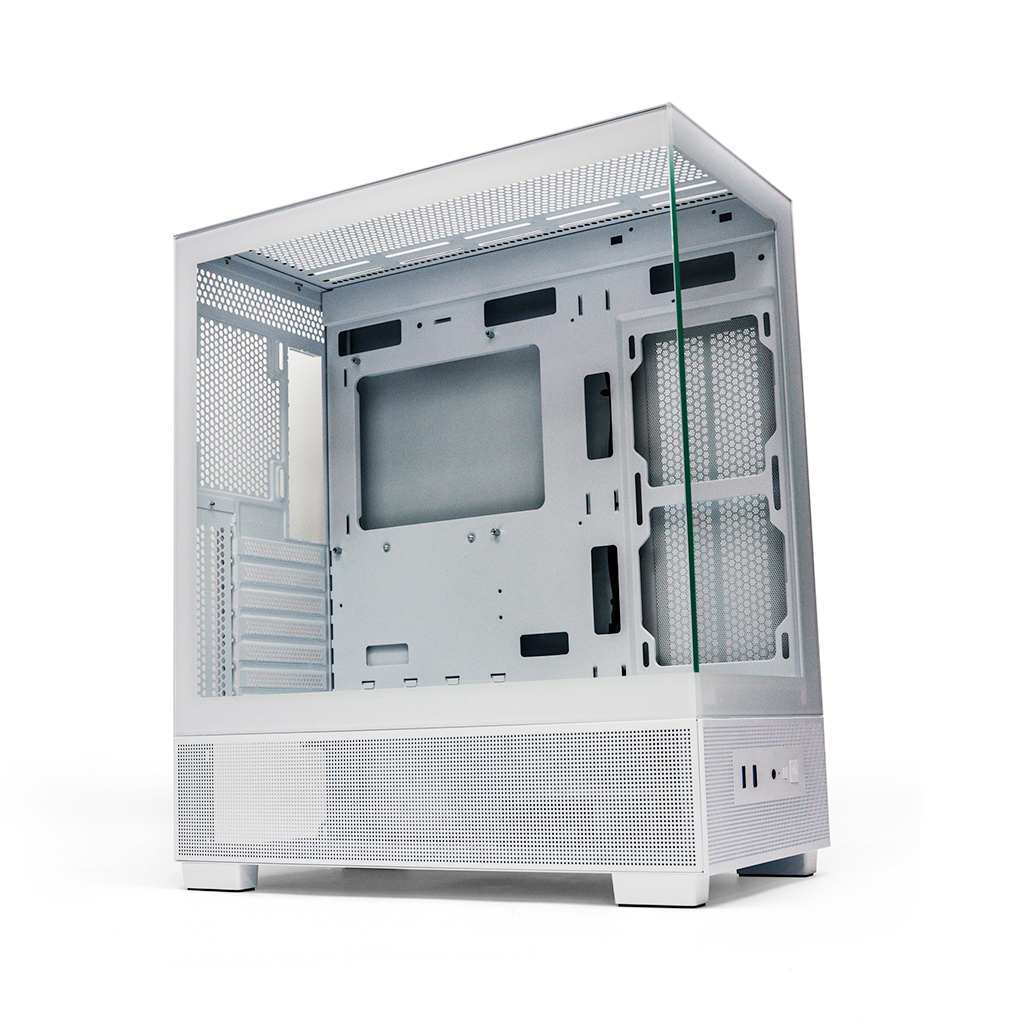

| Q500 0F WH | Q500-0F-WH | 6977137651112 | Case only | |

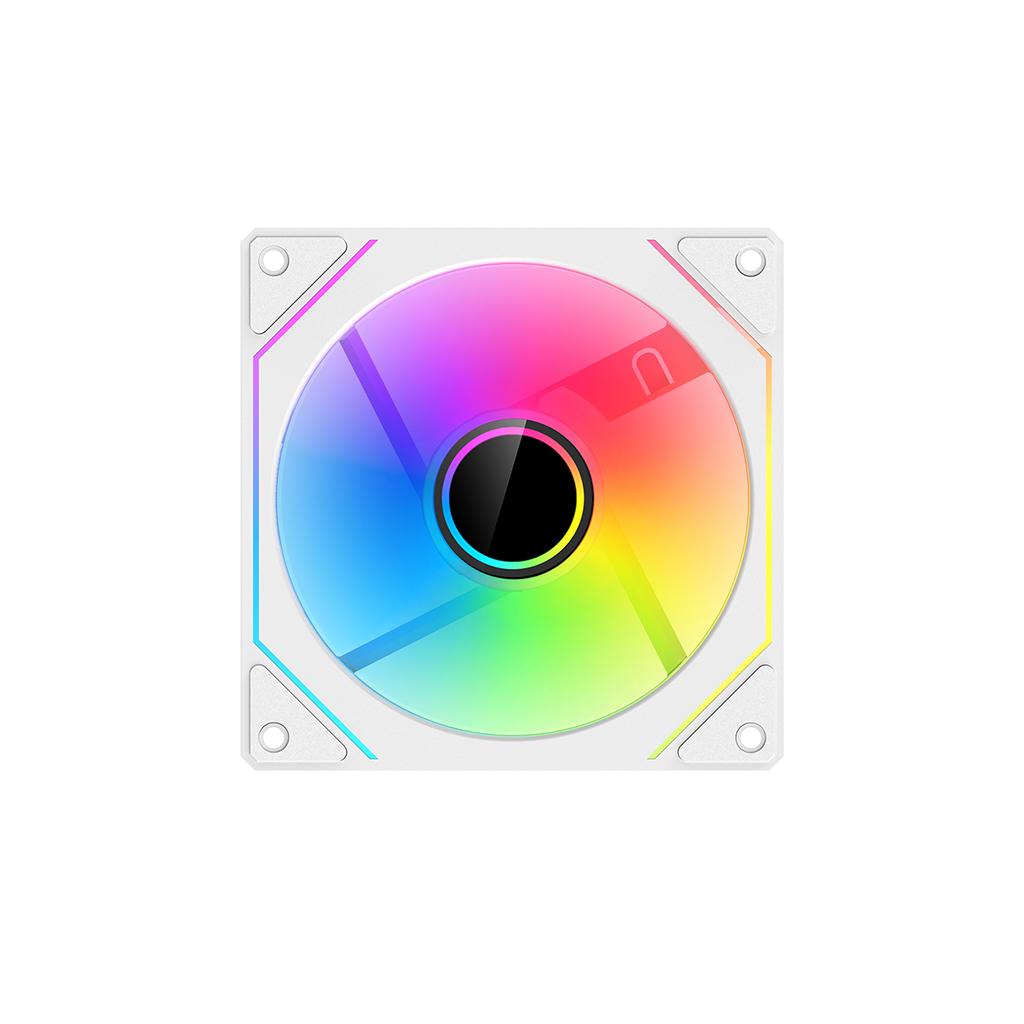

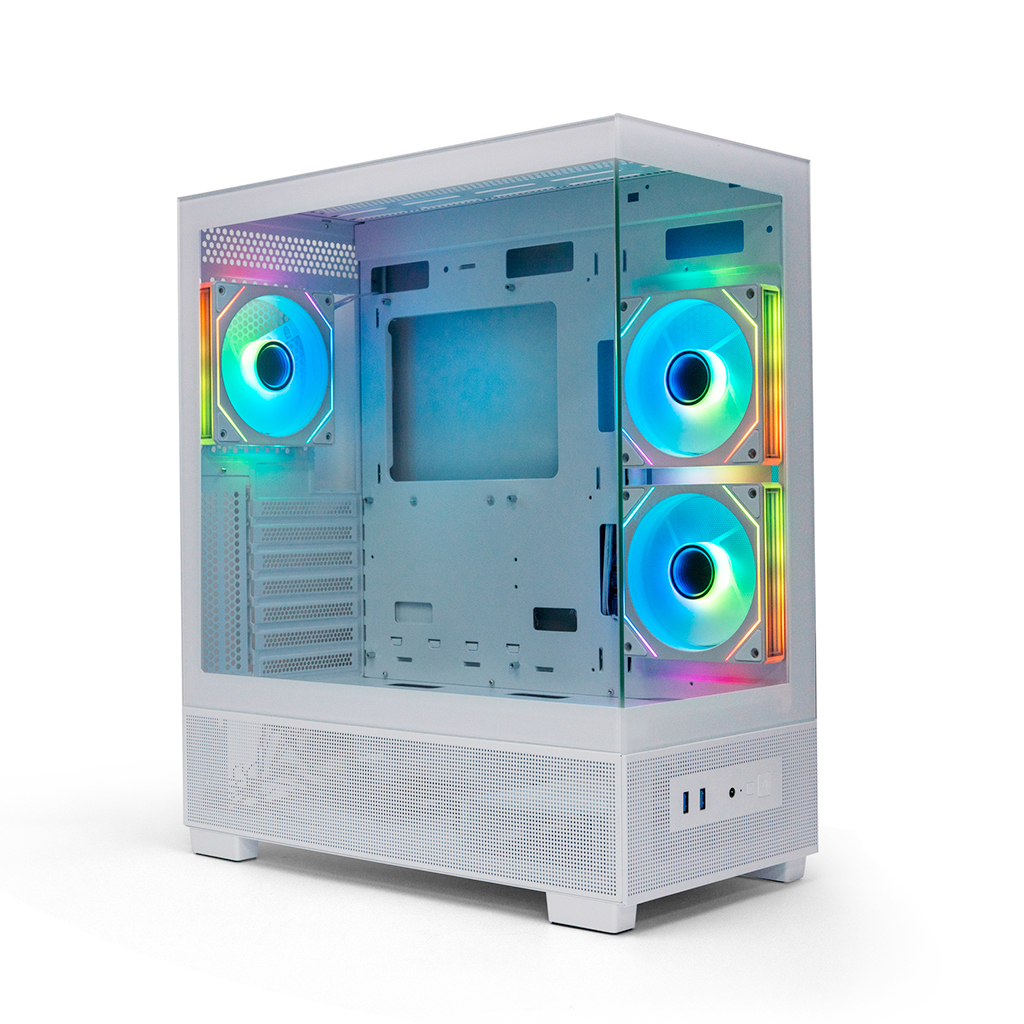

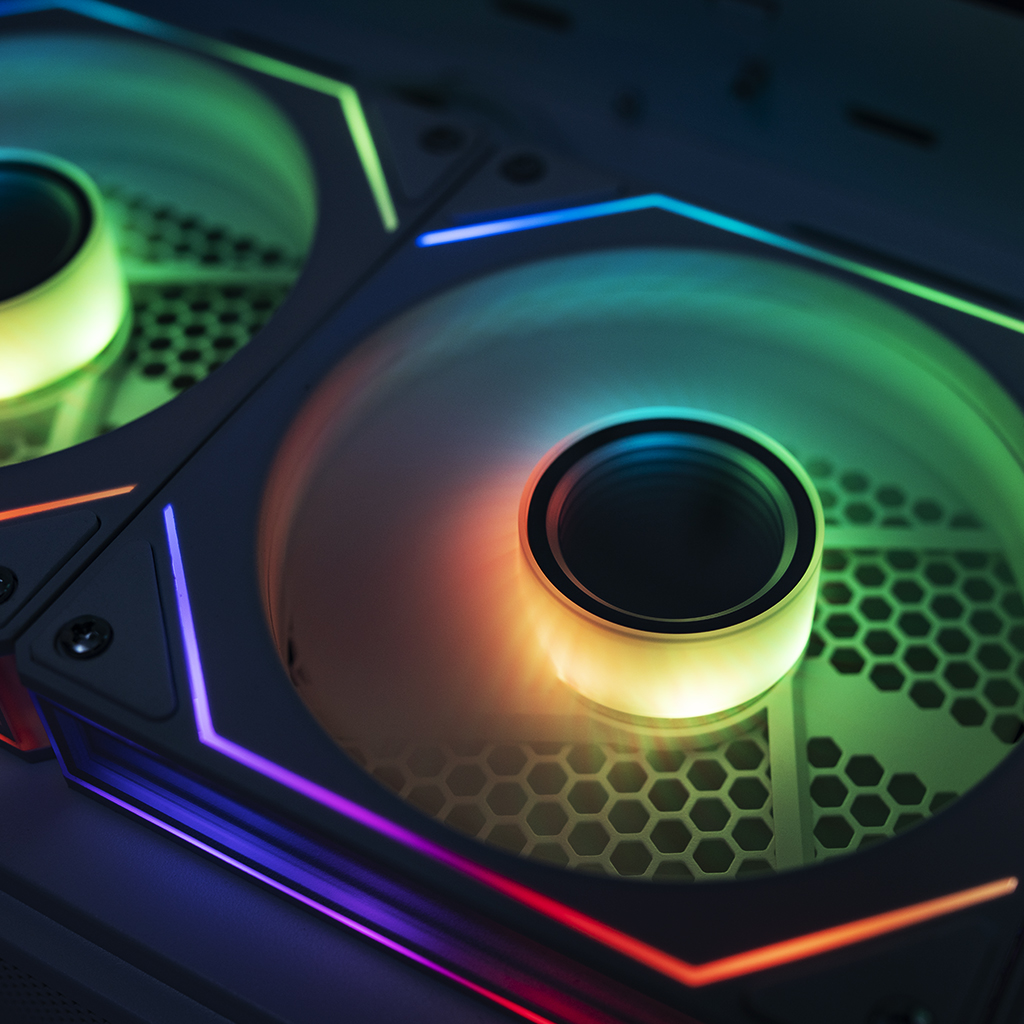

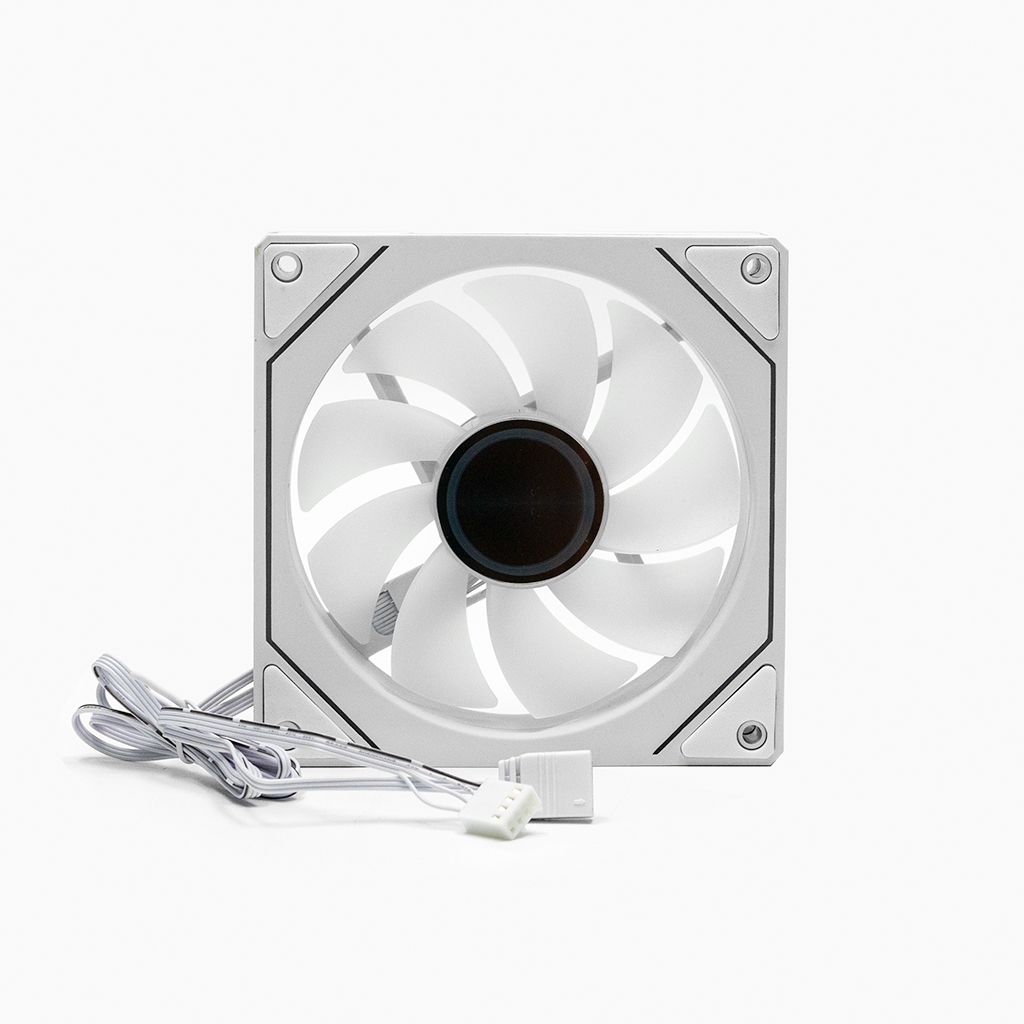

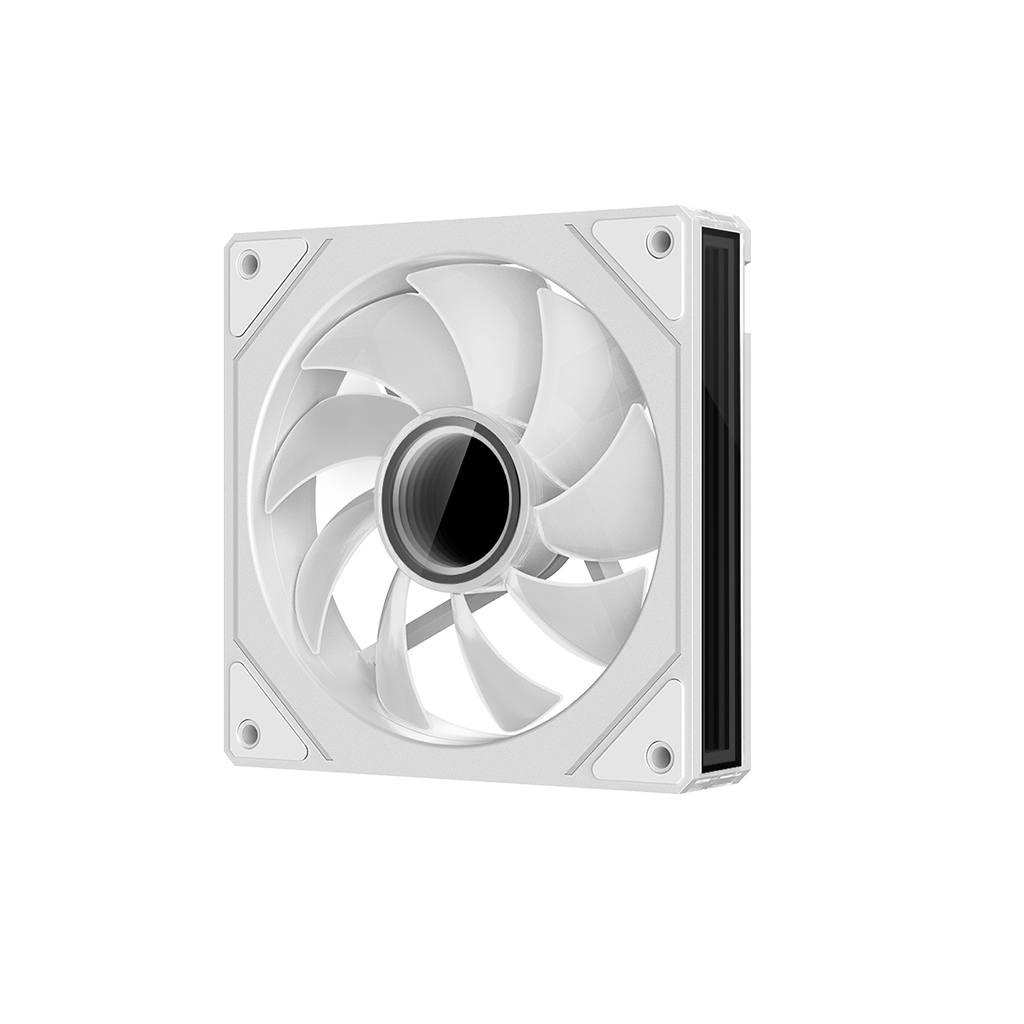

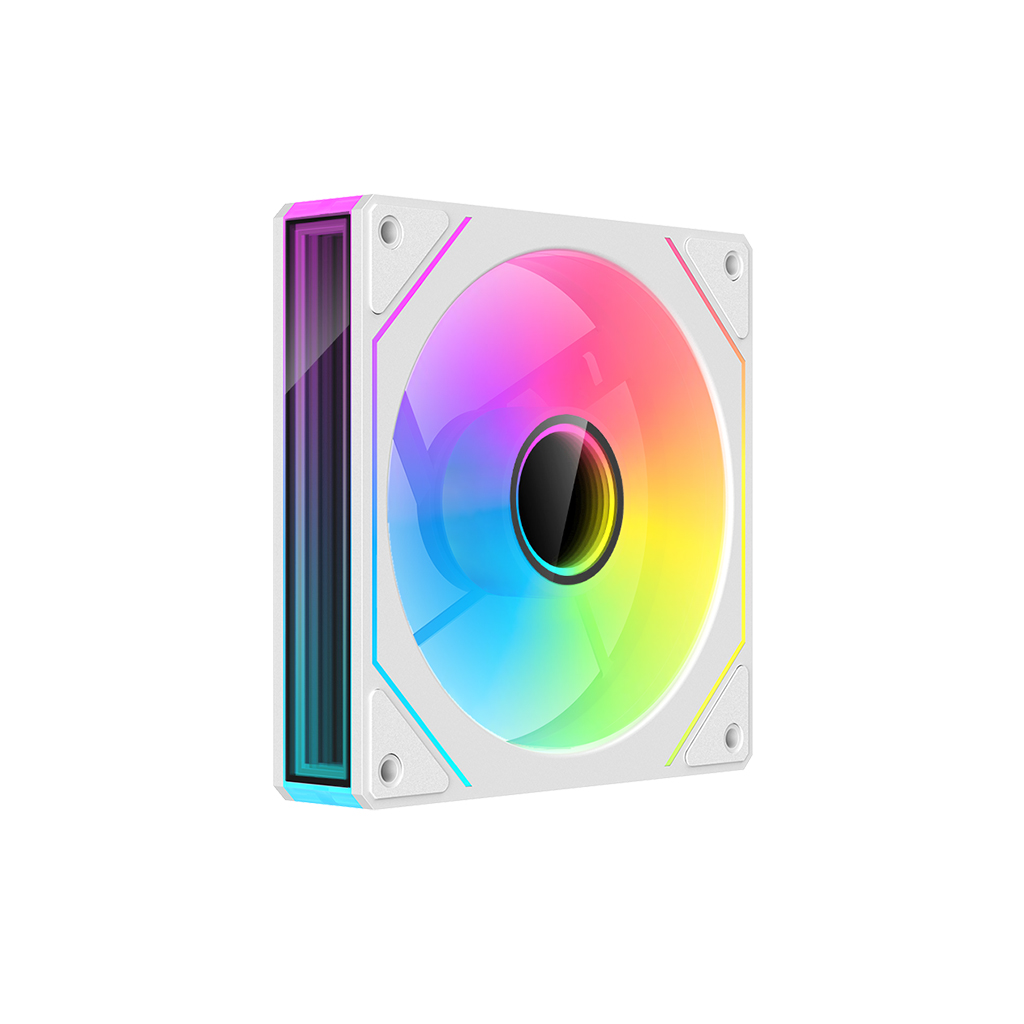

| Q500 3ARGB-C10 WH | Q500-3FM12A-C10-WH | 6977137651129 | Pre-installed with 3xFM120 ARGB FAN+10 Ports fan HUB | |

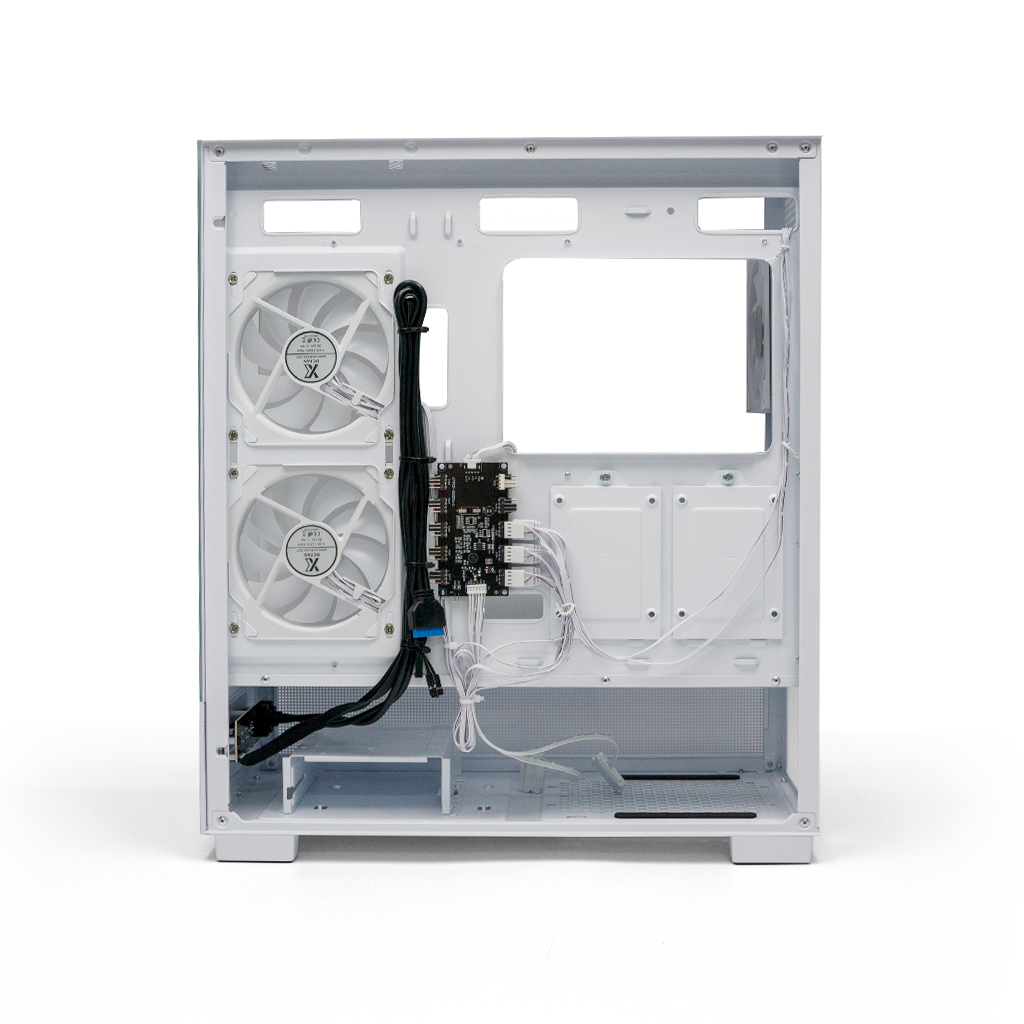

| Q500 6ARGB-C10-UC WH | Q500-6FM12A-C10-UC-WH | 6977137651136 | Pre-installed with 6xFM120 ARGB FAN+10 Ports fan HUB (Type-C included) | |
