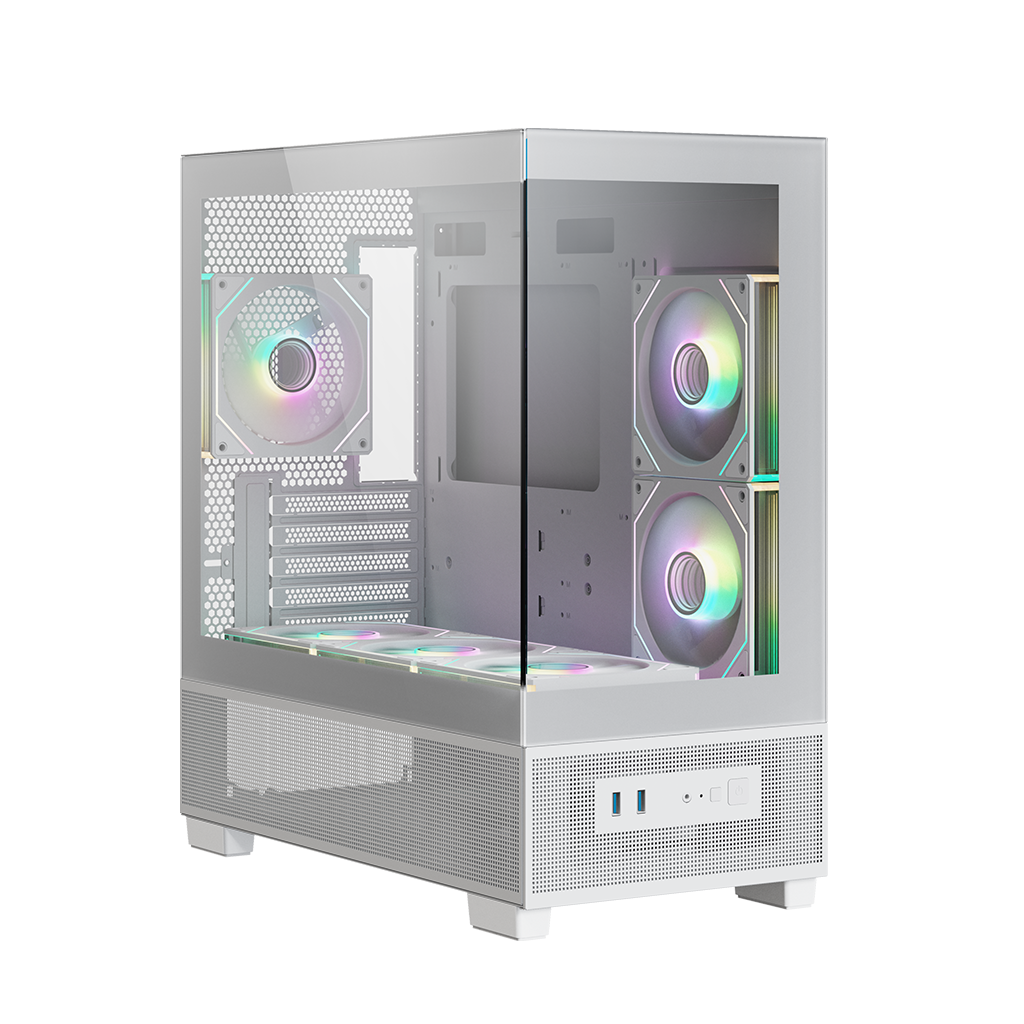

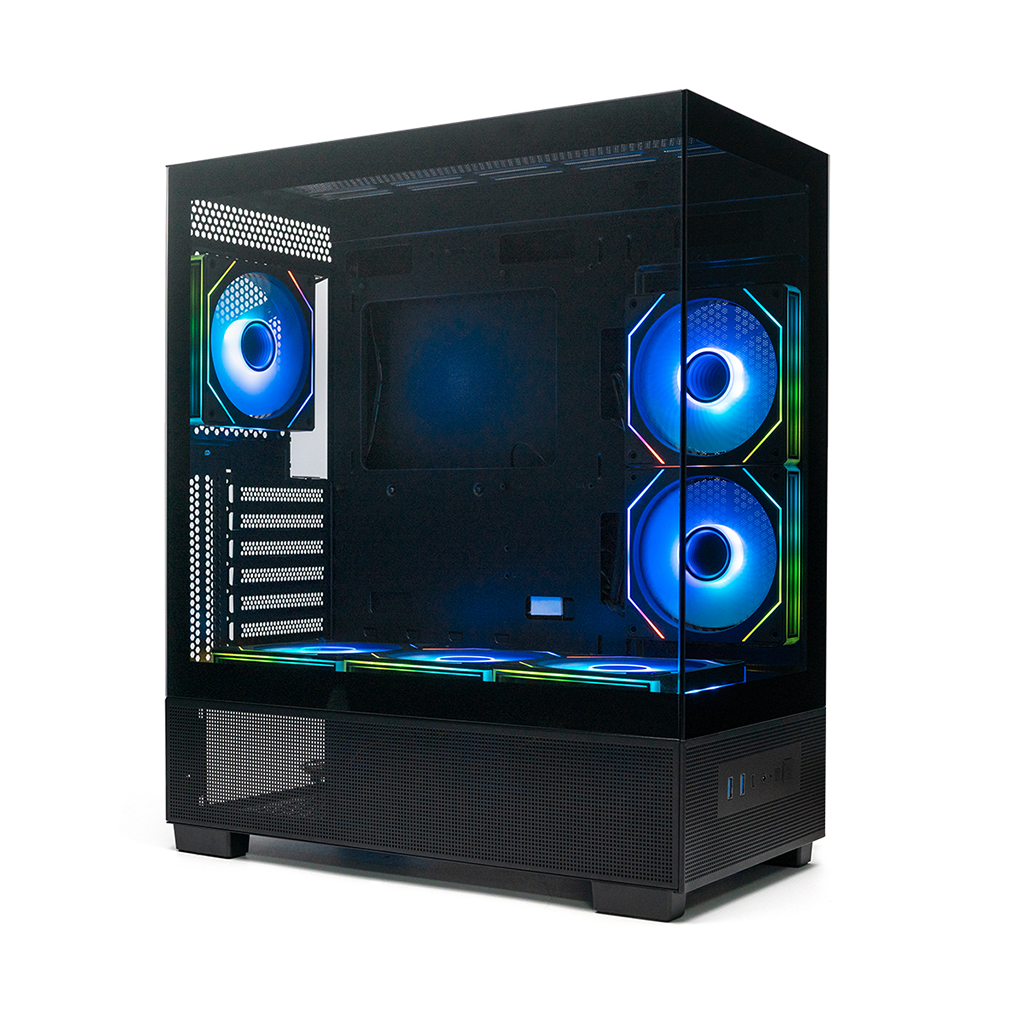

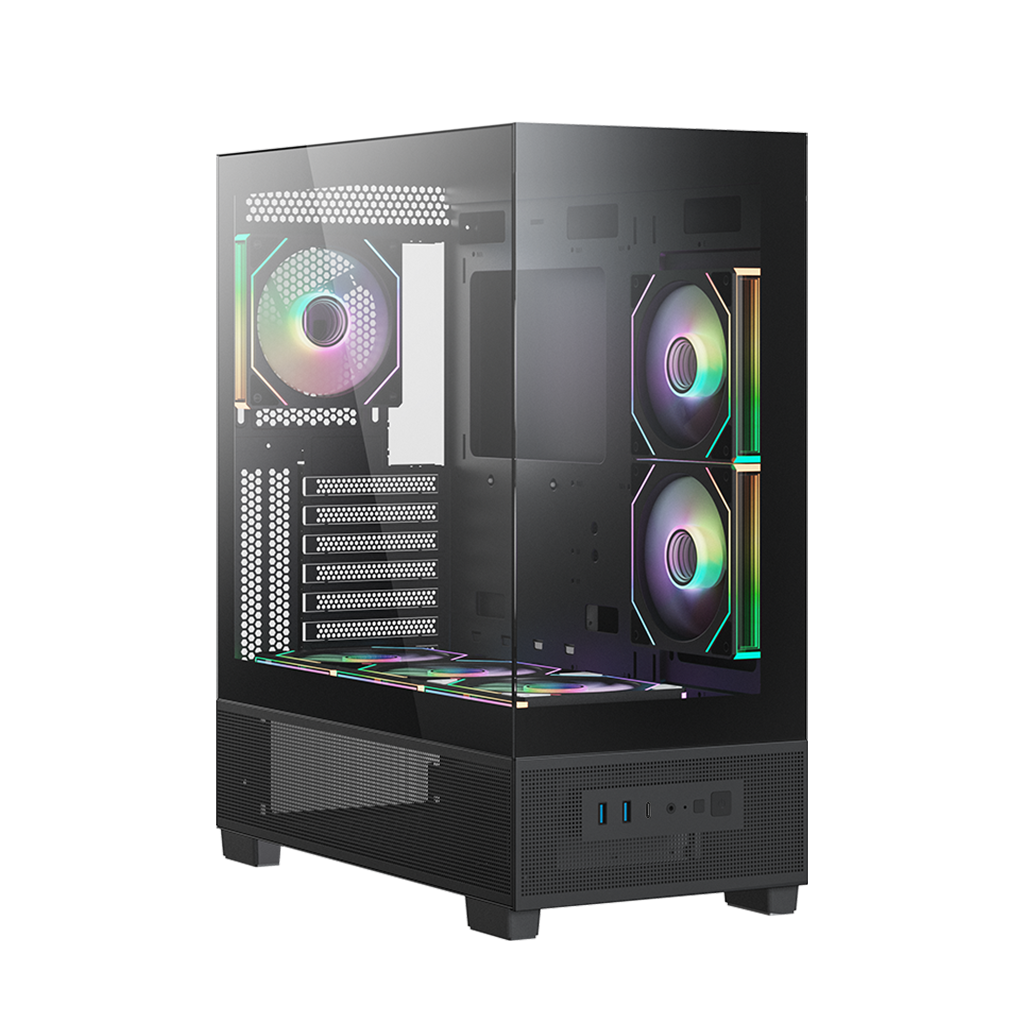

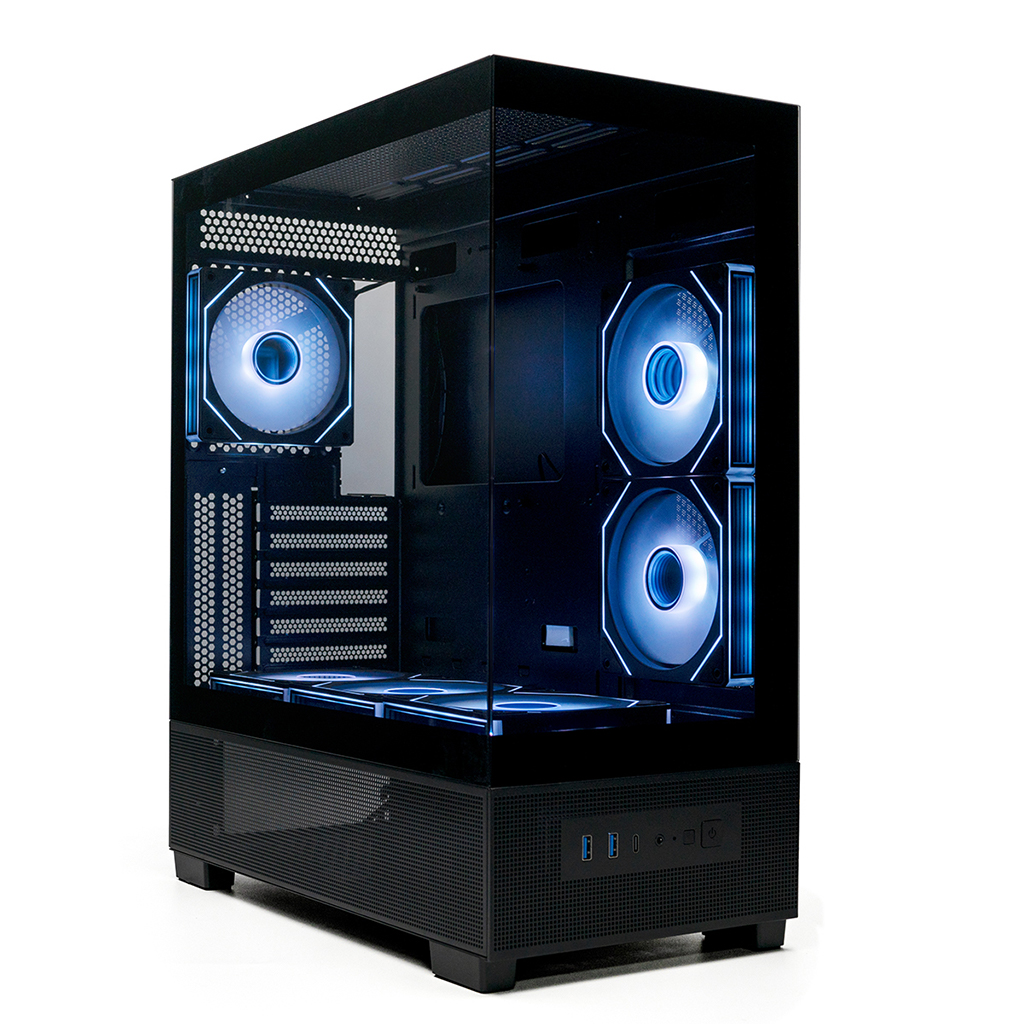

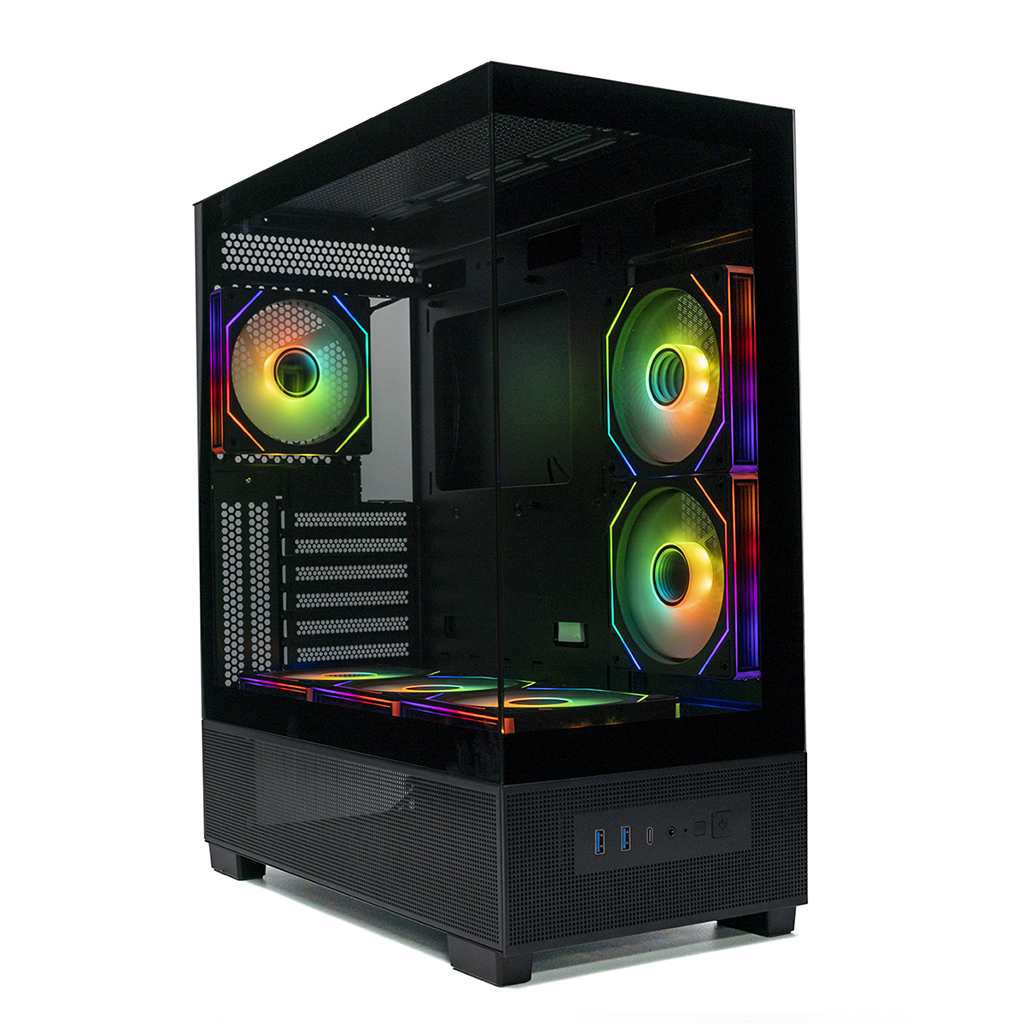

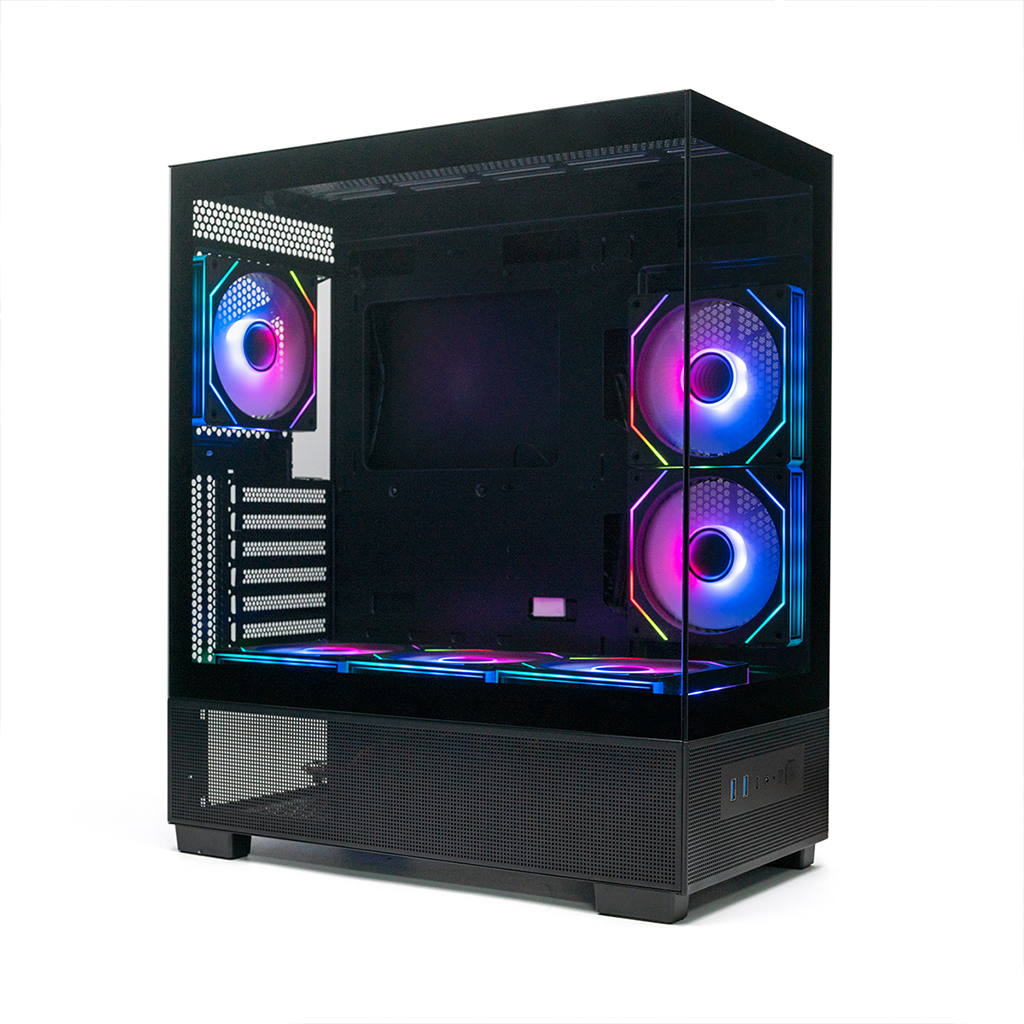

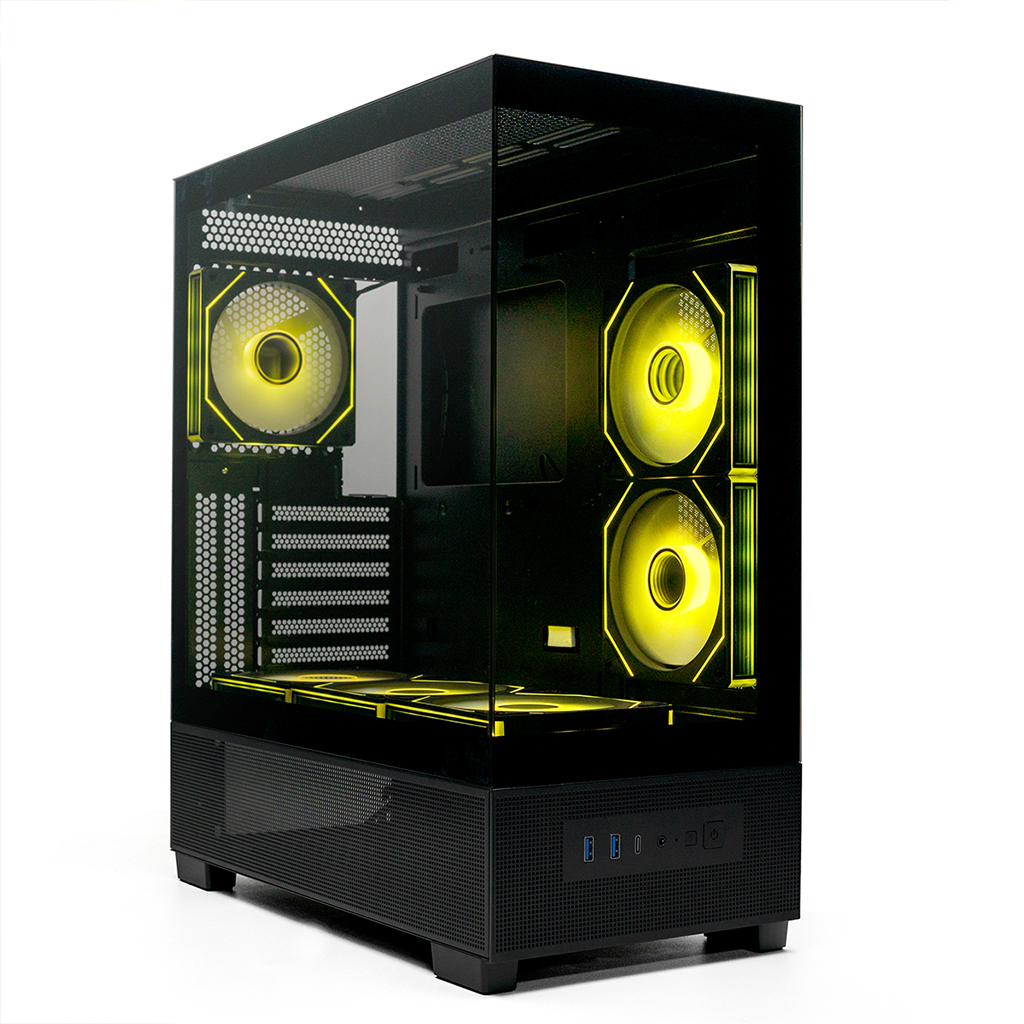

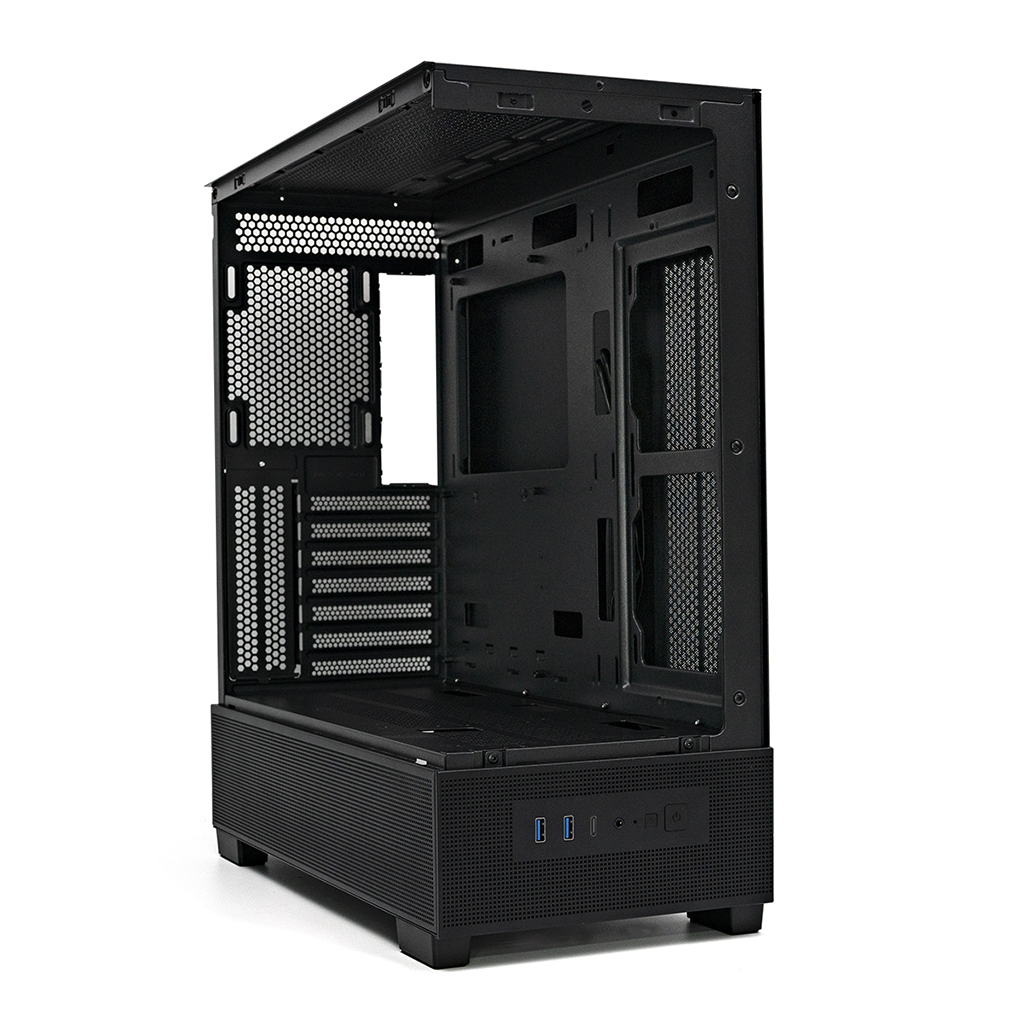

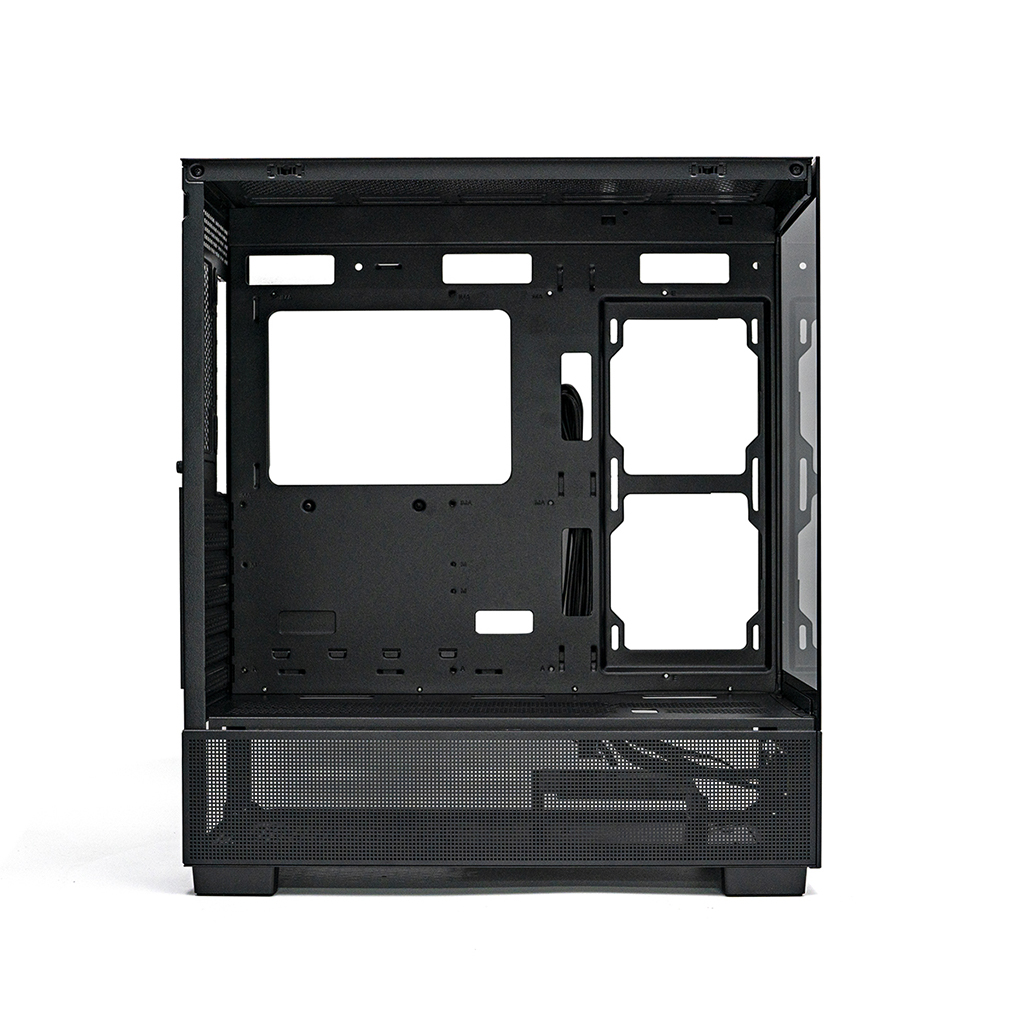

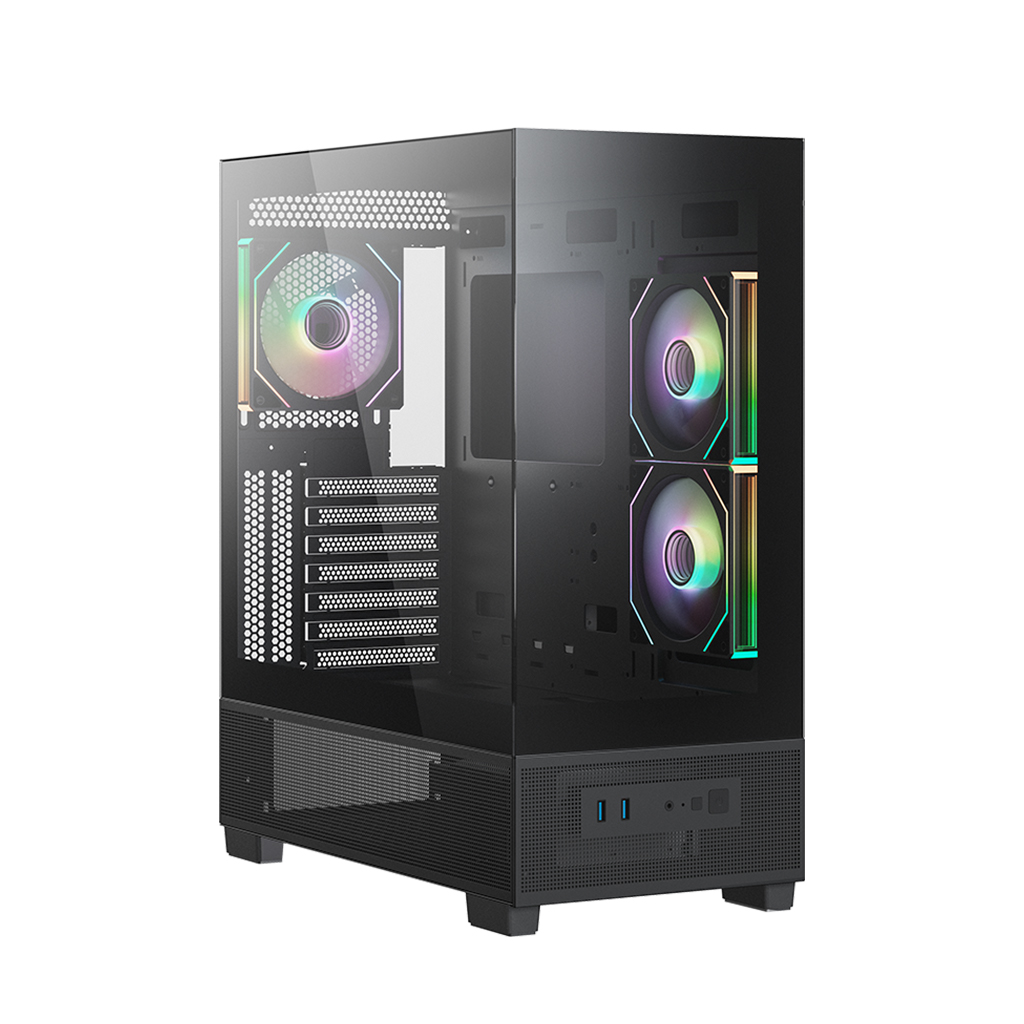

Q500
- Support Max.9pcs fans
- Support 360mm radiator design(Top)
- Support VGA Cards Vertical insertion.
- Motherboard Support:E-ATX/ATX/M-ATX/ITX
- Max.GPU Length:≤400mm
- Max.CPU Cooler Height:≤165mm
- Max.PSU Length:ATX-POWER(Max.L:170mm)
Фото
Характеристики
Product Specifications |
|||
General |
|||
| Model | Q500 | ||
| Case type | Mid-Tower | ||
| Dimensions | 413x210x485mm(LxWxH) | ||
| Material(s) | Steel+ABS+Tempered Glass | ||

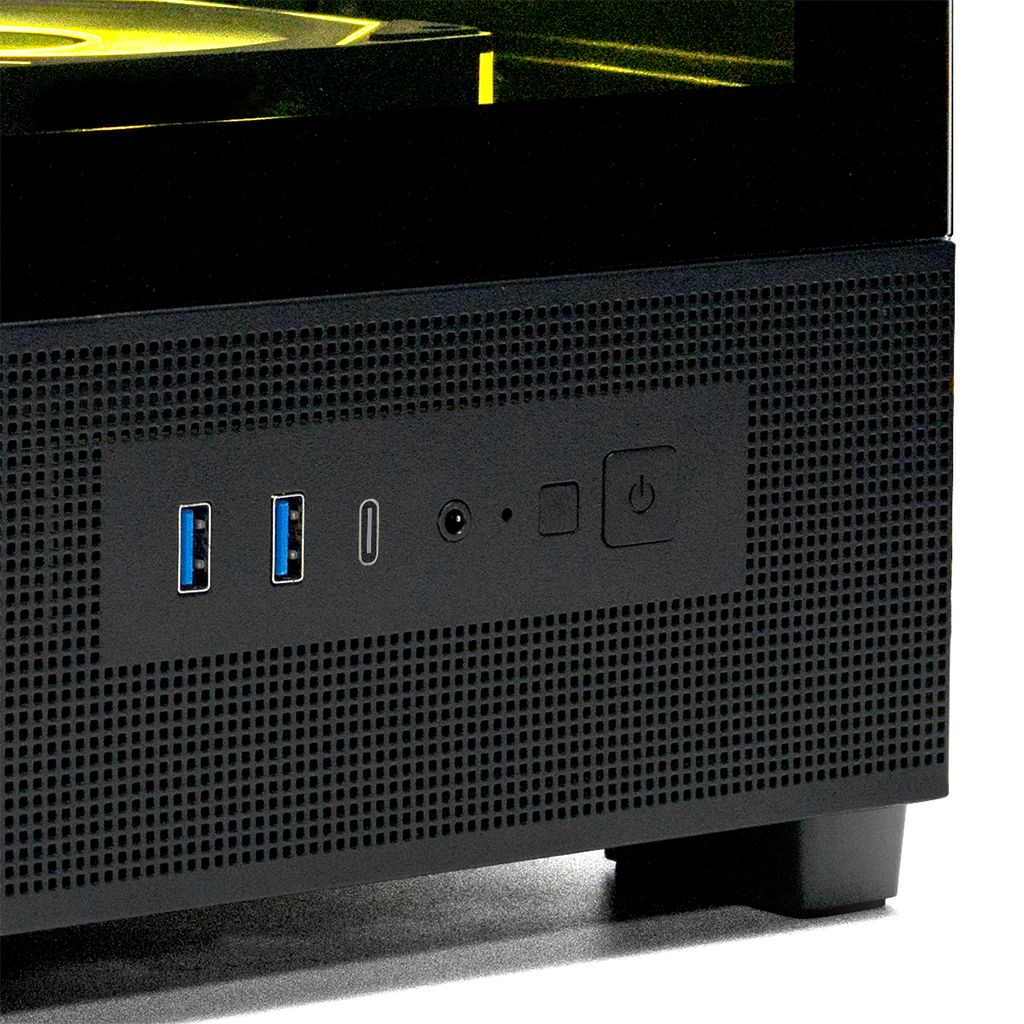

| I/O Port | USB3.0x2,HD Audio, Power, Reset | ||
Compatibility&Clearance |
|||
| Motherboard support | E-ATX, ATX, M-ATX,ITX | ||
| Max.PSU Length | ATX-POWER(Max.L:160mm) | ||
| Max.CPU Cooler Height | ≤165mm | ||
| Max.GPU Length | ≤400mm | ||
Expansion slots & Drive Bays |
|||
| PCl Expansion slot | 7 | ||
| Storage | 3.5″HDDx1+2.5″SSDx3/3.5’HDDx2+SSDx2 | ||
Radiator support |
|||
| Top | 360mm/280mm/240mm | ||
| Front | / | ||
| Rear | 120mm | ||
Fan support |
|||
| Front | / | ||
| Rear | 1x120mm | ||
| Top | 3x120mm/2x140mm | ||

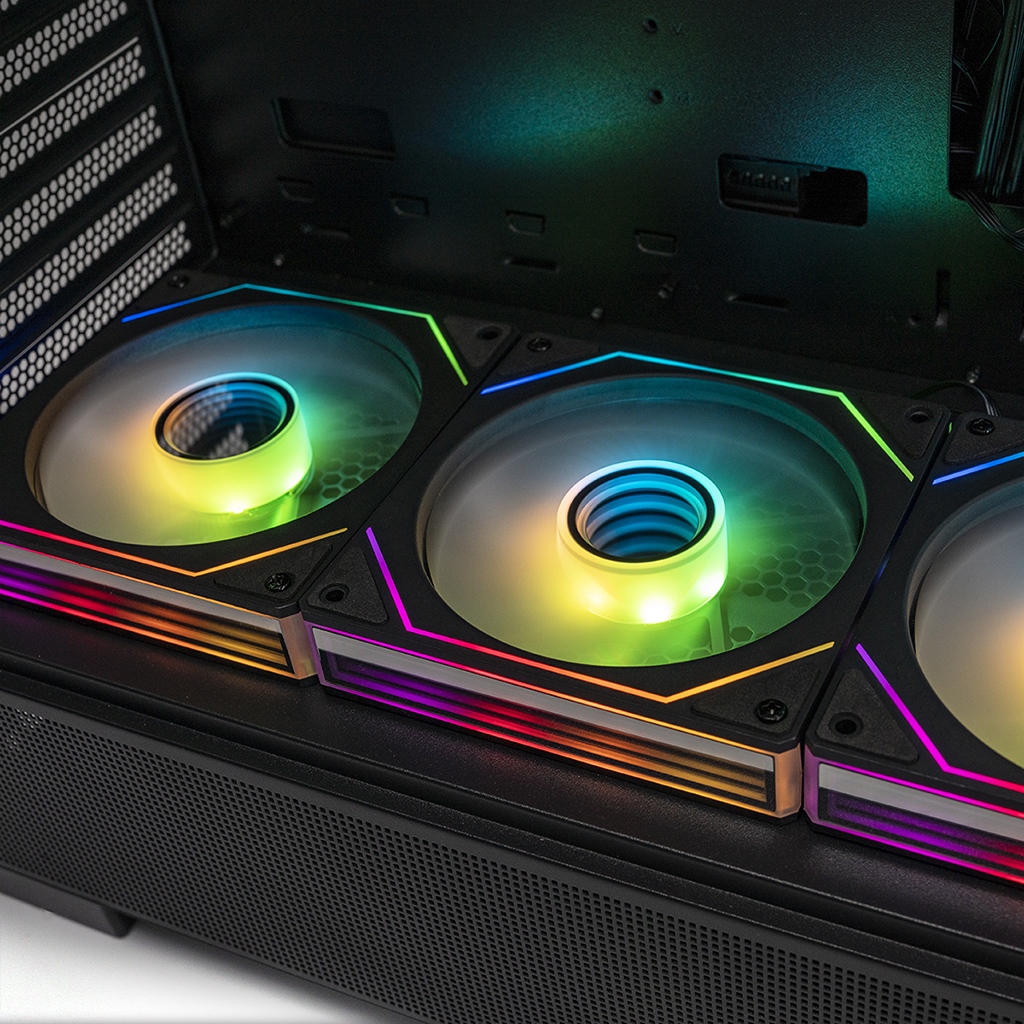

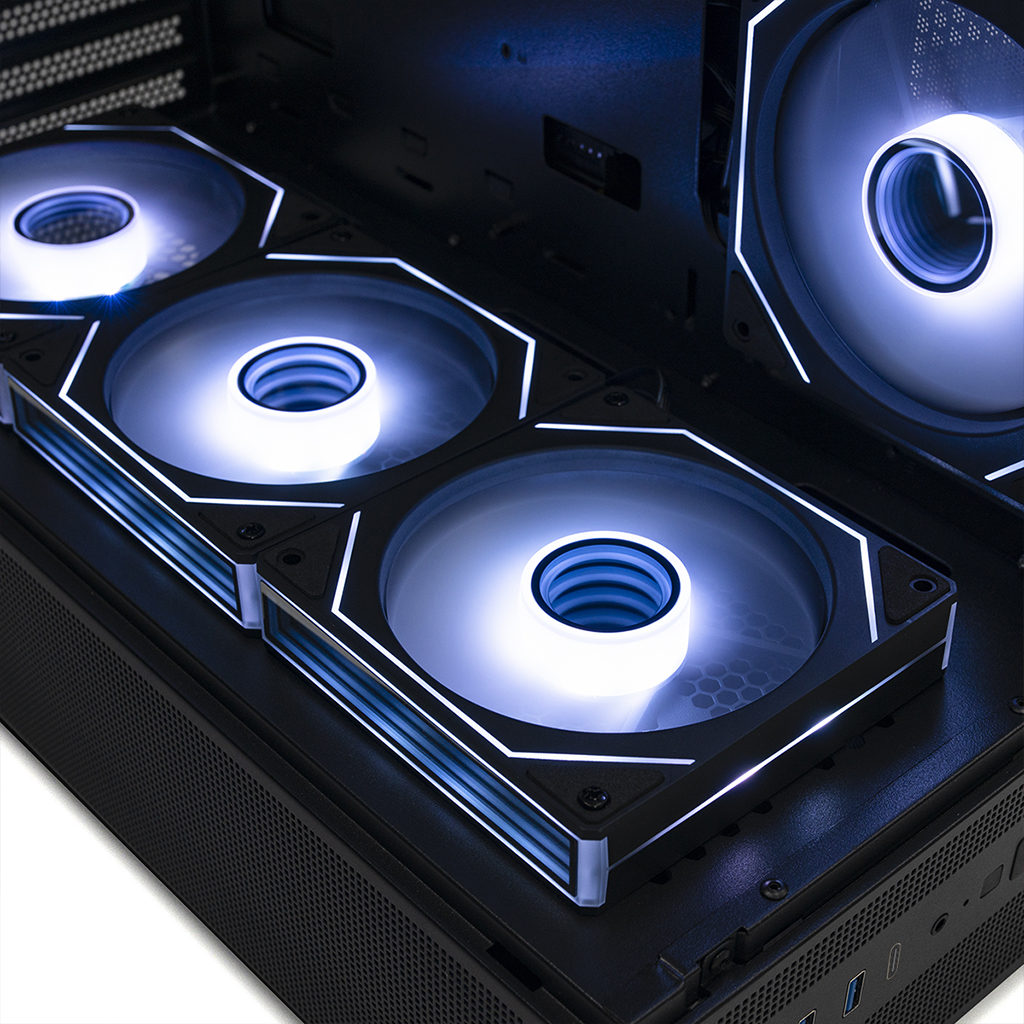

| Bottom | 3x120mm | ||
| M/B Side | 2x120mm | ||
| Maximum Number of Fans | 9 | ||
|
|
|||
| Model | P/N | EAN(13) | More information |

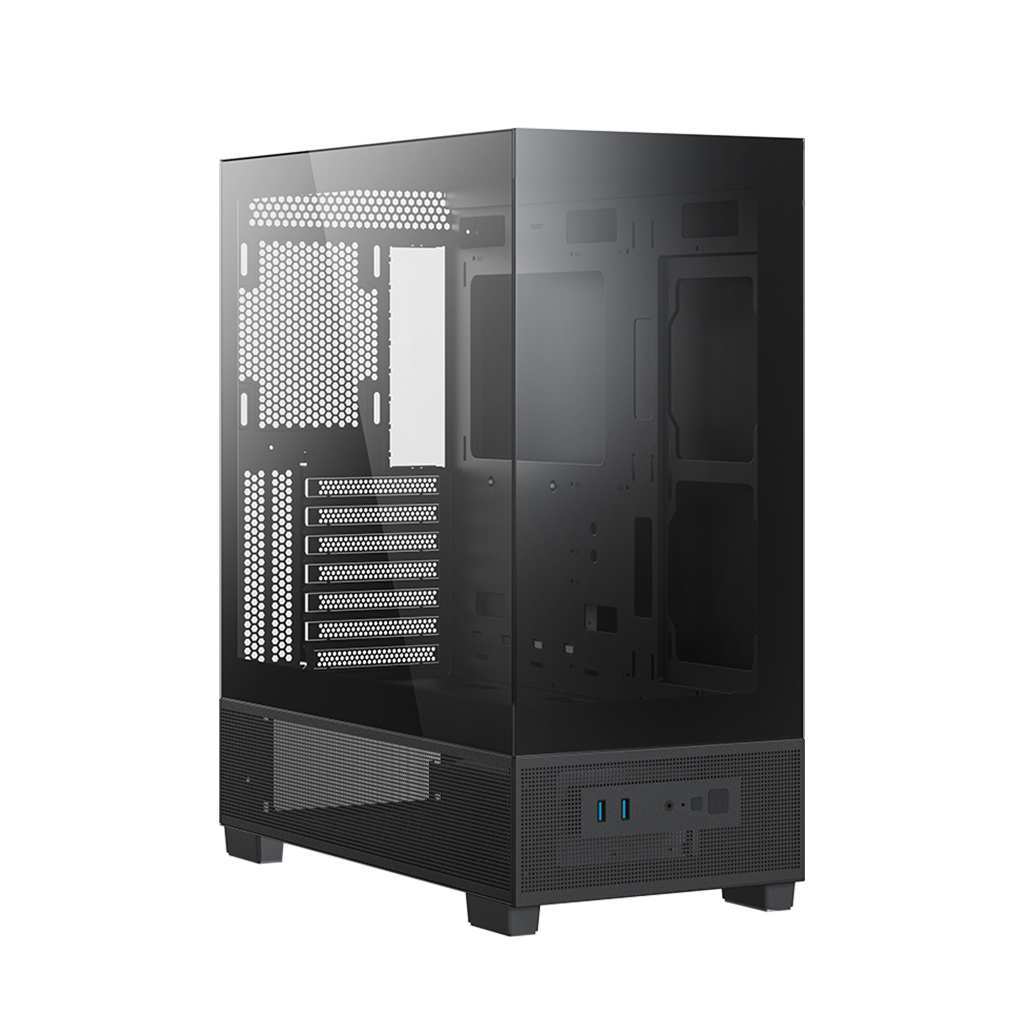

| Q500 0F | Q500-0F | 6977137651082 | Case only |

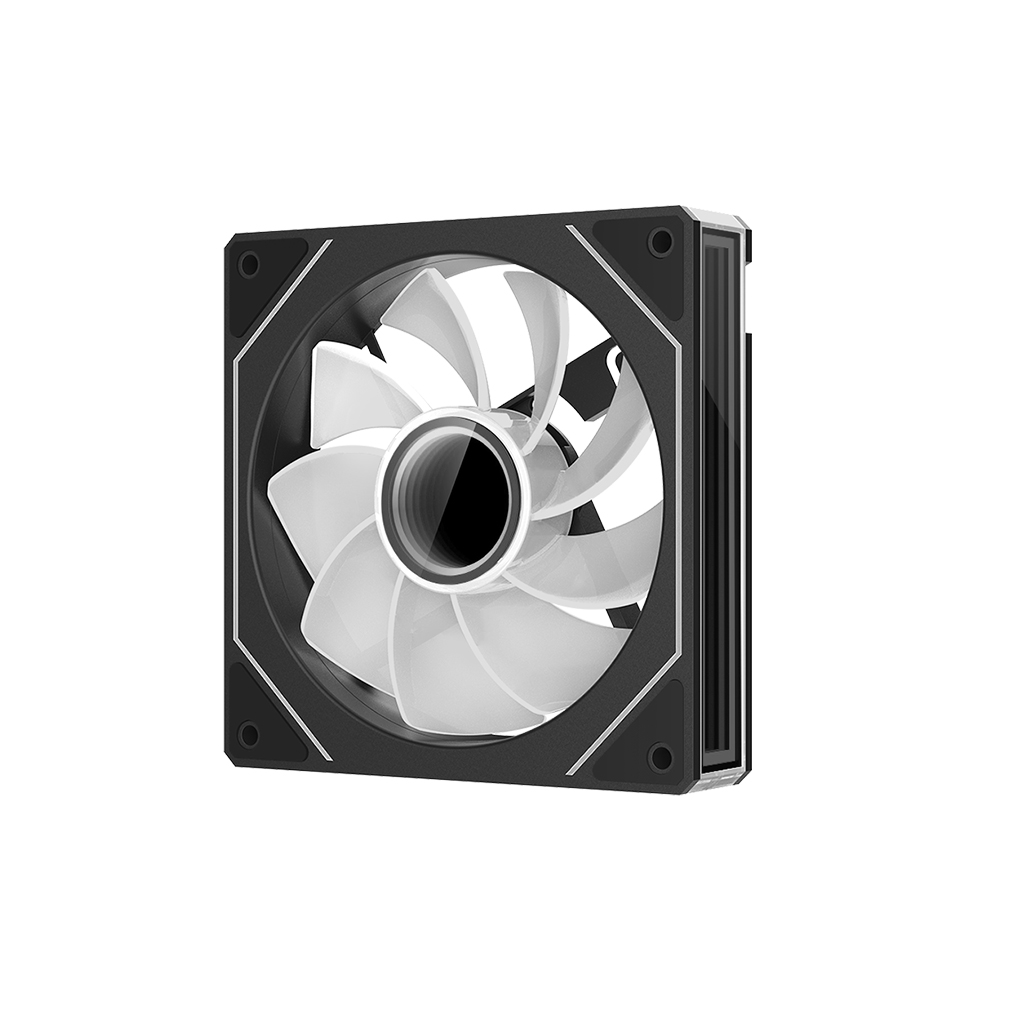

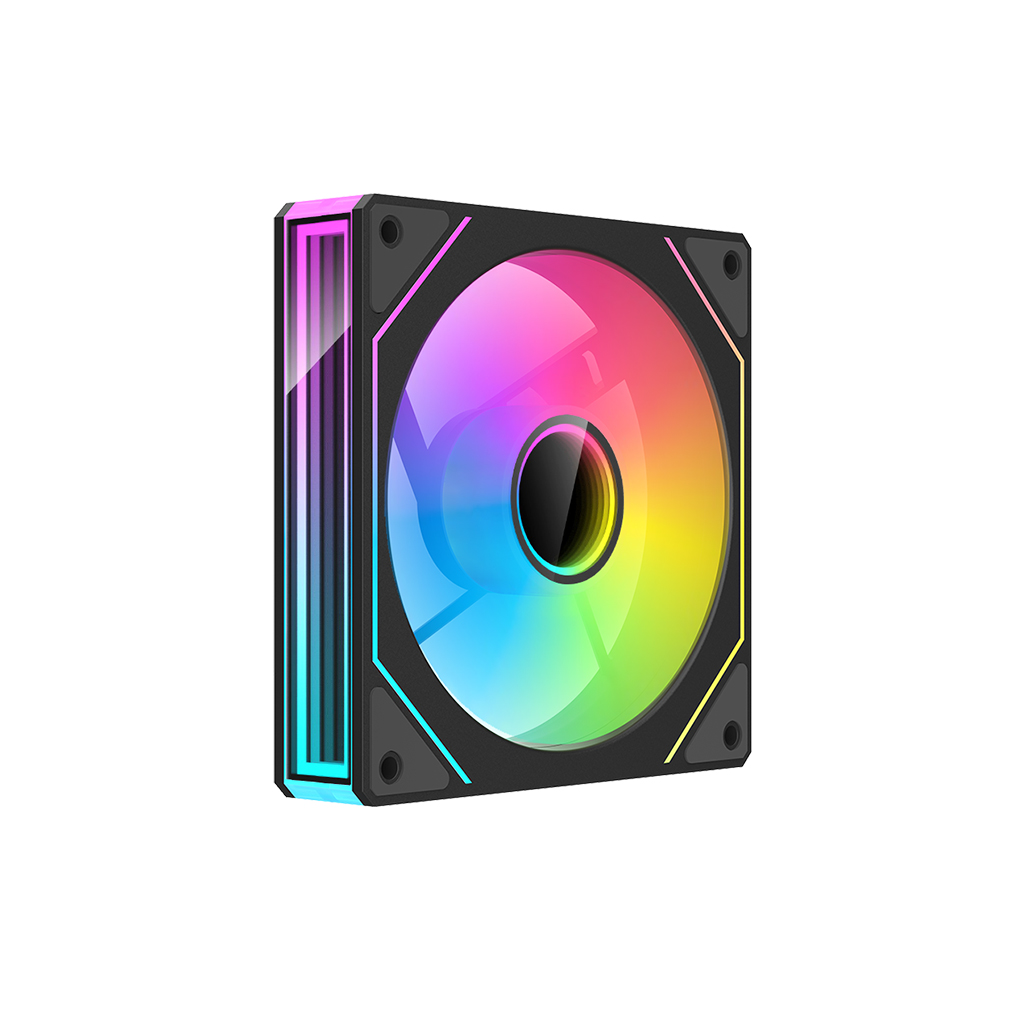

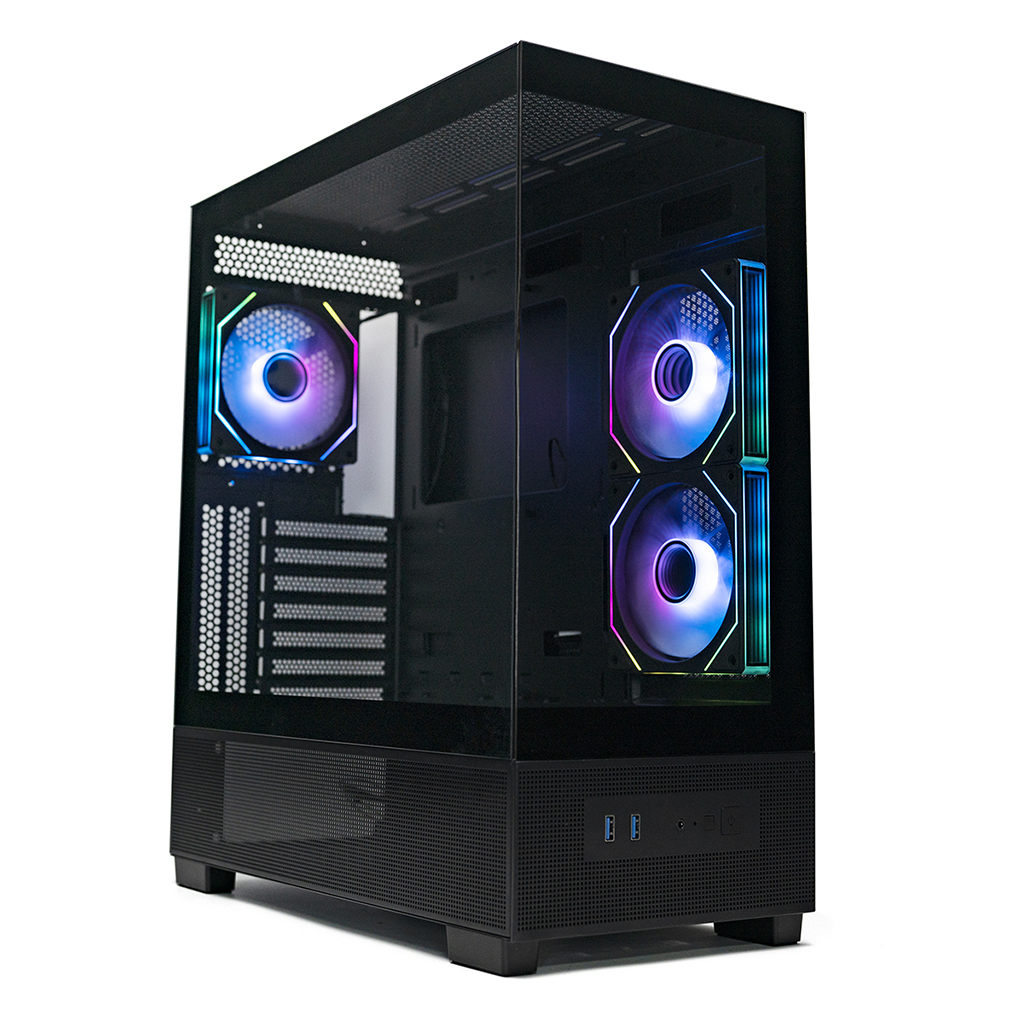

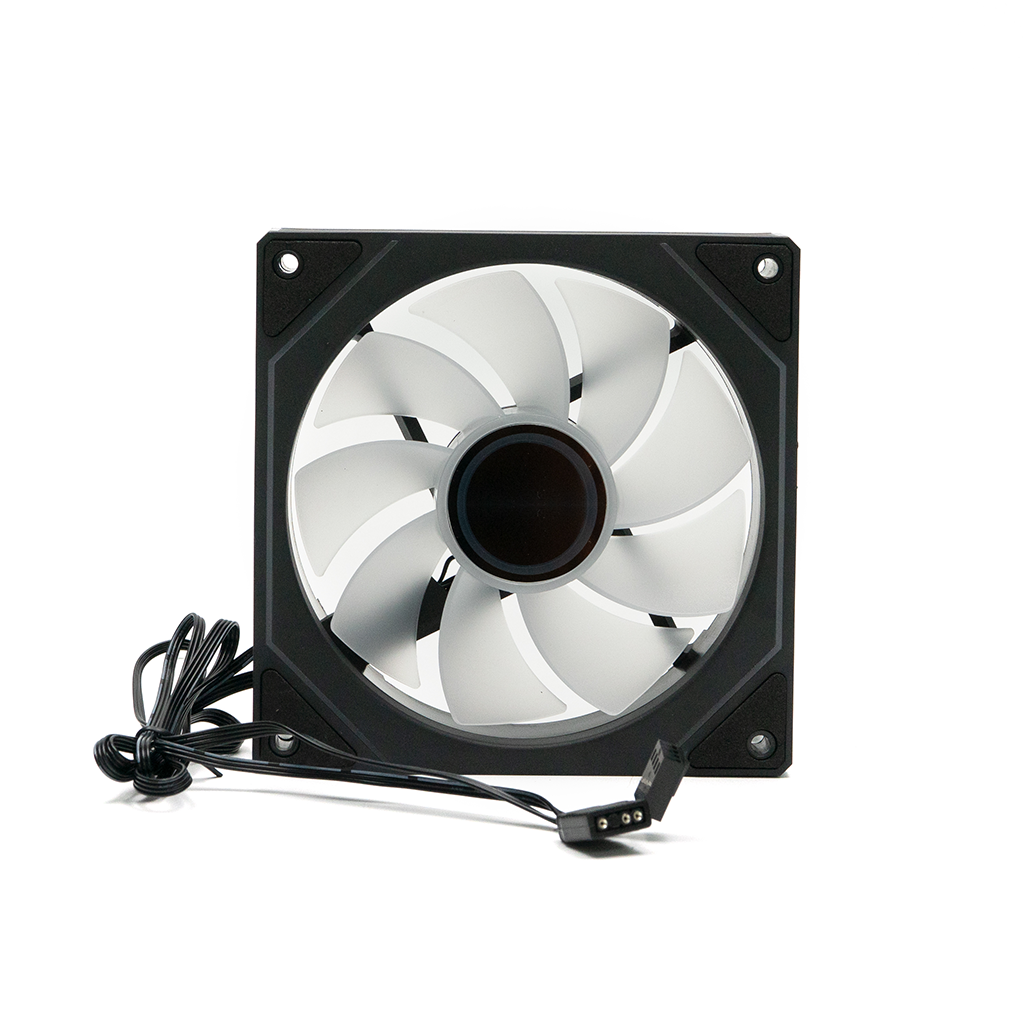

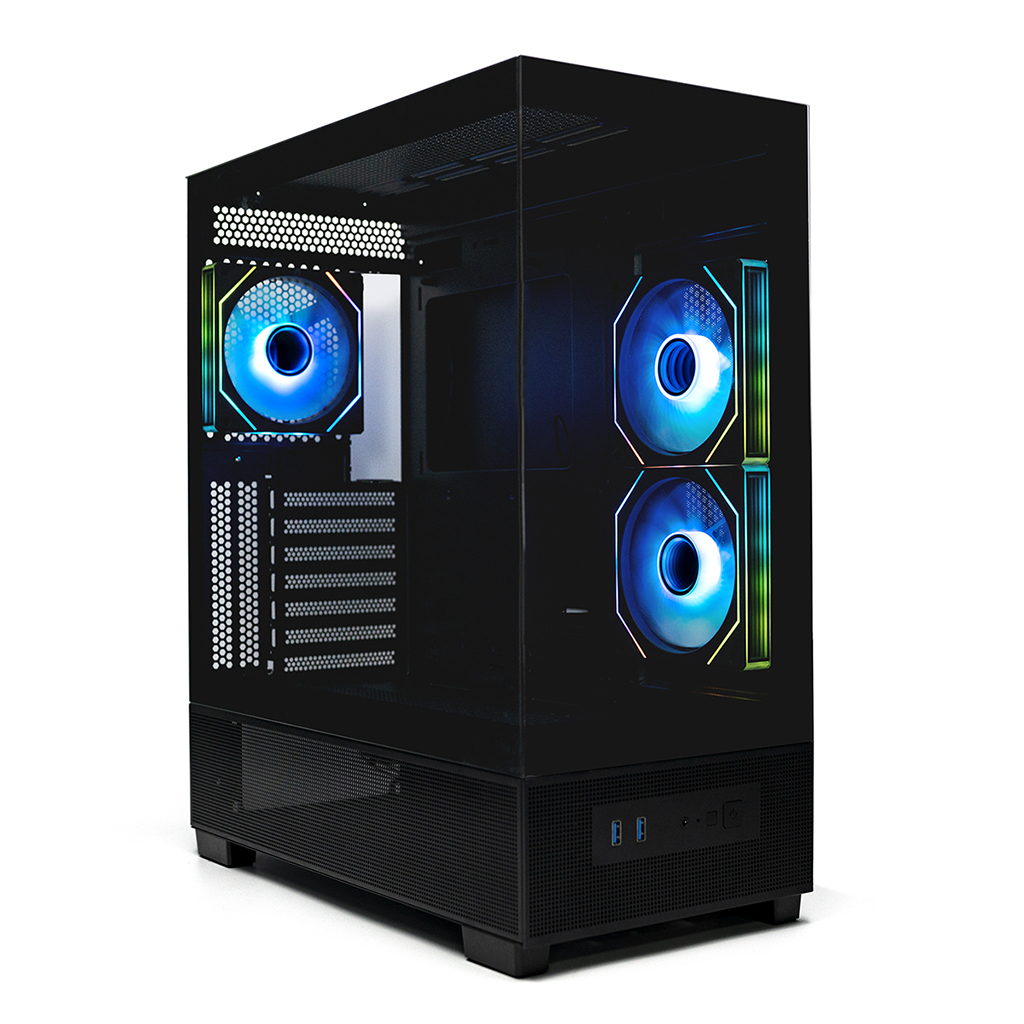

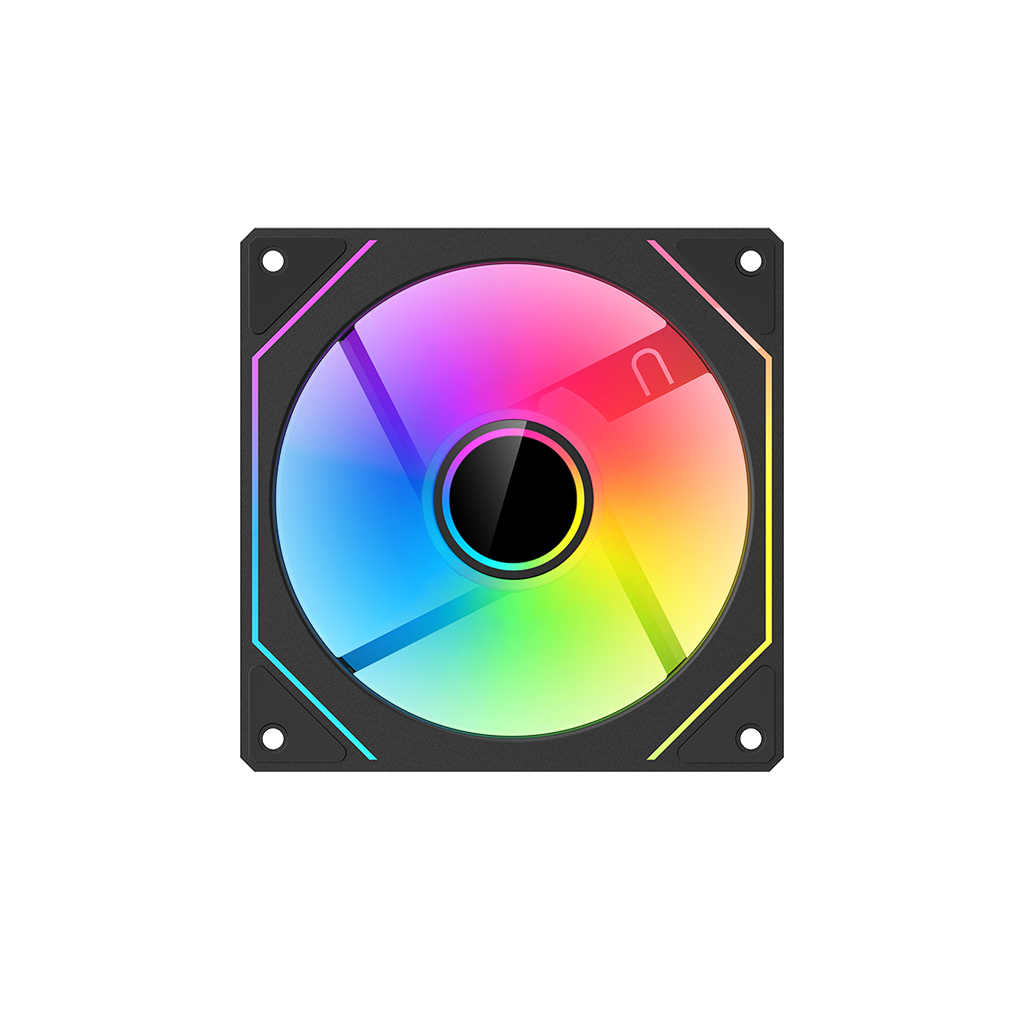

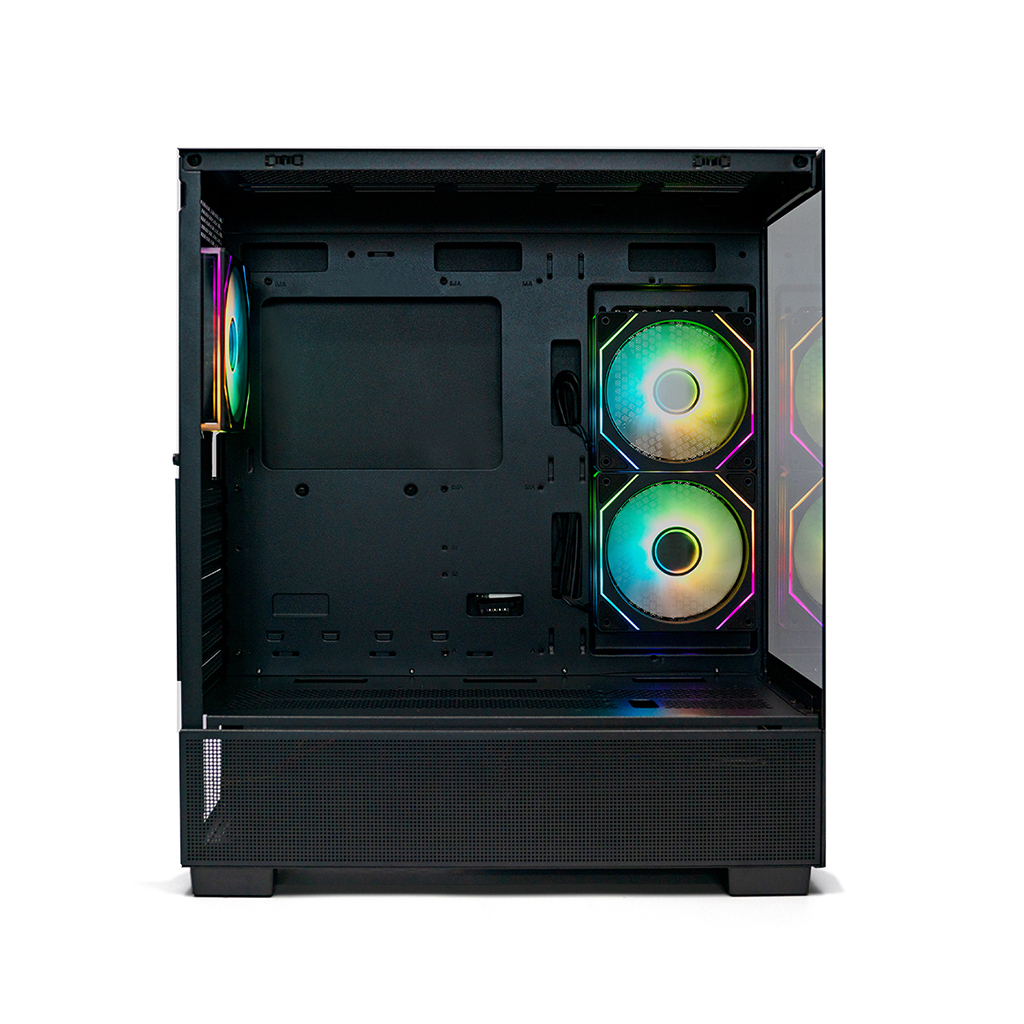

| Q500 3ARGB-C10 | Q500-3FM12A-C10 | 6977137651099 | Pre-installed with 3xFM120 ARGB FAN+10 Ports fan HUB |

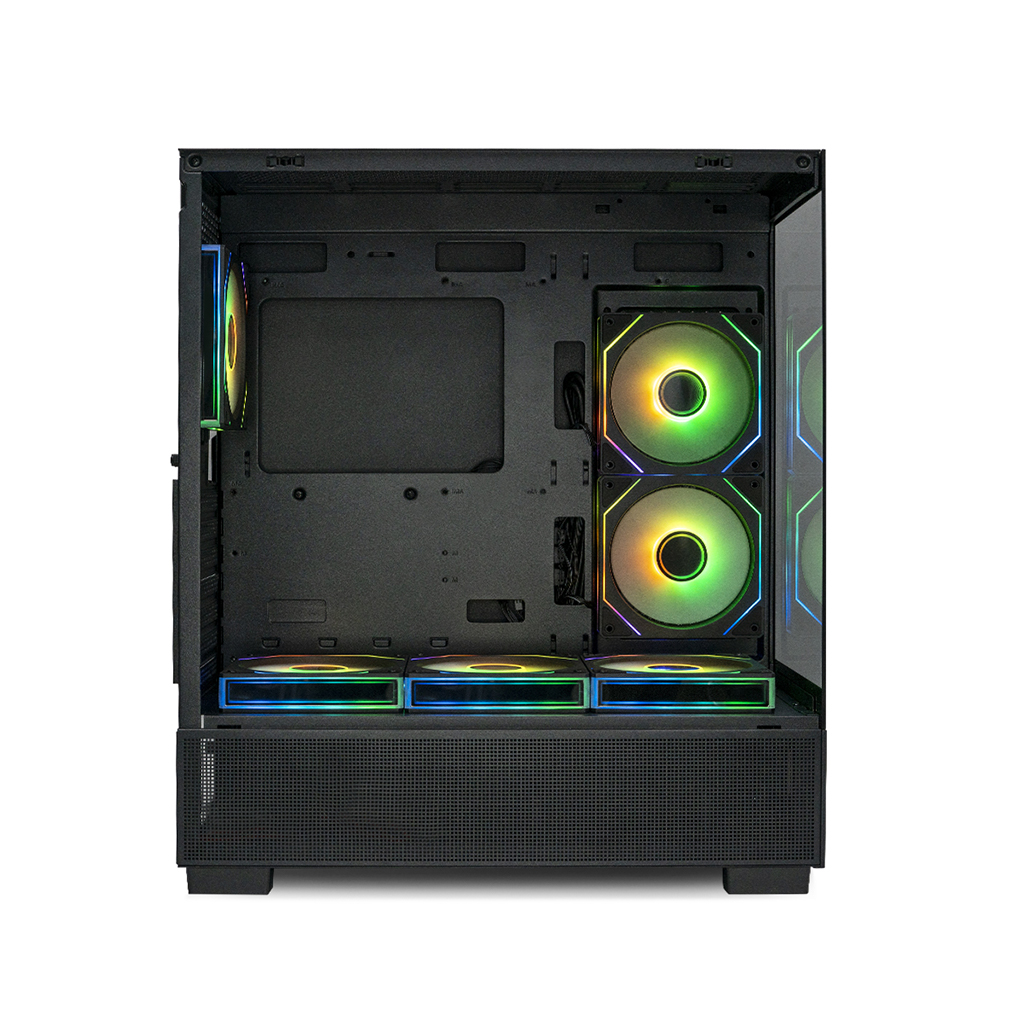

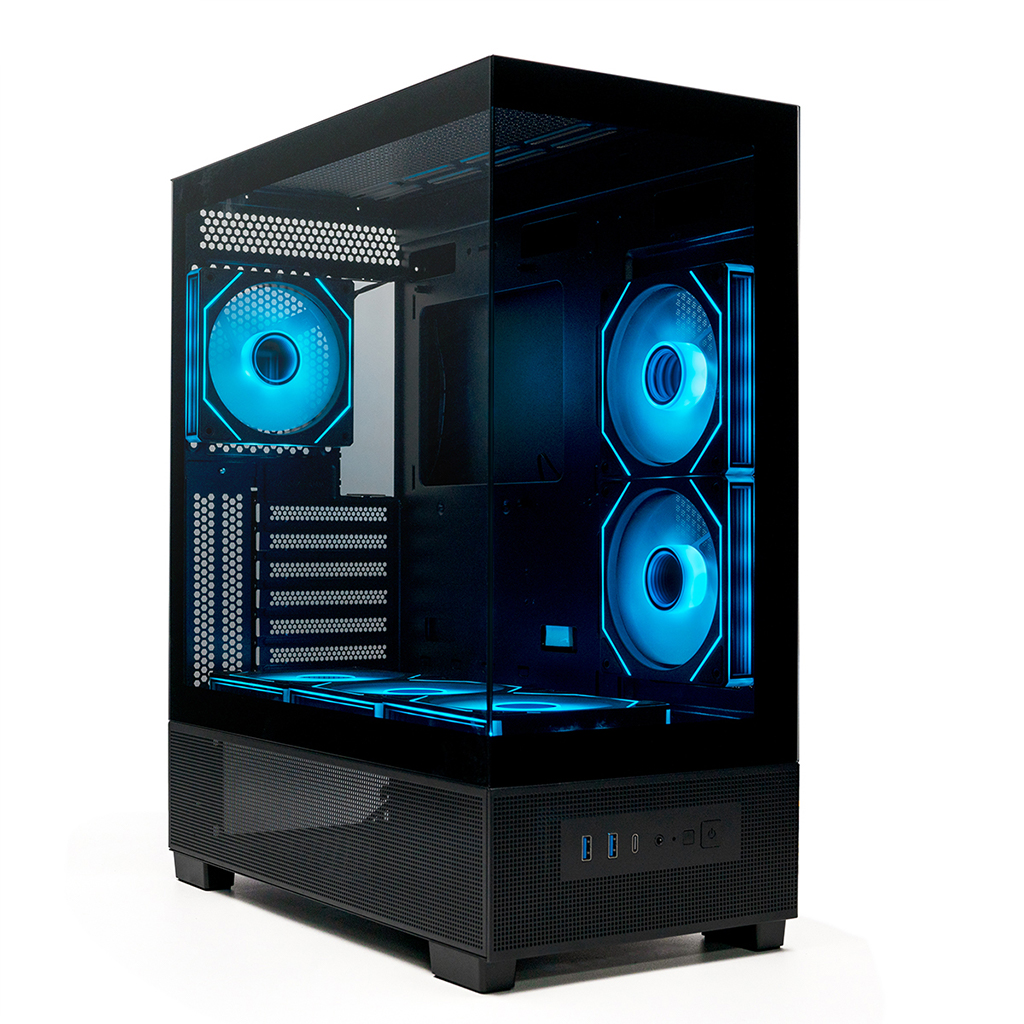

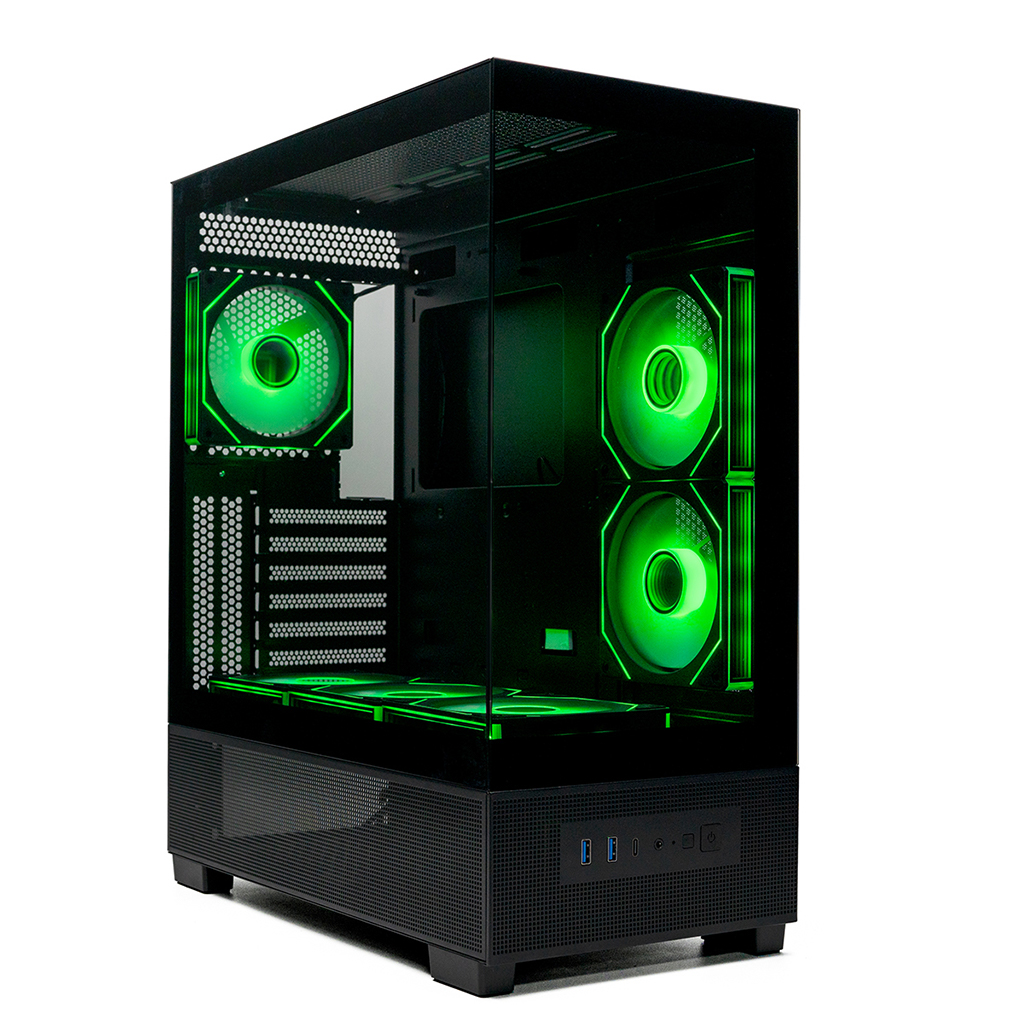

| Q500 6ARGB-C10-UC | Q500-6FM12A-C10-UC | 6977137651105 | Pre-installed with 6xFM120 ARGB FAN+10 Ports fan HUB (Type-C included) |
