AX620

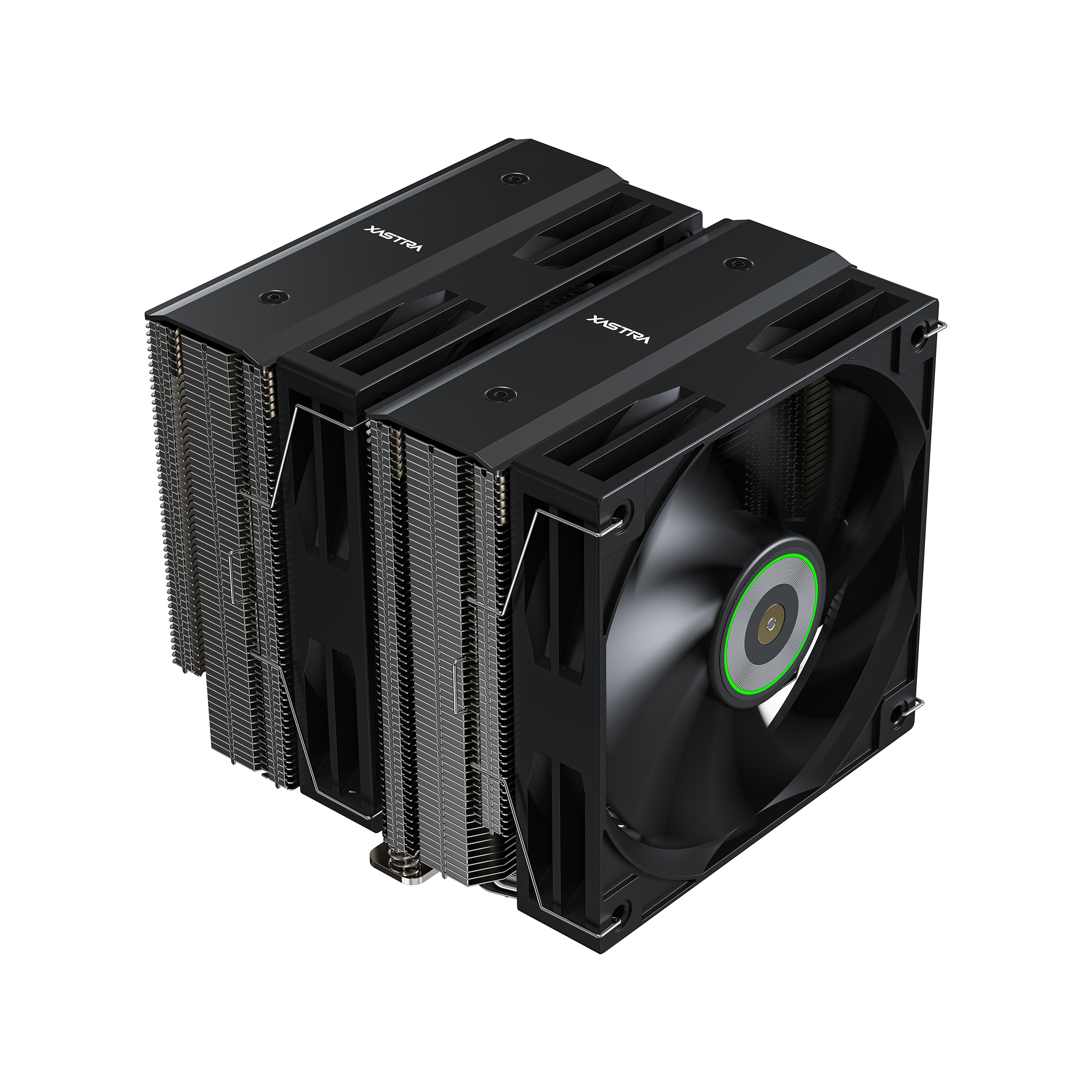

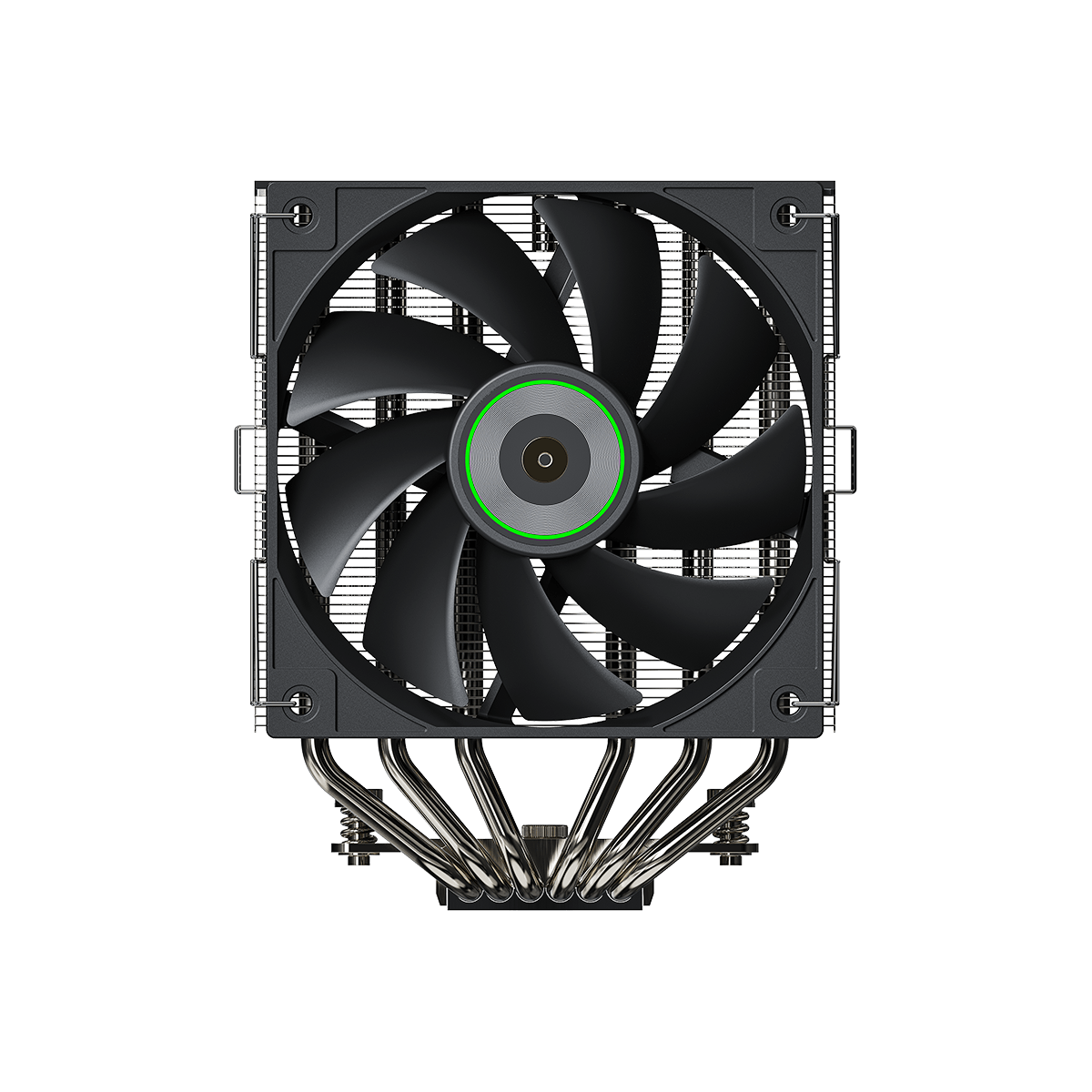

Navigator AX620
• Featuring up to 275W
• Zipper fins soldering with Heat pipes

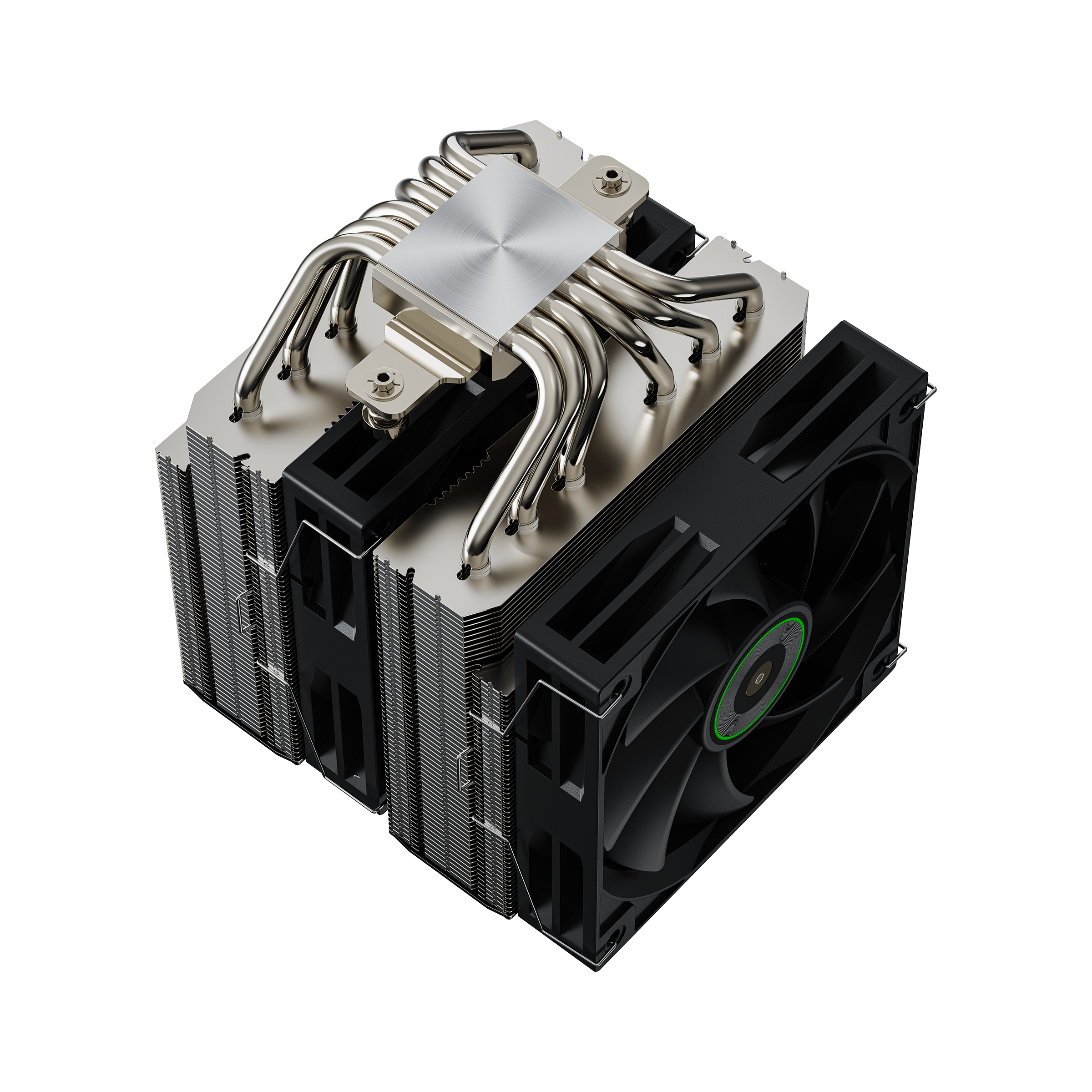

• Copper base soldering with Heat pipes

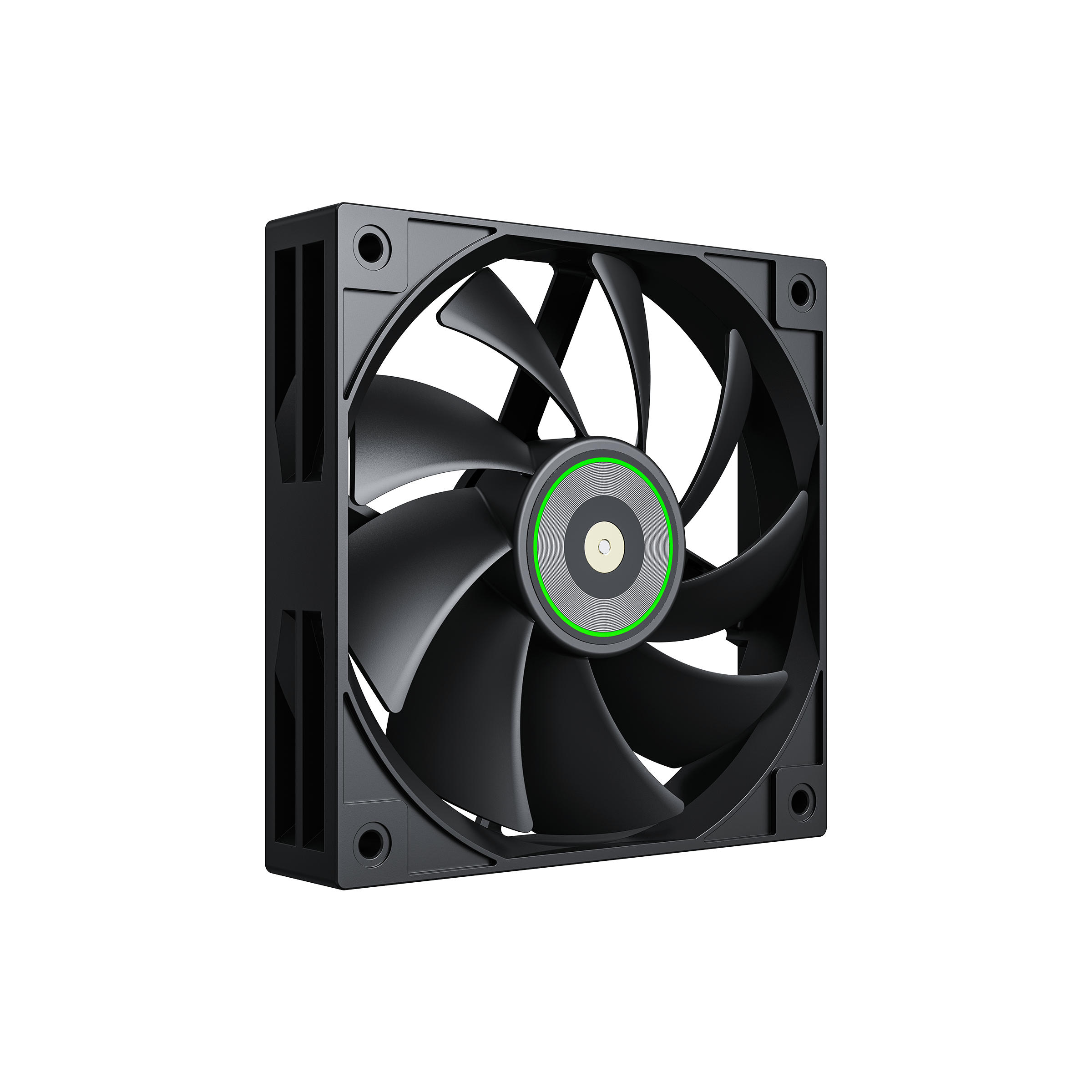

• Dual FDB FAN with metal bearing shell

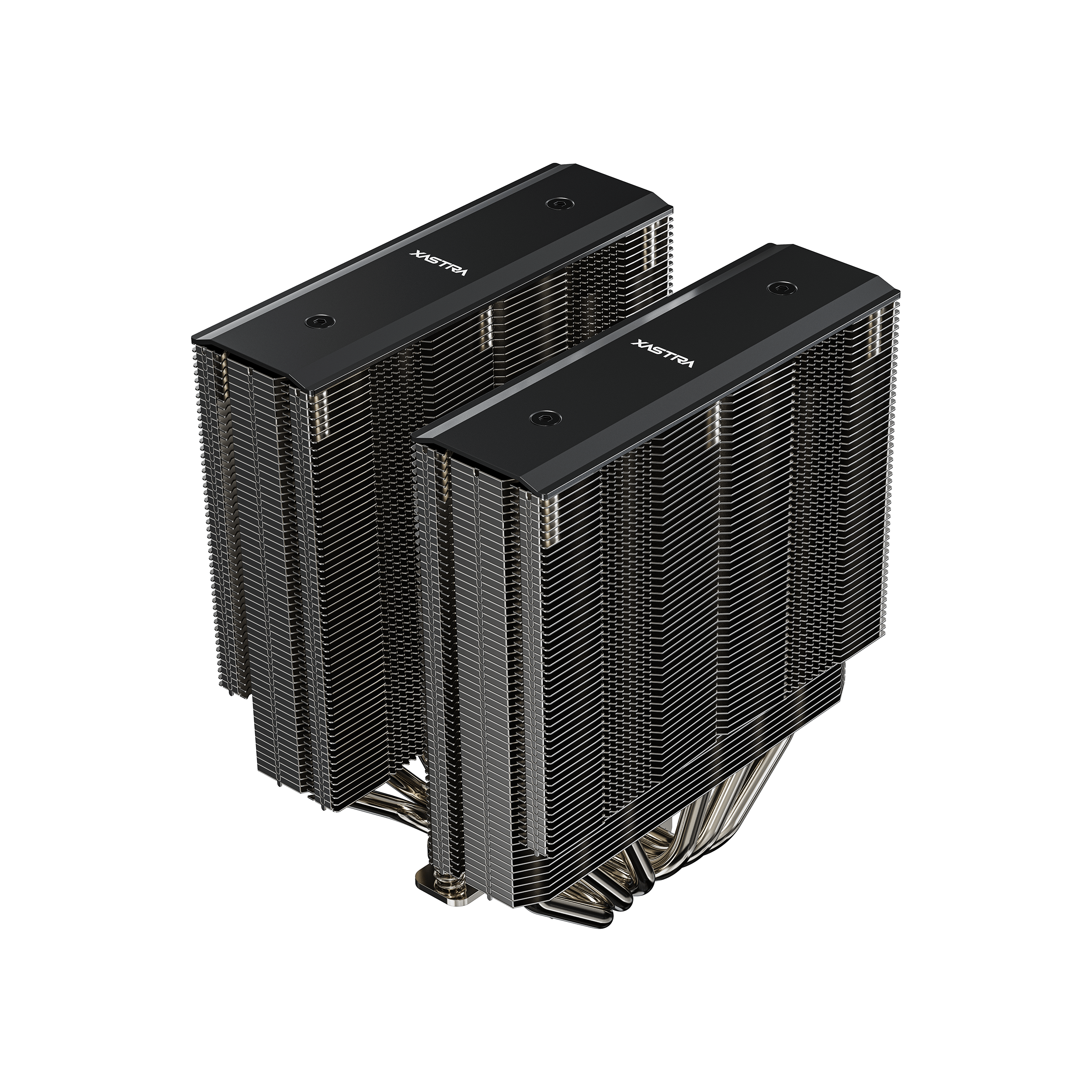

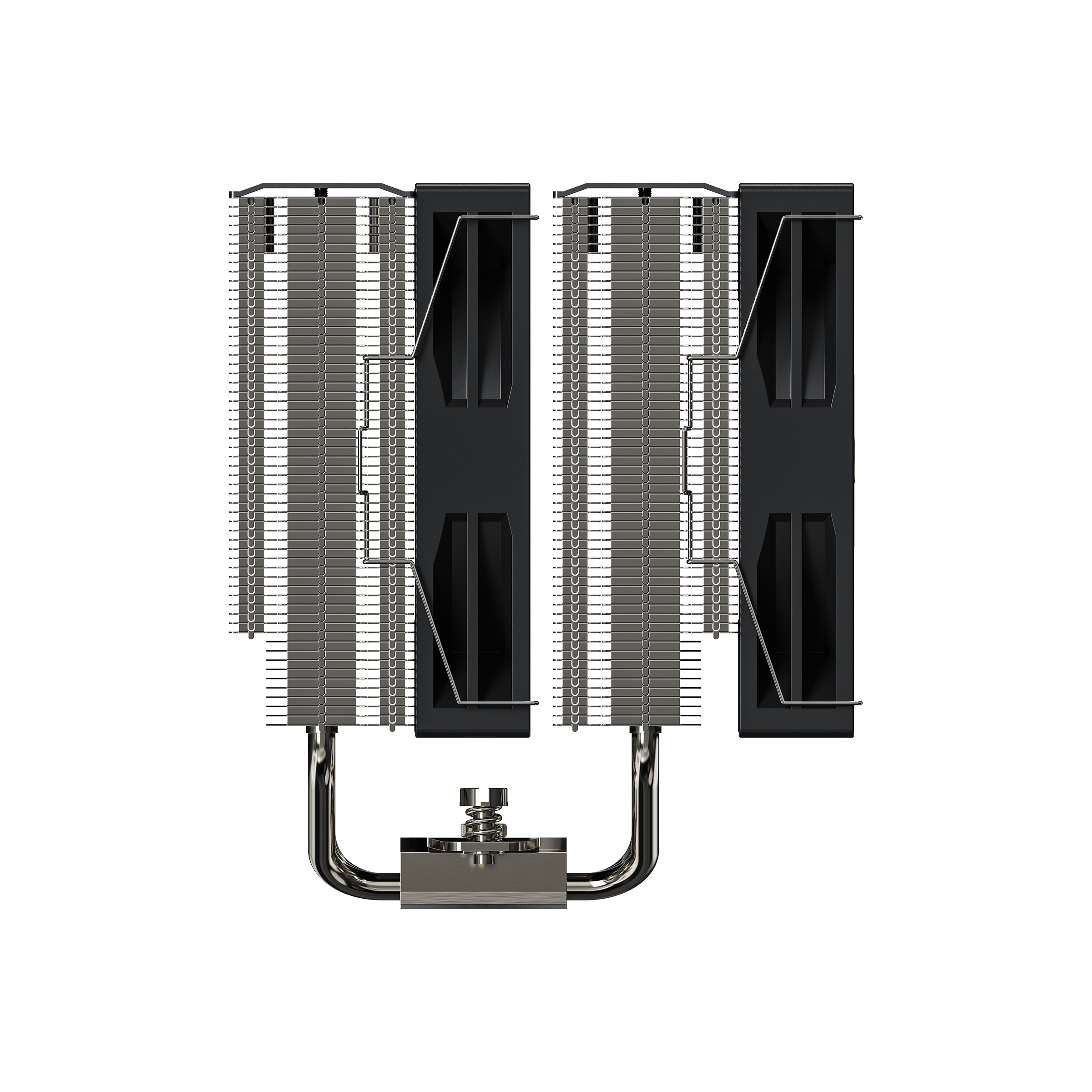

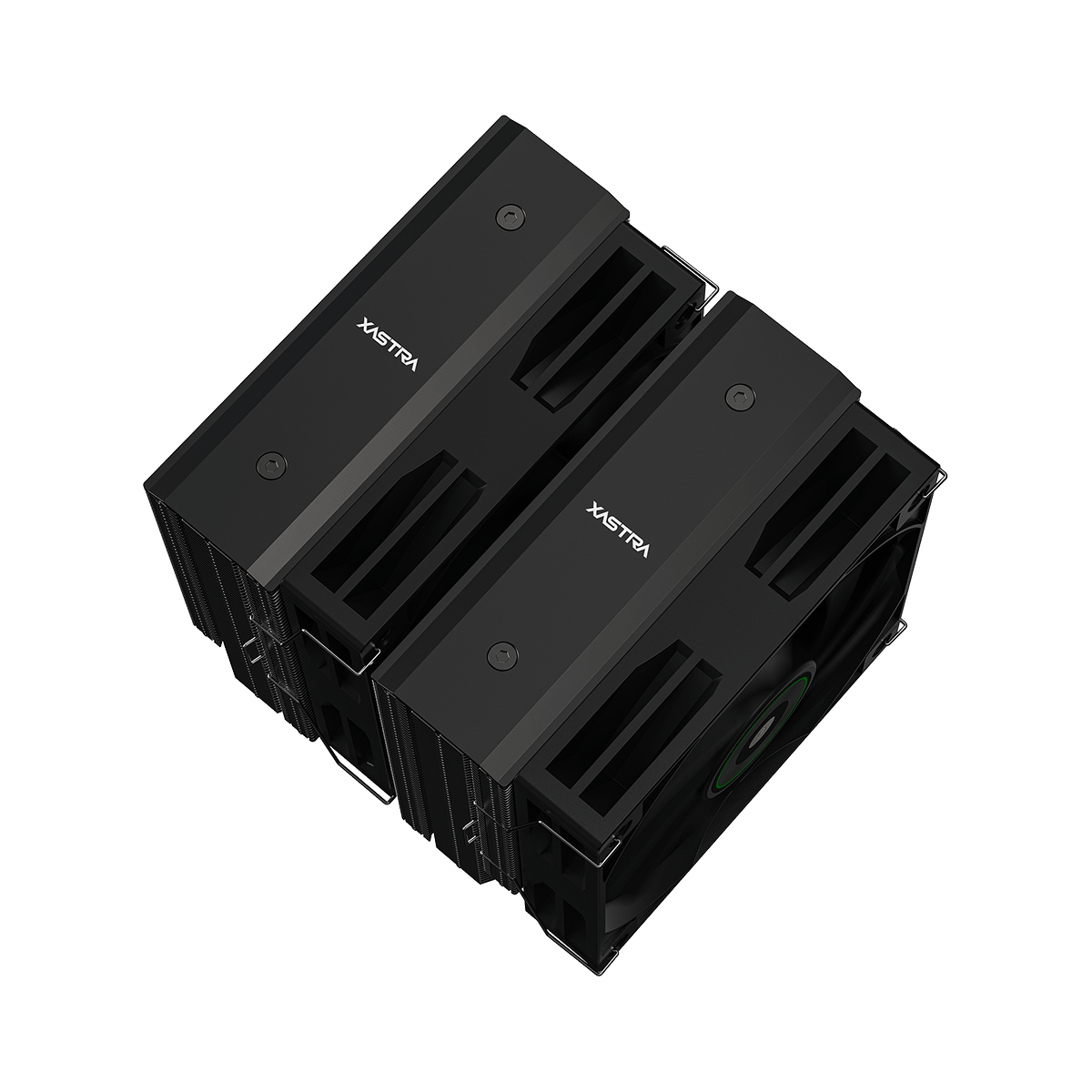

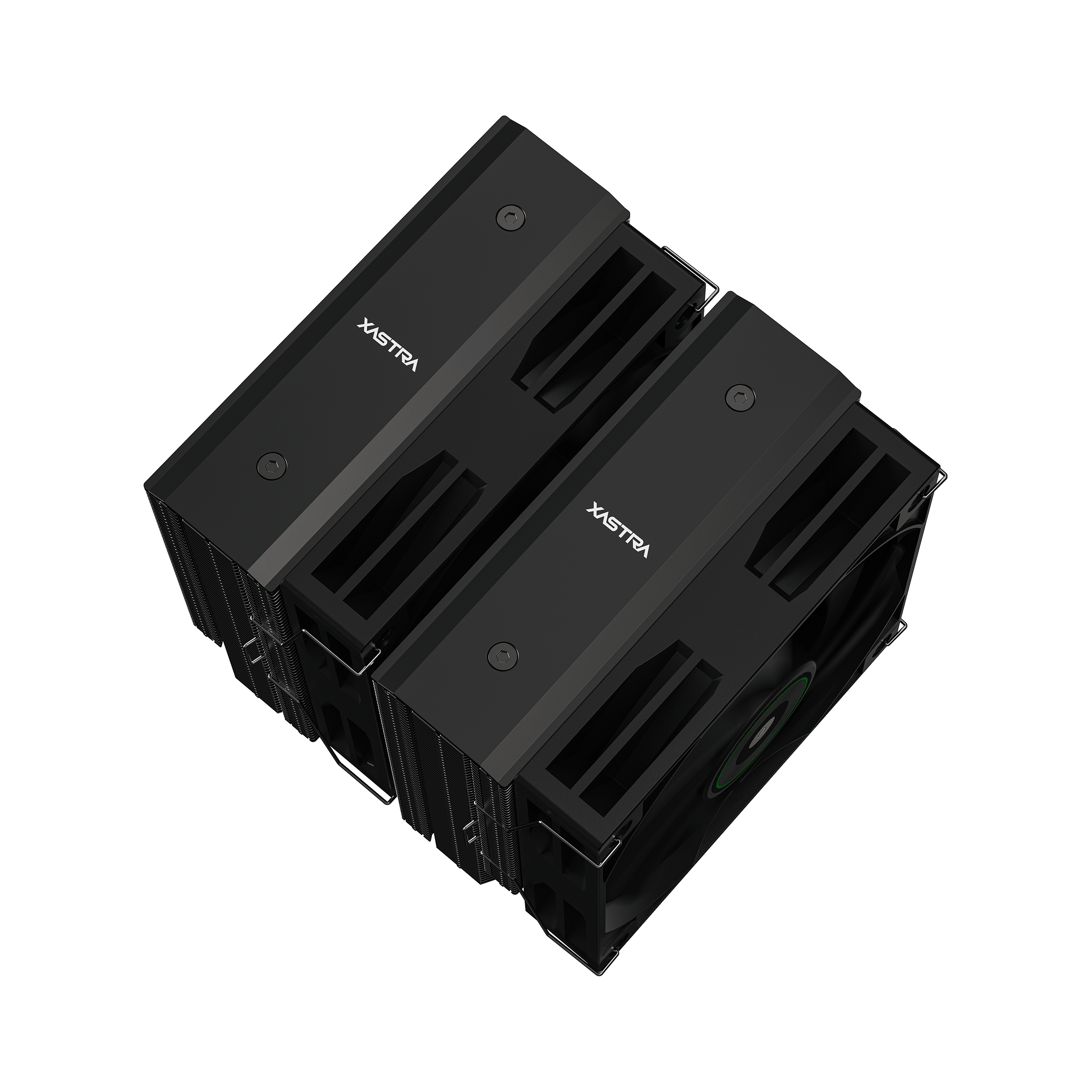

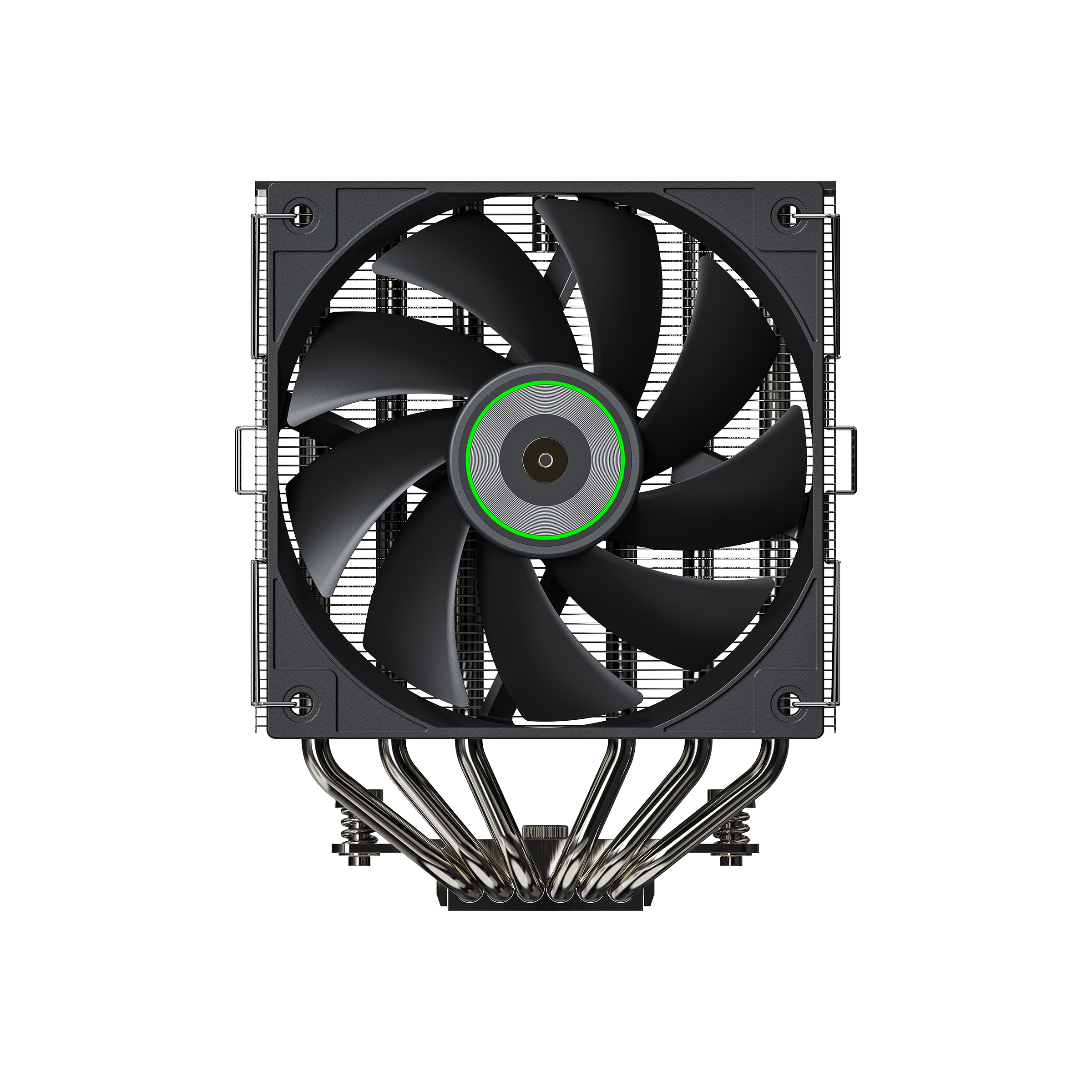

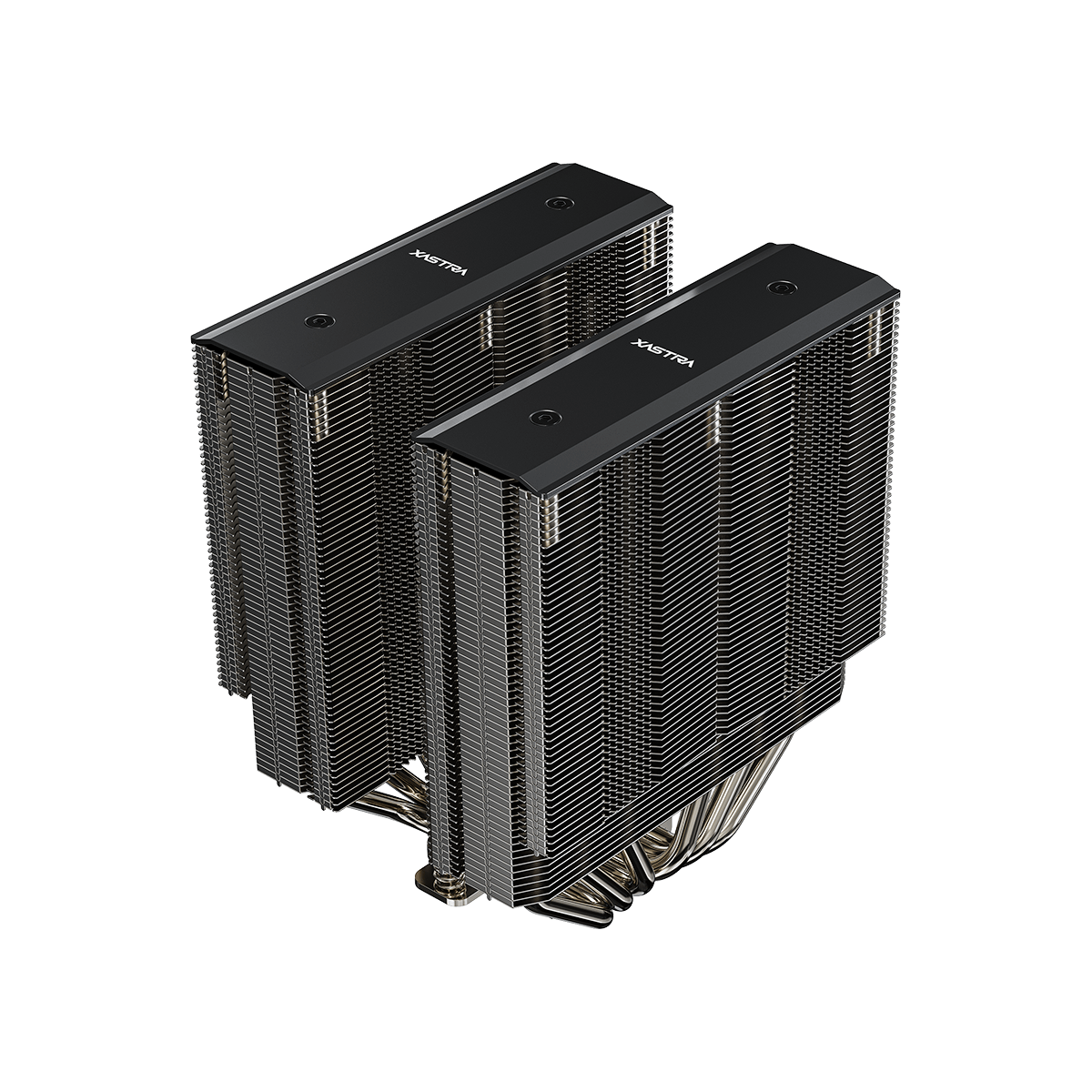

Gallery
Specifications
| Model | AX620 |
| Socket compatibility(Intel) | Intel LGA1851/1700/1200/115X |
| Socket compatibility(AMD) | AMD AM5/AM4 |
| Product dimensions | 125x135x157mm |
| Heatsink dimensions | 125x110x157mm |
| Heatpipes | Φ6mmx6 |
| Bearing Type | FDB bearing |
| Number of fans | 2 |
| Fan Dimensions | 120x120x25mm |
| Fan Speed | 600~2000RPM±10% |
| Fan Airflow | 85.5CFM |
| Fan Air Pressure | 2.5mmH2O |
| Fan Noise | ≤ 32.9dB(A) |
| Fan Connector | 4-pin PWM |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25A±10% |
| Fan Power Consumption | 3W |
